Steps 41 - 75

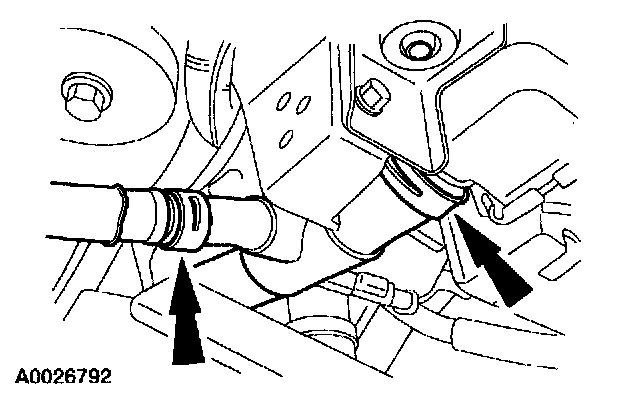

41. Disconnect the lower radiator hose from the radiator and degas bottle supply hose.





42. Disconnect the transmission oil cooler hose.





43. Disconnect the wire harness electrical connector.





44. Disconnect the auxiliary oil cooler assembly.
- Disconnect the transmission oil cooler hose, if equipped.
- Disconnect the power steering return hose.





45. Remove the oil pan drain plug and drain the engine oil.





46. Remove the starter motor electrical connector cover.

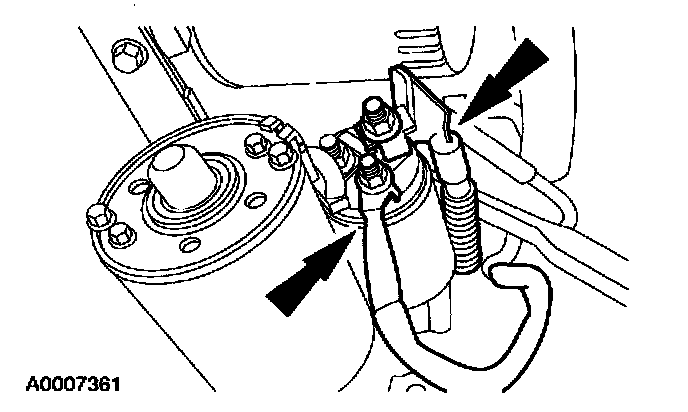

47. Disconnect the starter motor electrical connectors.
- Remove the two nuts.

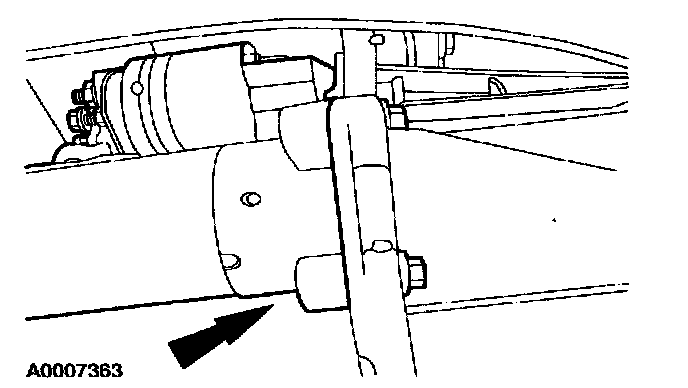

48. Remove the starter motor.
- Remove the two bolts.





49. Remove the engine rear plate.
- Remove the bolt.





50. Remove the four torque converter nuts.





51. Disconnect the LH and RH stabilizer links from the stabilizer bar.
- Remove the nuts.





52. Separate the LH and RH lower control arms from the steering knuckles.
- Remove the nuts.





53. Separate the LH and RH tie rod ends from the steering knuckles.
- Remove the nuts.

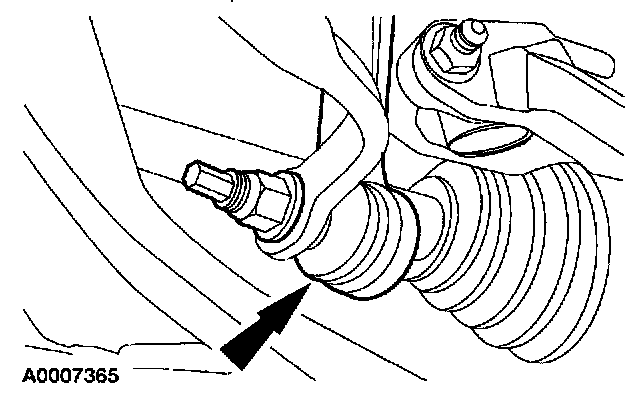

54. Separate the LH and RH half shafts from the steering knuckles.
- Remove the nuts.





55. Position the special tool.

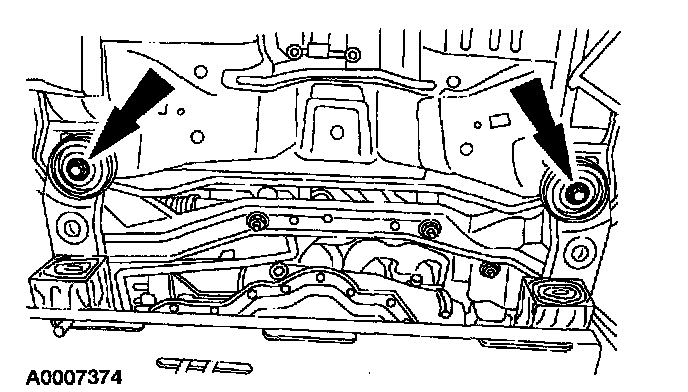

56. Remove the four front subframe-to-body bolts.





57. Using the special tool, lower the engine, transmission and subframe assembly out of the vehicle.

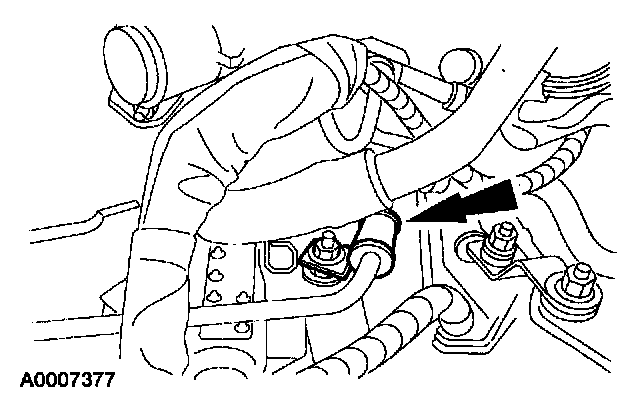

58. Remove the power steering pressure line bracket.
- Remove the nut.





59. Remove the power steering pressure line bracket.
- Remove the nut.

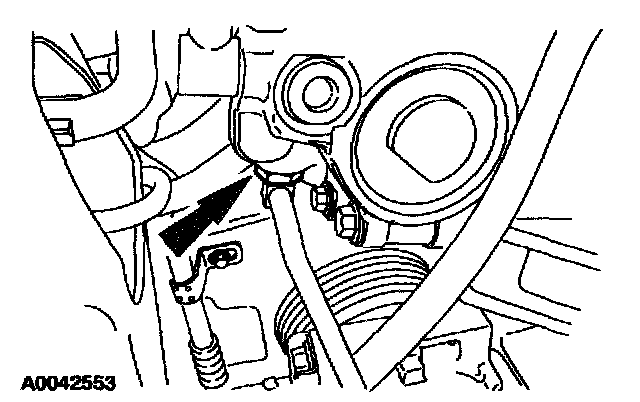

60. Disconnect the power steering pressure line from the power steering pump.





61. Disconnect the spark plug wires from the ignition coil.





62. Disconnect the ignition coil electrical connector.





63. Remove the ignition coil.
- Remove the bolts.

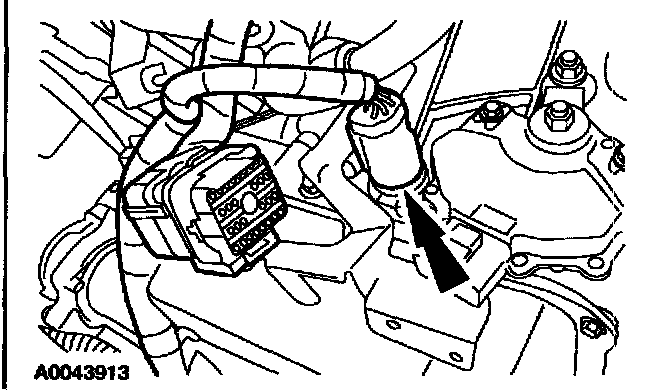

64. Disconnect the Output Speed Sensor (OSS) and position the wire harness aside.





65. Disconnect the Turbine Shaft Speed (TSS) sensor electrical connector.





66. Disconnect the transaxle harness electrical connector and position the wire harness aside.

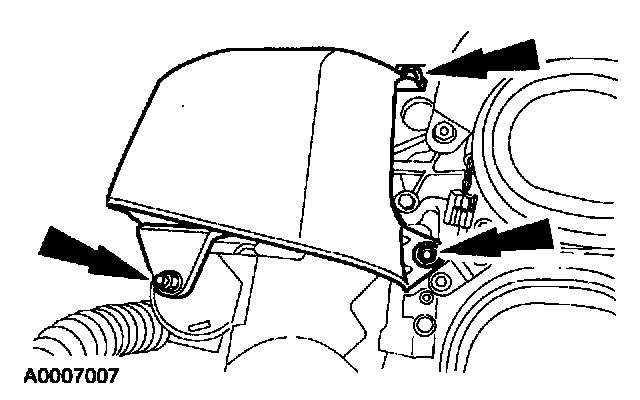

67. Remove the RH catalytic converter heat shield.
- Remove one bolt.
- Remove two nuts.





68. Install the LH engine lifting eye.





69. Install the RH engine lifting eye.





70. Using the special tools, support the engine.





71. Remove the two RH engine support insulator-to-transmission bolts.

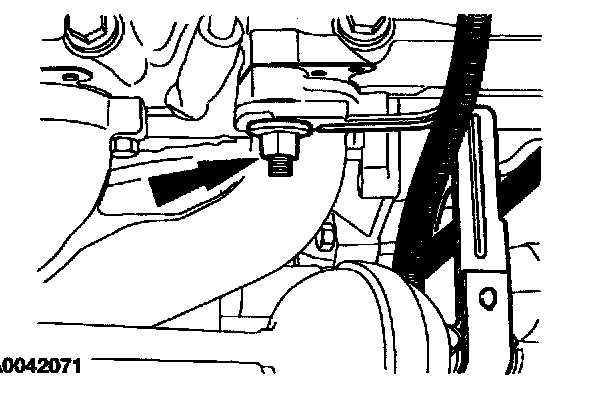

72. Remove the LH engine support insulator-to-subframe nut.

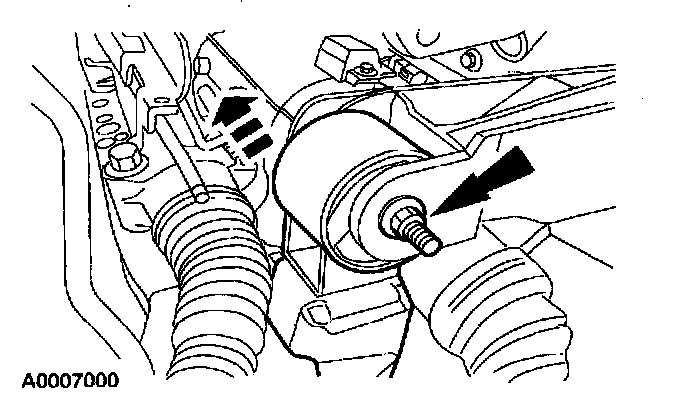

73. Remove the RH engine support insulator through bolt.





74. Remove the transmission-to-engine bolts.
- Remove five bolts.
- Remove one stud bolt.





75. Separate the engine from the transmission.
