Passive Anti-Theft System (PATS)
>>
Test E: PATS Transceiver Module Signal Is Not Received
Test E: PATS Transceiver Module Signal Is Not Received

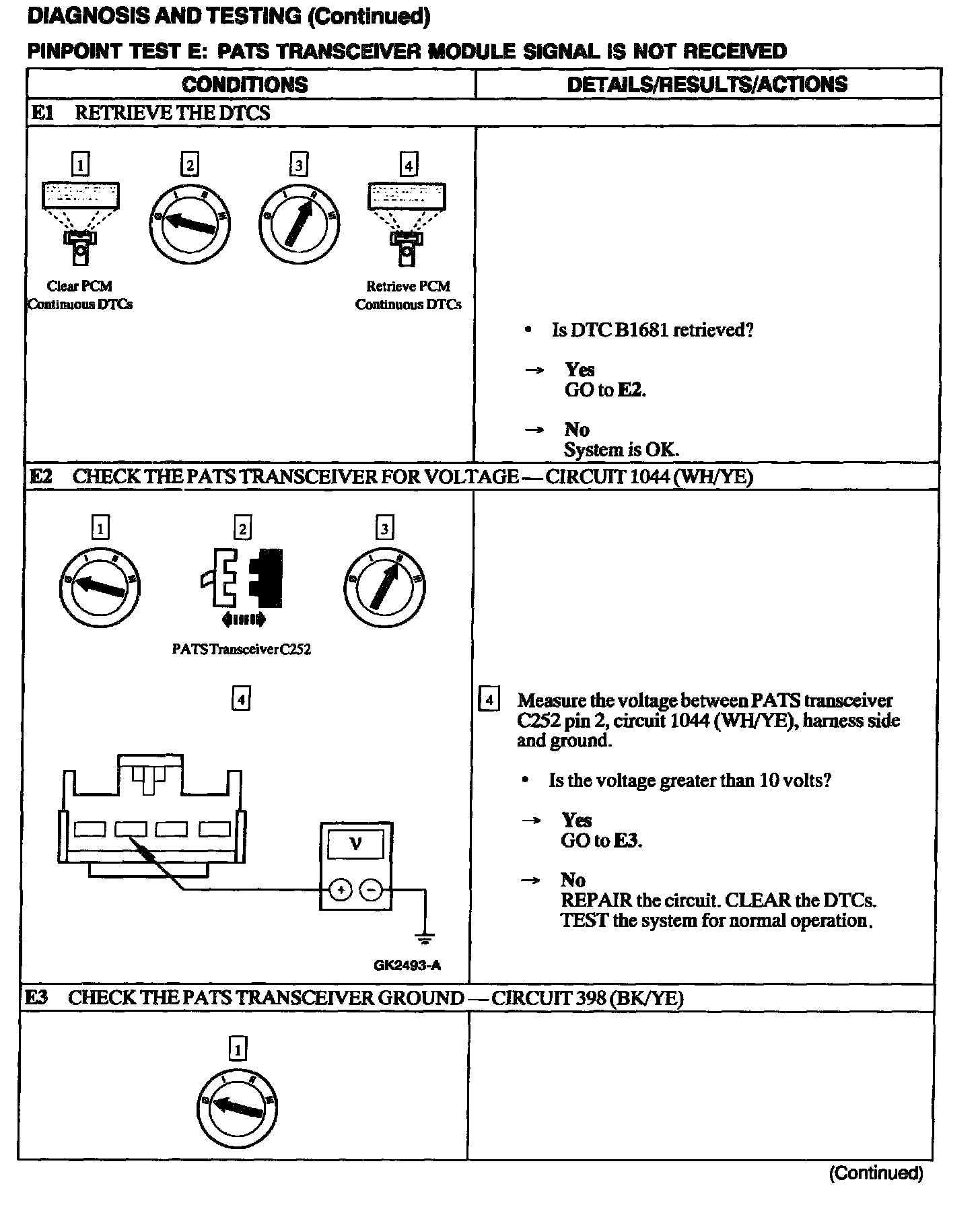

E1 - E3:

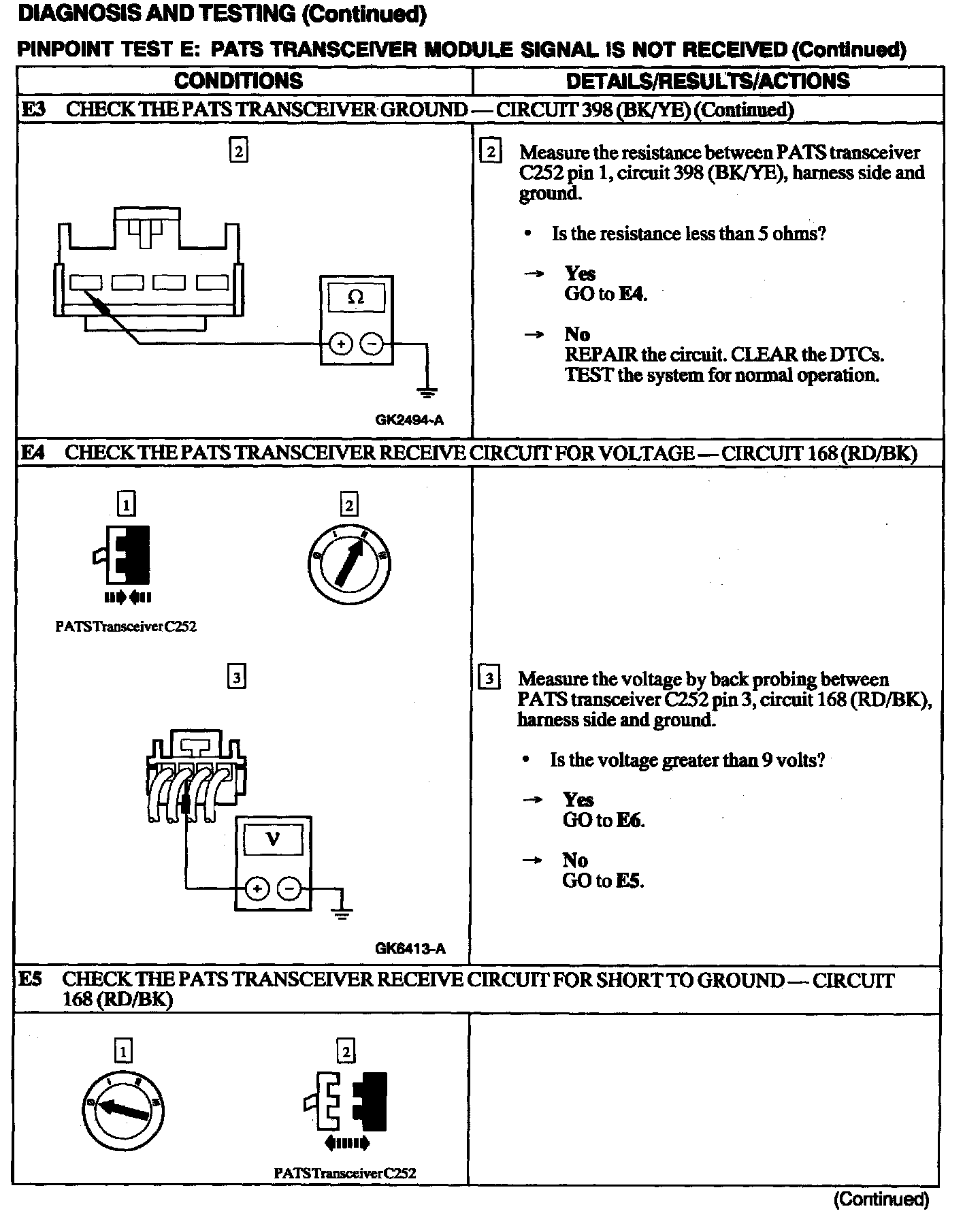

E3 - E5:

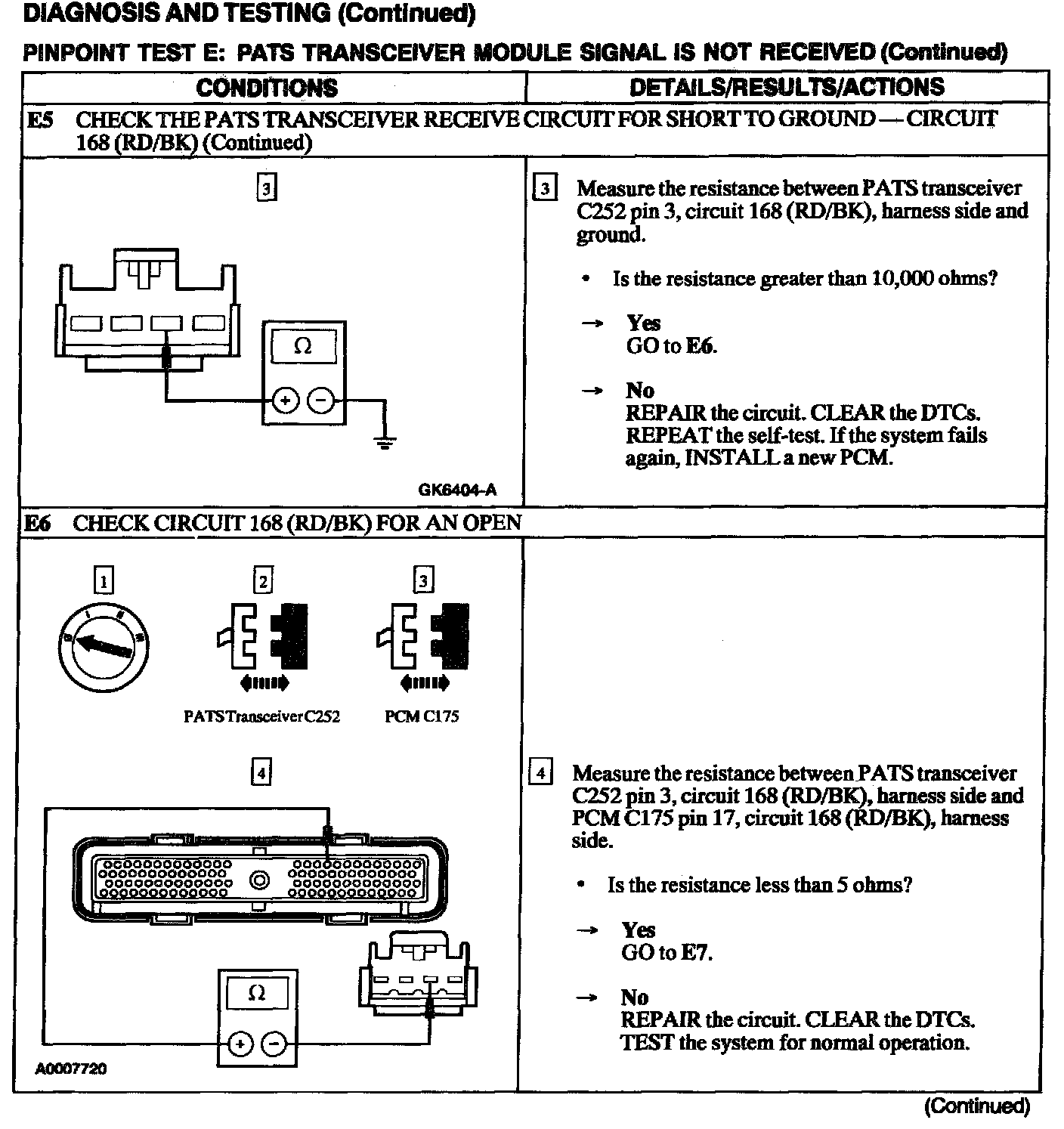

E5 - E6:

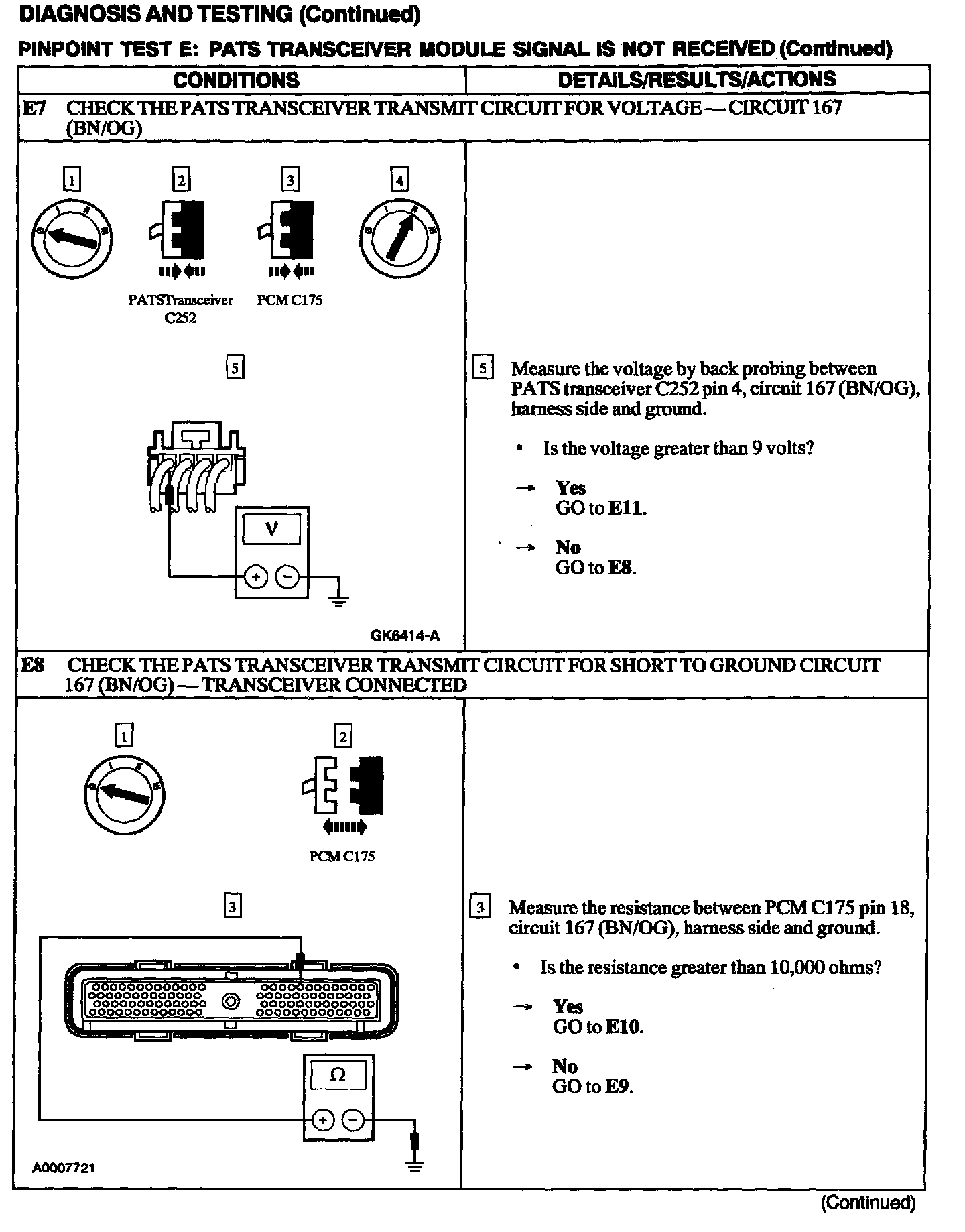

E7 - E8:

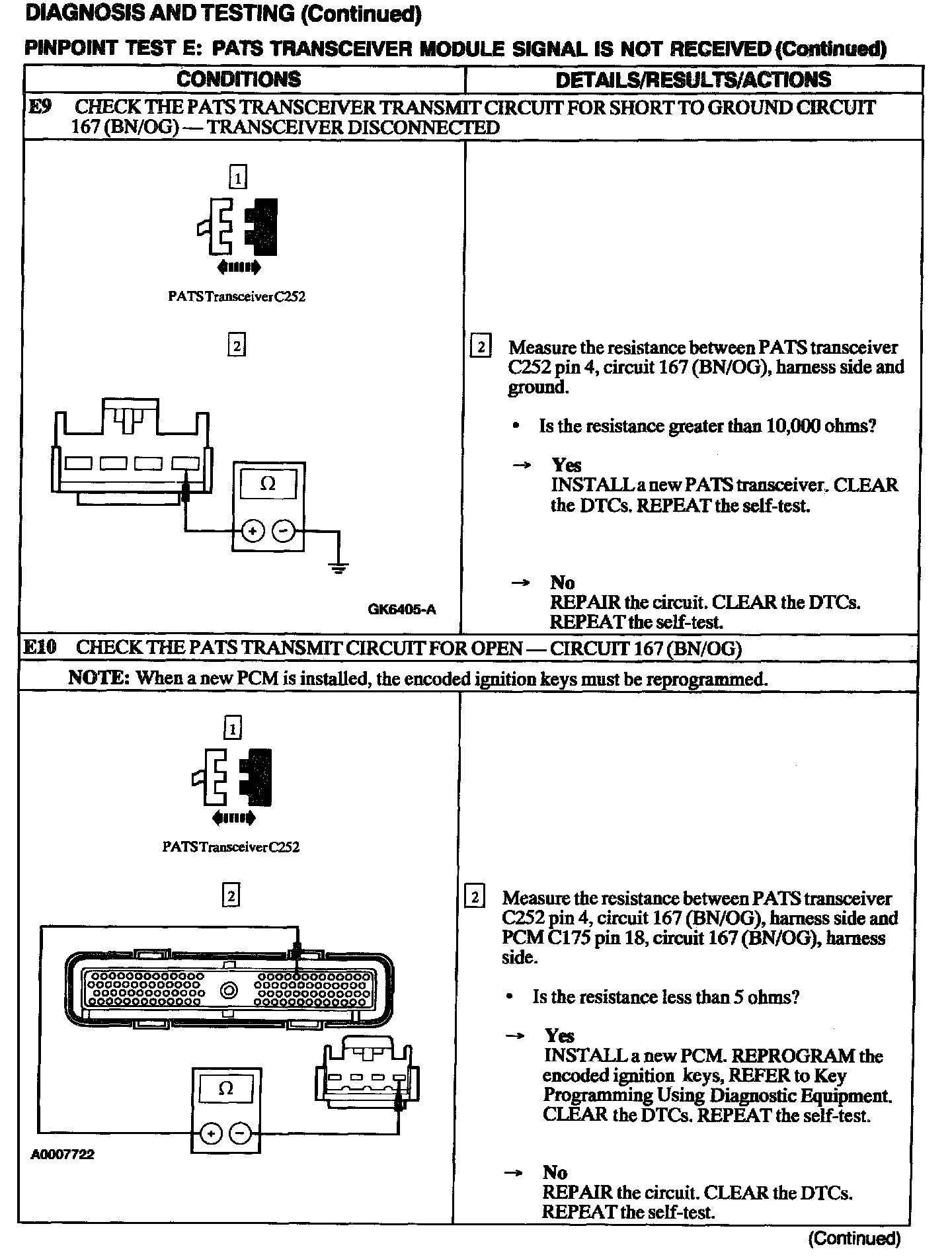

E9 - E10:

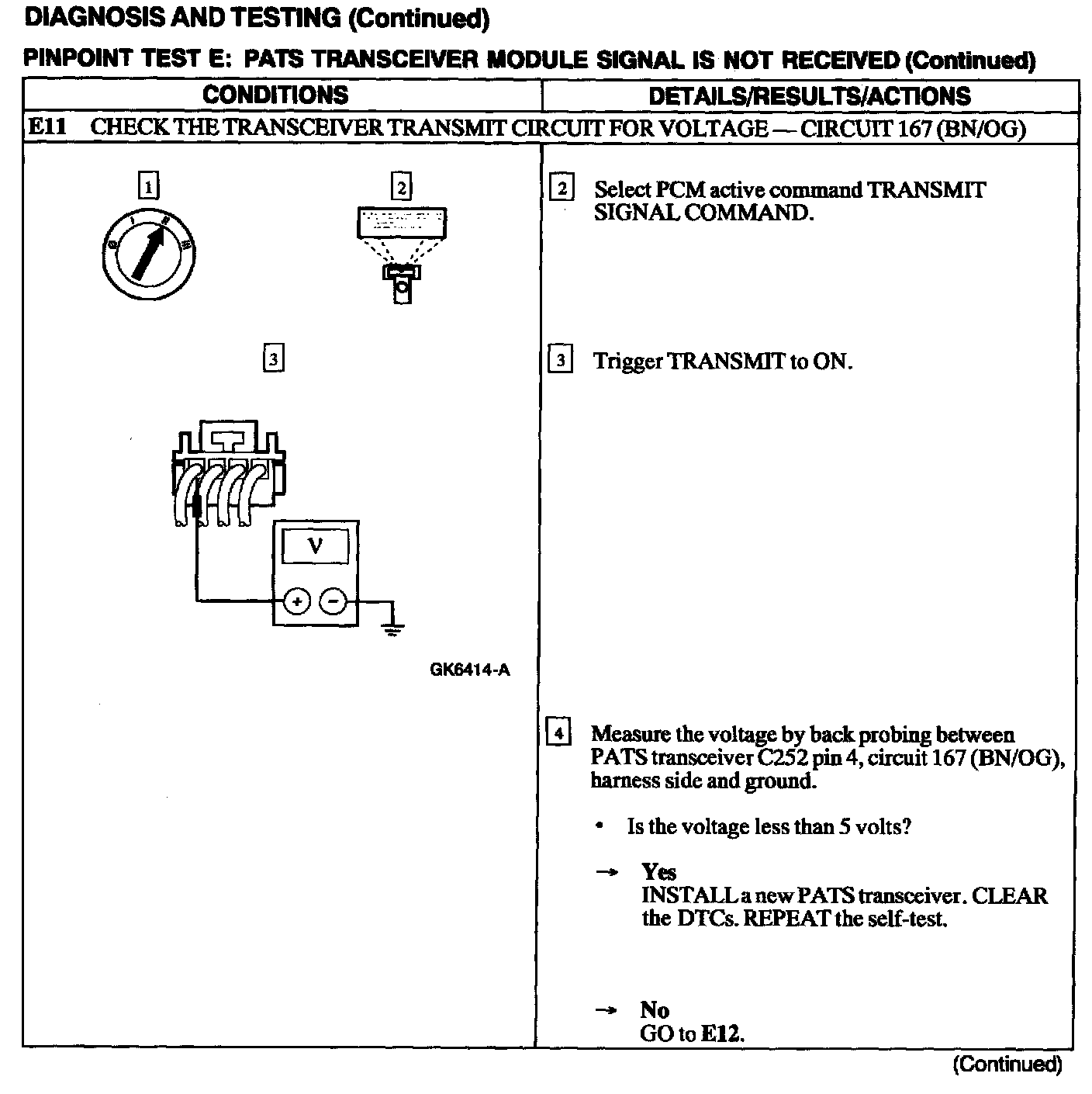

E11:

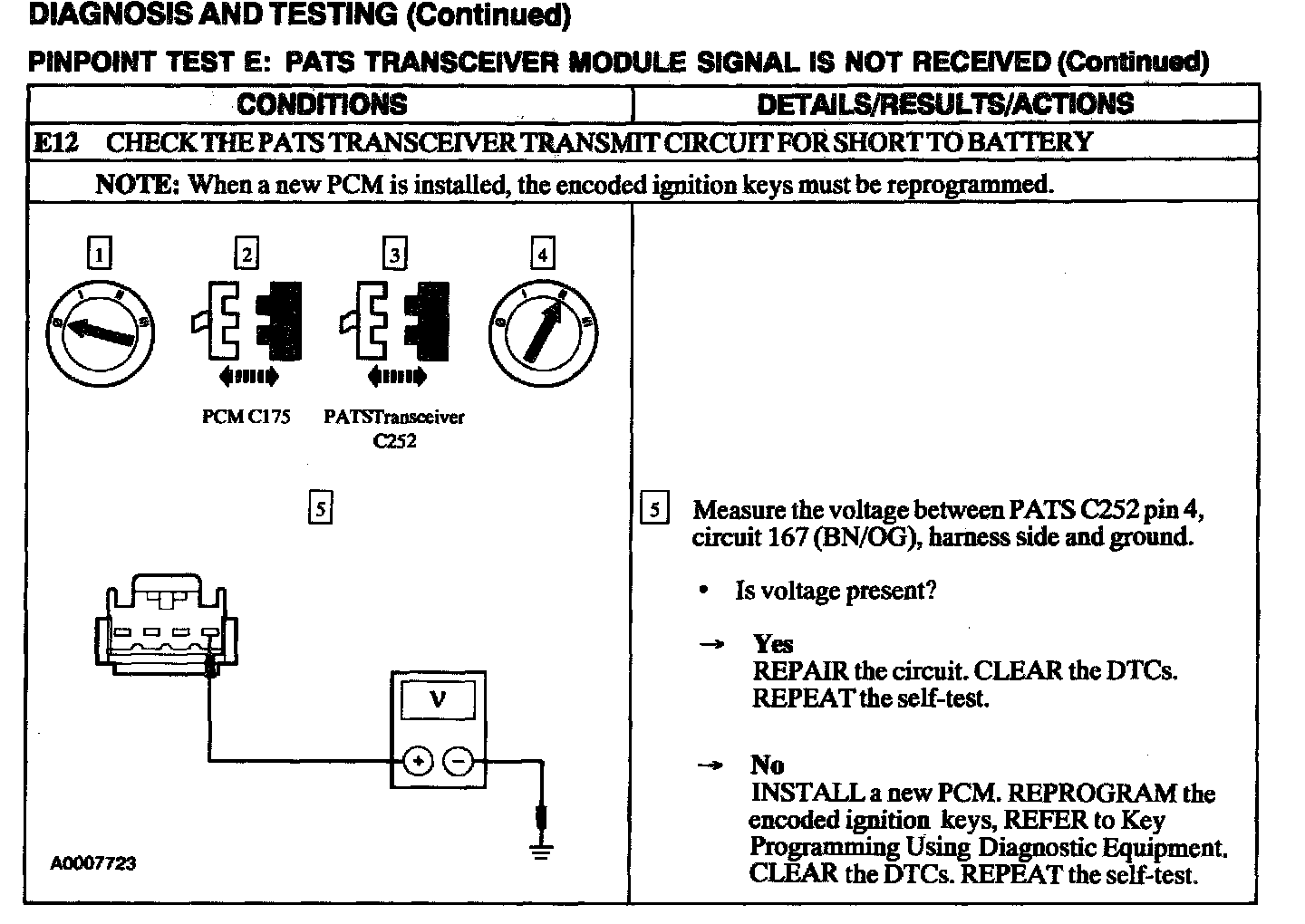

E12:
