4F50N

Transaxle Support Insulator-3.0L 4V

Removal

NOTE: If the transaxle mount is not integral to the side pan, refer to Transaxle Support Insulator.

1. Raise the vehicle.
2. Remove the LH wheel and tire.





3. Place the high lift transmission jack under the transaxle.





4. Remove the engine and transaxle upper support, insulator nut.





5. Remove the engine and transaxle upper support bucket bolts and bucket.





6. Remove the engine and transaxle upper support insulator bolts and insulator.

Installation

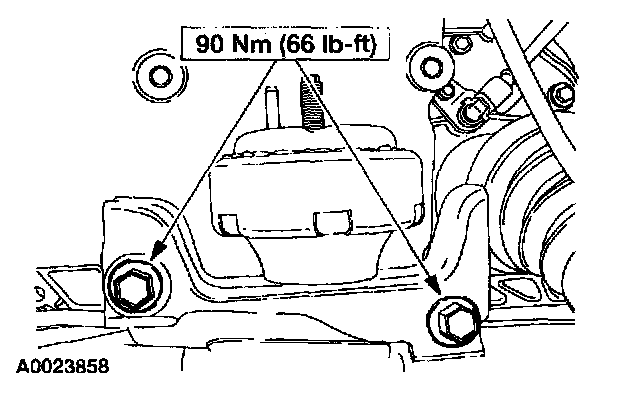

1. Install the engine and transaxle support insulator and bolts.

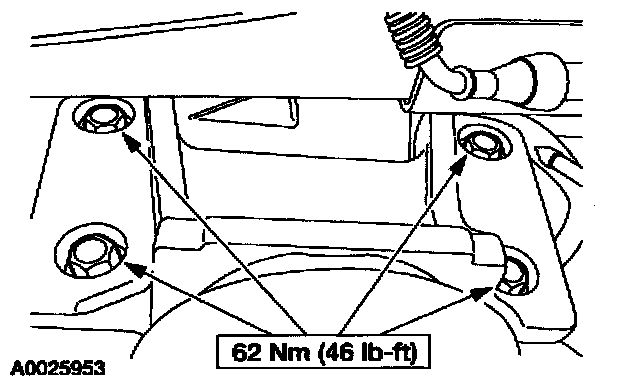

2. Install the engine and transaxle upper support bracket bolts and bracket.

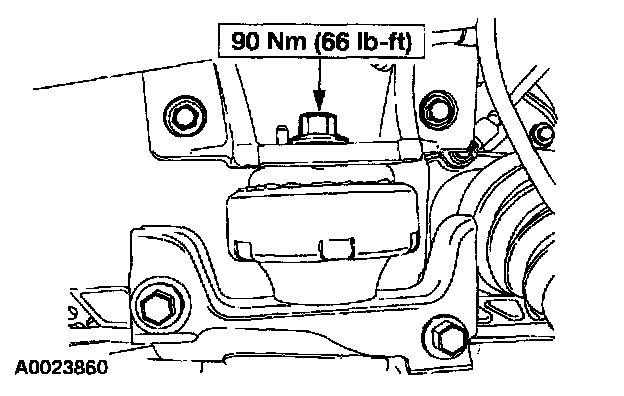

3. Install the engine and transaxle upper support insulator nut.
4. Remove the high lift transmission jack.
5. Install the LH wheel and tire.
6. Lower the vehicle.
