Transaxle Connector Layouts

Transaxle Connector Layouts

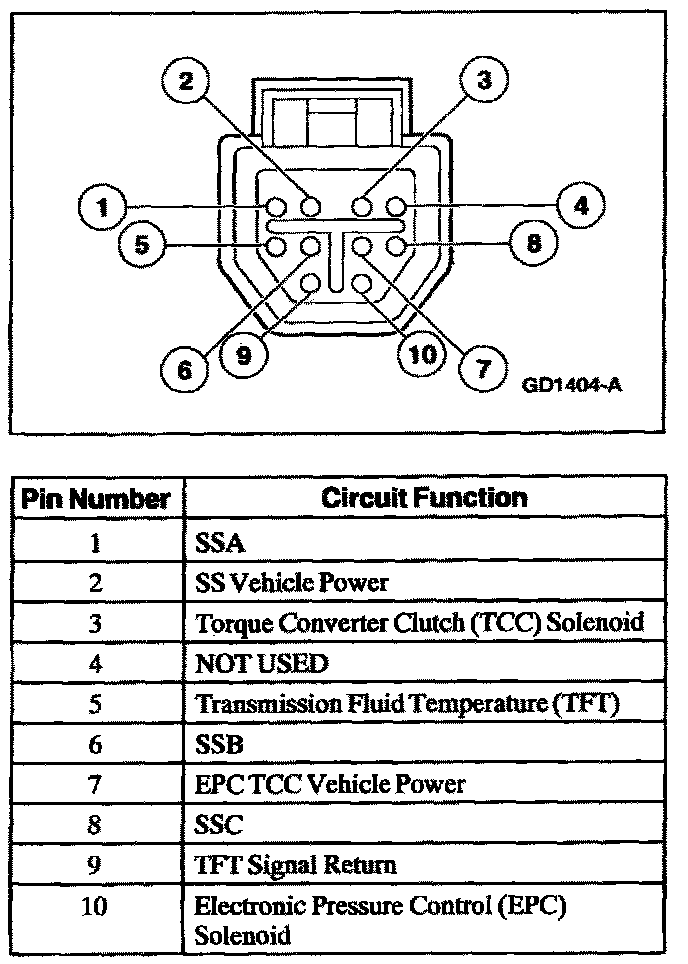

Transaxle Vehicle Harness Connector

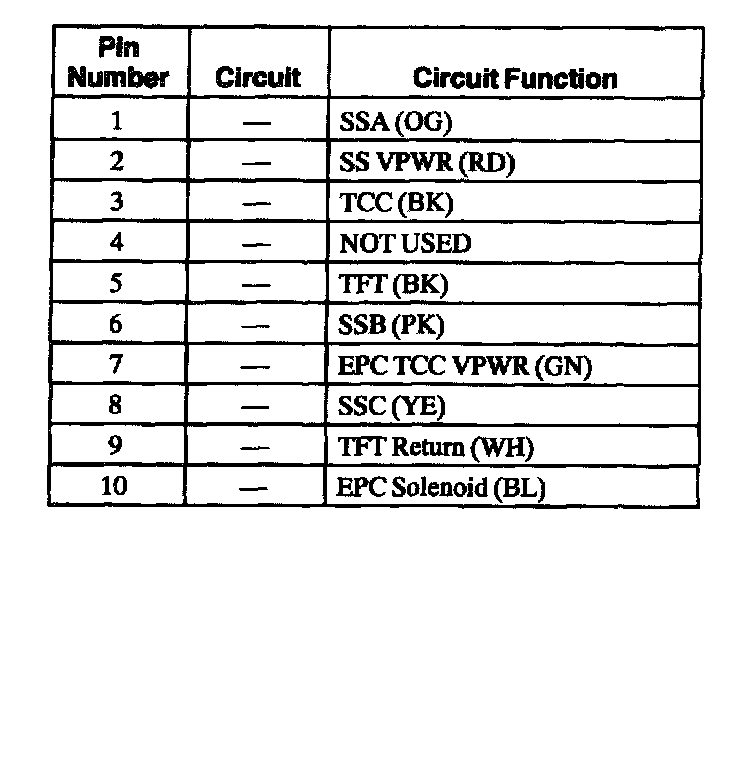

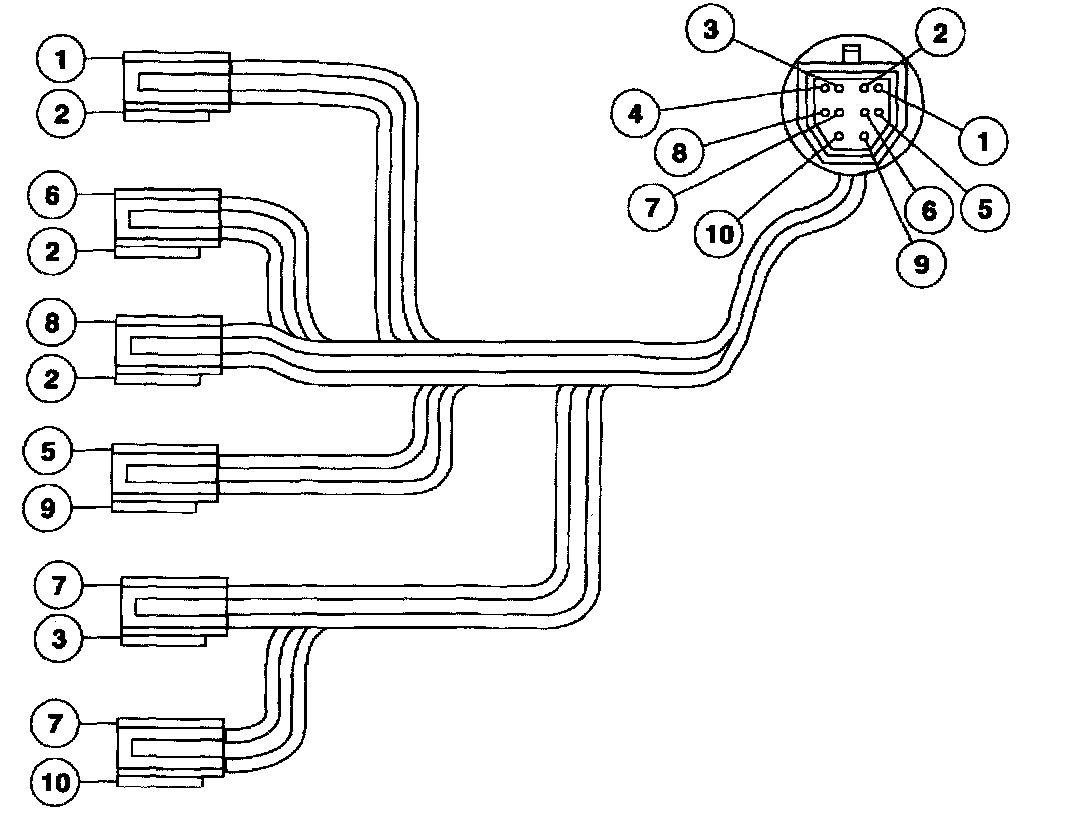

Transaxle Internal Harness Diagram

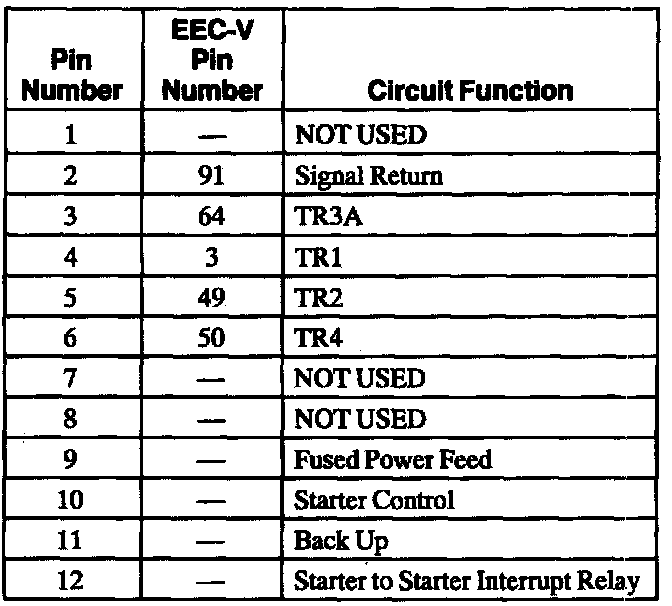

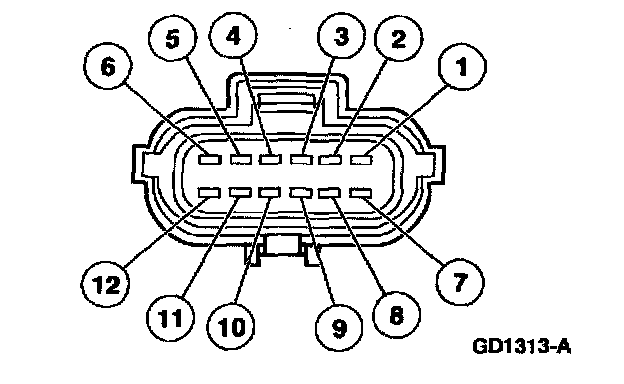

Digital Transmission Range (TR) Sensor Connector

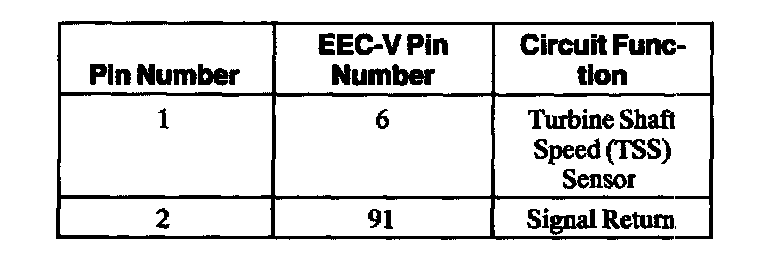

Turbine Shaft Speed (TSS) Sensor

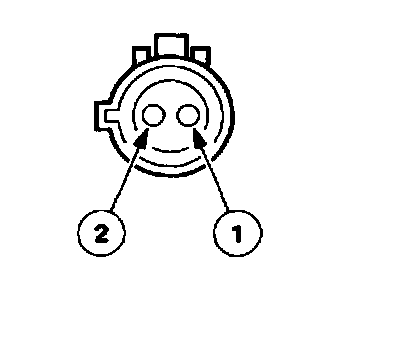

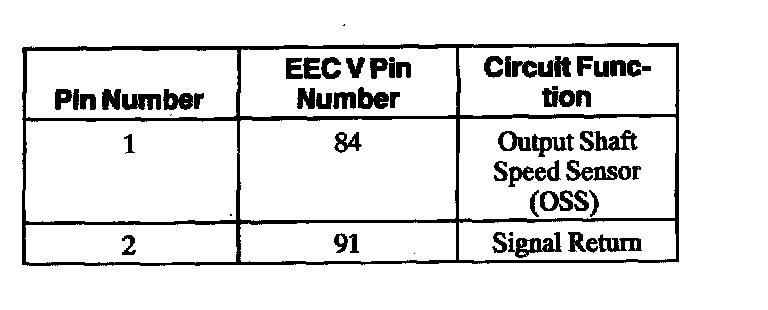

Output Shaft Speed (OSS) Sensor Connector
