Positive Crankcase Ventilation Valve: Service and Repair

REMOVAL

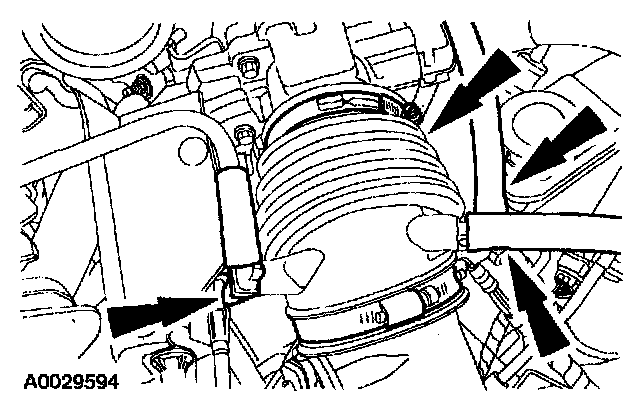

1. Remove the air cleaner outlet tube.

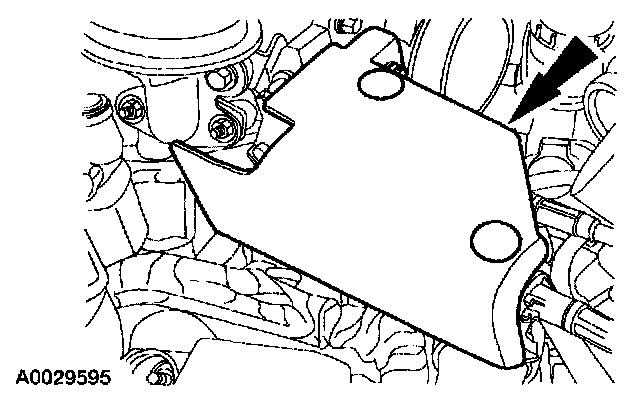

2. Remove the splash shield.

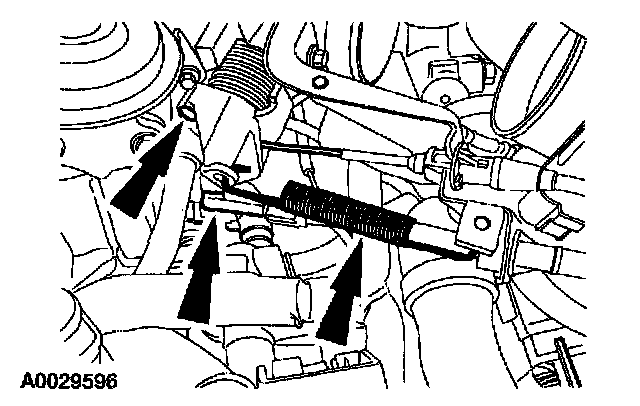

3. Remove the throttle spring. Disconnect the accelerator cable and the speed control cable, if equipped.

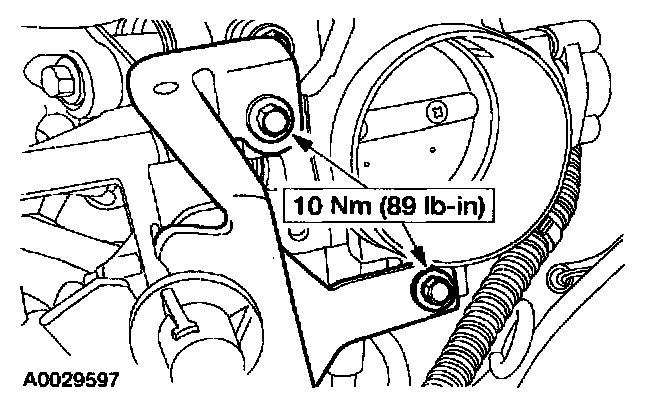

4. Remove the bolts and the throttle cable mounting bracket.

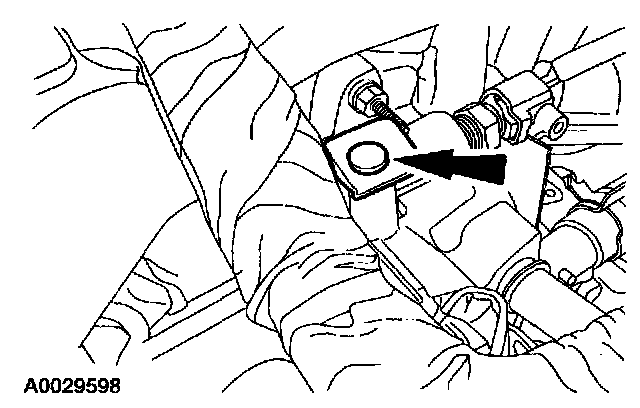

5. Remove the pushpin and position the engine wiring harness out of the way.

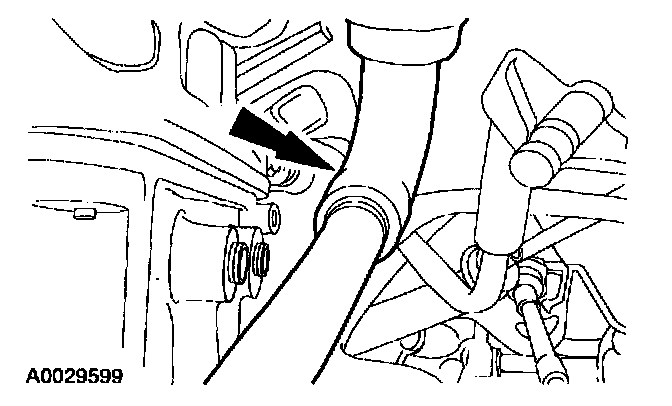

6. Disconnect the Positive Crankcase Ventilation (PCV) hose at the intake manifold and remove.

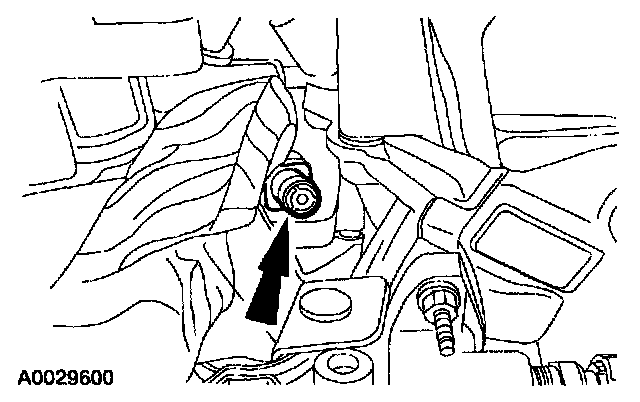

7. Remove the PCV valve by rotating the valve 180 degrees and removing it from the oil separator.

INSTALLATION
1. To install, reverse the removal procedure.
