Pressure Feedback Exhaust Sensor: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.

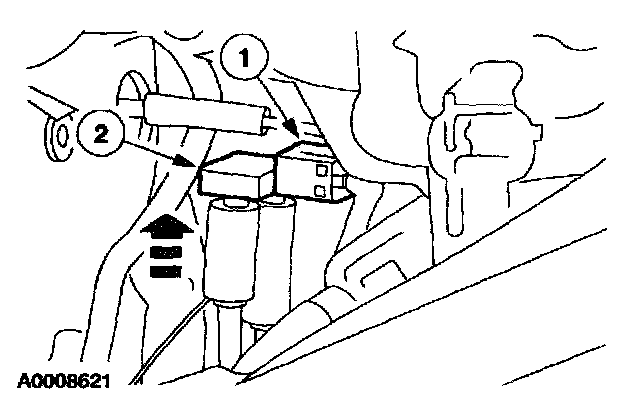

2. Remove the differential pressure feedback EGR sensor.
1 Disconnect the electrical connector.
2 Carefully remove the differential pressure feedback EGR sensor by sliding up and off the EGR tube.

INSTALLATION
1. To install, reverse the removal procedure.
