Test I: Incorrect Direction Of Air Flow From Outlet - EATC
Test I: Incorrect Direction Of Air Flow From Outlet - EATC

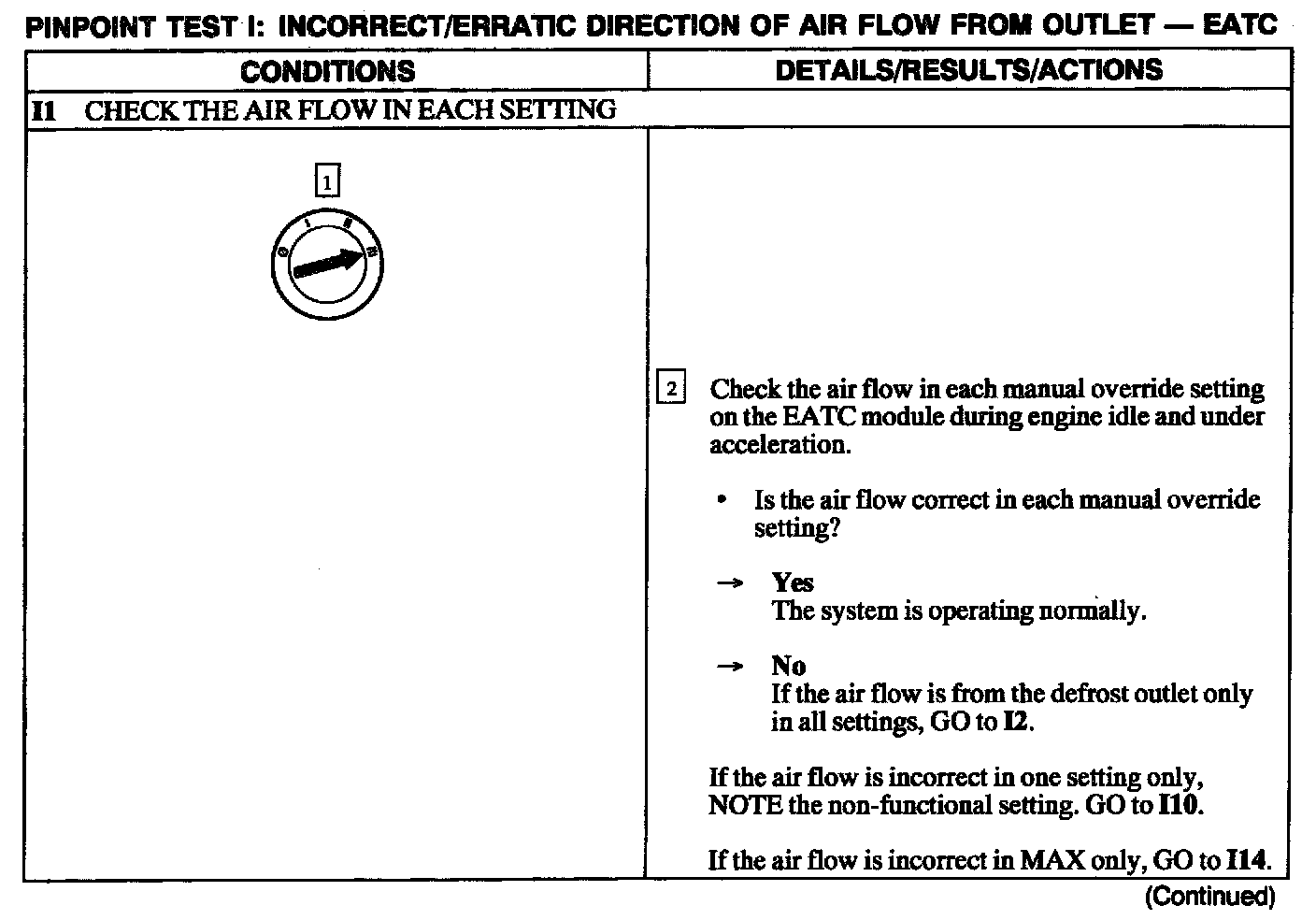

I1:

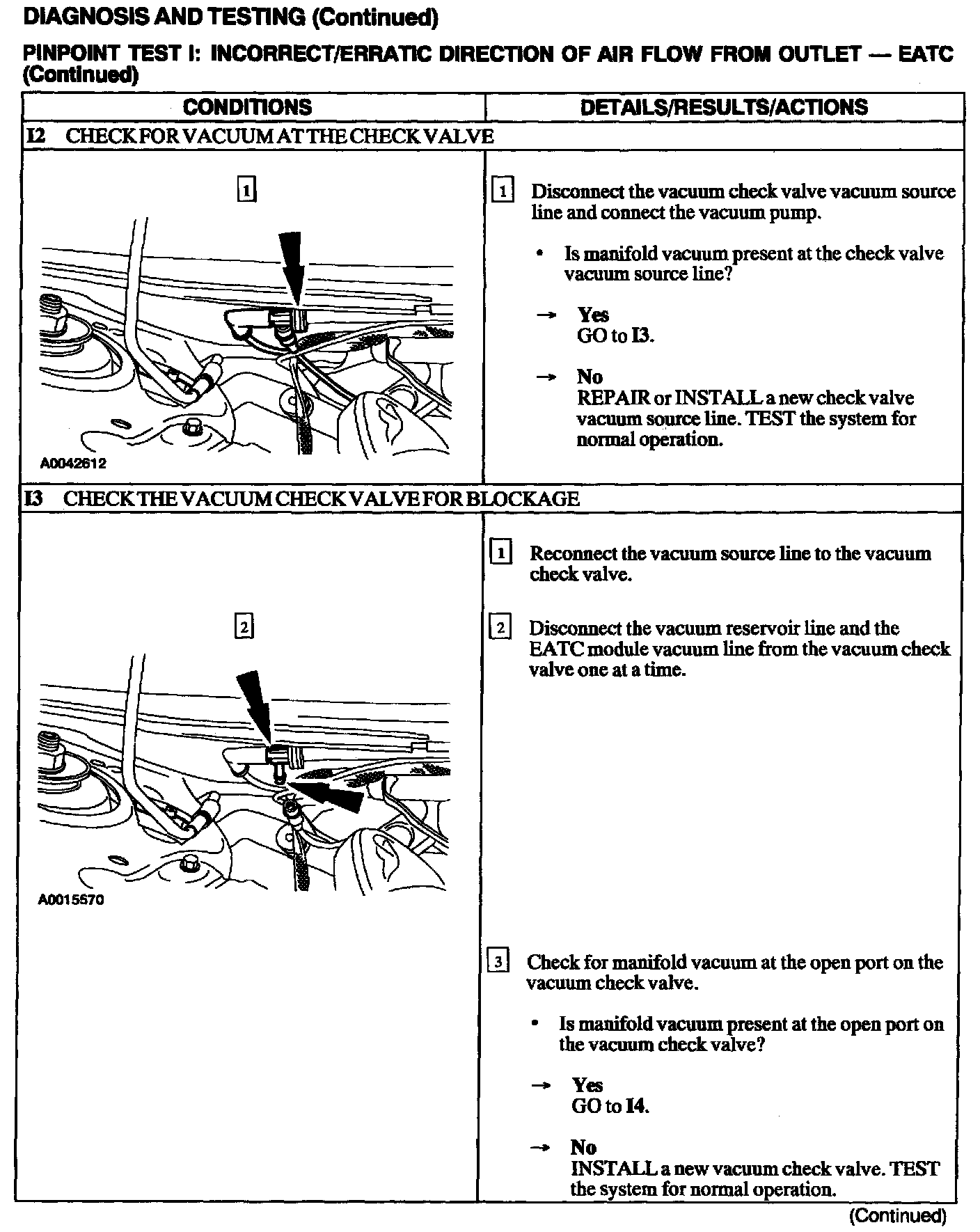

I2 - I3:

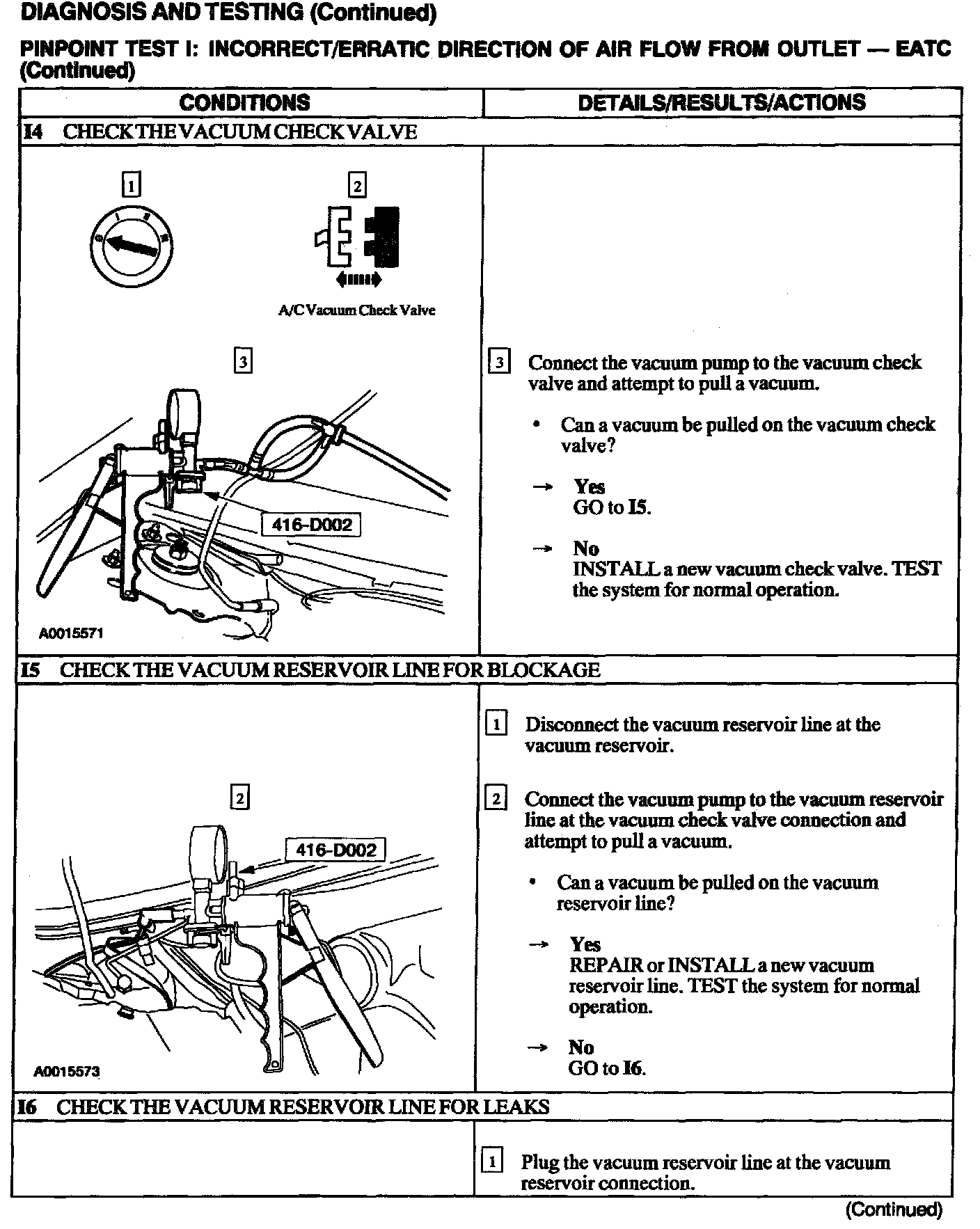

I4 - I6:

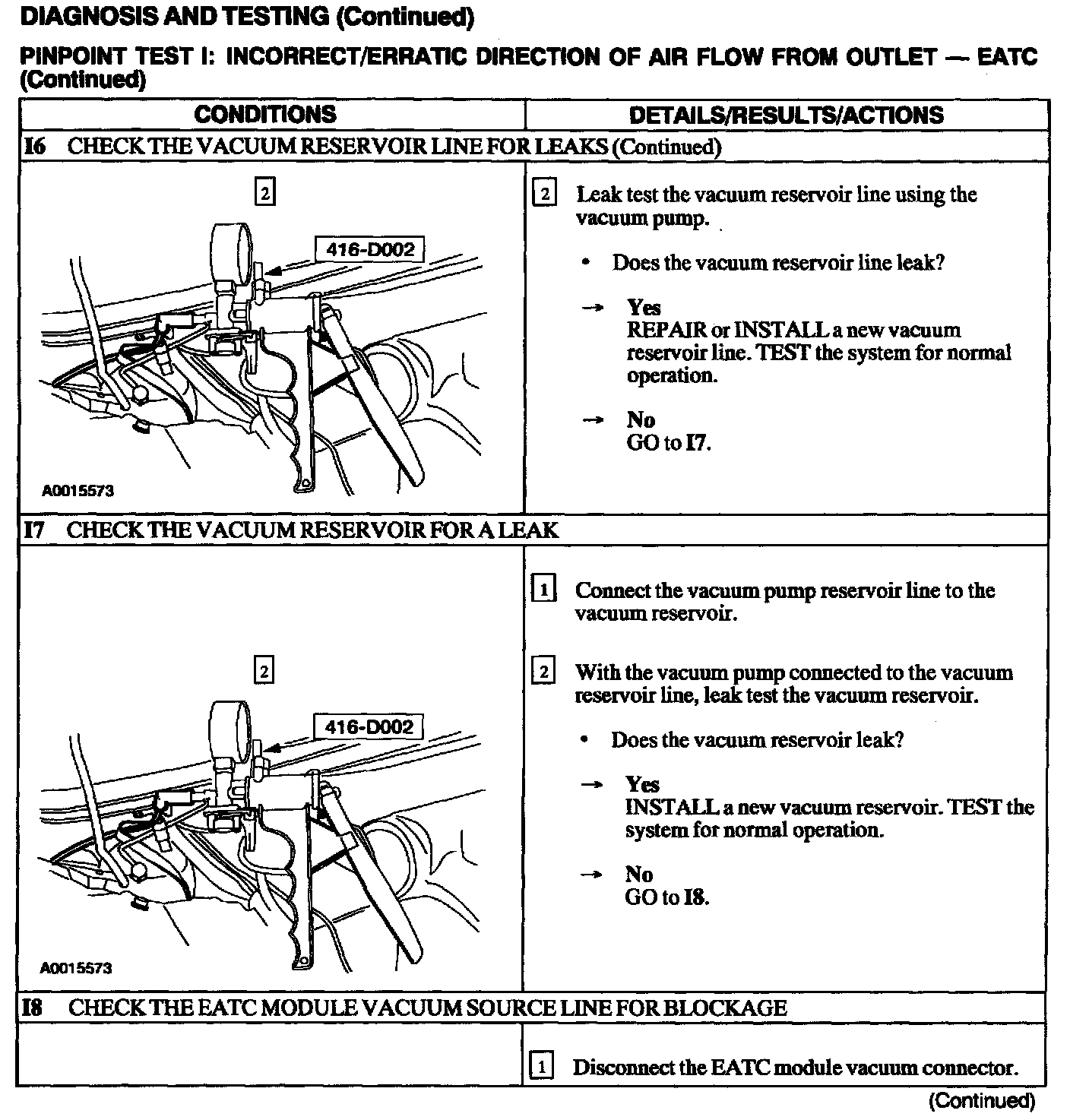

I6 - I8:

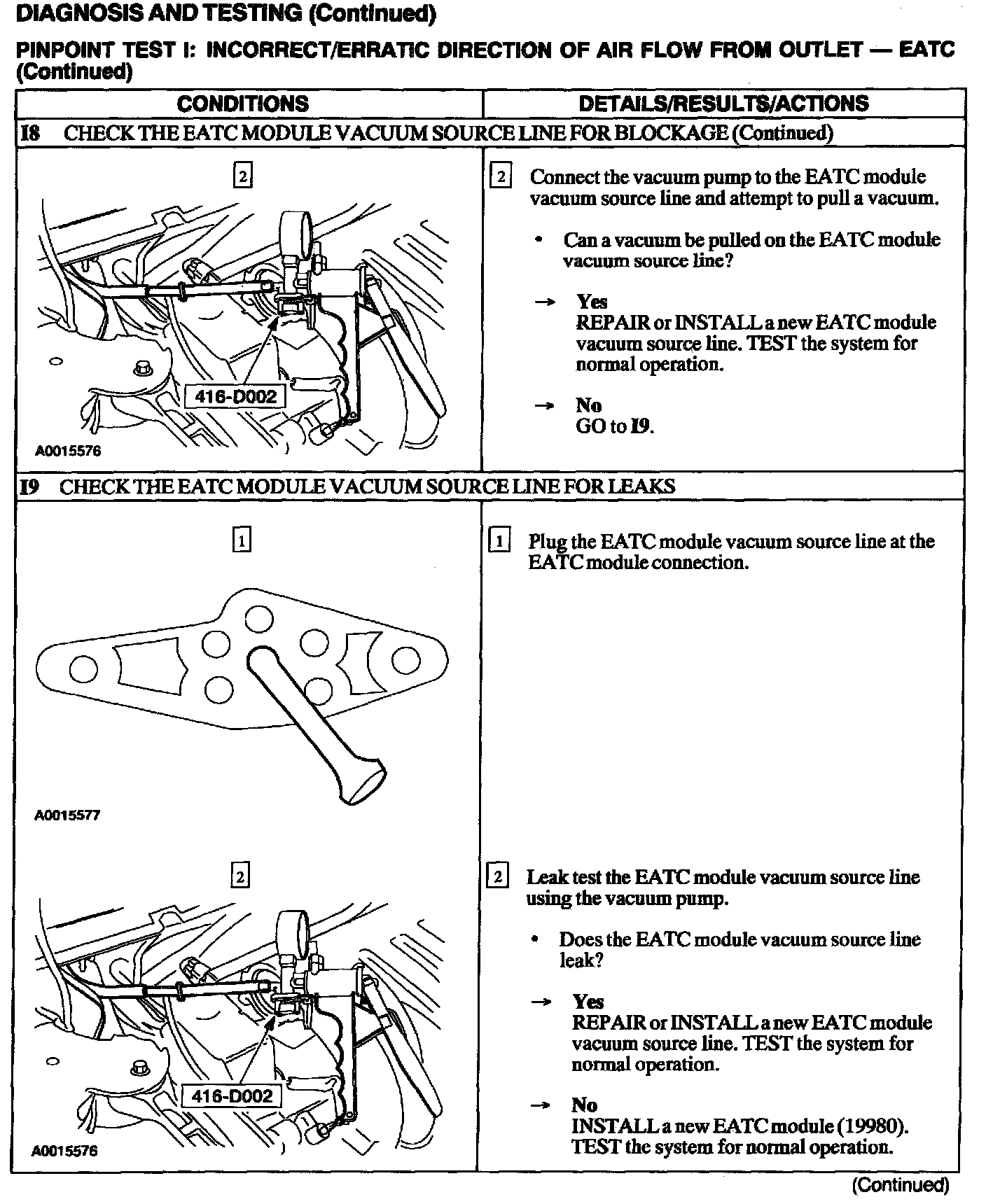

I8 - I9:

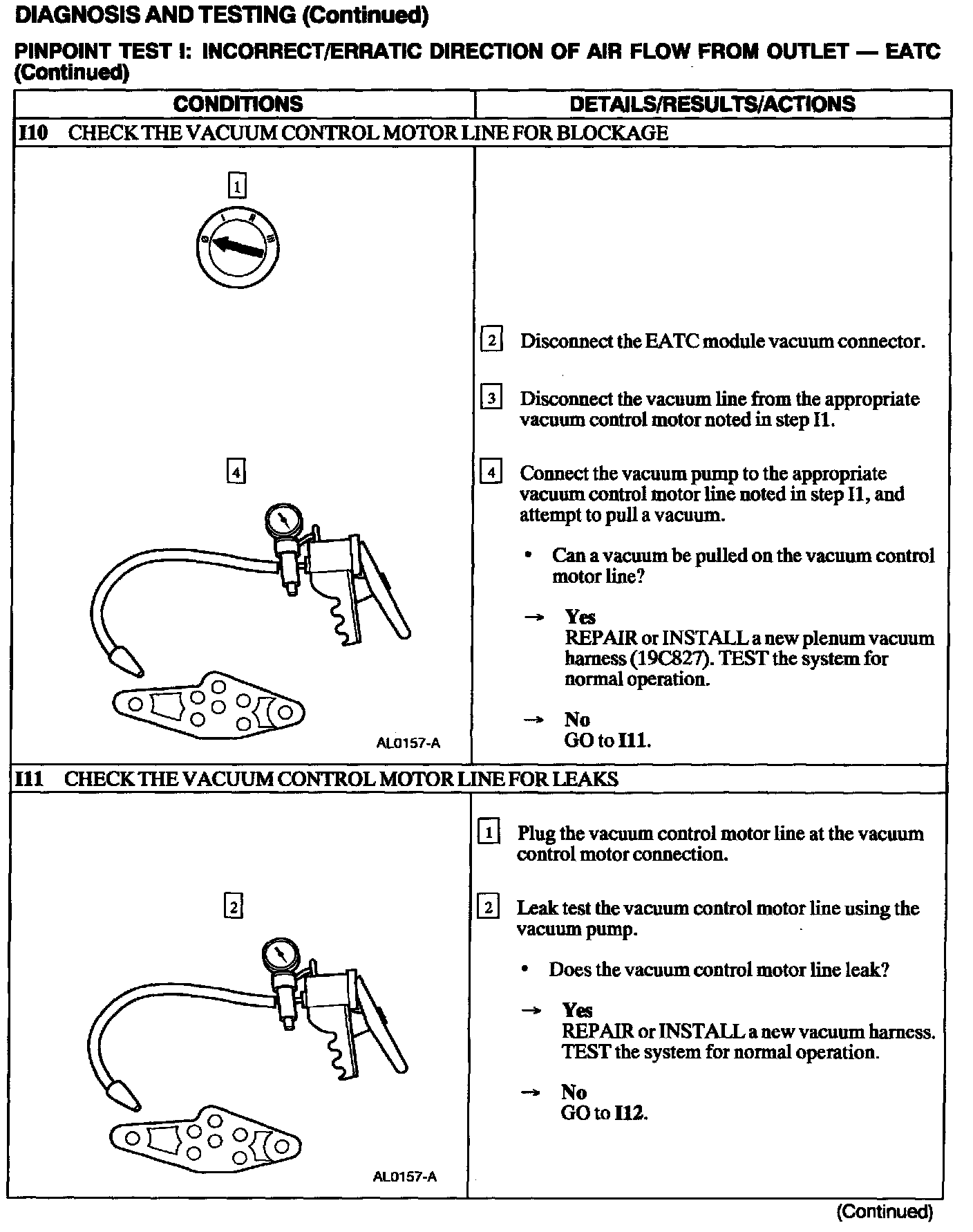

I10 - I11:

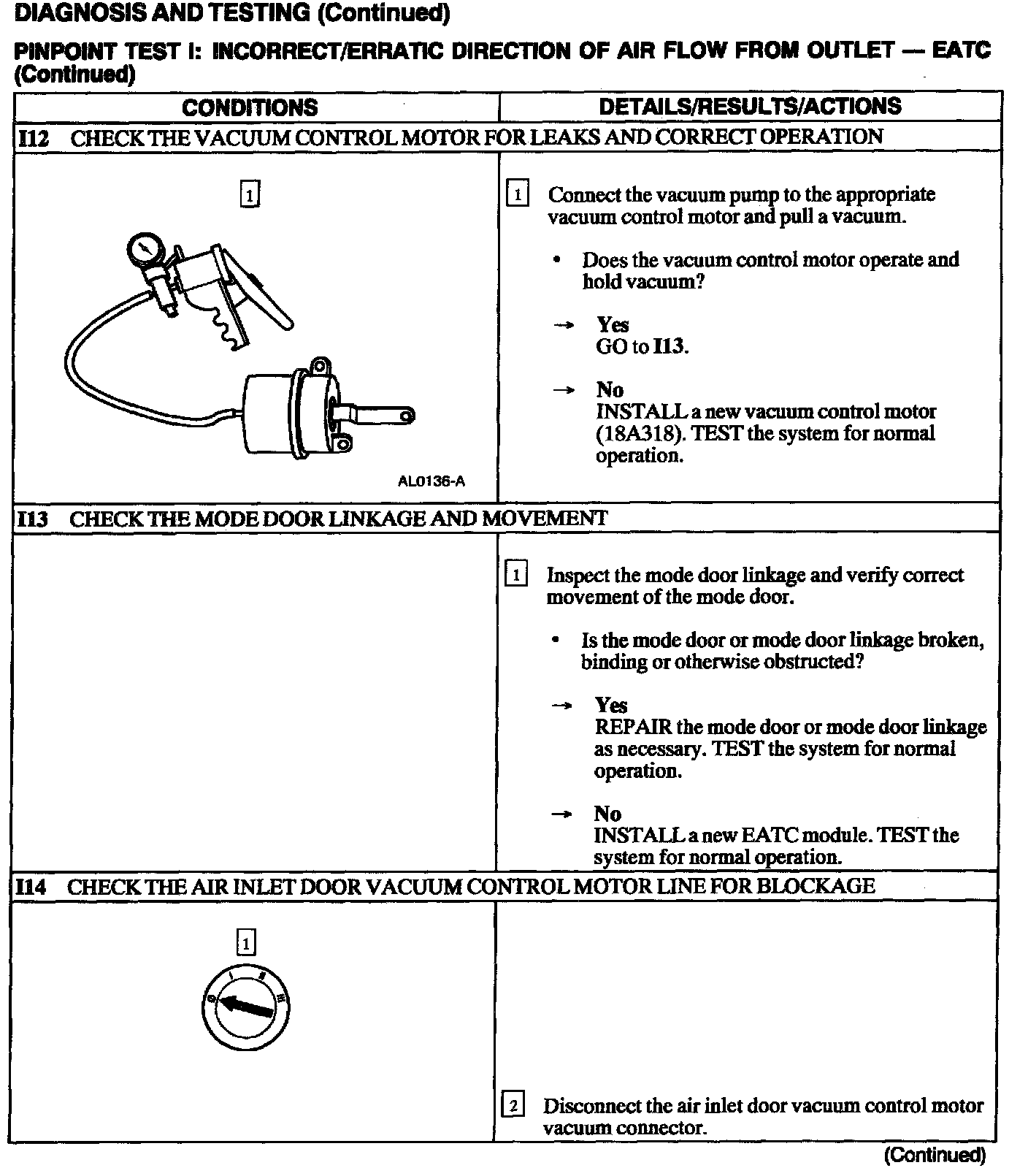

I12 - I14:

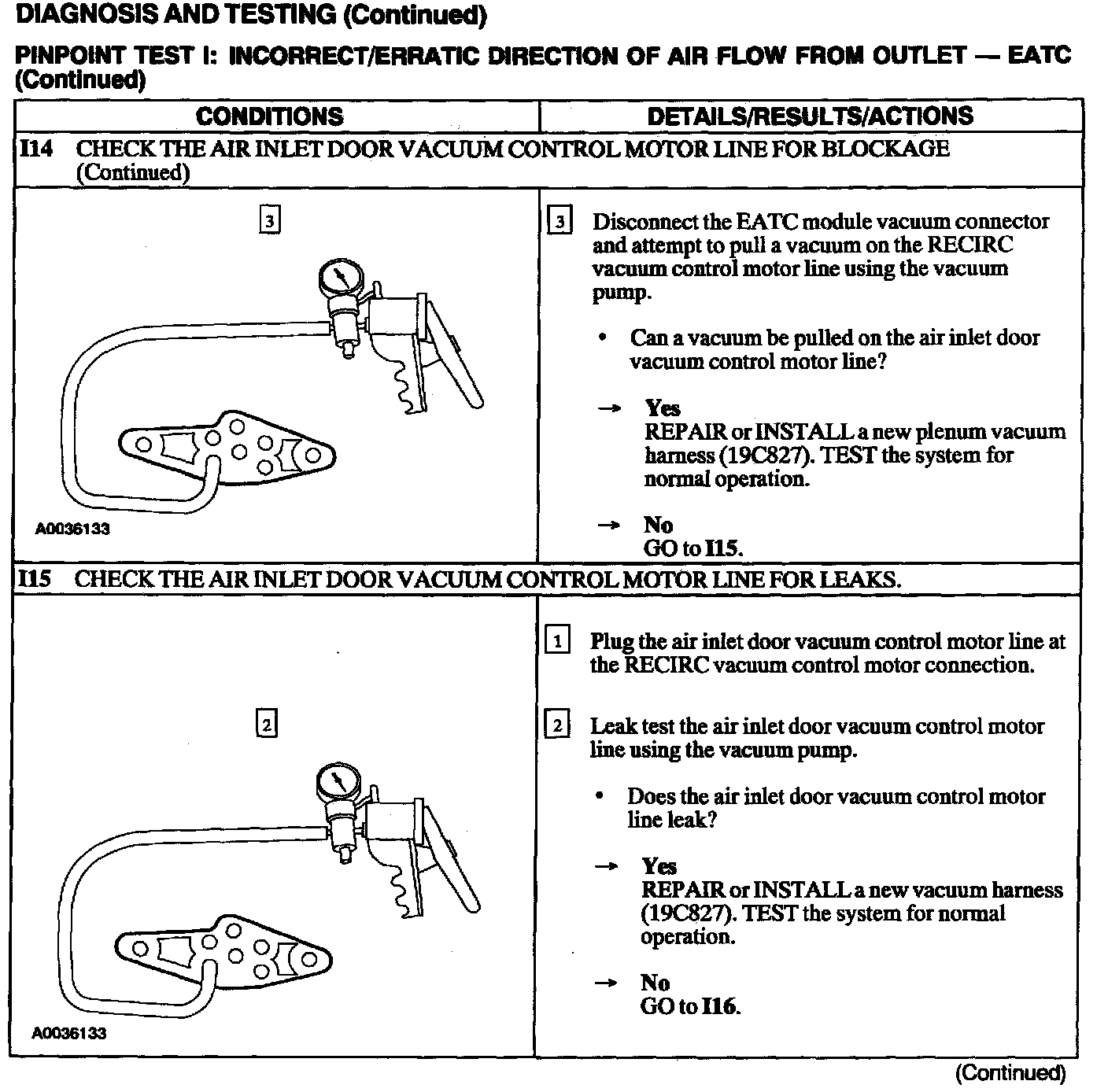

I14 - I15:

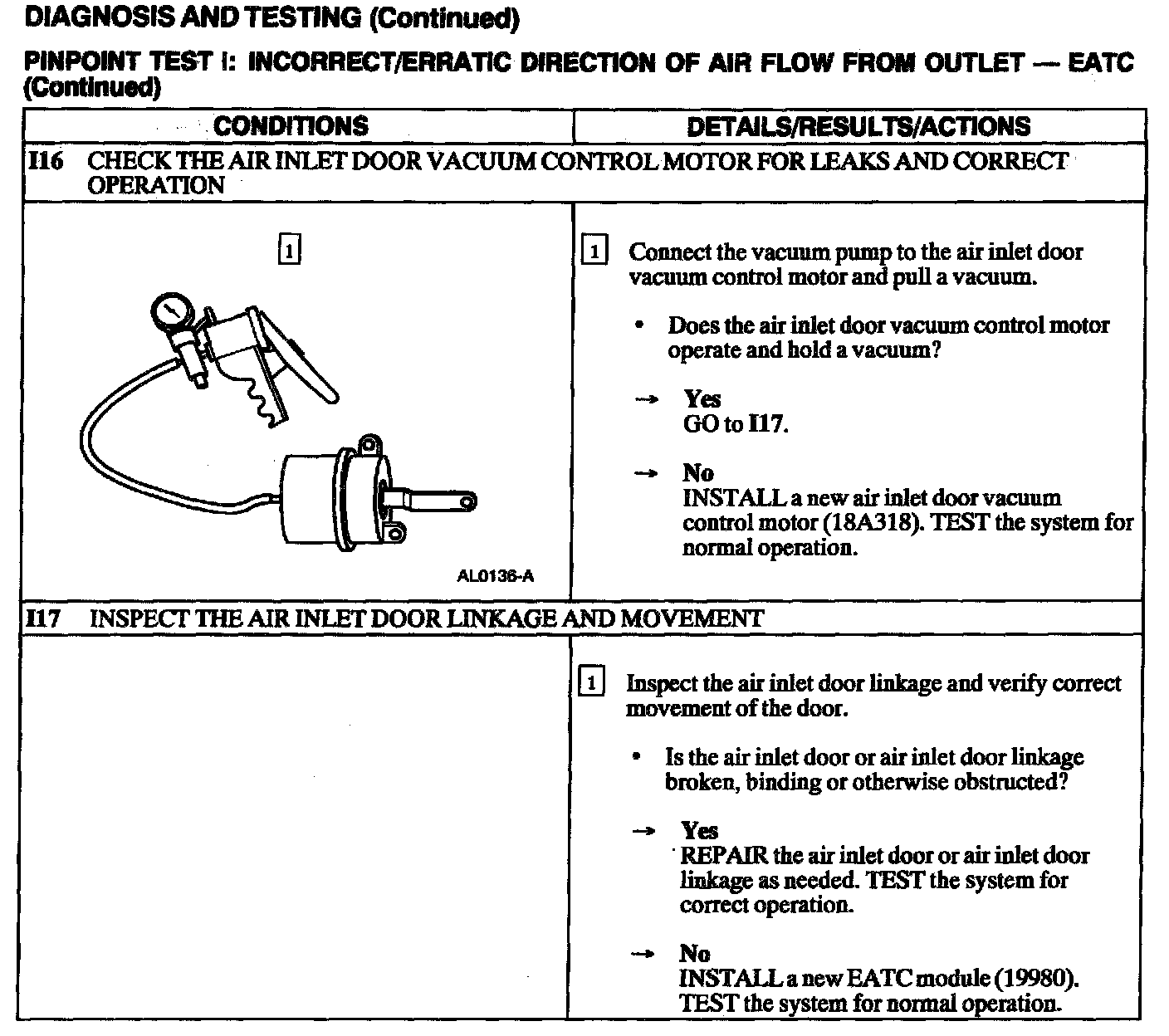

I16 - I17:
