Left Hand Side

Exhaust Manifold LH

Removal





1. Remove the LH exhaust manifold to pipe nuts.

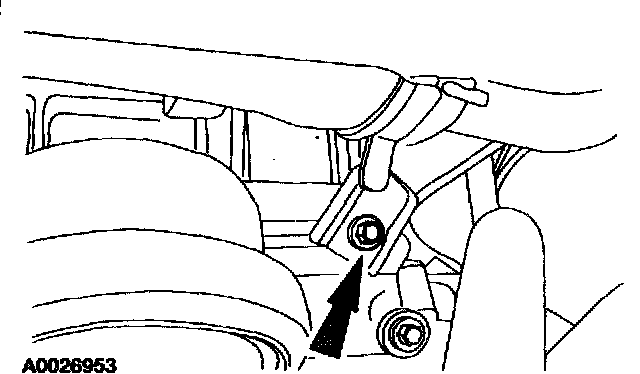

2. Remove the coolant tube bracket bolt.

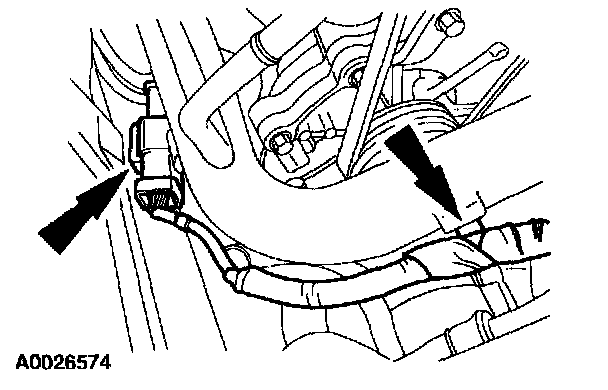

3. Disconnect and unclip the LH Heated Oxygen Sensor (H02S) electrical connector from the coolant tube.
4. Raise and support the vehicle.





5. Remove the pin-type retainers, bolts and the front splash shield.





6. Remove the lower exhaust manifold nuts.

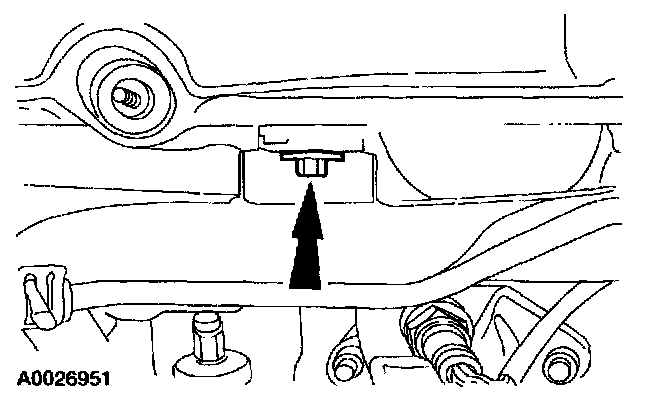

7. Remove the coolant tube lower bracket bolt.
8. Lower the vehicle.





9. Remove the upper nuts and the exhaust manifold.
- Discard the gasket.

Installation

Left Hand Exhaust Manifold:

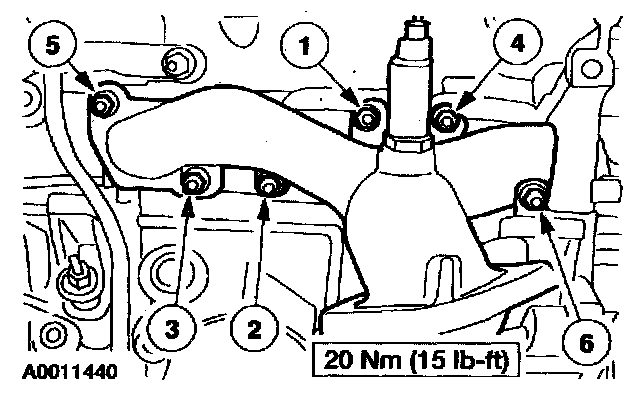

1. Position a new gasket and install the exhaust manifold.
- Tighten the nuts in the sequence shown.

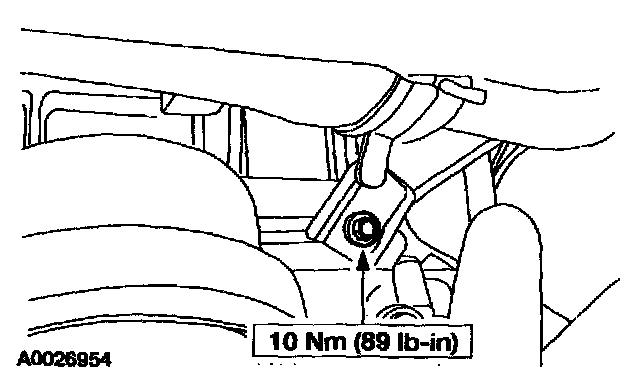

2. Position the coolant tubes and tighten the bolt.





3. Connect the LH H02S electrical connector.

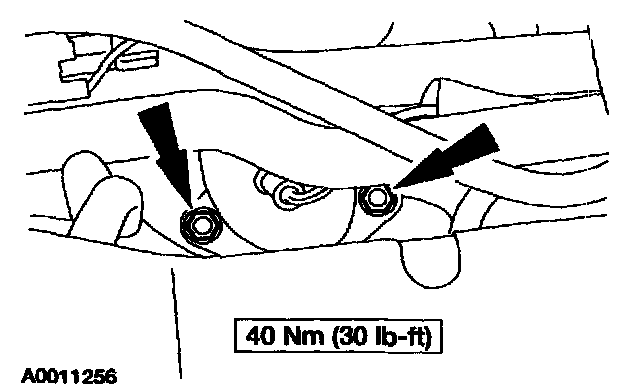

4. Install the LH exhaust manifold-to-pipe nuts.
5. Raise the vehicle.





6. Install the coolant tube lower bracket bolt.





7. Position the front splash shield and install the pin-type retainers and bolts.
