Harmonic Balancer

Crankshaft Vibration Damper

Special Tools:

Special Tool(s)

Removal

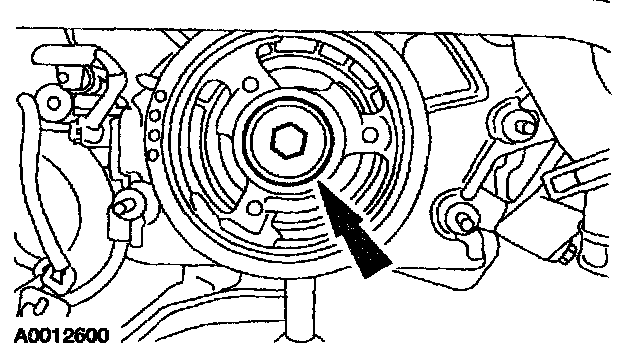

1. Remove the crankshaft pulley.





2. Remove the crankshaft damper bolt and washer.

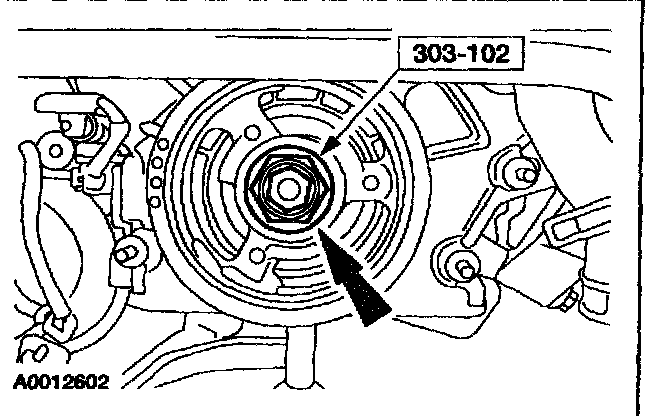

3. Using the special tool, remove the crankshaft damper.

Installation





1. NOTE: Seal surfaces must be free of dirt and oil.

Apply silicone gasket and sealant to the end of the keyway slot.





2. NOTE: Lubricate the outside diameter sealing surface of the crankshaft pulley with clean motor on.

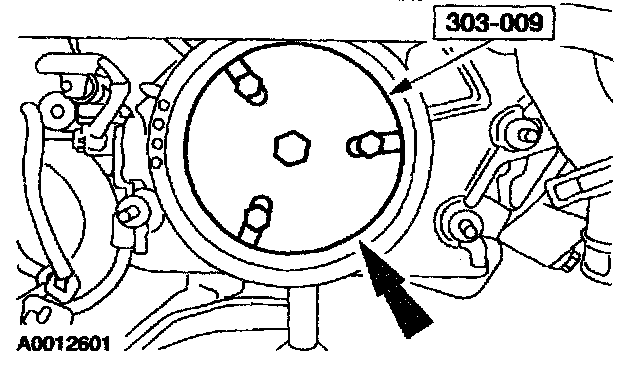

Using the special tool, install the crankshaft damper.





3. Install the bolt and the washer and tighten in four stages.
- Stage 1: Tighten to 120 Nm (89 ft. lbs.).
- Stage 2: Loosen 360°.
- Stage 3: Tighten to 50 Nm (37 ft. lbs.).
- Stage 4: Tighten 90°.

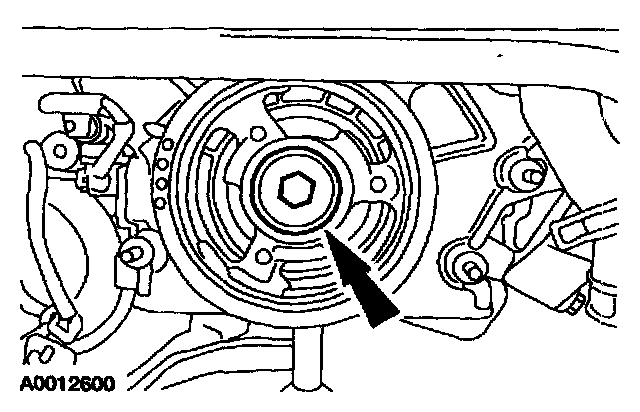

4. Install the crankshaft pulley.
