RH

Camshafts RH

Removal
1. Remove the timing drive components.

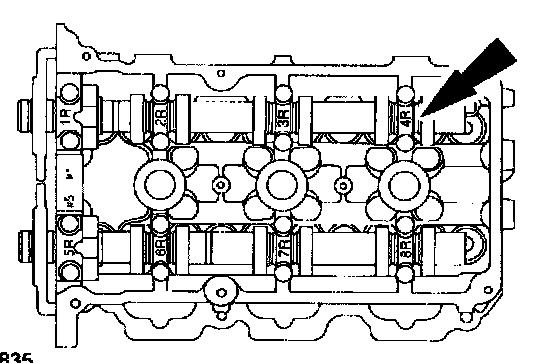

2. CAUTION: Record the camshaft bearing cap location. The camshaft bearing caps are positional and must be installed in their original locations and orientations or engine damage can occur.

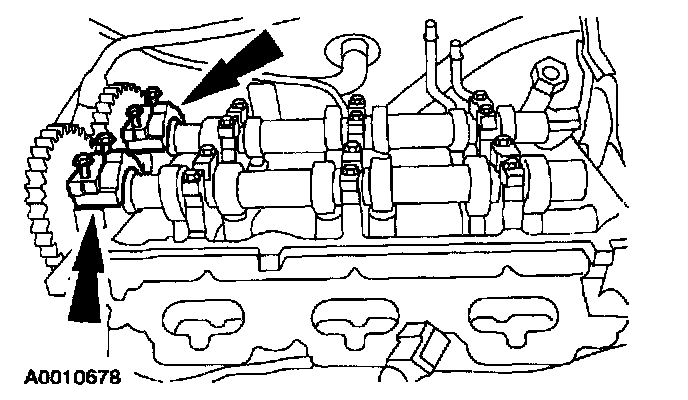

Loosen the bolts for the RH camshaft thrust caps.

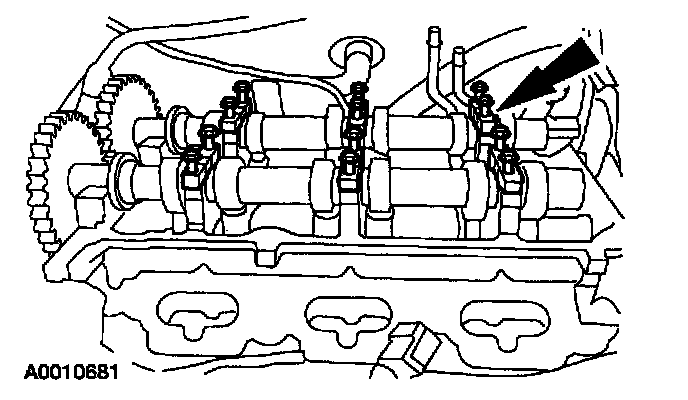

3. Loosen the RH camshaft cap bolts in sequence to allow the camshafts to rise from the cylinder head and remove the caps.





4. Remove the camshafts.

Installation





1. NOTE: Be sure the camshaft bearing caps are installed in their original positions.

Lubricate camshafts with engine oil and carefully position the camshafts into the cylinder head.

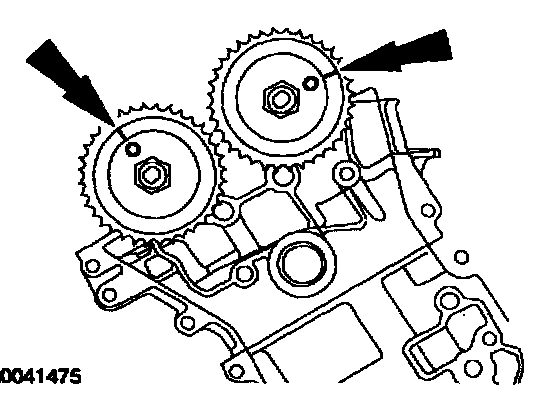

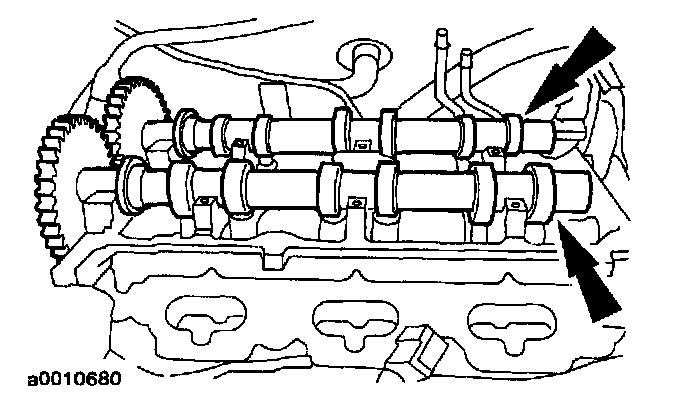

- Align the camshafts as shown.





2. CAUTION: Do not install the camshaft journal thrust caps until all of the camshaft bearing caps have been installed, or damage to the thrust caps may occur.

Lubricate the bearing surfaces of the camshaft bearing caps with engine oil and install the bearing caps and loosely install the bolts.





3. Lubricate the bearing surfaces of the camshaft bearing thrust caps with engine oil. Install the bearing thrust caps and loosely install the bolts.





4. CAUTION: The camshaft bearing caps are positional and must be installed in their original locations and orientations or engine damage can occur.

Verify that the camshaft bearing caps are in the correct locations.

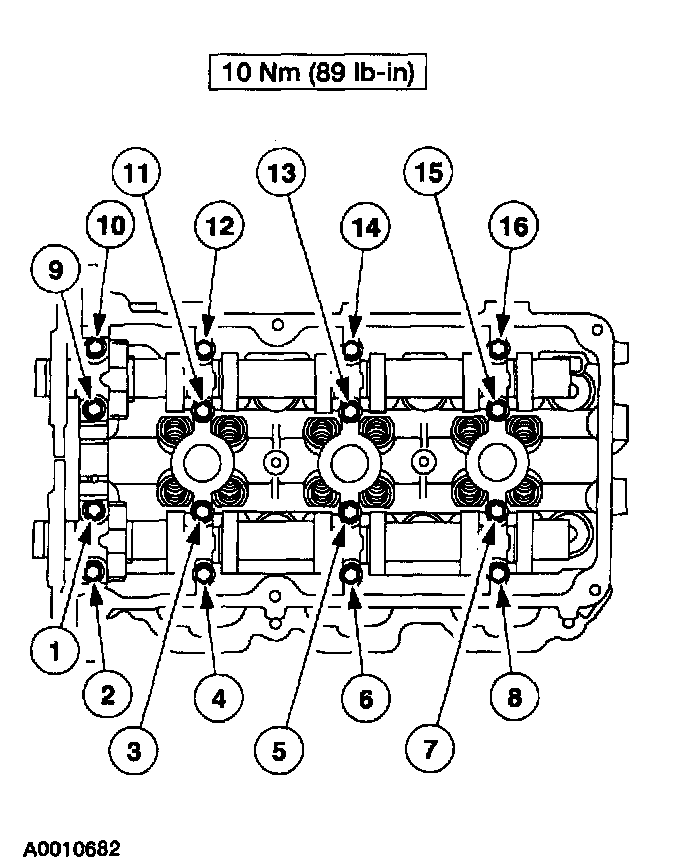

5. Tighten the bolts in the sequence shown.
6. Install the timing drive components.
