Thermostat: Service and Repair

Thermostat

Removal and Installation
1. Raise and support vehicle.
2. Remove the front splash shield.
3. Drain the cooling system.





4. Remove the cooling tube bolt.
5. Lower the vehicle.





6. Remove the radiator upper cooling tube bolt.

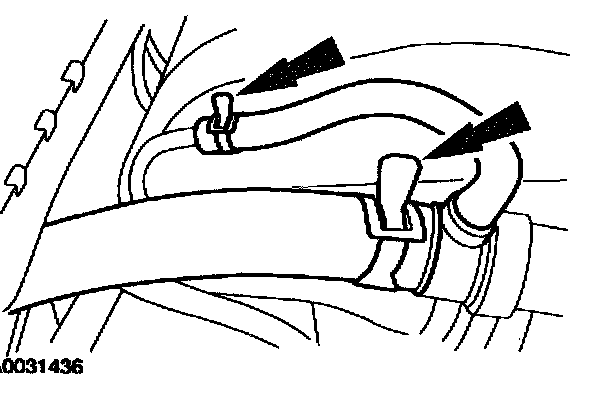

7. Disconnect the upper radiator hose and engine vent hose.





8. Remove the two bolts, and separate the radiator tube from the thermostat housing. Remove the thermostat.
9. To install, reverse the removal procedure.
