Home >> Mercury >> 2002 >> Sable V6-3.0L DOHC VIN S >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine

Engine

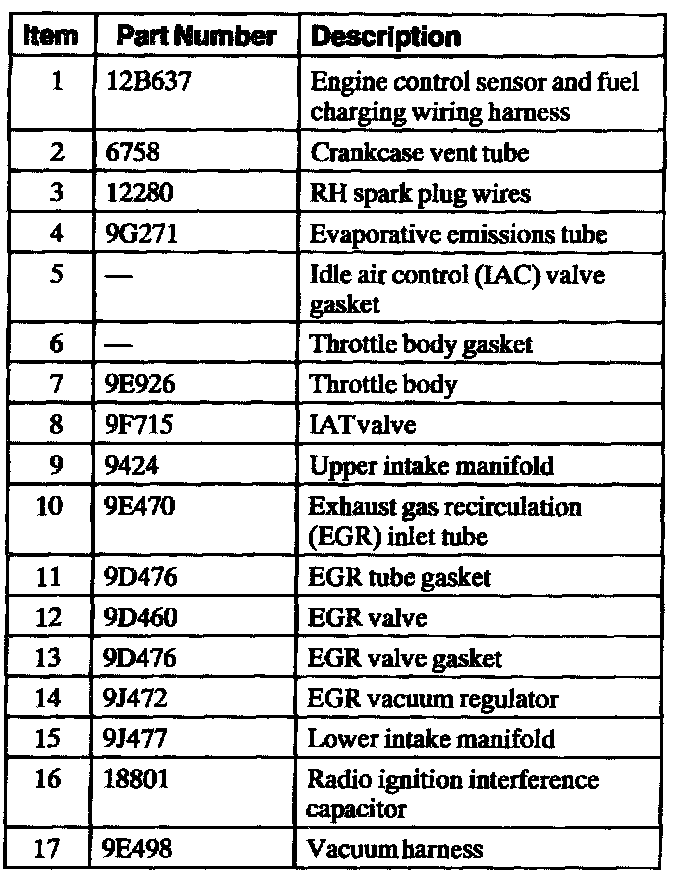

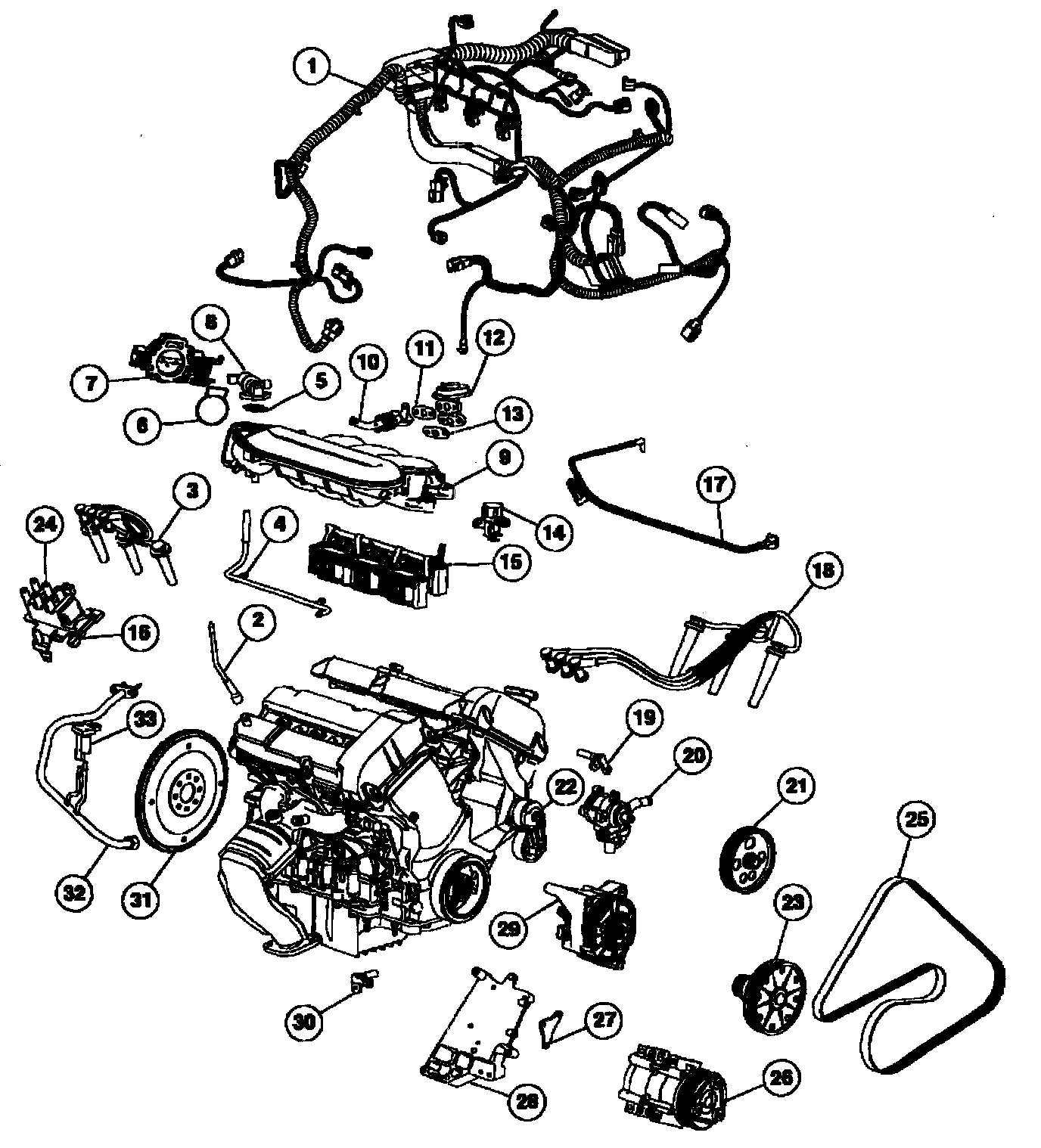

Part 1 of 6

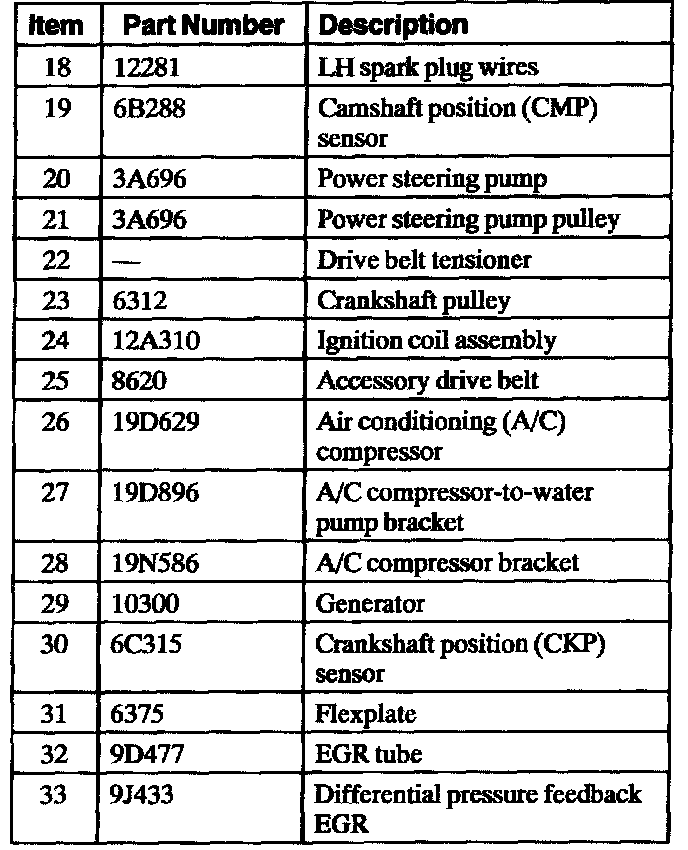

Part 2 of 6

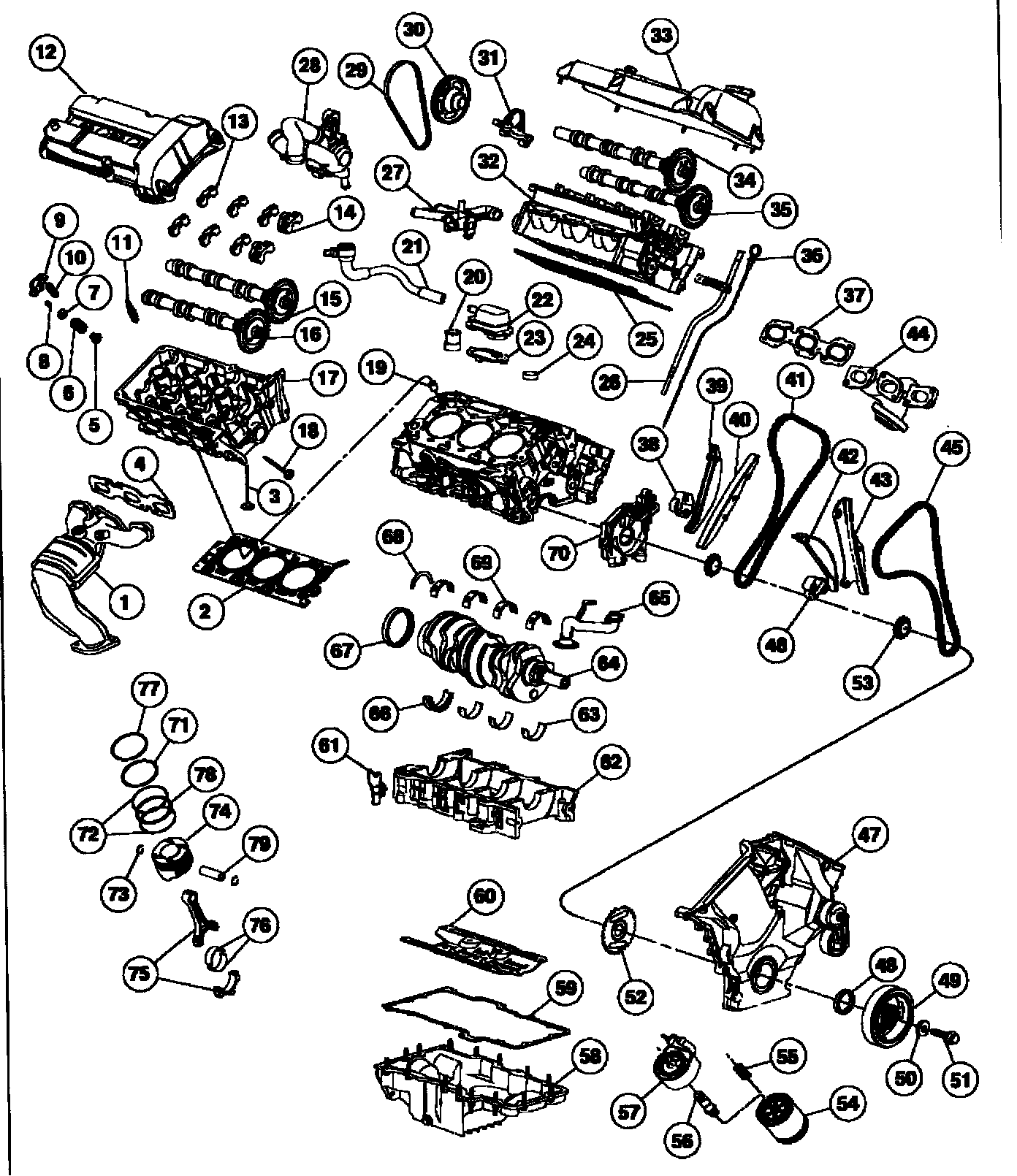

Part 3 of 6

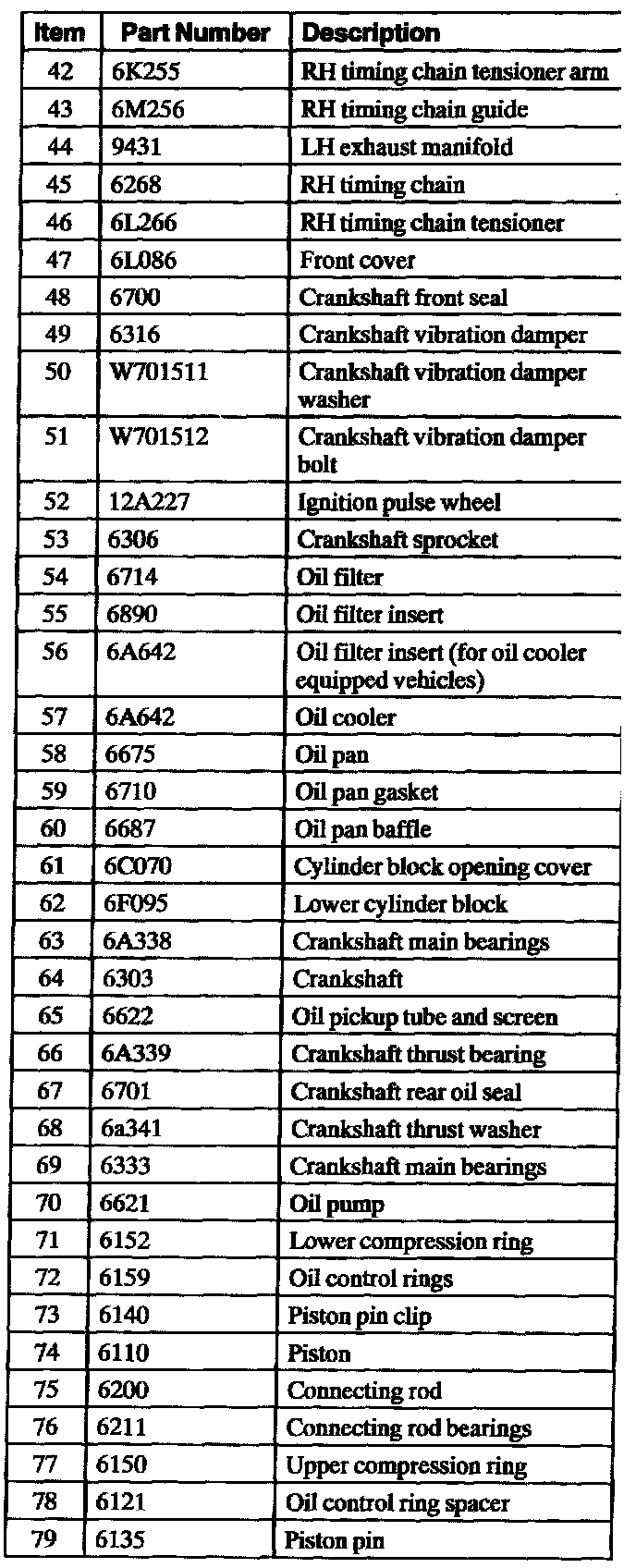

Part 4 of 6





Part 5 of 6





Part 6 of 6
