Cellular Phone Transceiver: Service and Repair

REMOVAL







1. Remove the screws from the docking station.

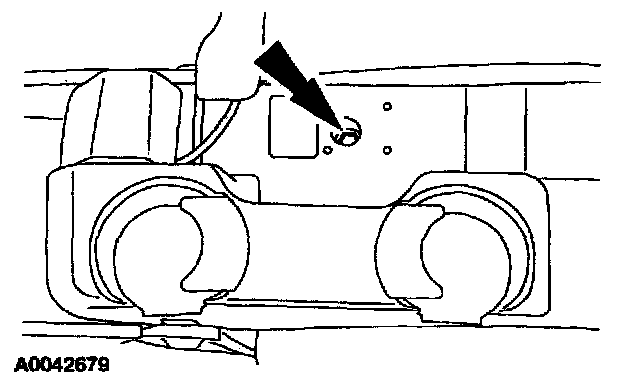

2. Remove the screw.







3. Release the four retaining clips by lifting up the upper console.

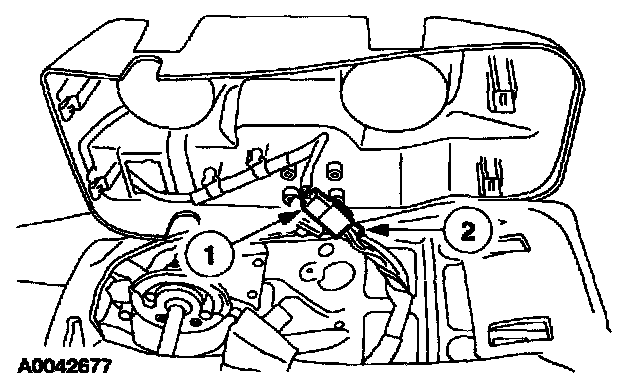

1 Disconnect the electrical connector.
2 Disconnect the antenna connector and remove the docking station.

INSTALLATION
1. To install, reverse the removal procedure.
