Home >> Mercury >> 2002 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Pinpoint Tests >> Test F: Wipers Will Not Park at the Proper Position

Test F: Wipers Will Not Park at the Proper Position

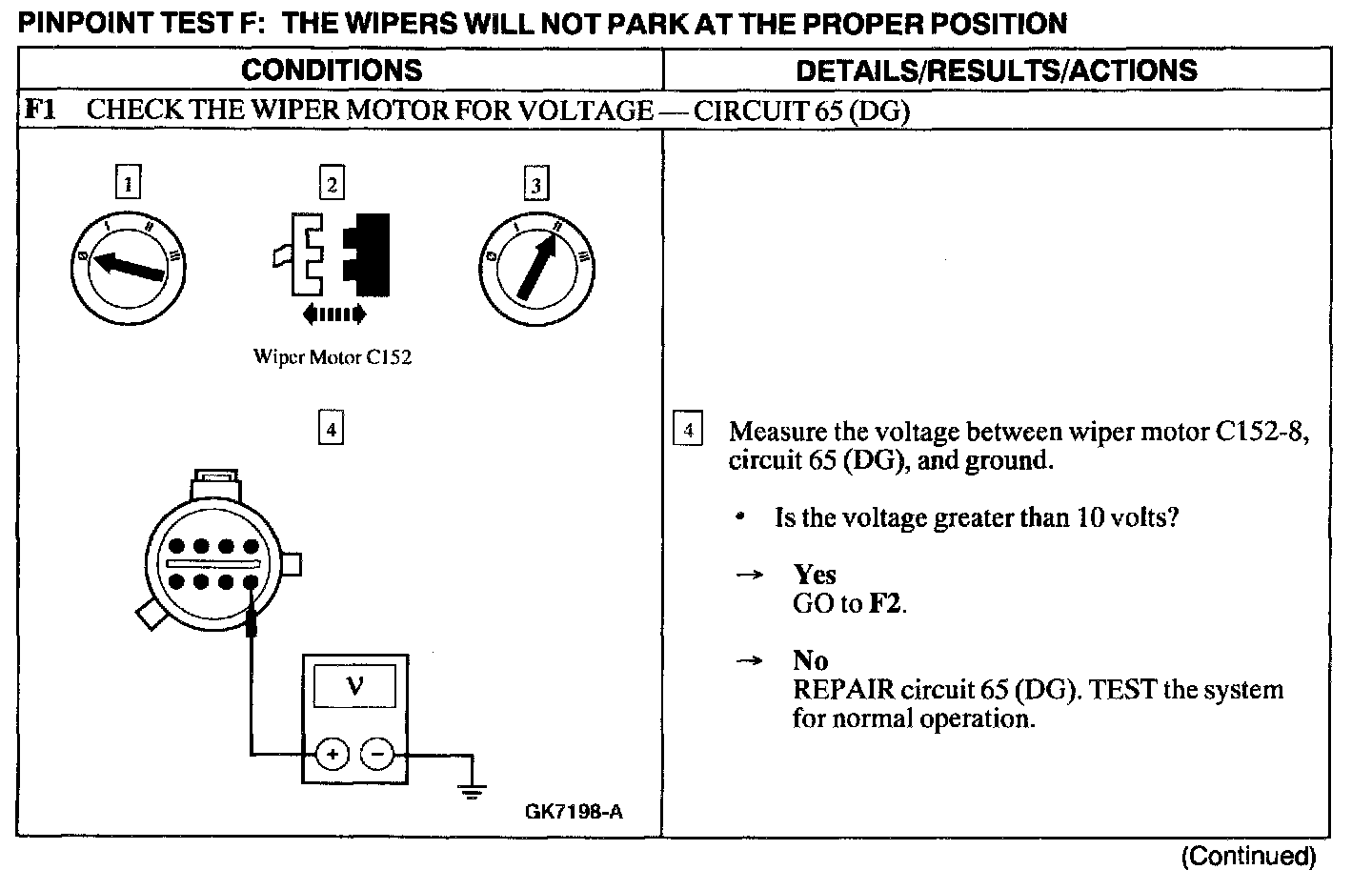

F1:

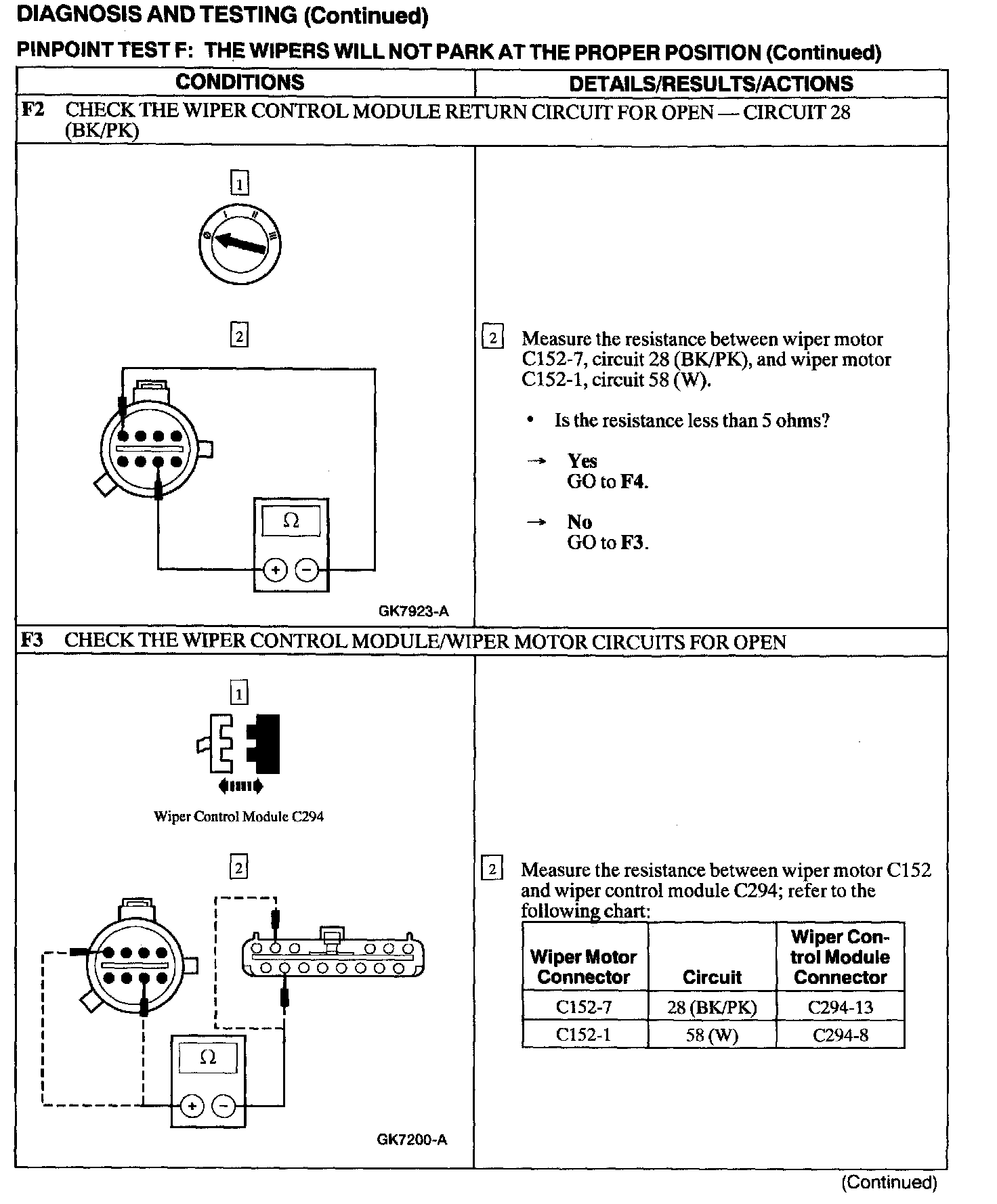

F2 - F3:






F3 - F4:
