Rear Door Window Regulator: Service and Repair

Heavy Duty Riveter:

SPECIAL TOOL(S)

REMOVAL
1. Remove the rear door window glass.

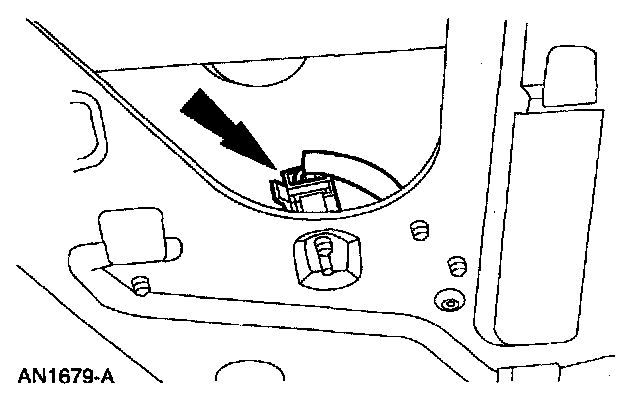

2. Disconnect the connector.

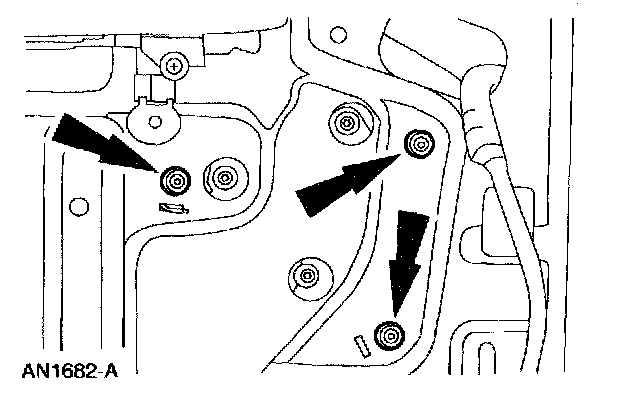

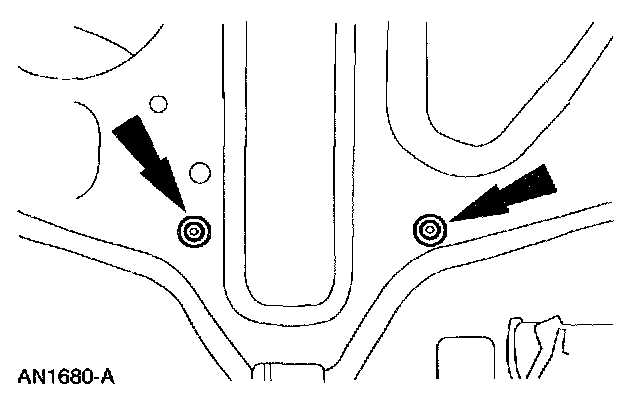

3. Remove the rivets.

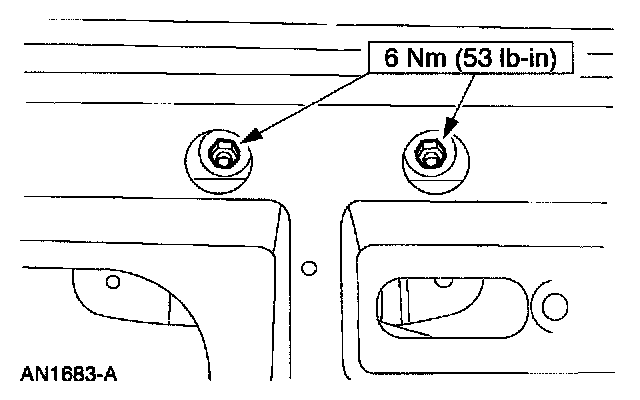

4. Remove the nuts.







5. Remove the rear door window regulator.

INSTALLATION
1. To install, reverse the removal procedure.
^ Use the special tool to install the new rivets.
