Rear Door Window Motor: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.
2. Remove the rear door trim panel.







3. Remove the pull strap handle.
4. Remove the watershield.







5. Disconnect the connector.

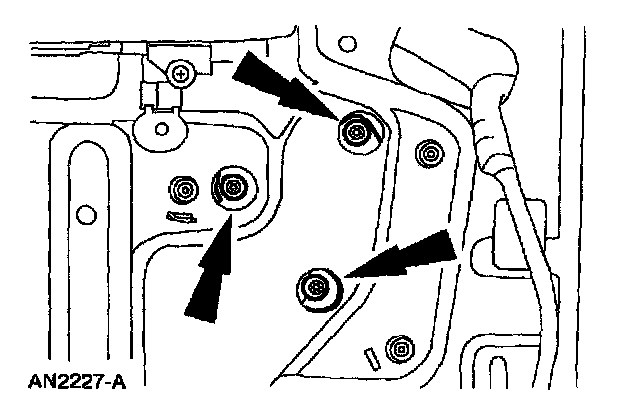

6. Remove the rivets.

NOTE: Use care not to enlarge the sheet metal holes in the door inner panel.







7. Remove the Torx(R) screws.

NOTE: Working through the access hole, remove the window regulator motor bracket from the inner panel and slide the motor back to gain access to the screws.

8. Separate the window regulator motor from the window regulator and remove from the rear door.

INSTALLATION







1. Install the Torx(R) screws.

NOTE: Position the window regulator motor to the rear door electric window regulator and window regulator motor mounting bracket.

2. Install the rivets.

NOTE:
^ Position the window regulator motor mounting bracket to the inner panel.
^ 1/4-20 x 1/2 inch bolt and 1/4-20 nut and washer assemblies or equivalent metric fasteners may be used in place of the rivets.







3. Connect the connector.
4. Install the watershield.
5. Install the pull strap handle.
6. Install the rear door trim panel.
