Home >> Mercury >> 2002 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - External Controls - Column Shift >> Test A: The Shift Interlock System Doesn't Release/Lock Correctly

Test A: The Shift Interlock System Doesn't Release/Lock Correctly

PINPOINT TEST A: THE SHIFT INTERLOCK SYSTEM DOES NOT RELEASE/LOCK CORRECTLY-COLUMN SHIFT

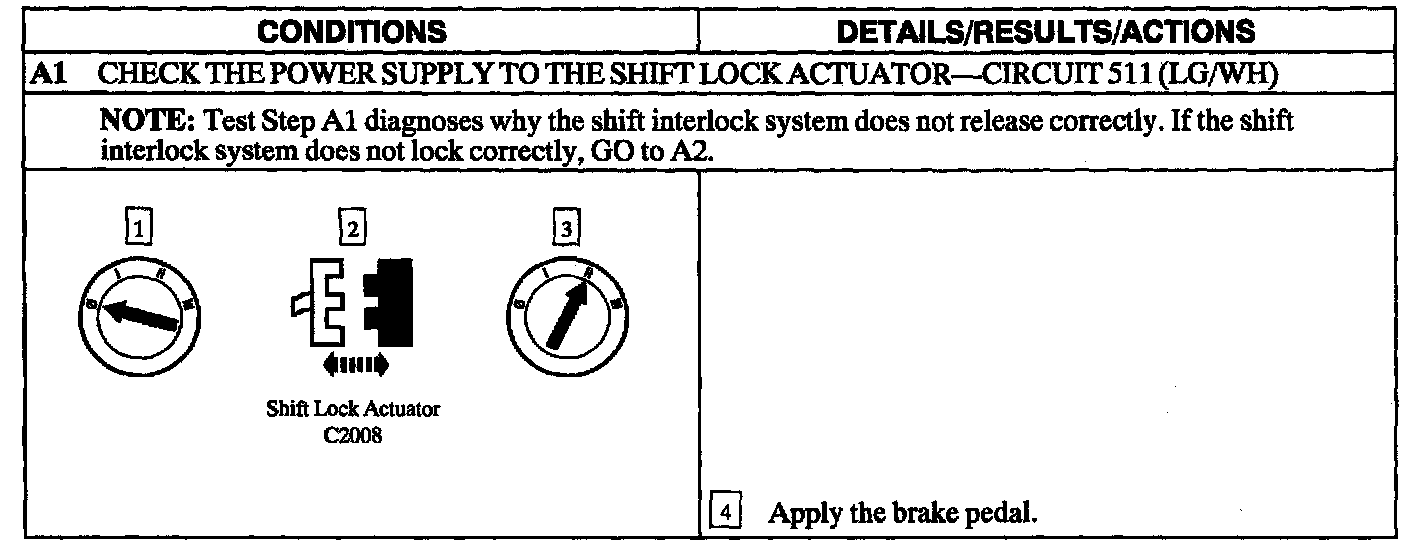

A1

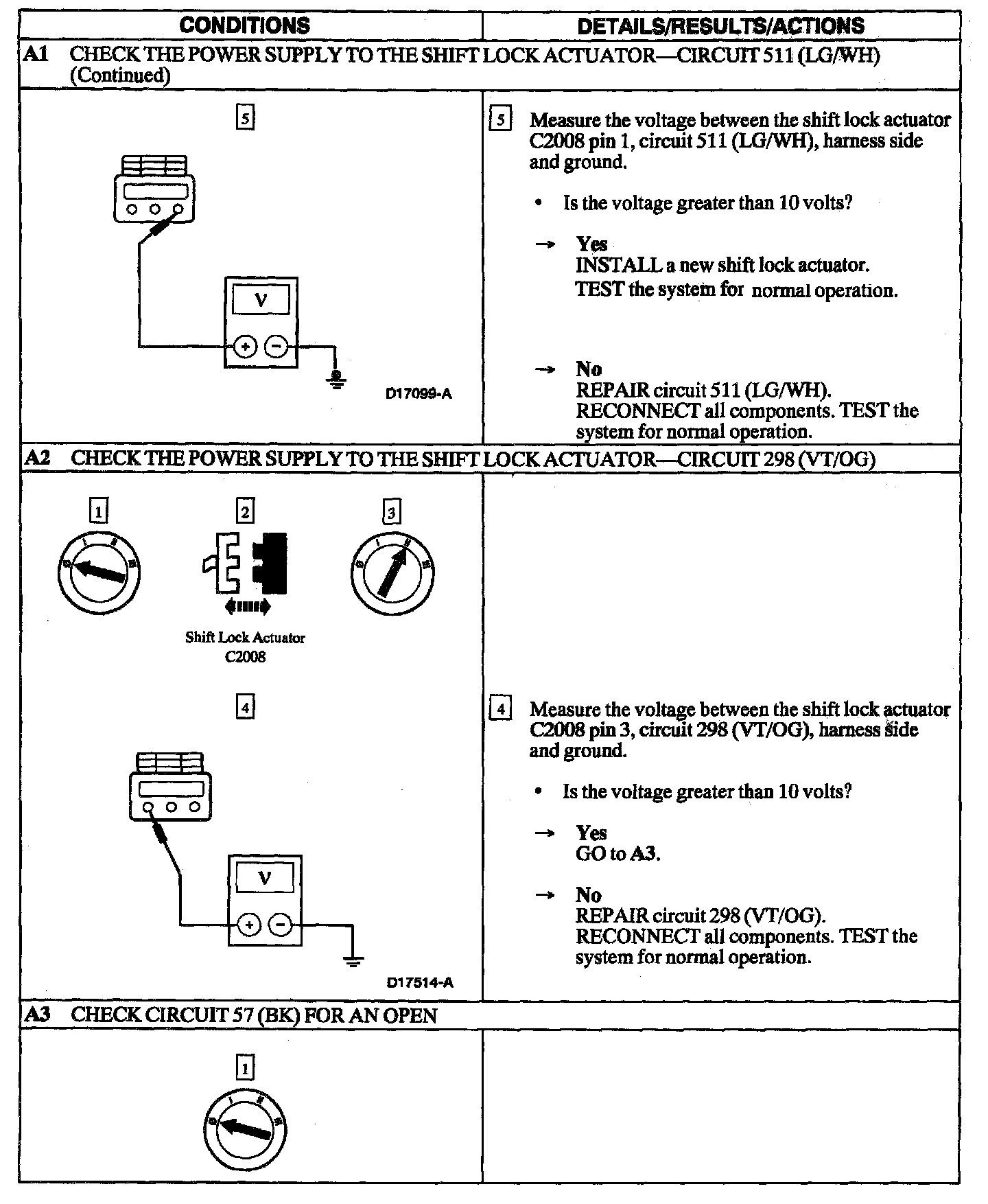

A1 - A3

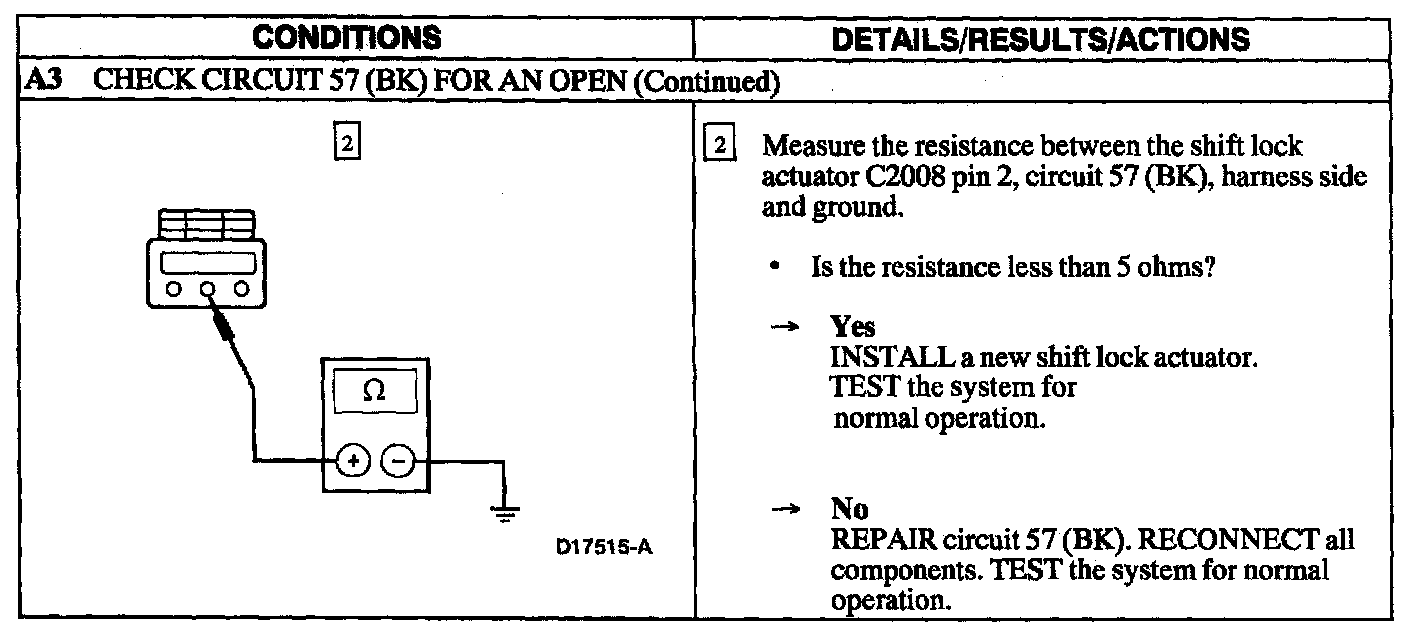

A3
