Test H: The Control Linkage Is Binding

PINPOINT TEST H: THE CONTROL LINKAGE IS BINDING - FLOOR SHIFT

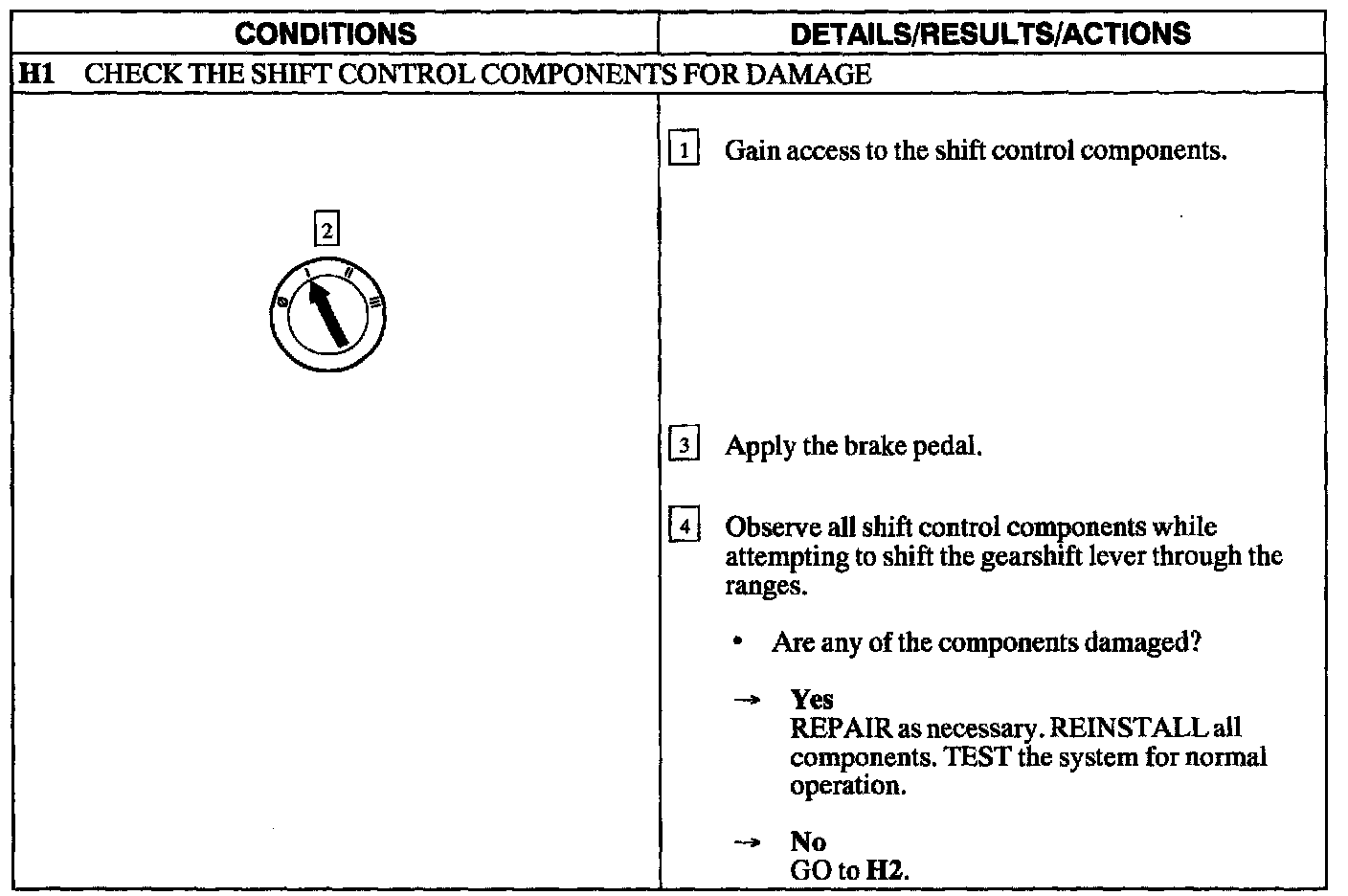

H1

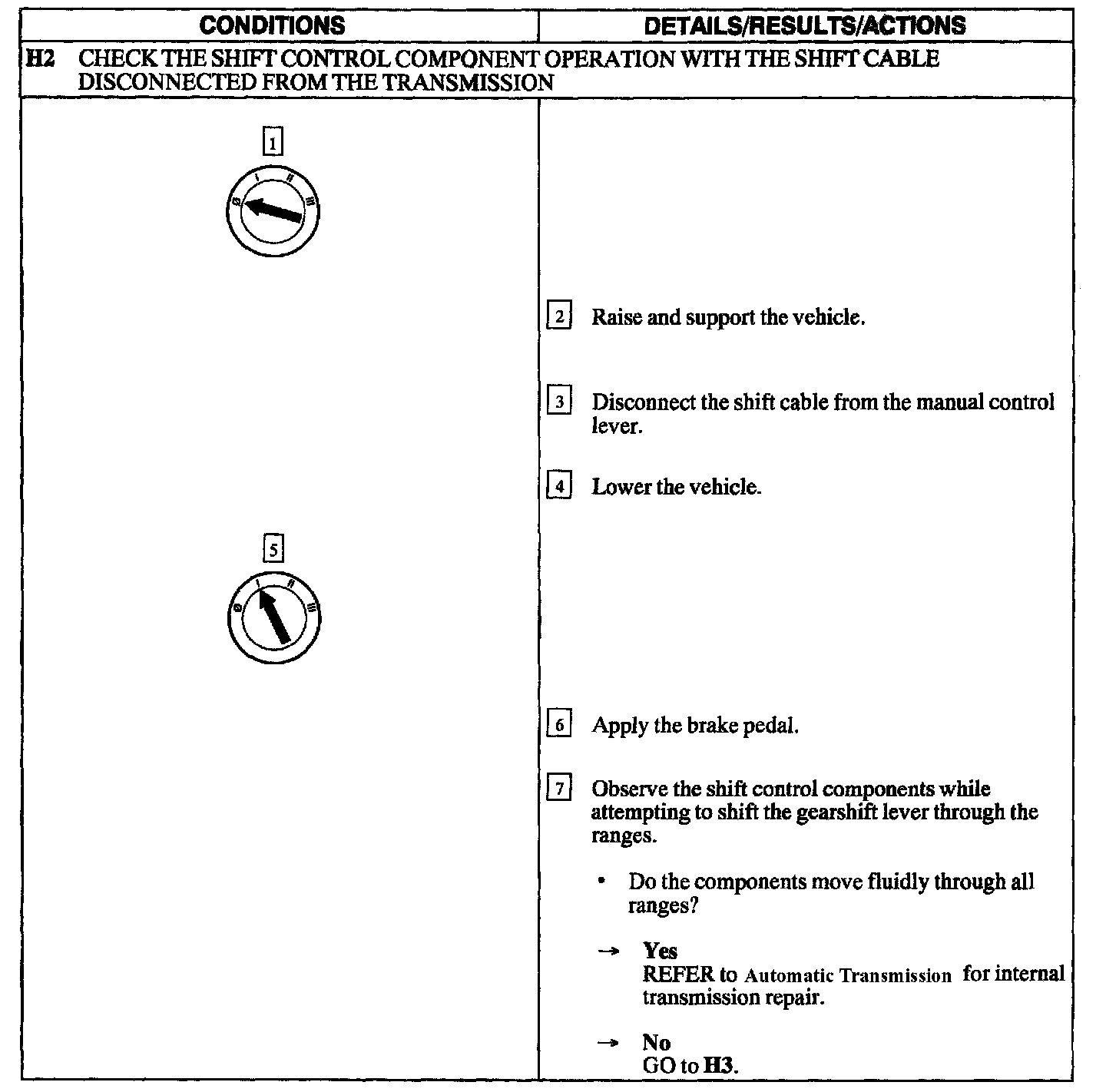

H2

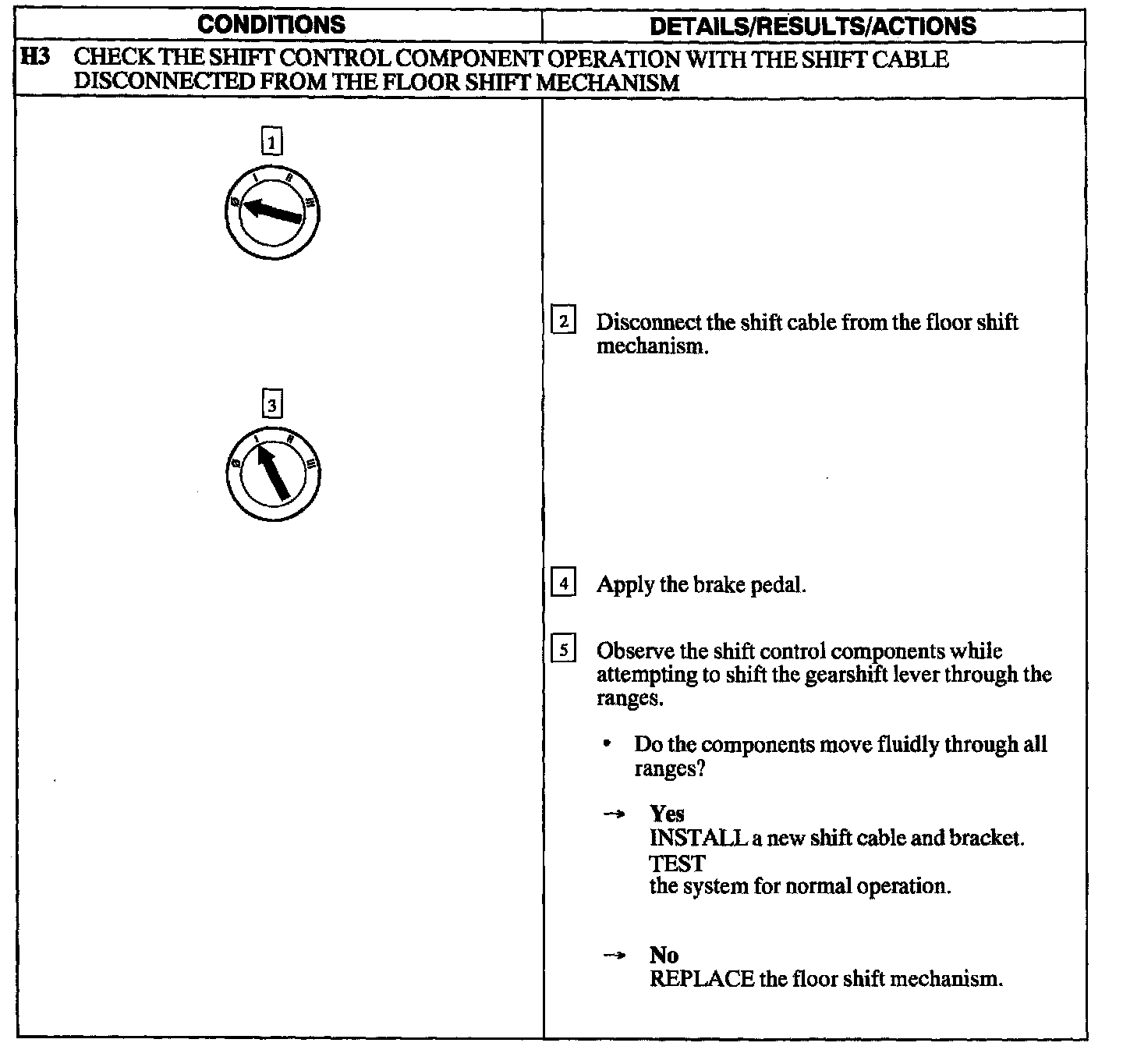

H3
