Test G: The Shift Control Is Out of Correct Gear Relationship

PINPOINT TEST G: THE SHIFT CONTROL IS OUT OF CORRECT GEAR RELATIONSHIP FLOOR SHIFT

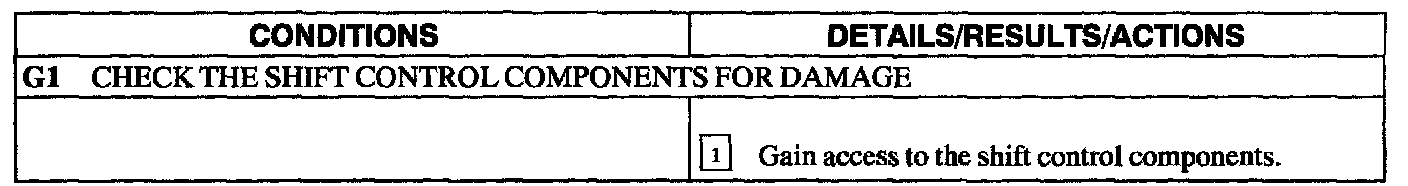

G1

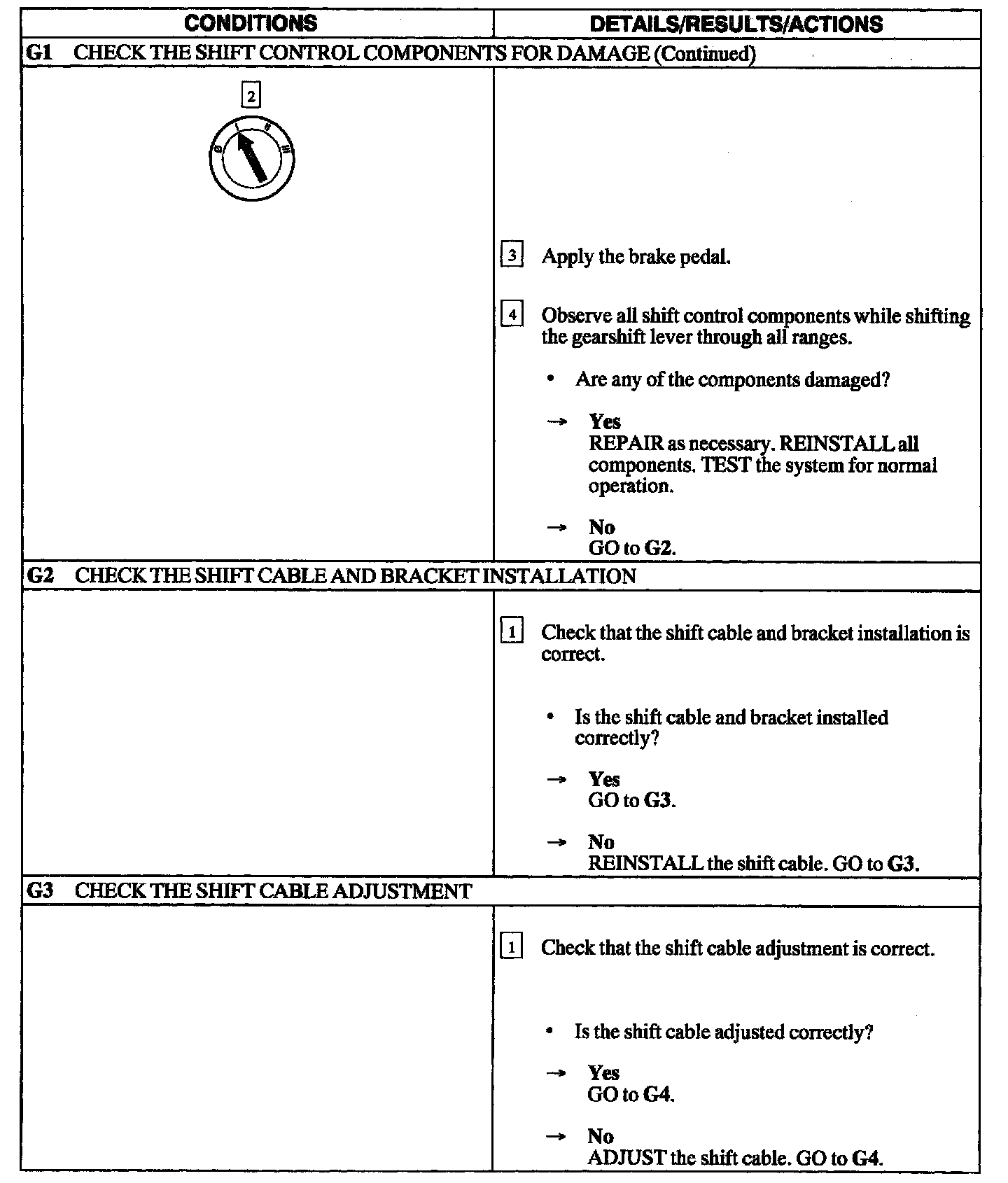

G1 - G3

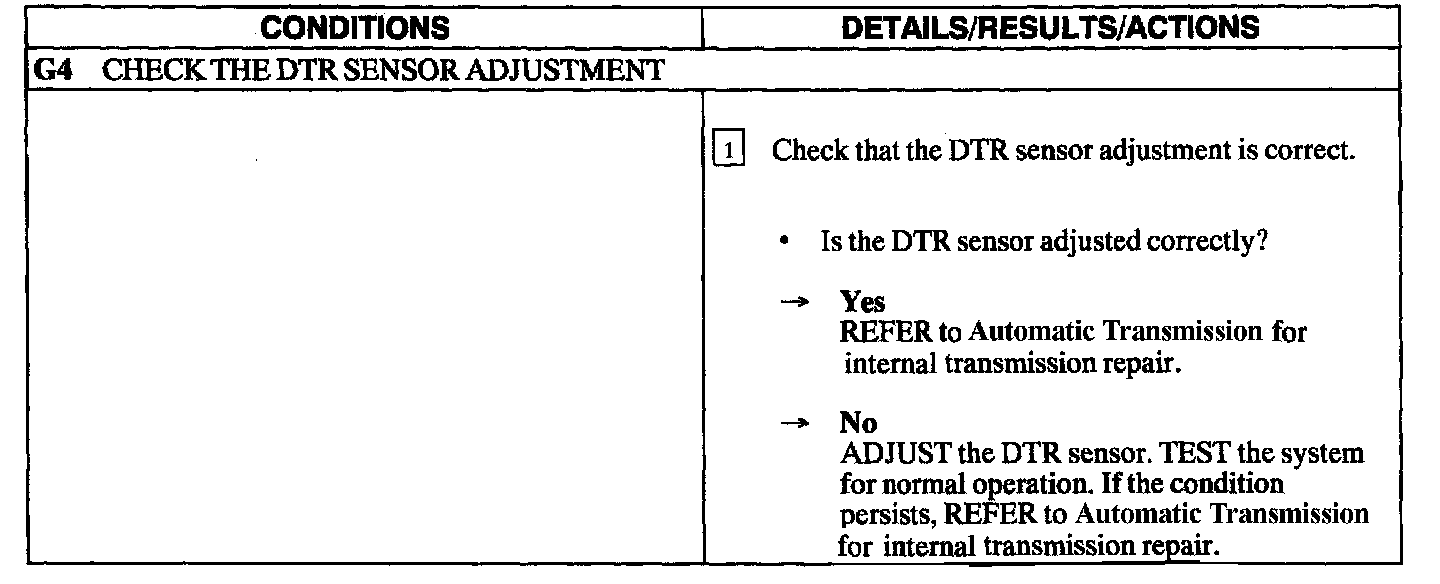

G4
