Test F: The Shift Interlock System Doesn't Release/Lock Correctly

PINPOINT TEST F: THE SHIFT INTERLOCK SYSTEM DOES NOT RELEASE/LOCK CORRECTLY - FLOOR SHIFT

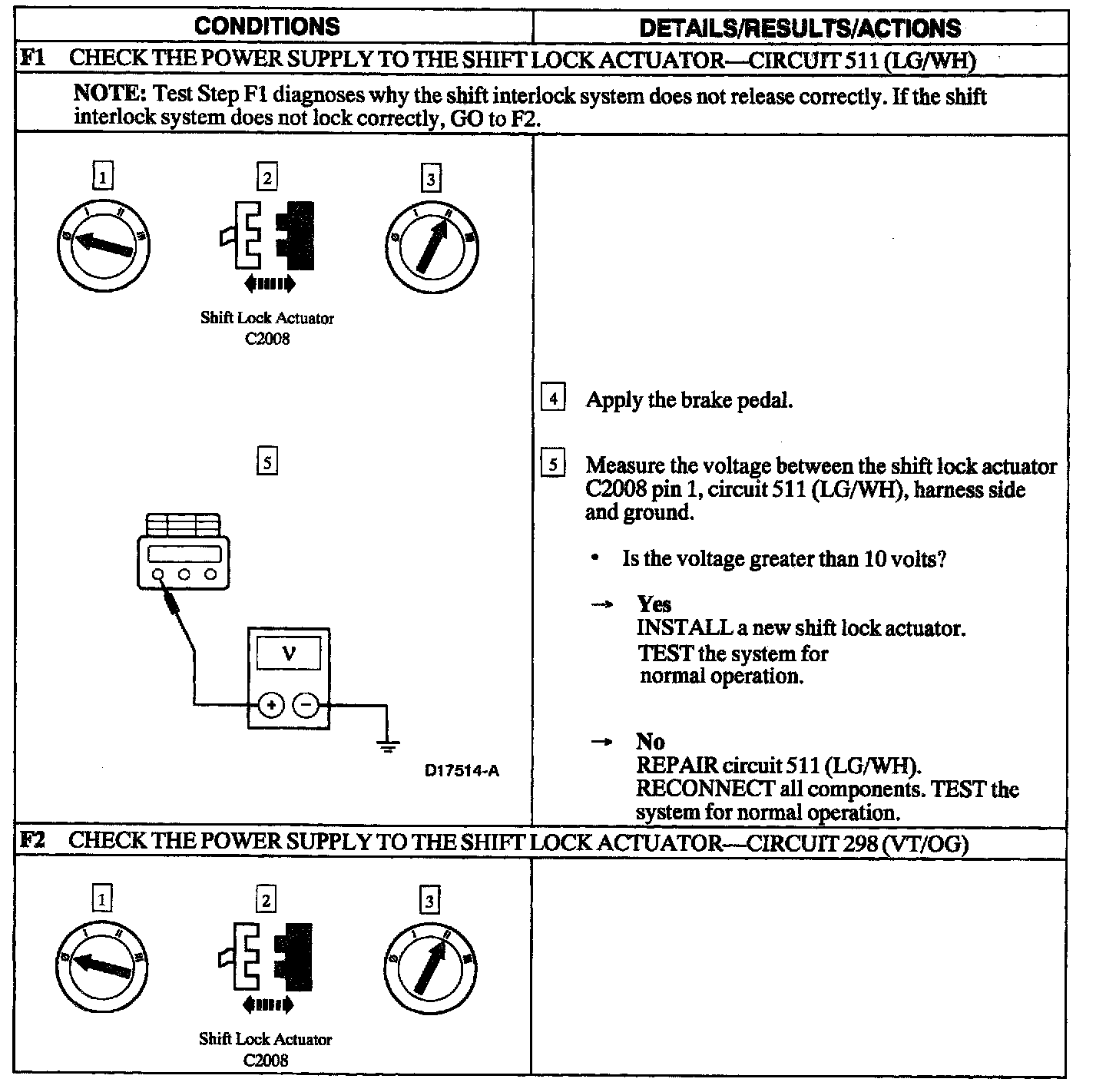

F1 - F2

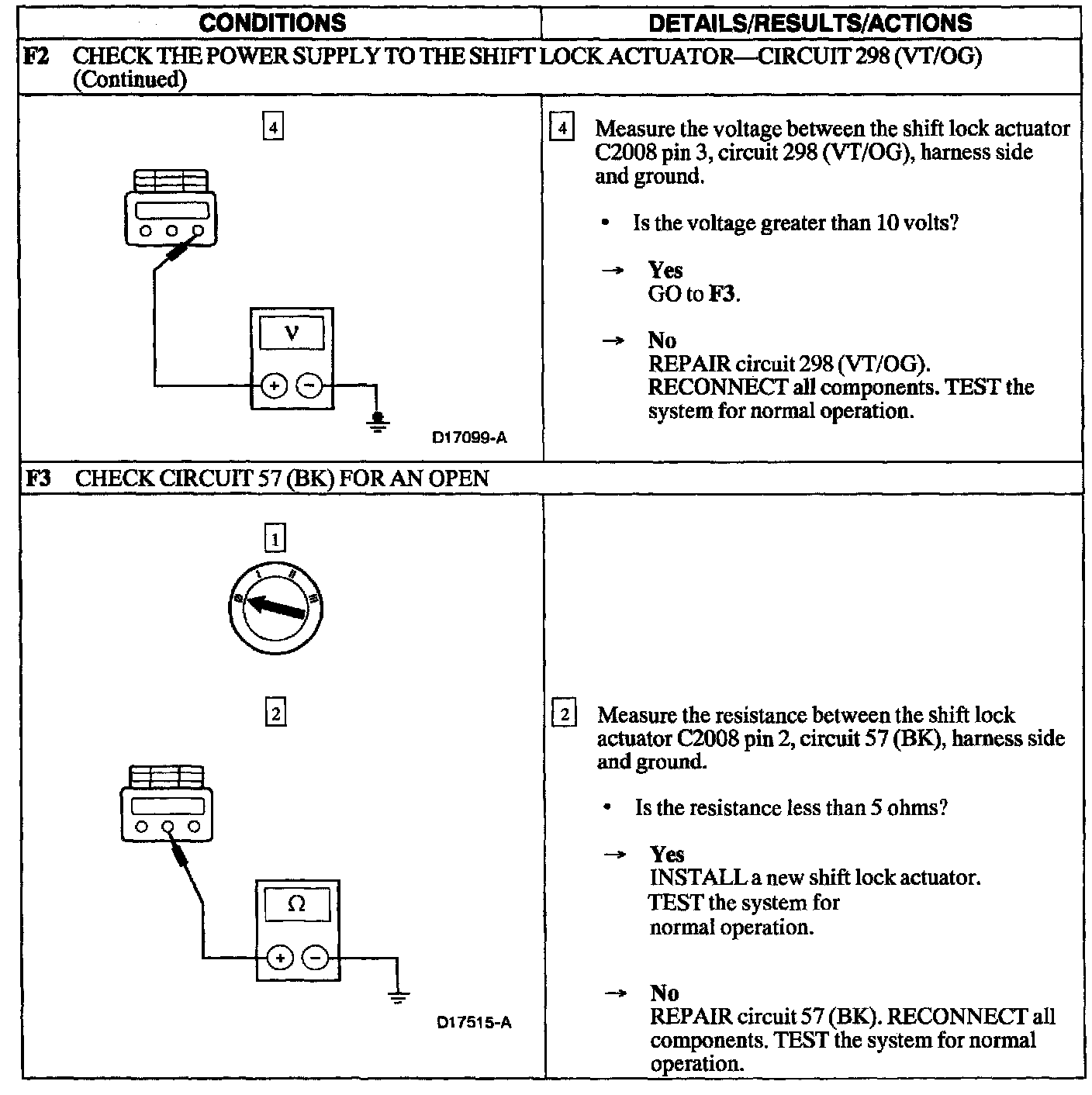

F2 - F3
