Test C: Digital Transmission Range (TR) Sensor

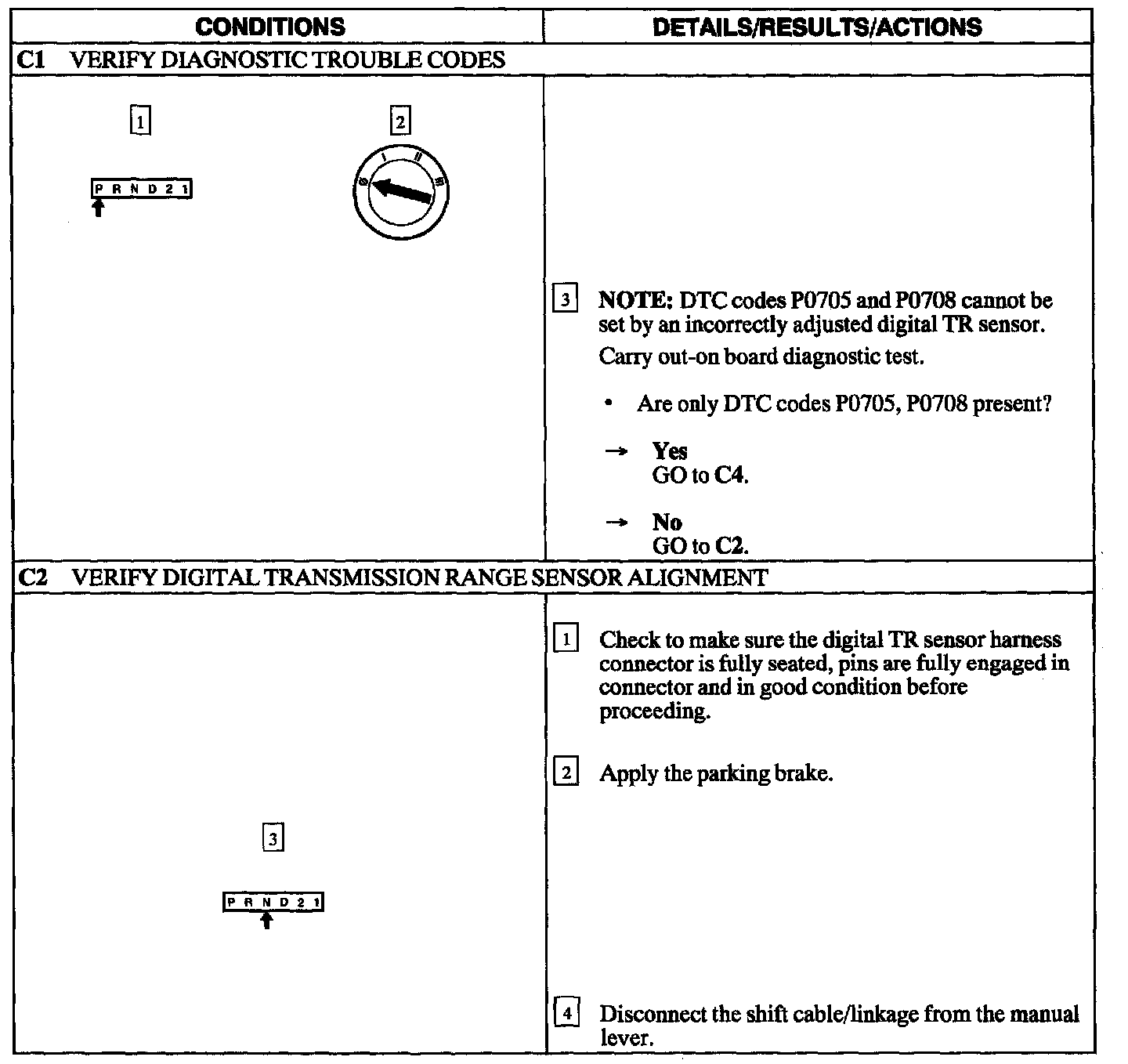

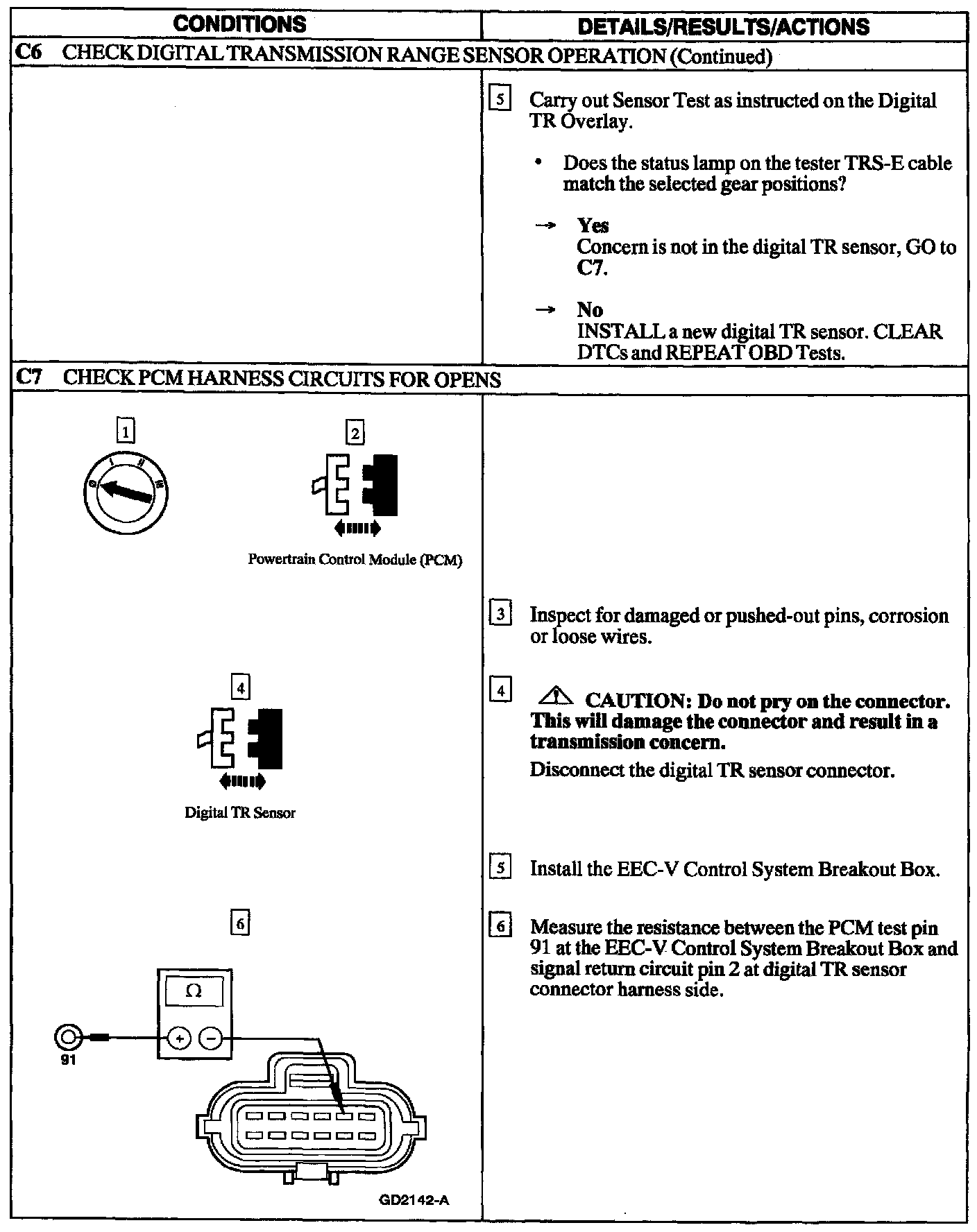

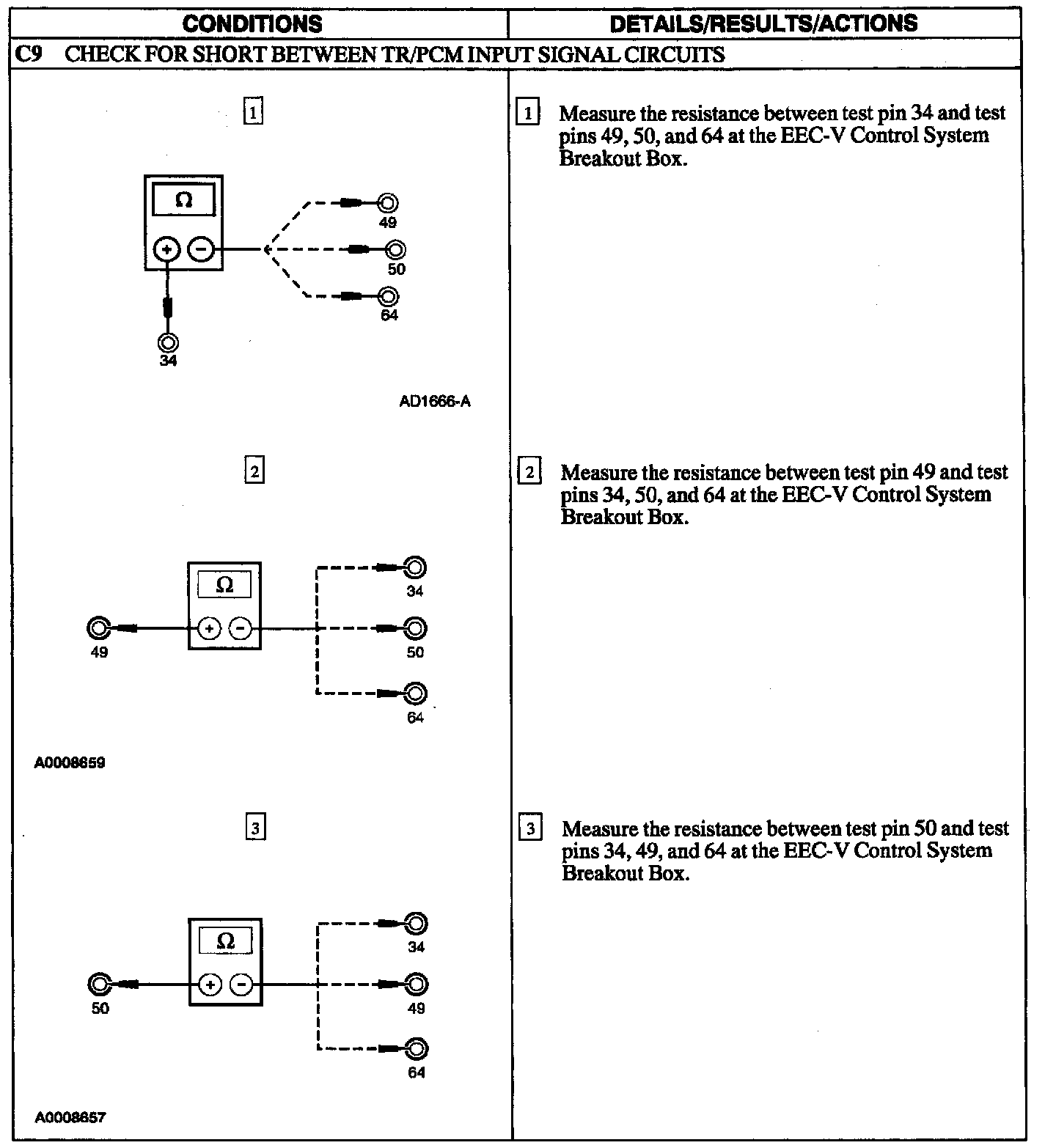

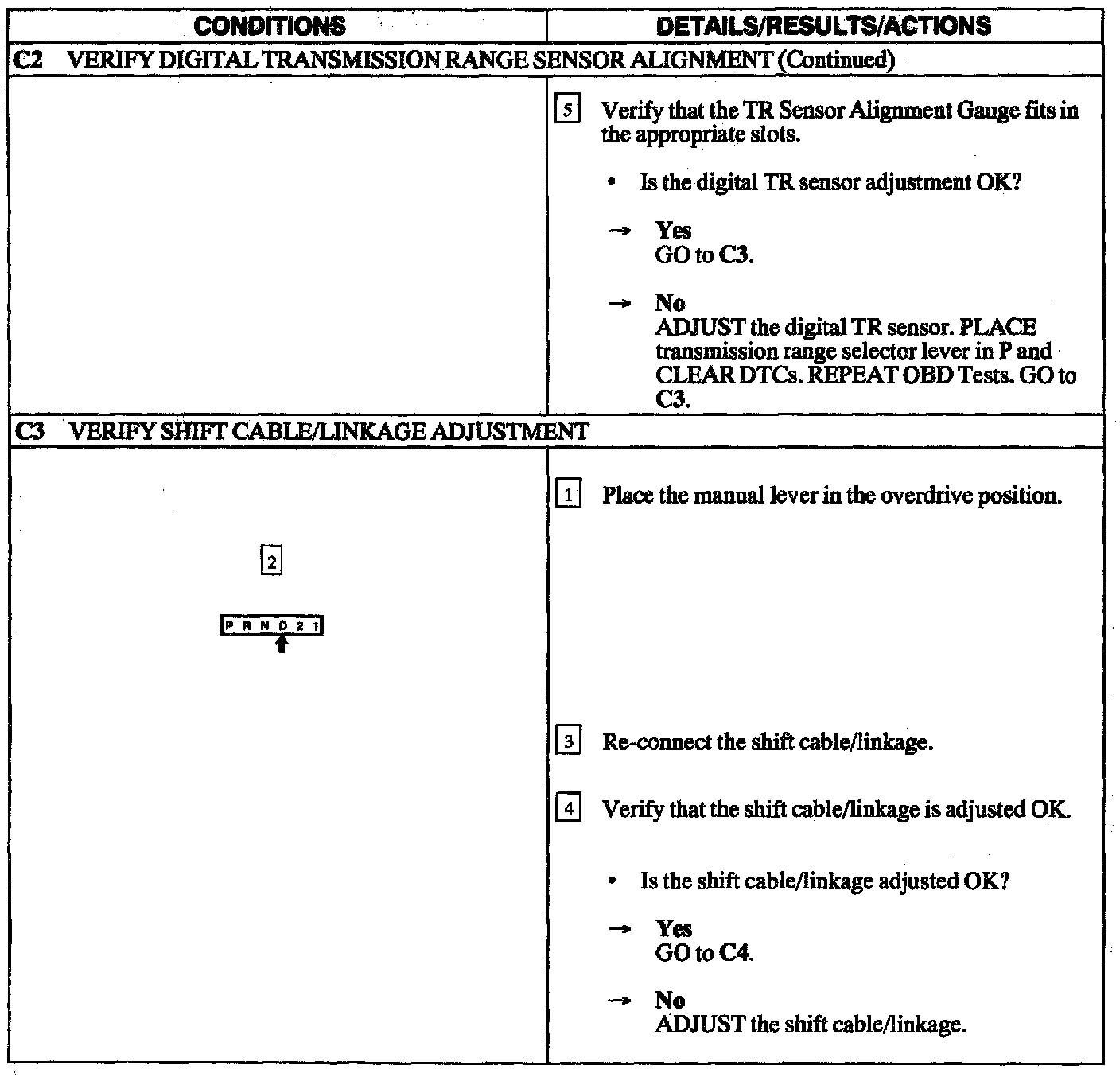

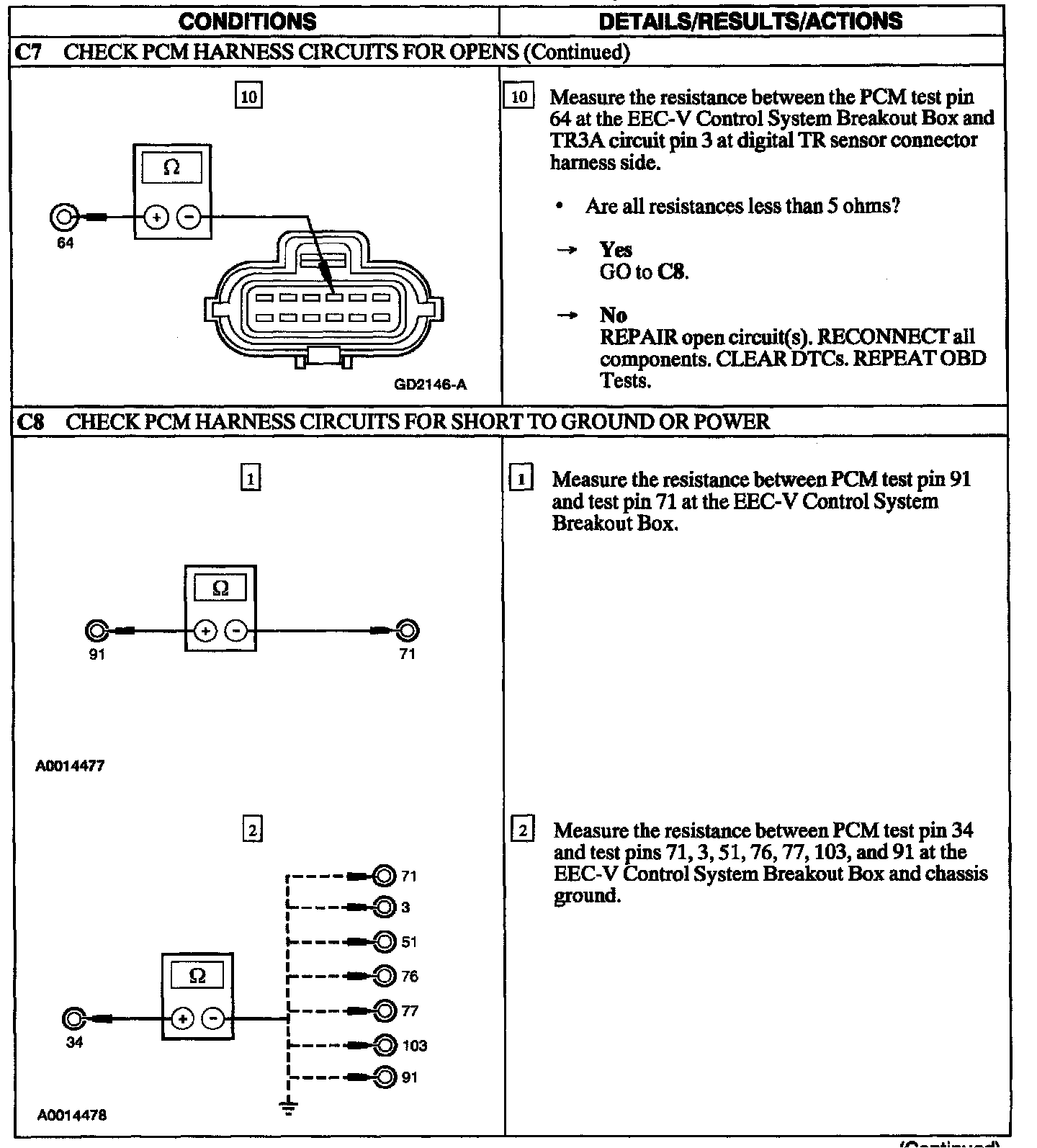

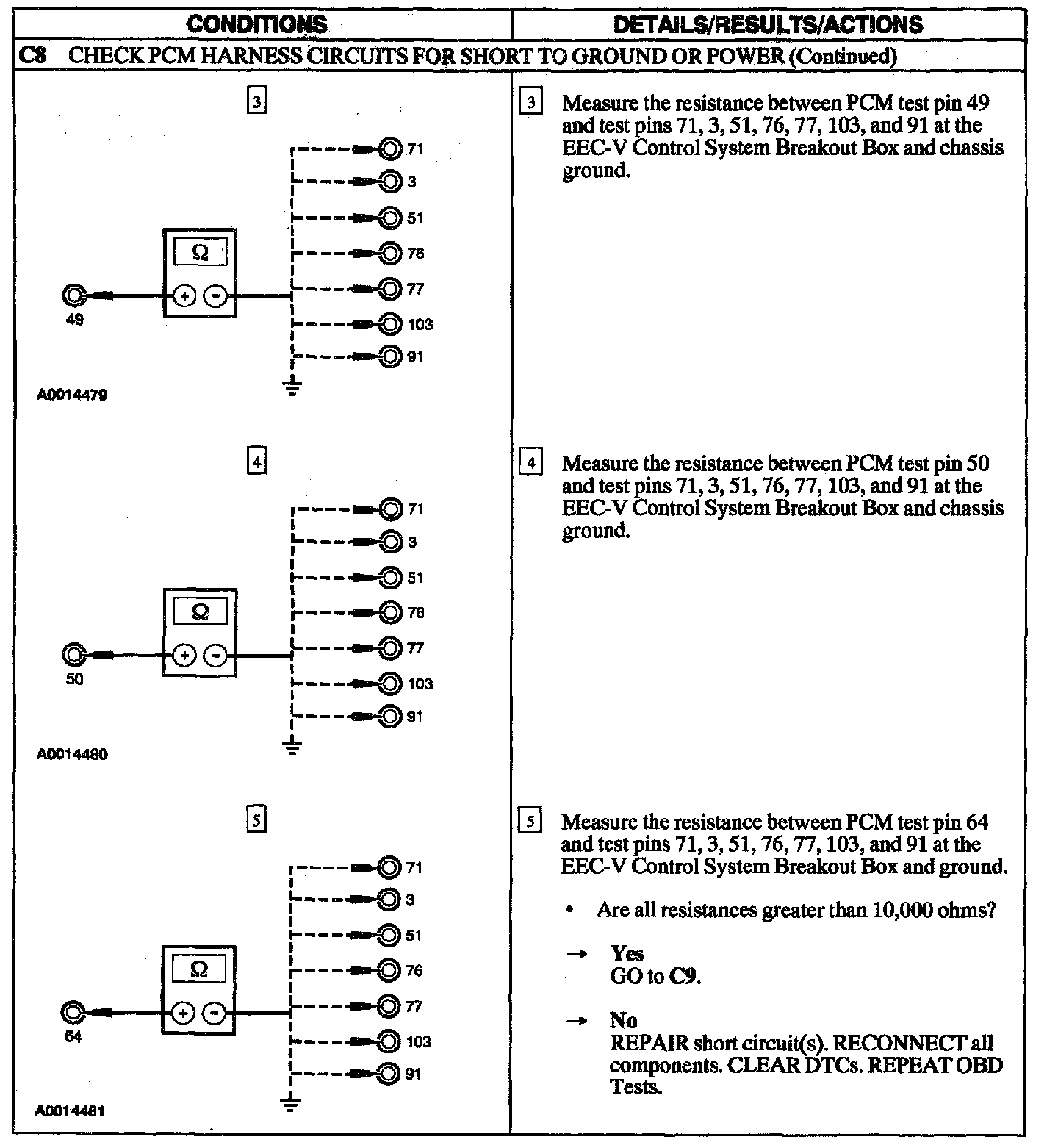

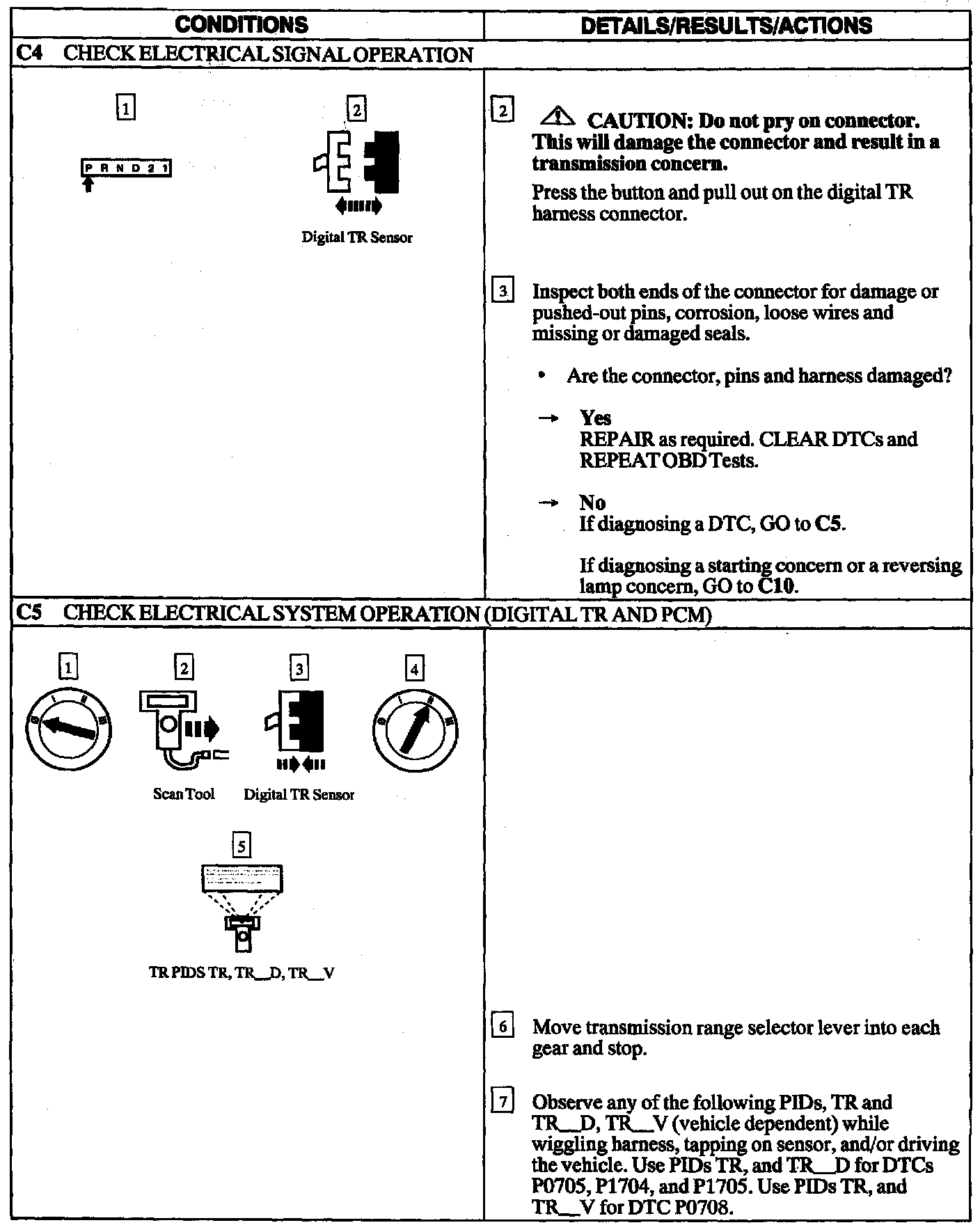

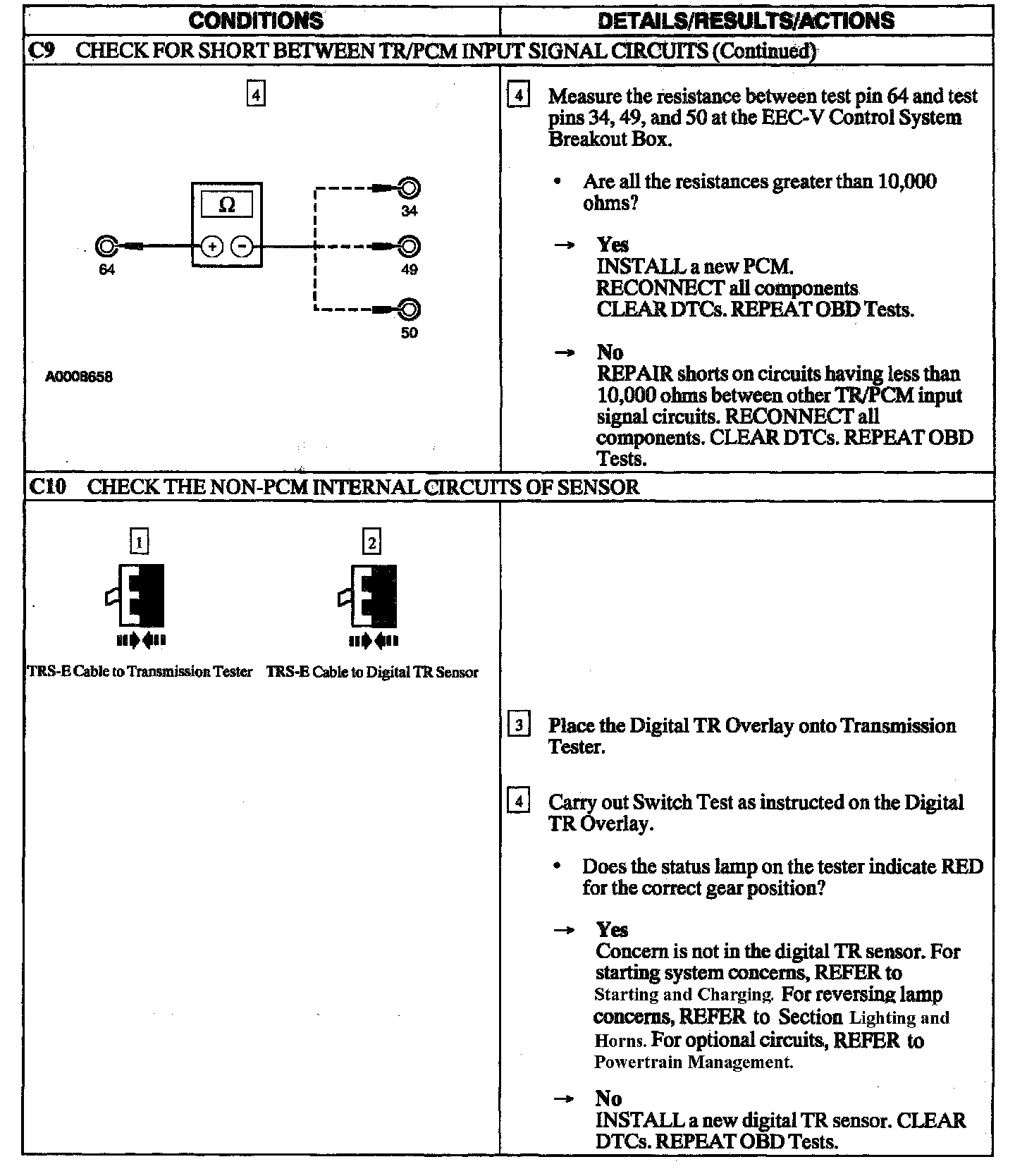

PINPOINT TEST C: DIGITAL TRANSMISSION RANGE (TR) SENSOR





C1 - C2





C2 - C3





C4 - C5





C5 - C6





C6 - C7





C7





C7 - C8





C8





C9





C9 - C10

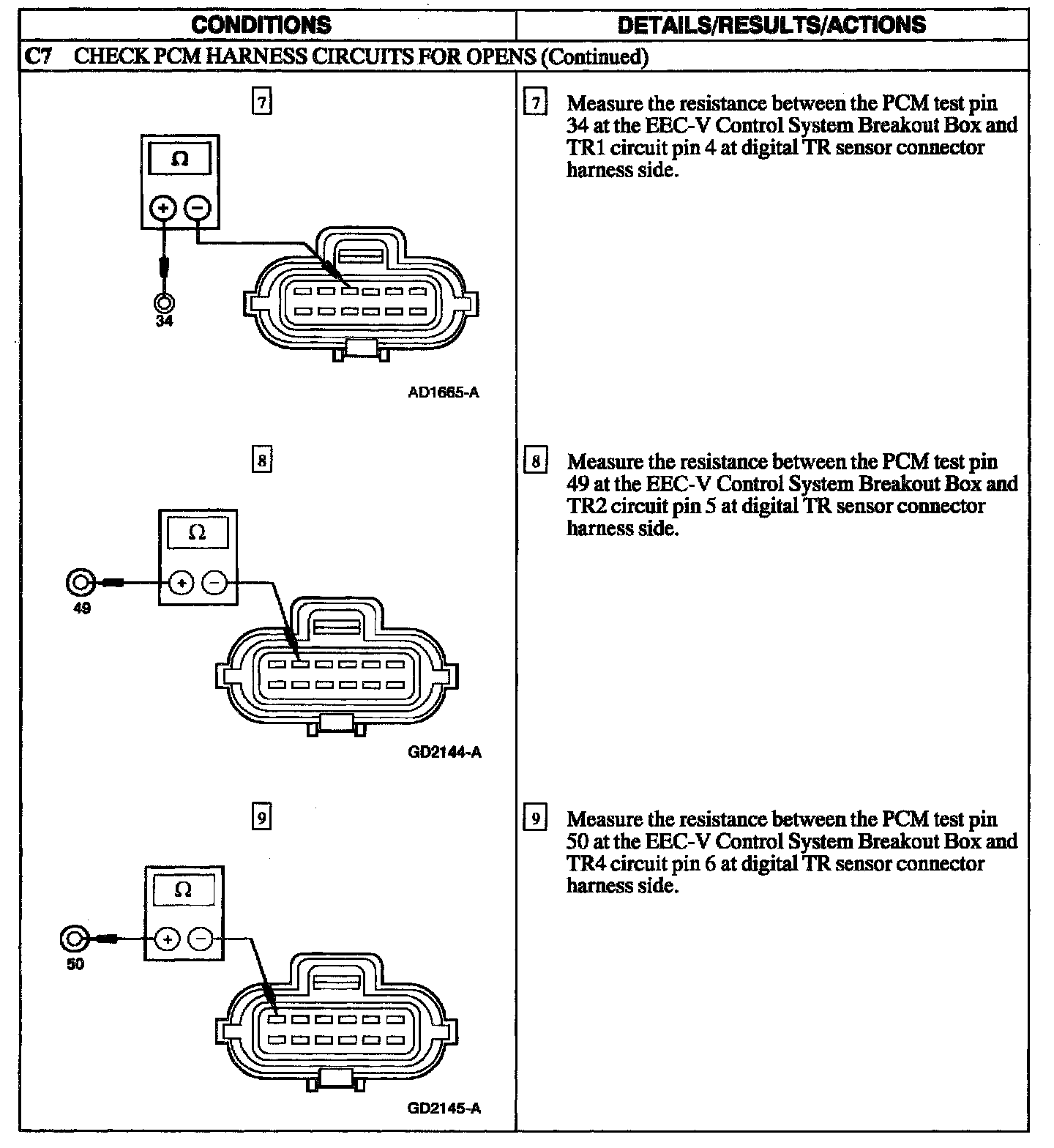

NOTE: Refer to the Digital Transmission Range (TR) Sensor Connector illustration.

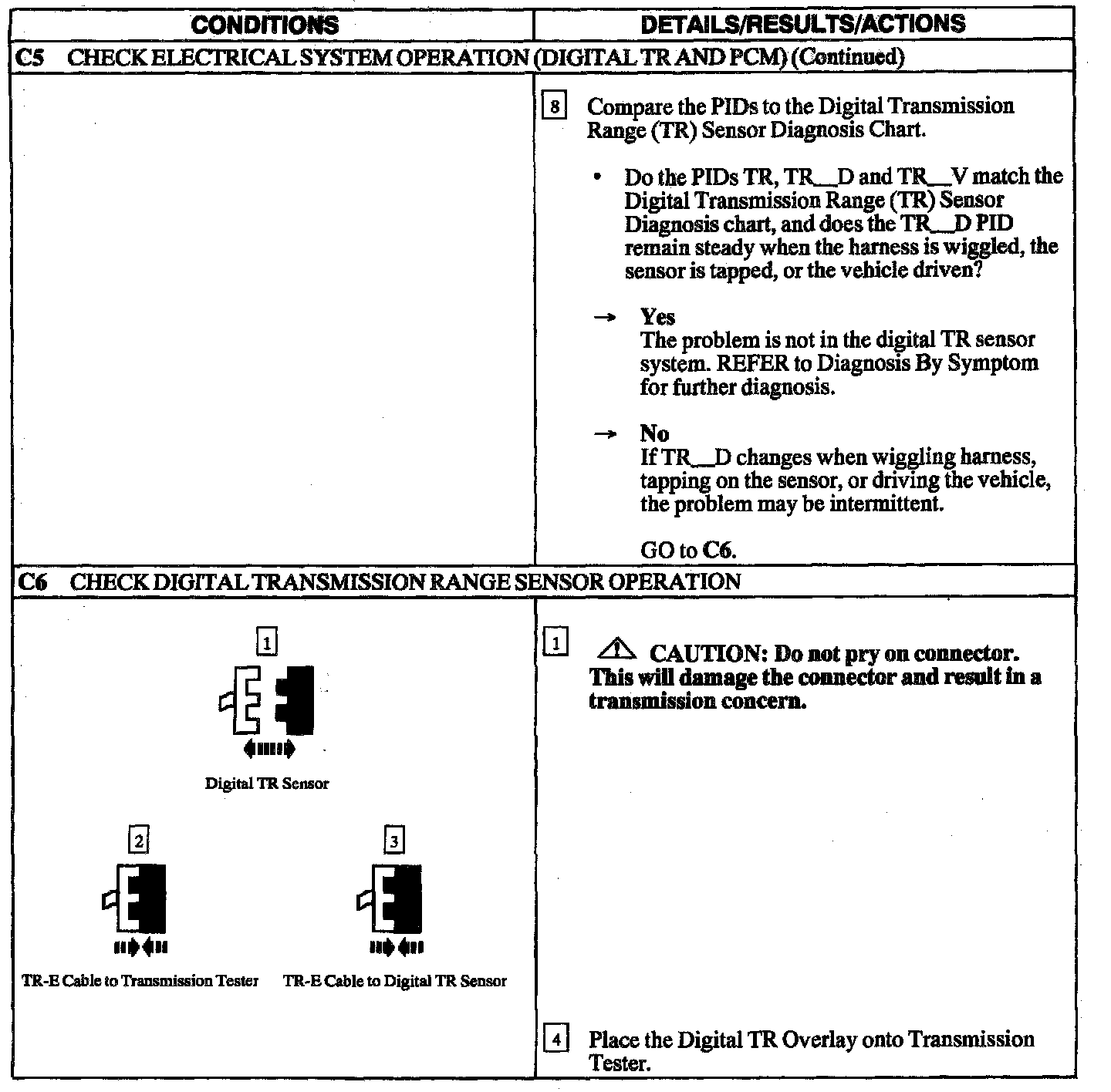

NOTE: Refer to the Digital Transmission Range (TR) Sensor Diagnosis chart
