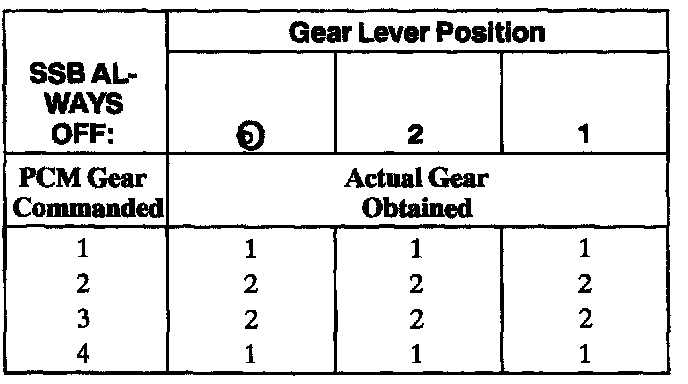

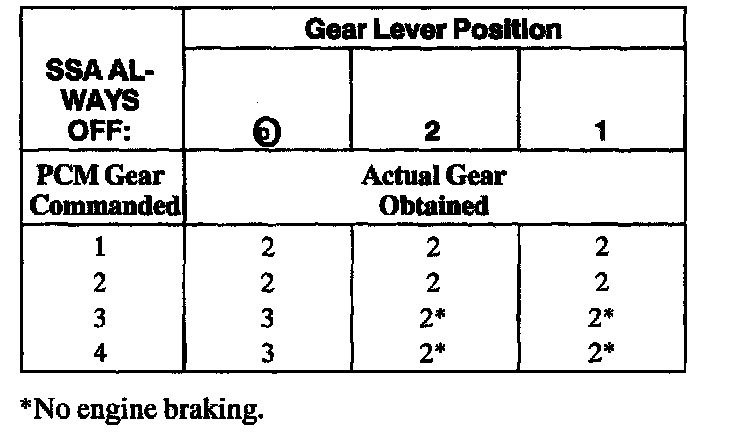

Shift Solenoid Failure Mode Chart "Always Off"

Shift Solenoid Failure Mode Chart "Always Off"
Failed off due to powertrain control module and/or vehicle wiring concerns, shift solenoid electrically or hydraulically stuck off.








*No engine braking.
