Diagnostic Trouble Code Tests and Associated Procedures

Diagnostic Trouble Code Charts

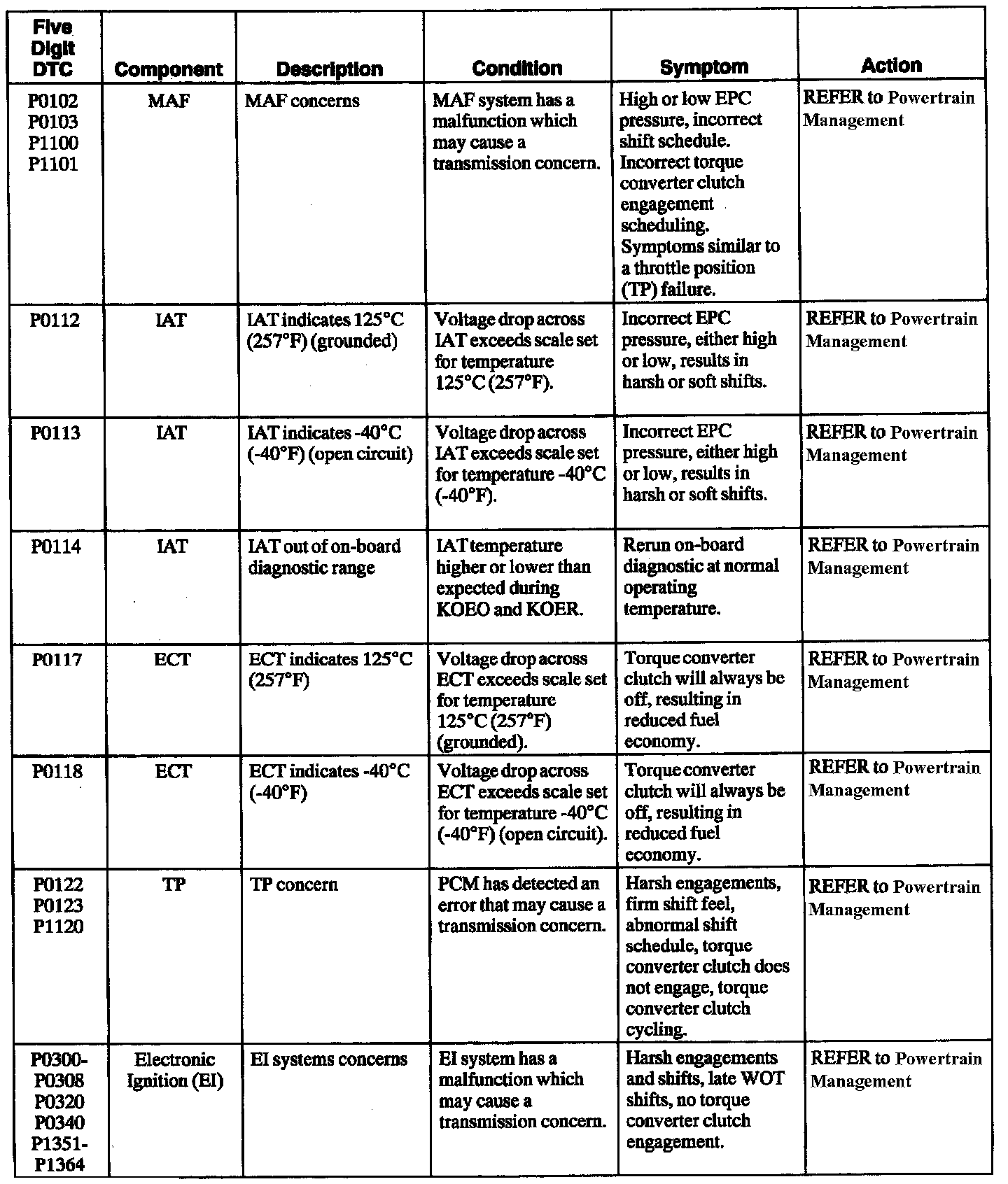

P0102-P1364:

1 of 7

P0503-P1710:

2 of 7

P0720-P1746:

3 of 7

P0750-P1760:

4 of 7

P0755-P1715:

5 of 7

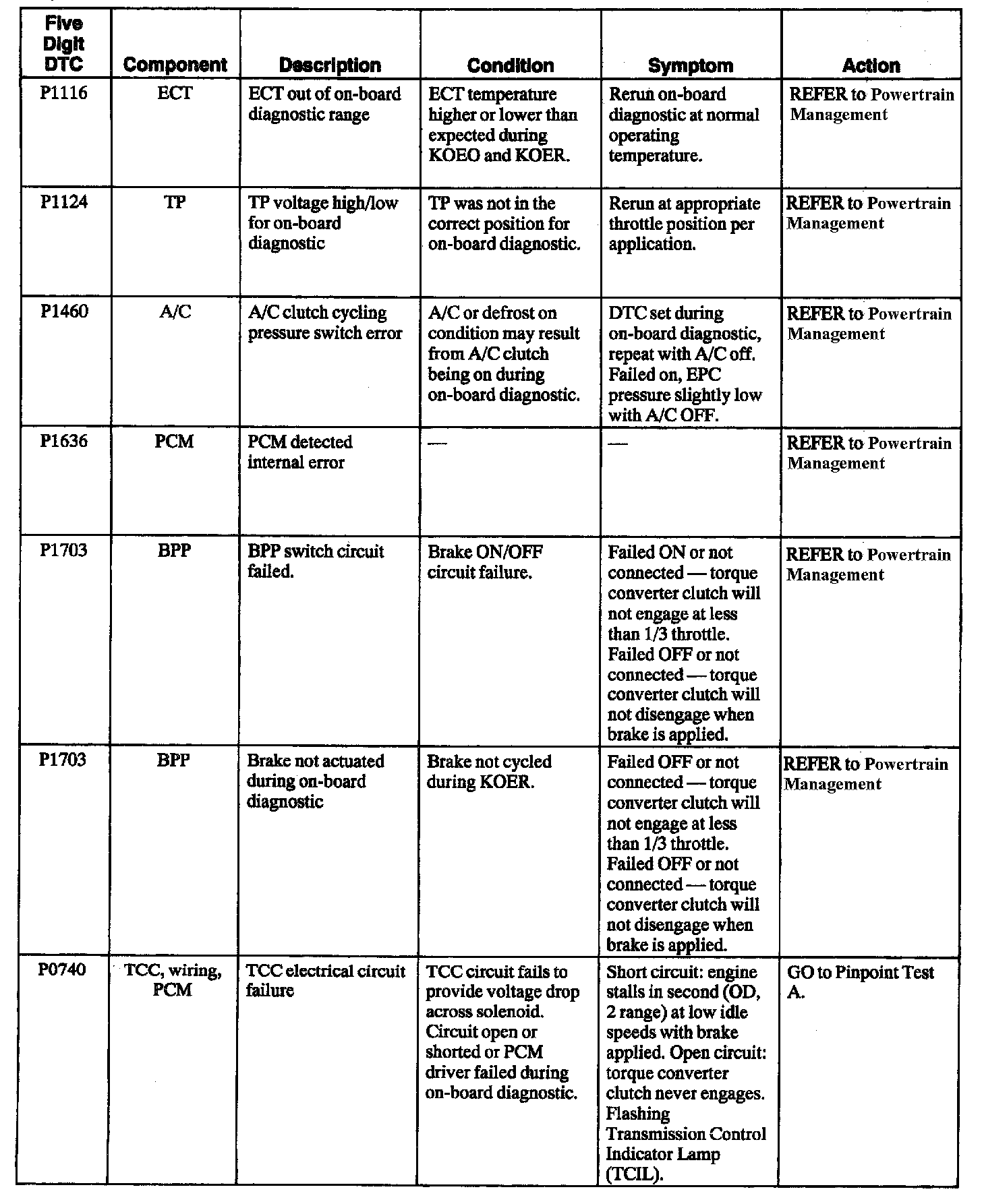

P1116-P1703:

6 of 7

P1740-P1780:

7 of 7
