Home >> Mercury >> 2002 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Locations >> Seals, Rings and Gasket Locator

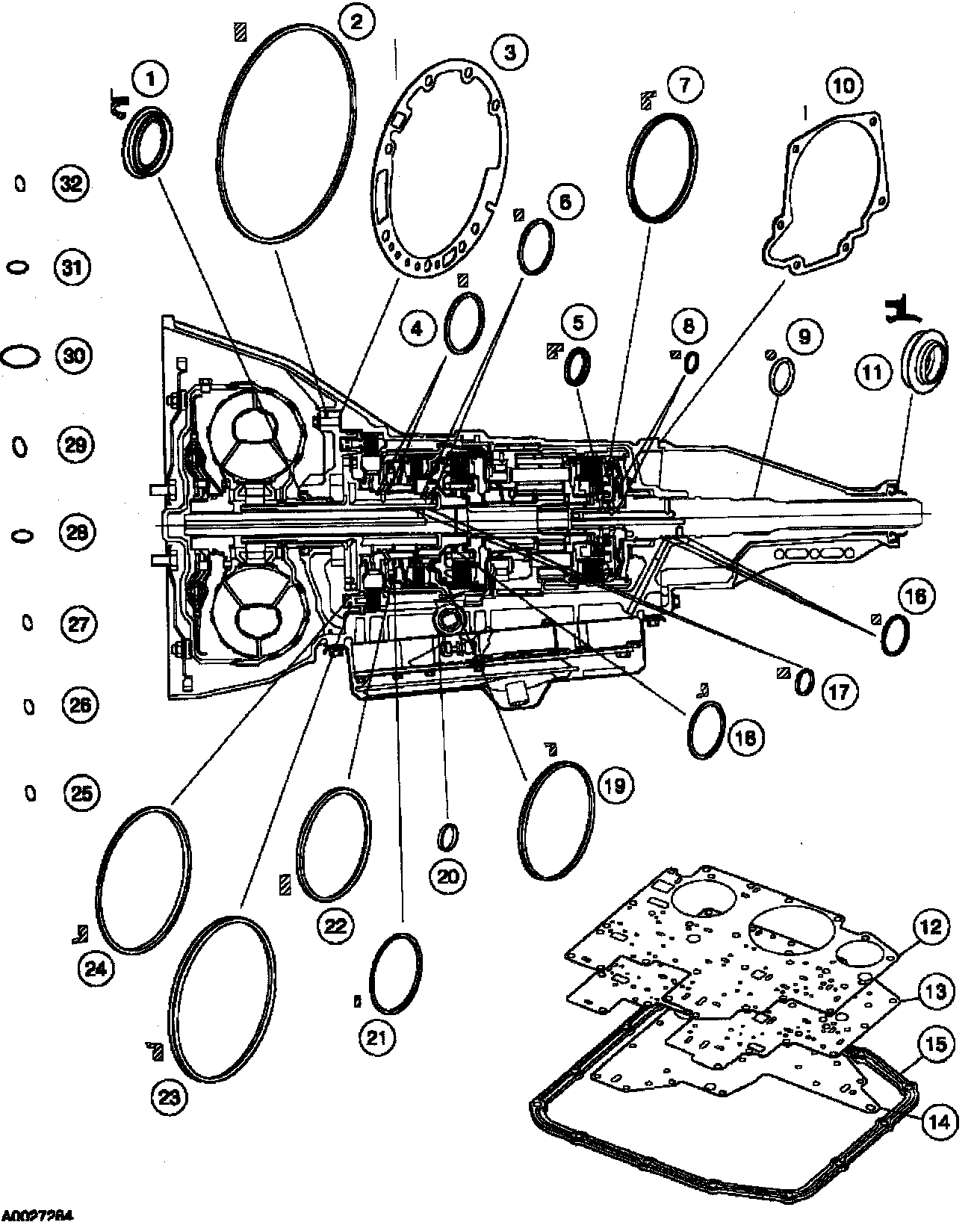

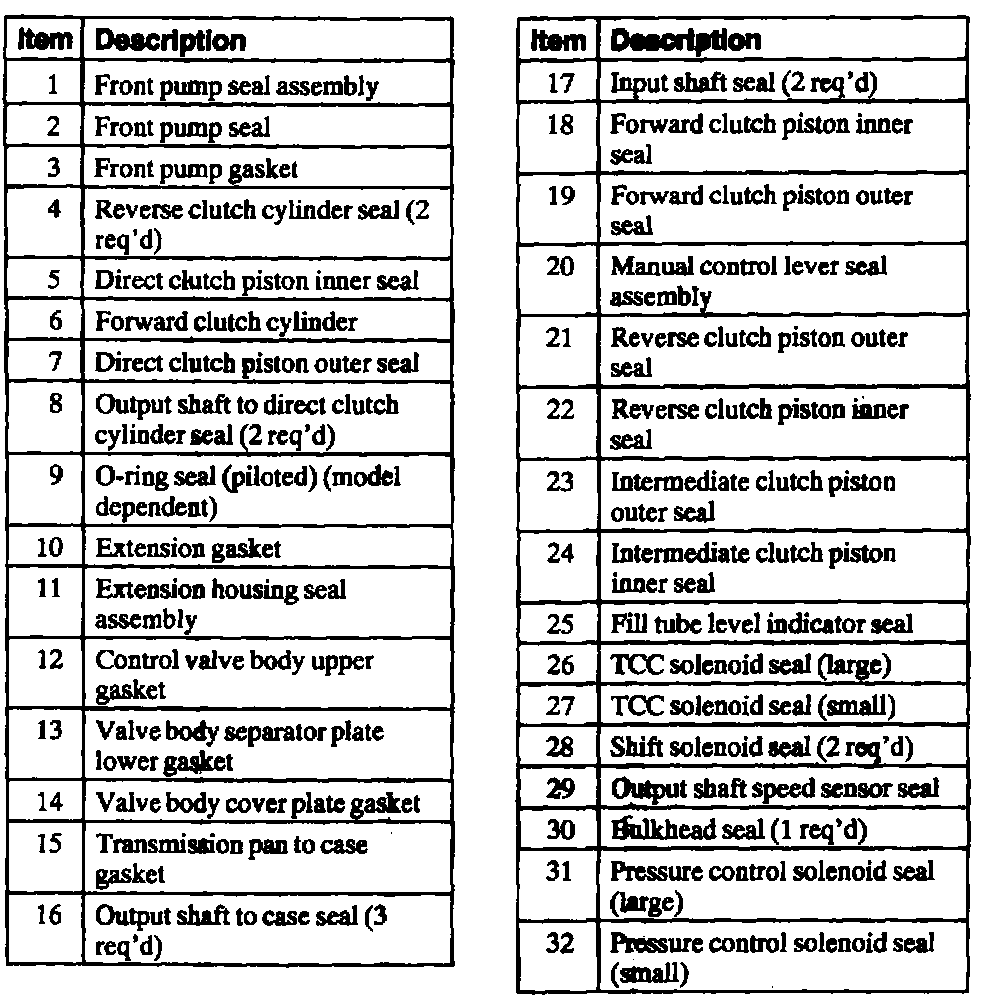

Seals, Rings and Gasket Locator

Seals, Rings and Gasket Locator





1 of 2





2 of 2
