Home >> Mercury >> 2002 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Application and ID >> Band and Clutch Application Charts

Band and Clutch Application Charts

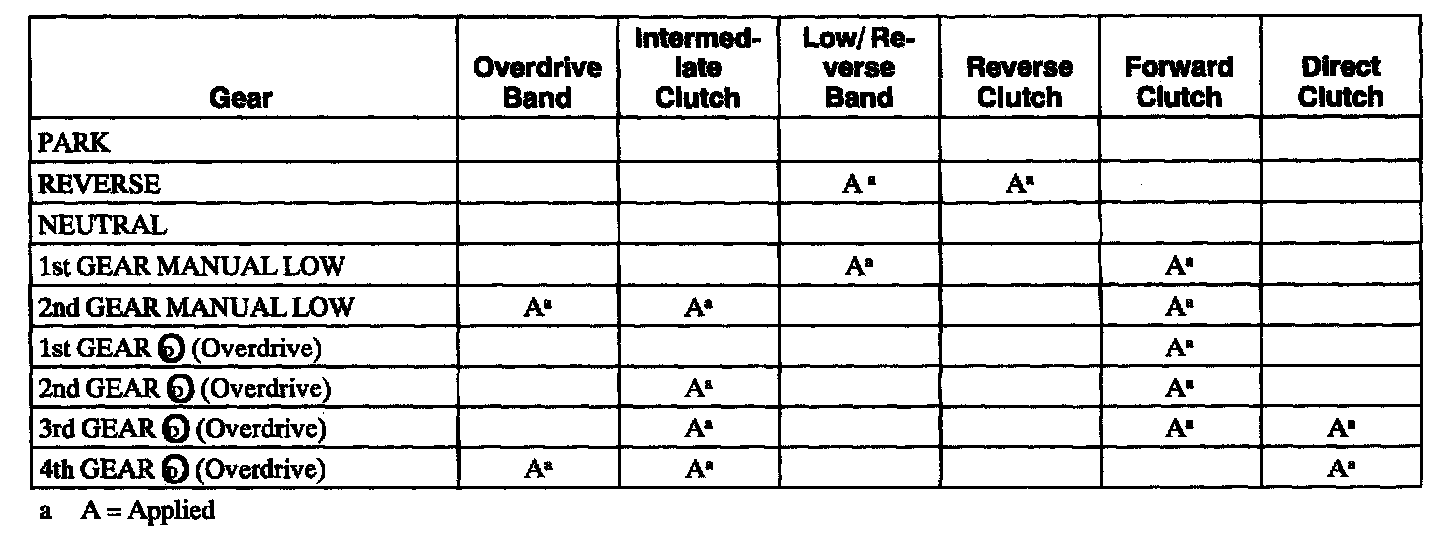

Band and Clutch Application Chart





1 of 2





2 of 2
