Air Leak and Wind Noise

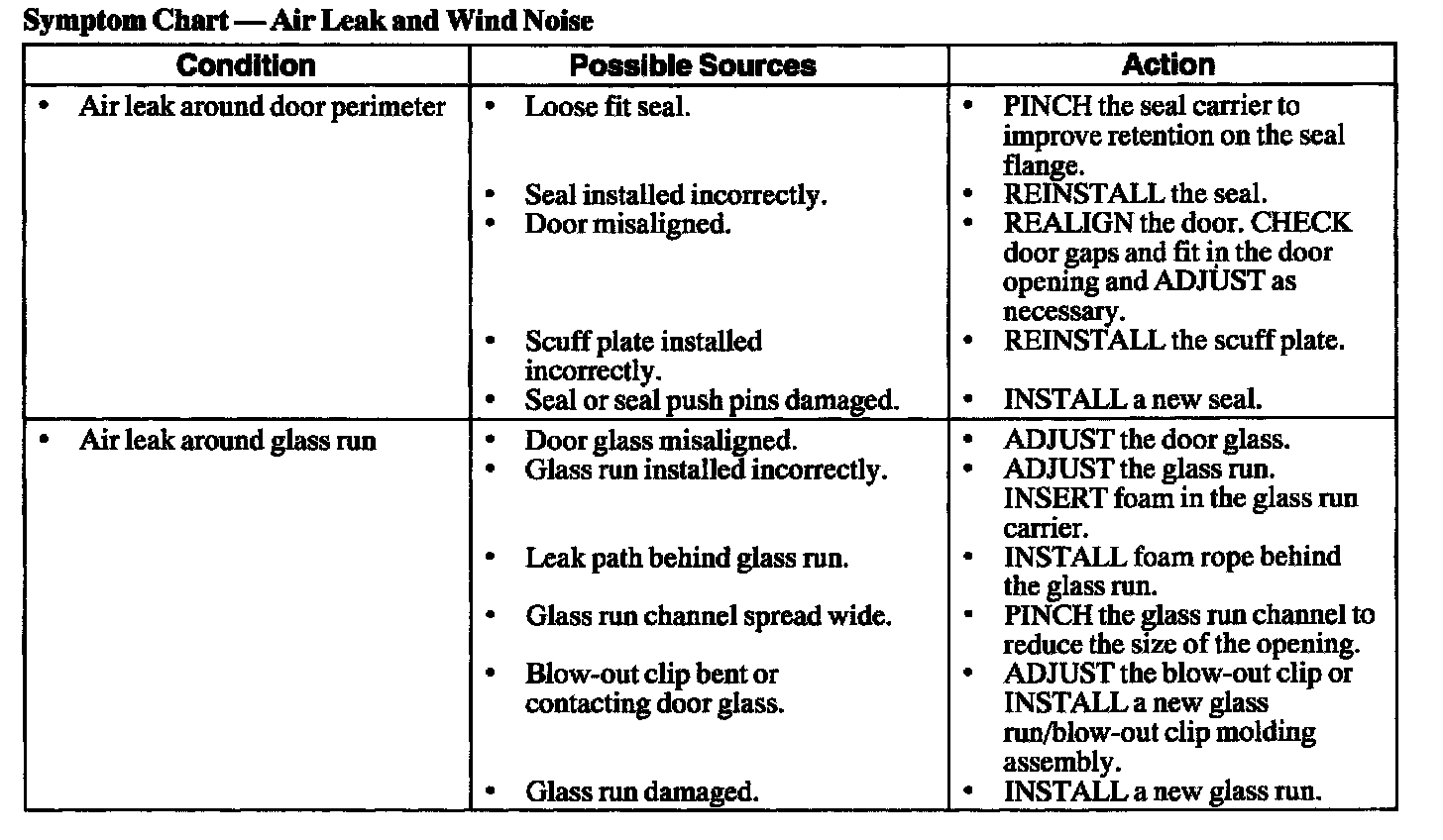

Symptom Chart - Air Leak And Wind Noise, Part 1:

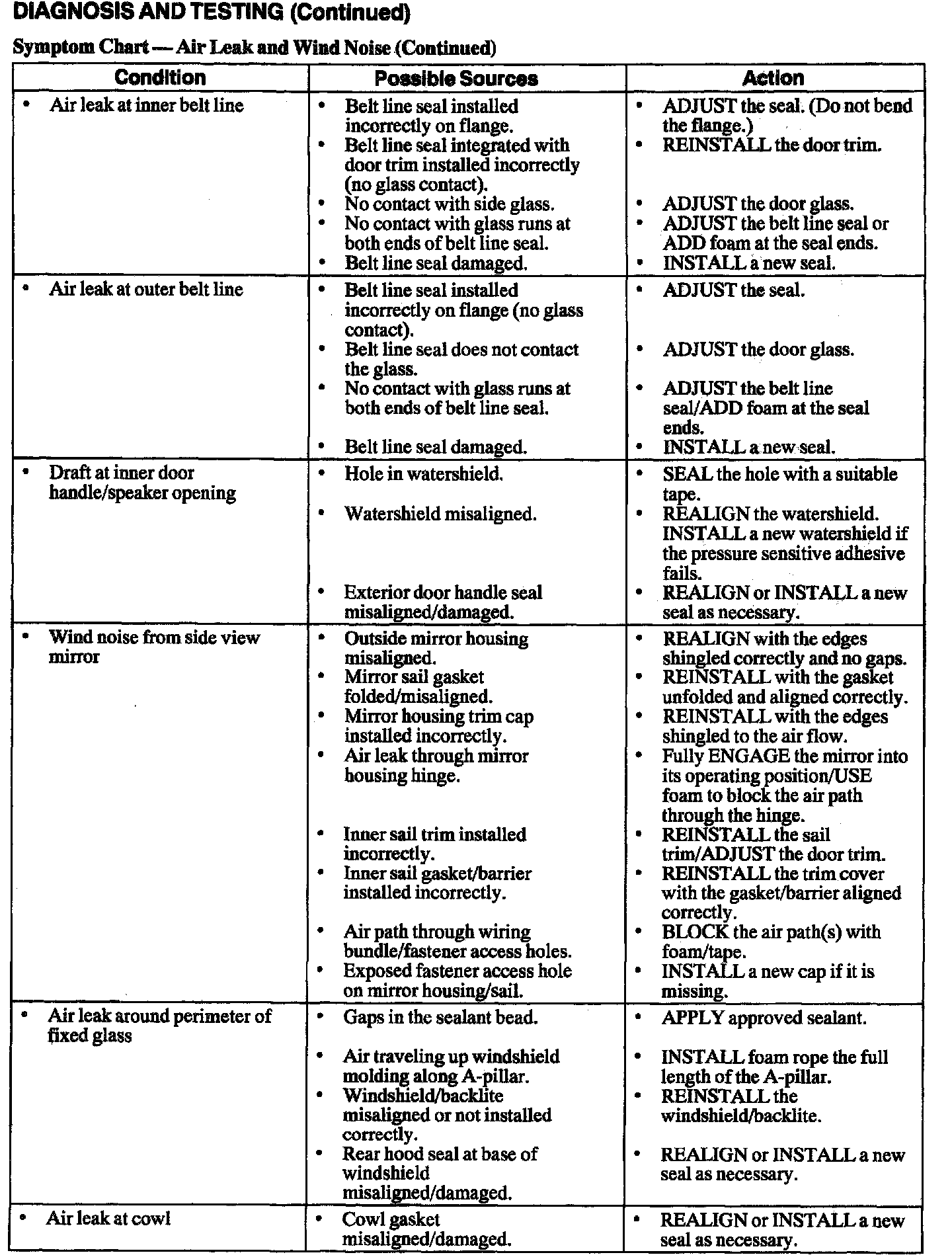

Symptom Chart - Air Leak And Wind Noise, Part 2:

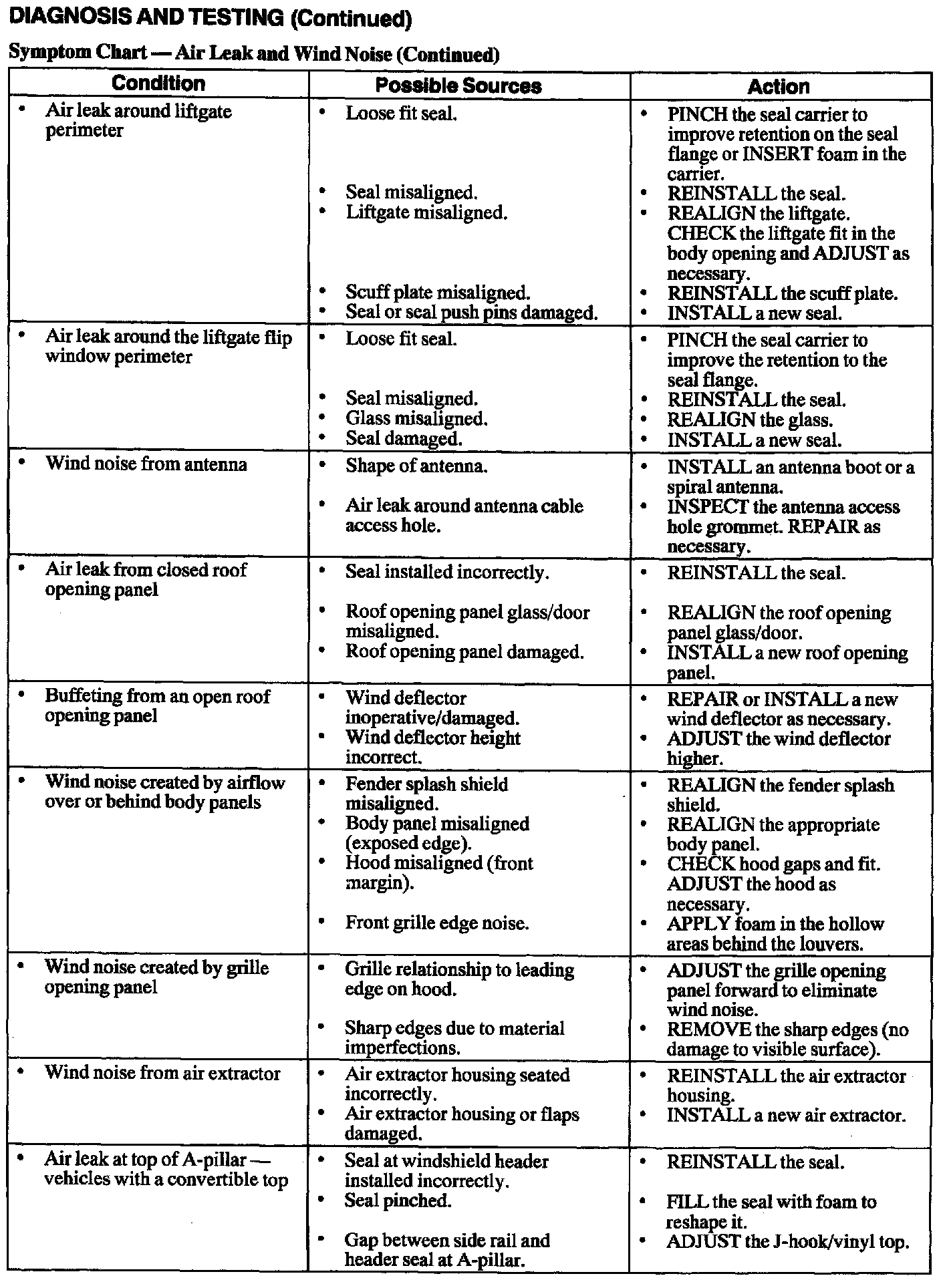

Symptom Chart - Air Leak And Wind Noise, Part 3:

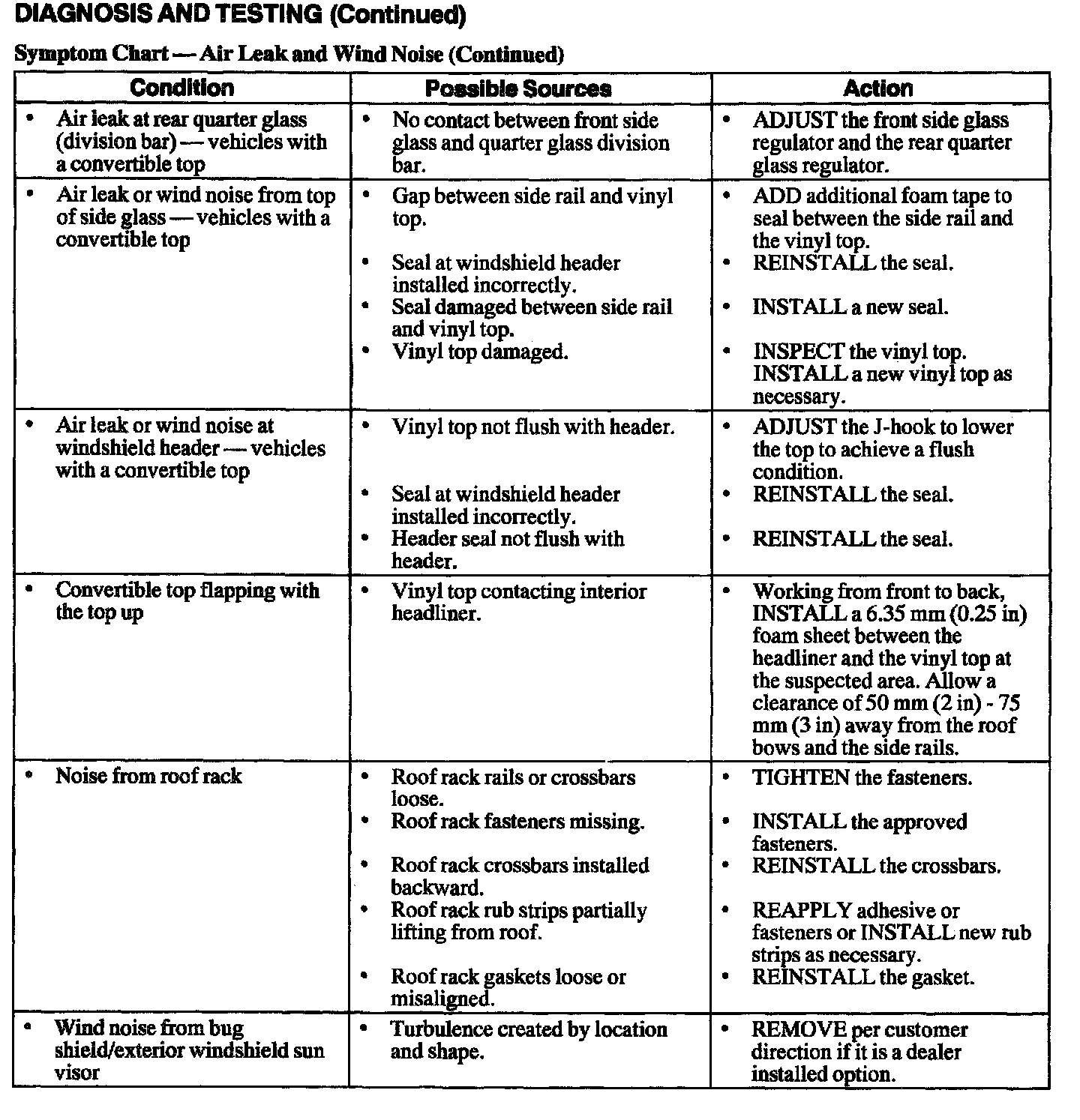

Symptom Chart - Air Leak And Wind Noise, Part 4:
