PINPOINT TEST S: DTC 80, BATTERY VOLTAGE HIGH OR LOW

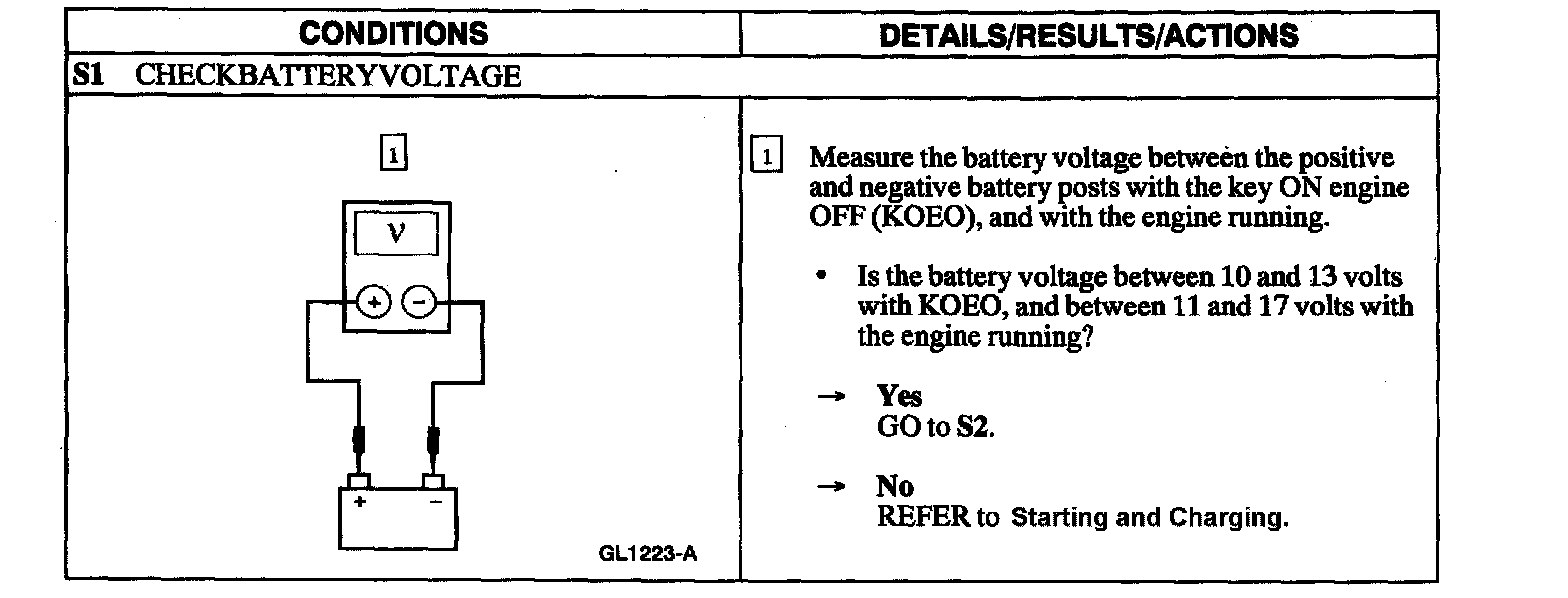

Test S1

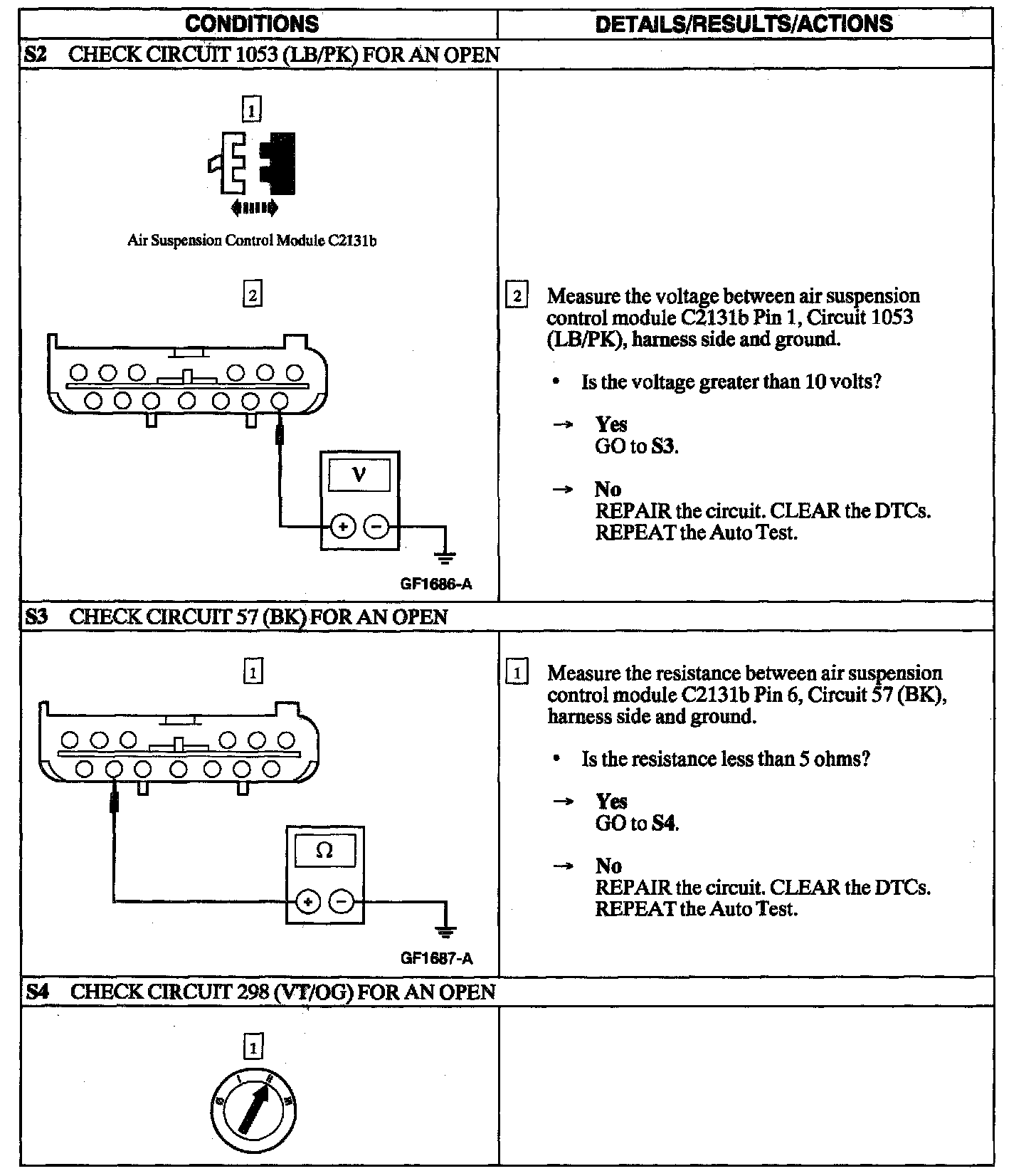

Test S2-S4

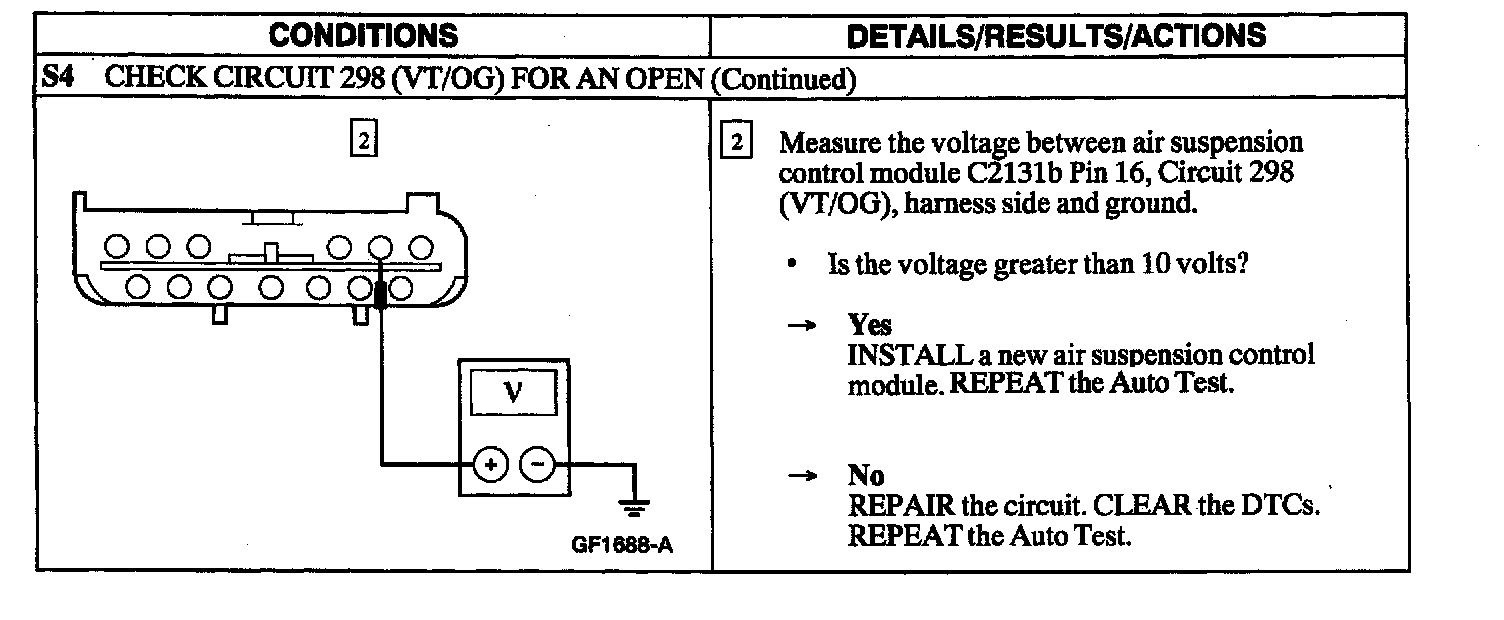

Test S4
NOTE:
A recent jump start may cause these DTCs to set.
