Test R
Test R
PINPOINT TEST R: DTC 72, DID NOT DETECT FOUR OPEN OR CLOSED DOOR SIGNALS

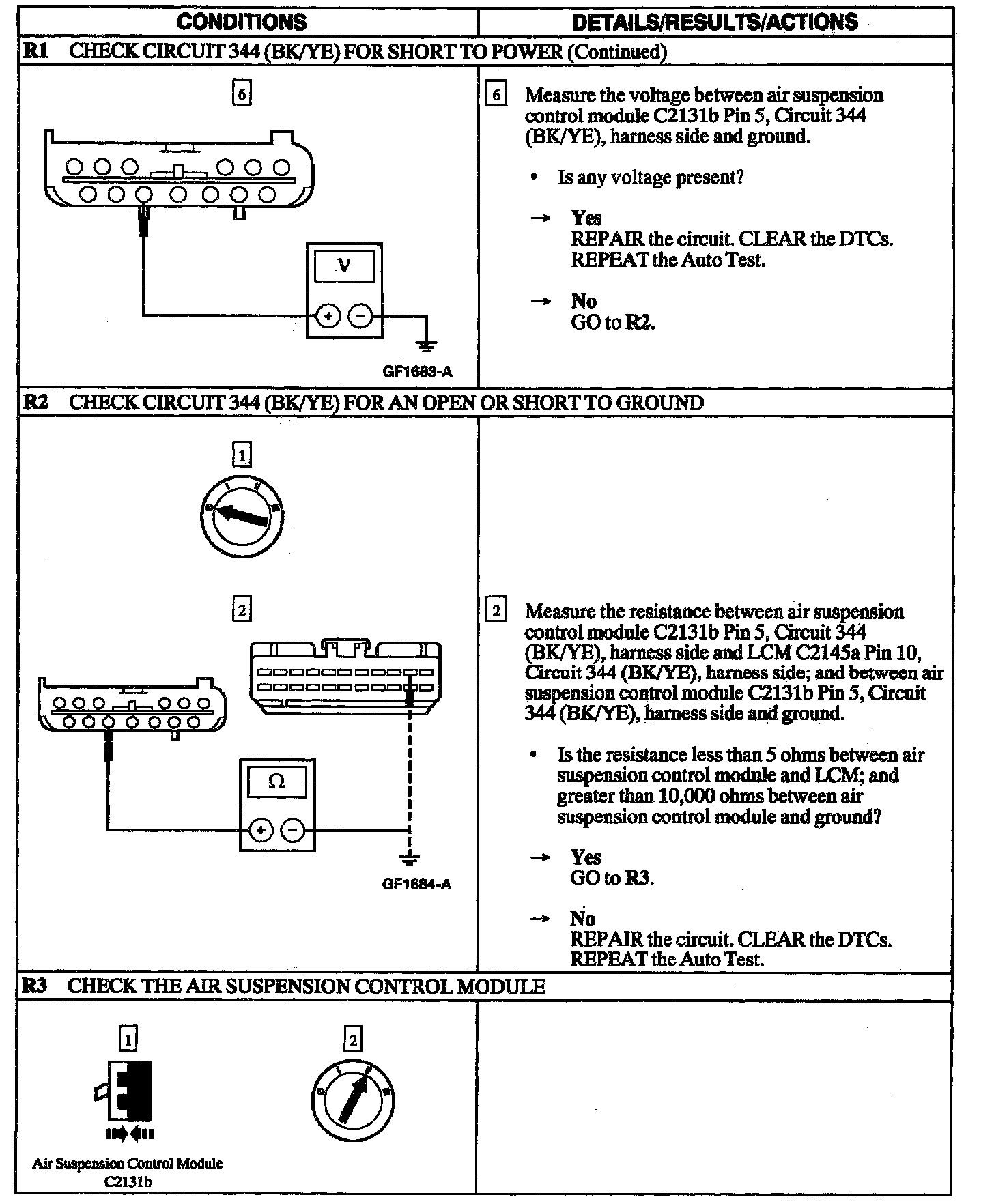

Test R1
Test R1-R3

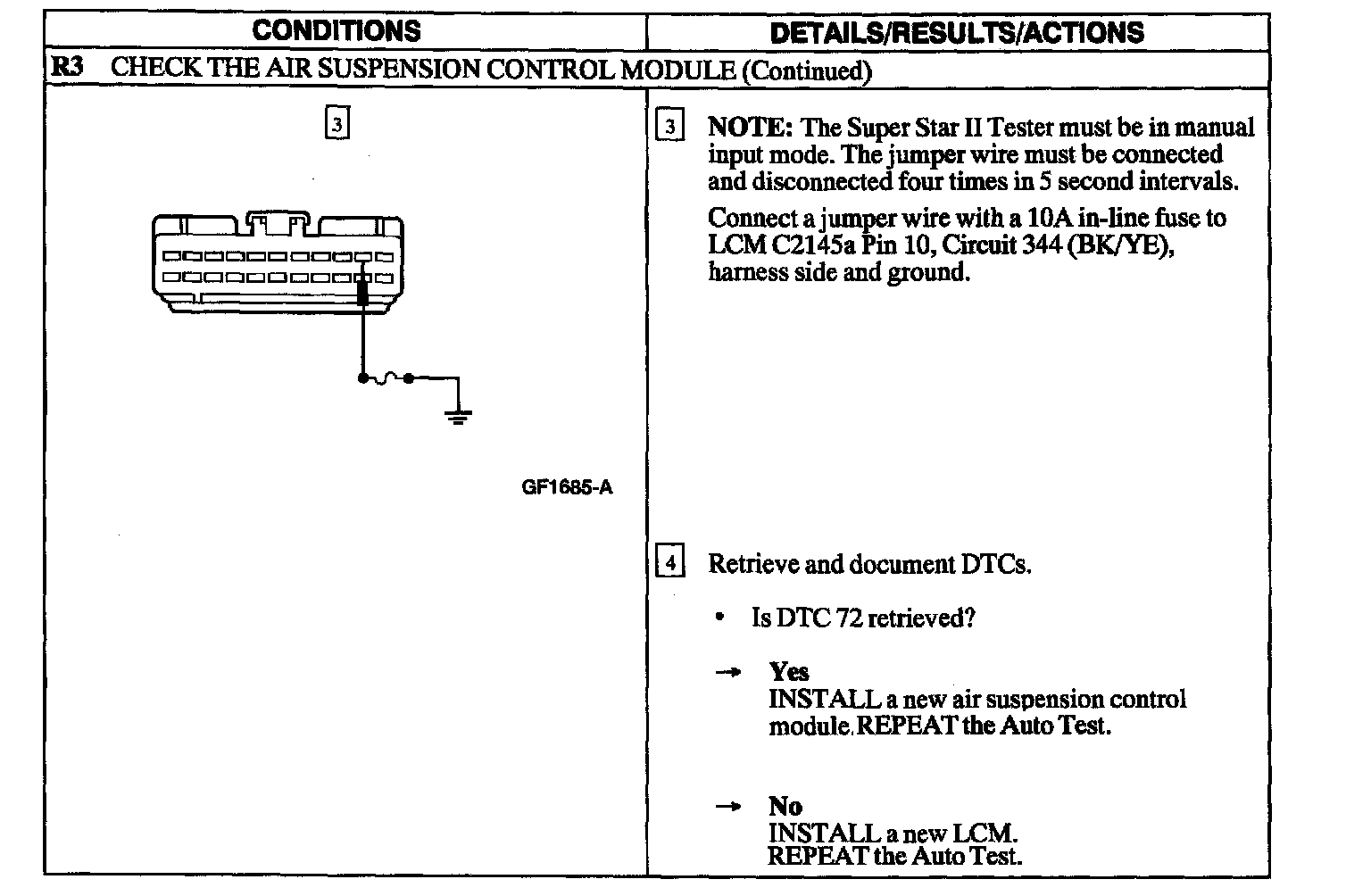

Test R3
