Test Q

PINPOINT TEST Q: DTC 71, AIR SUSPENSION HEIGHT SENSOR CIRCUIT OPEN

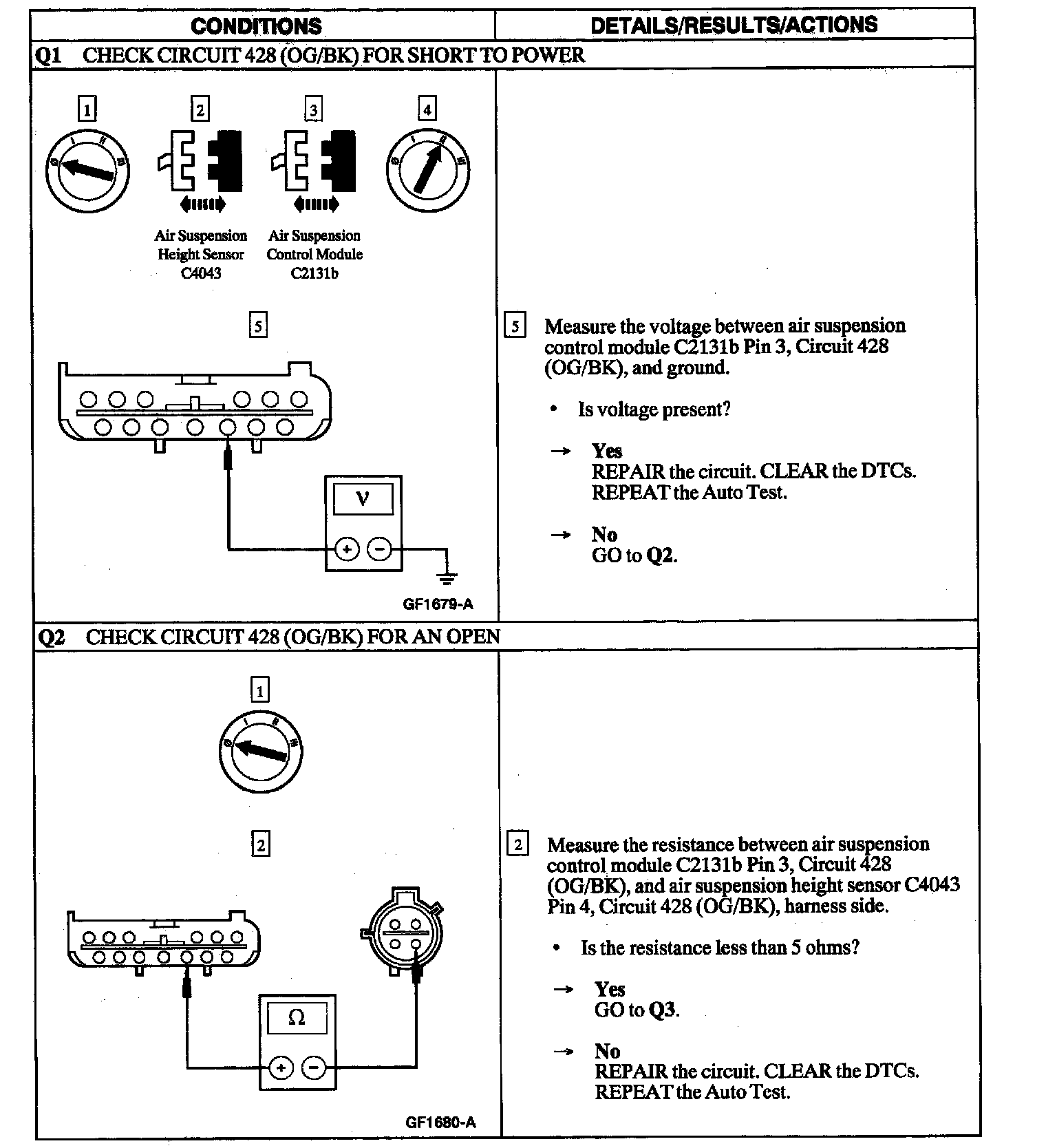

Test Q1-Q2

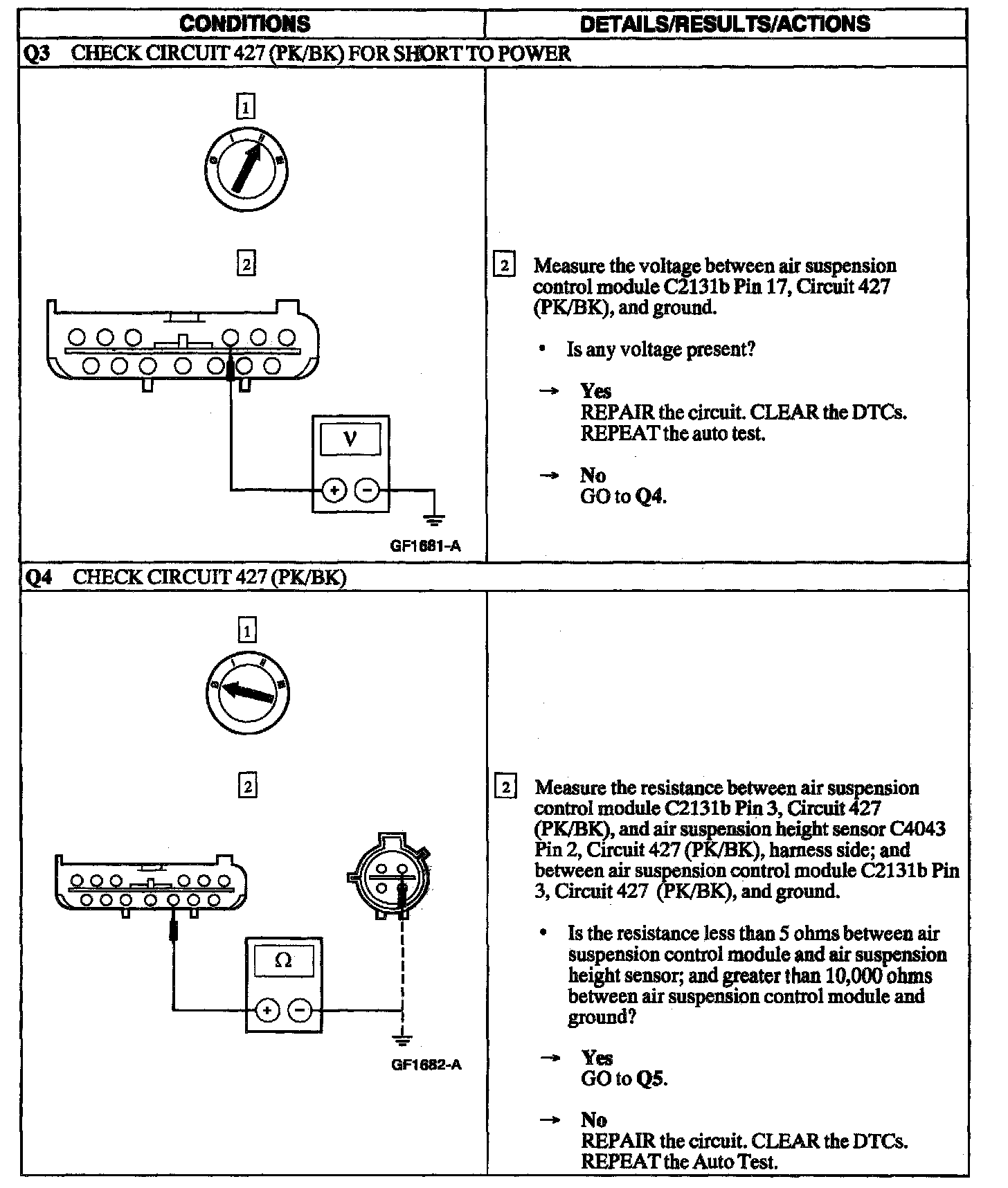

Test Q3-Q4

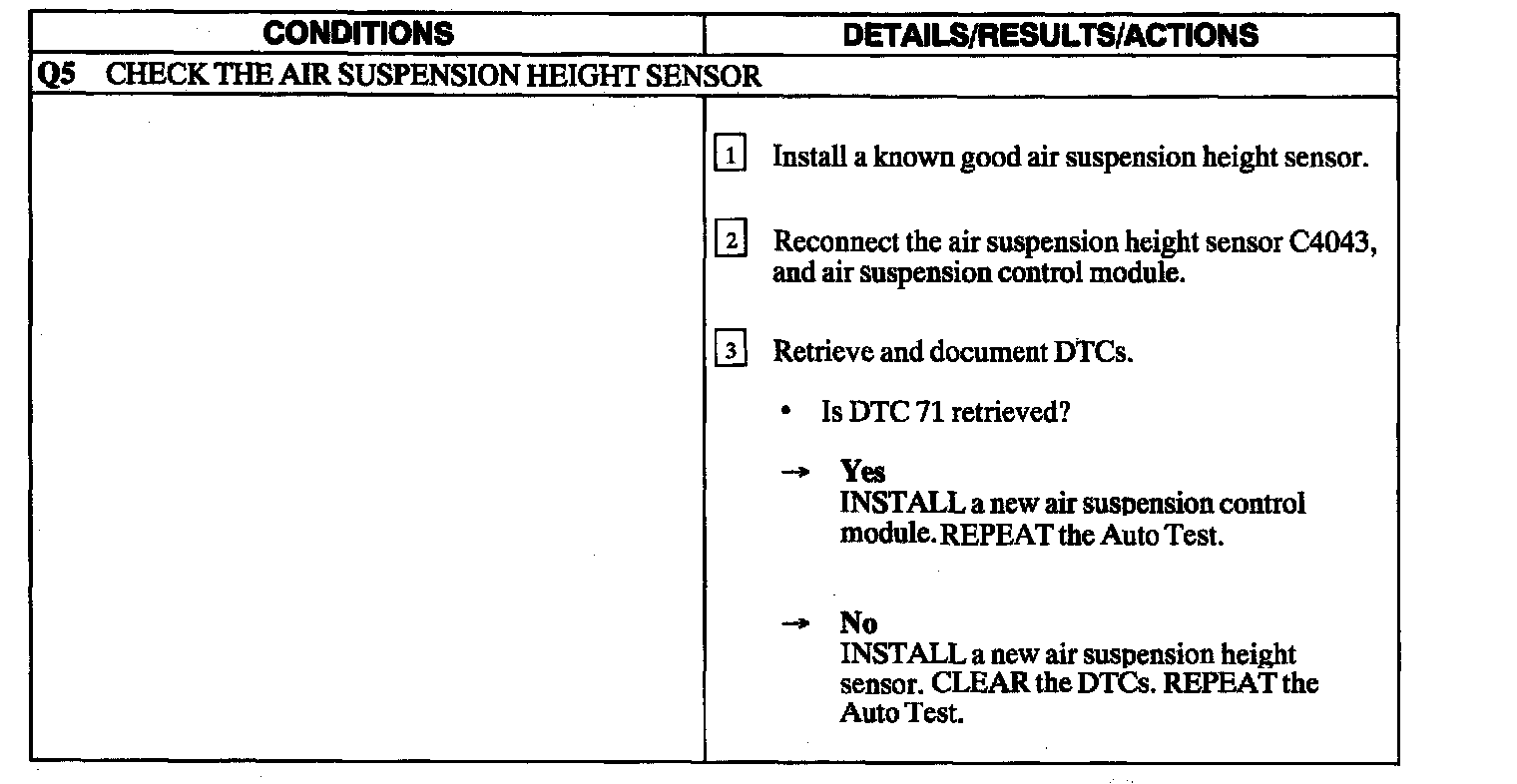

Test Q5
