Test O
Test O
PINPOINT TEST O: DTC 61, AIR
SUSPENSION
SWITCH CIRCUIT FAILURE

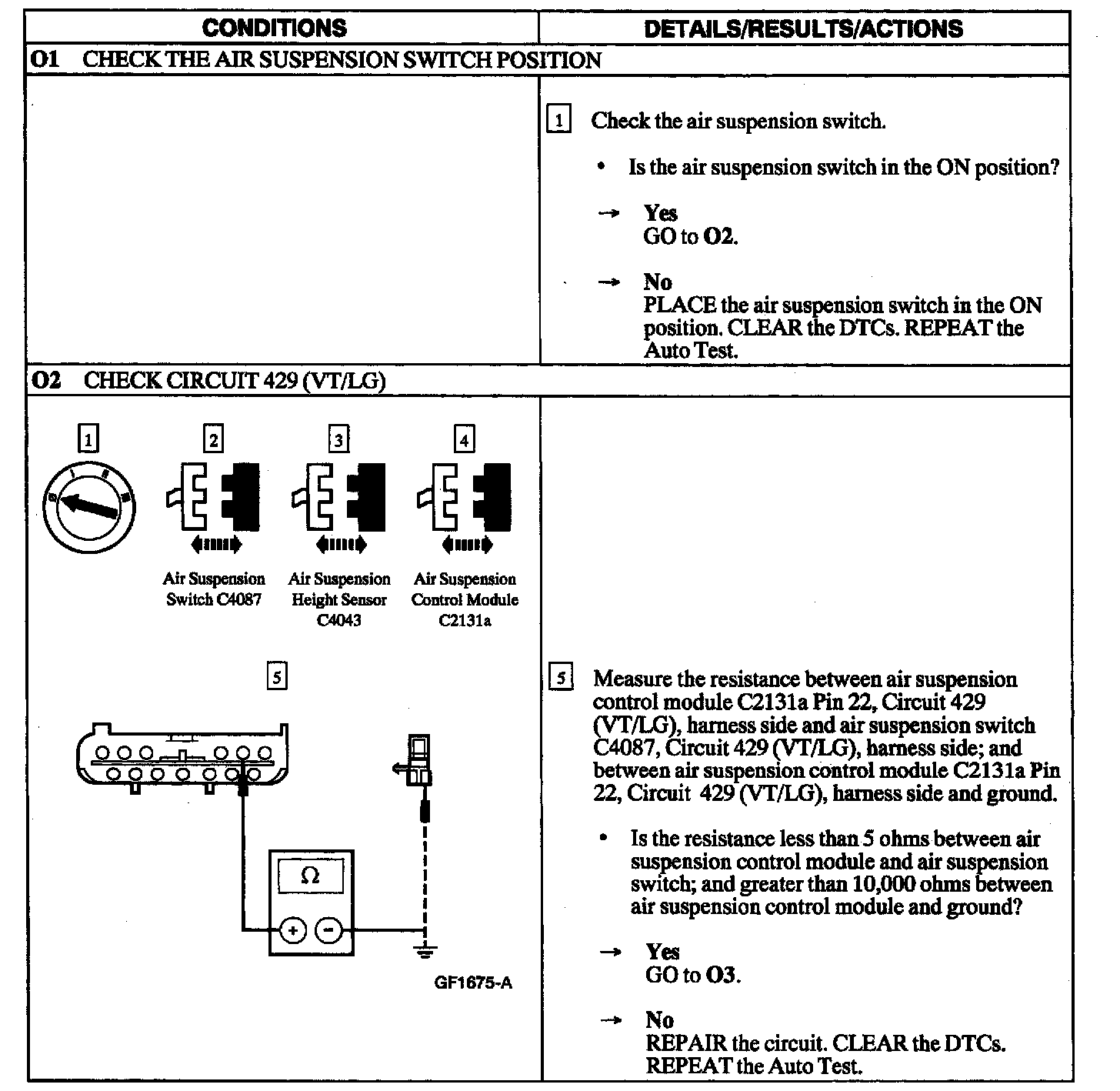

Test O1-O2

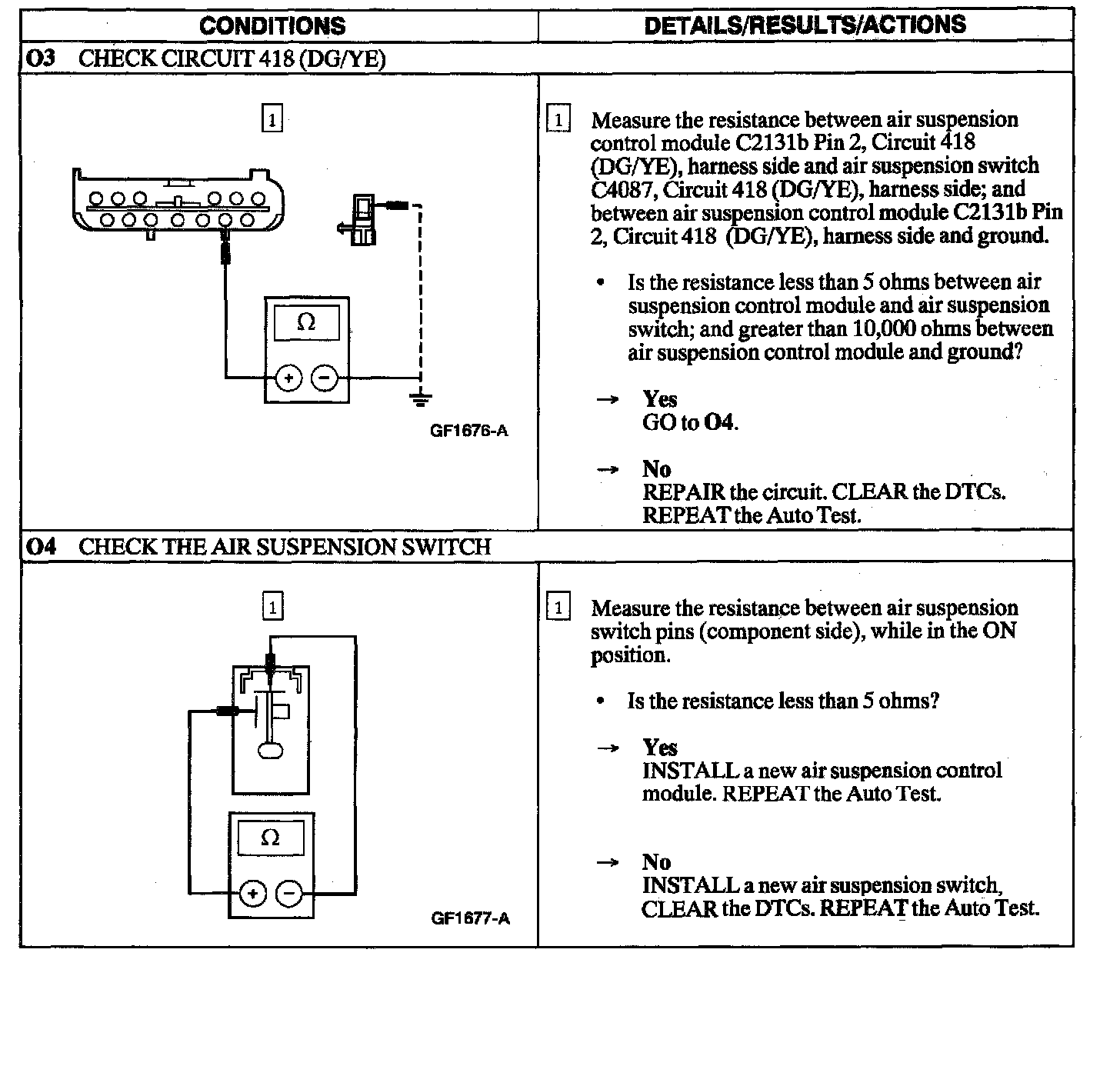

Test O3-O4
NOTE:
Repair all other DTCs first.
