Test K

PINPOINT TEST K: DTC 51, UNABLE TO DETECT LOWERING OF REAR

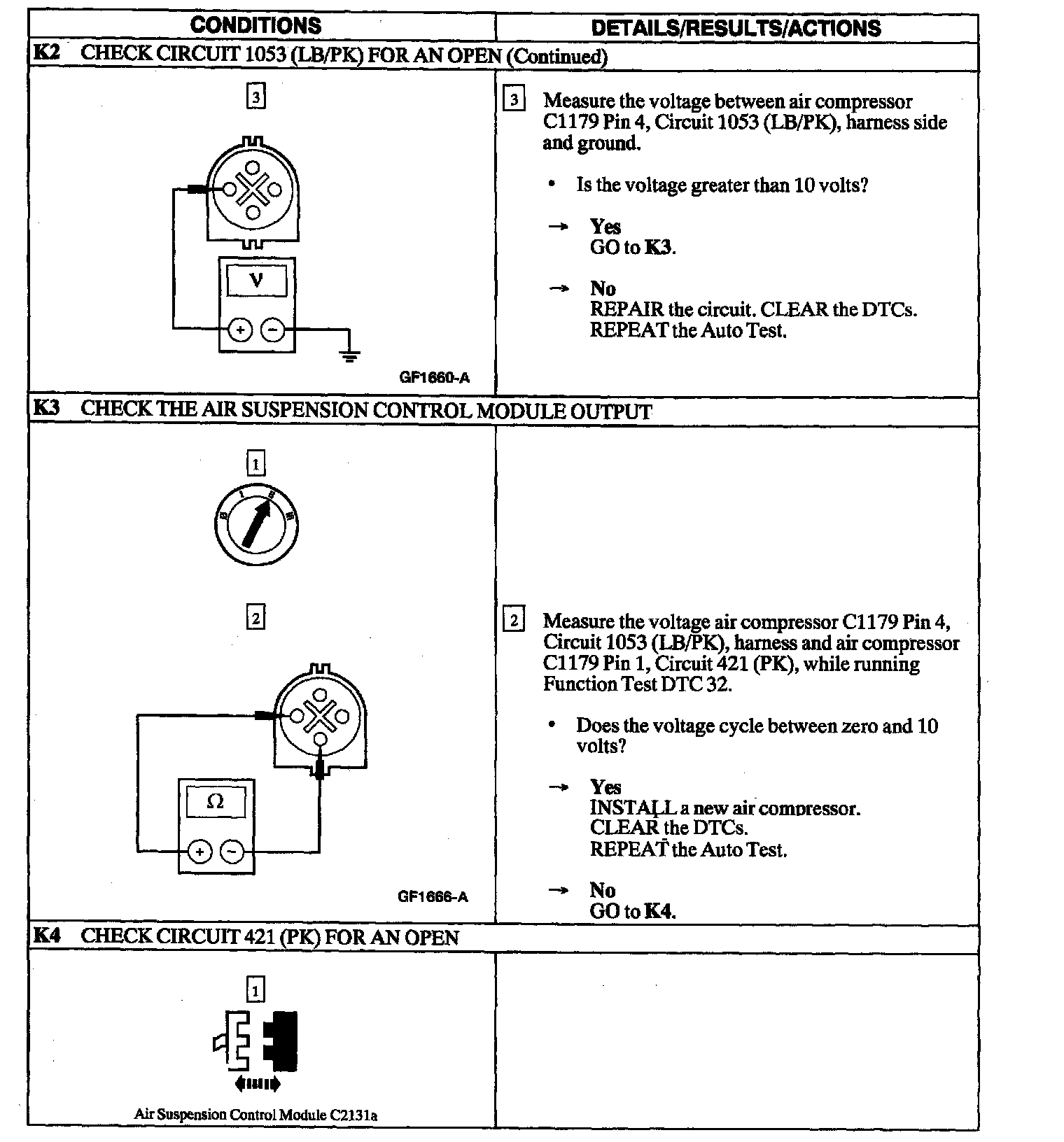

Test K1-K2





Test K2-K4

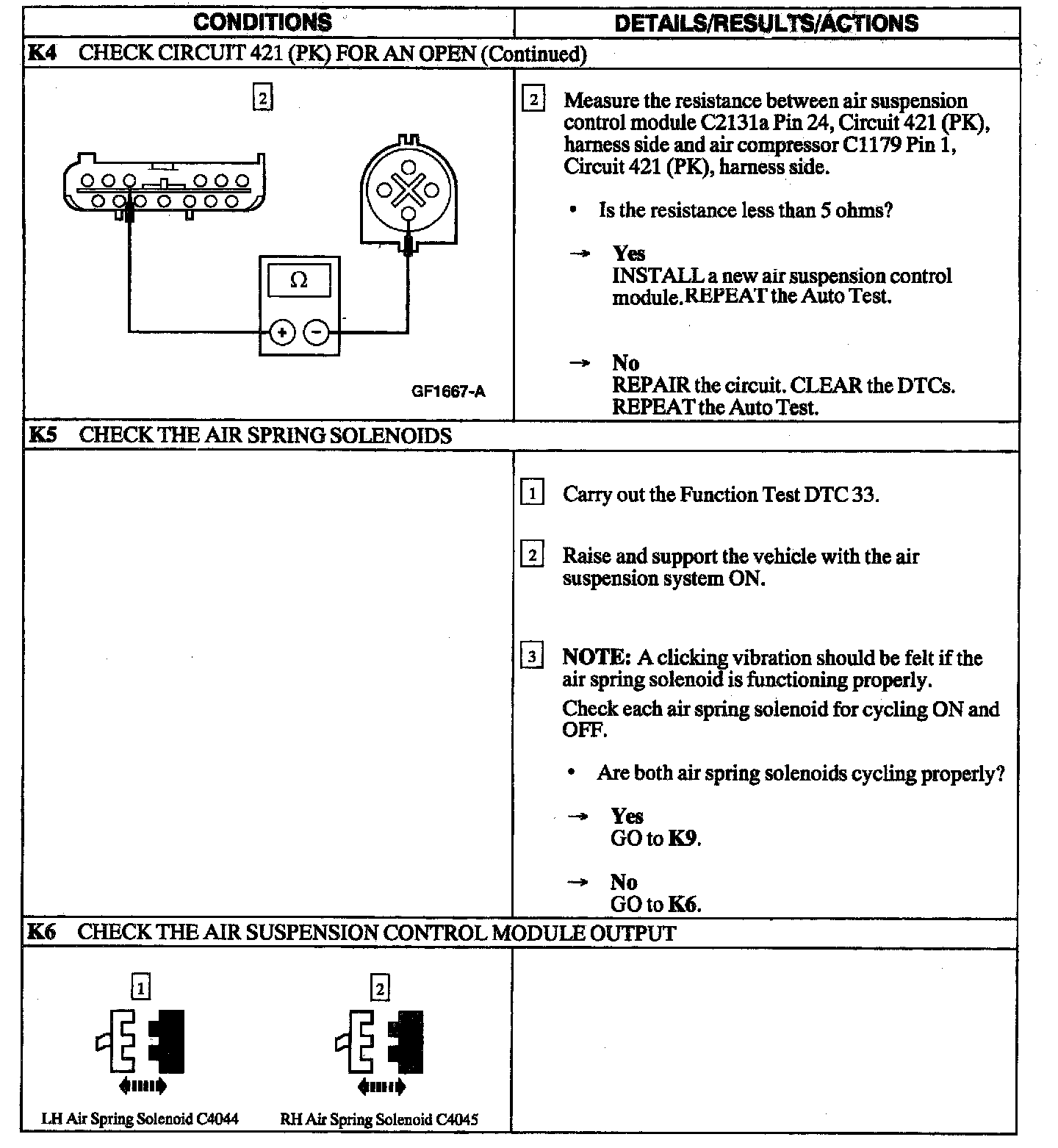

Test K4-K6

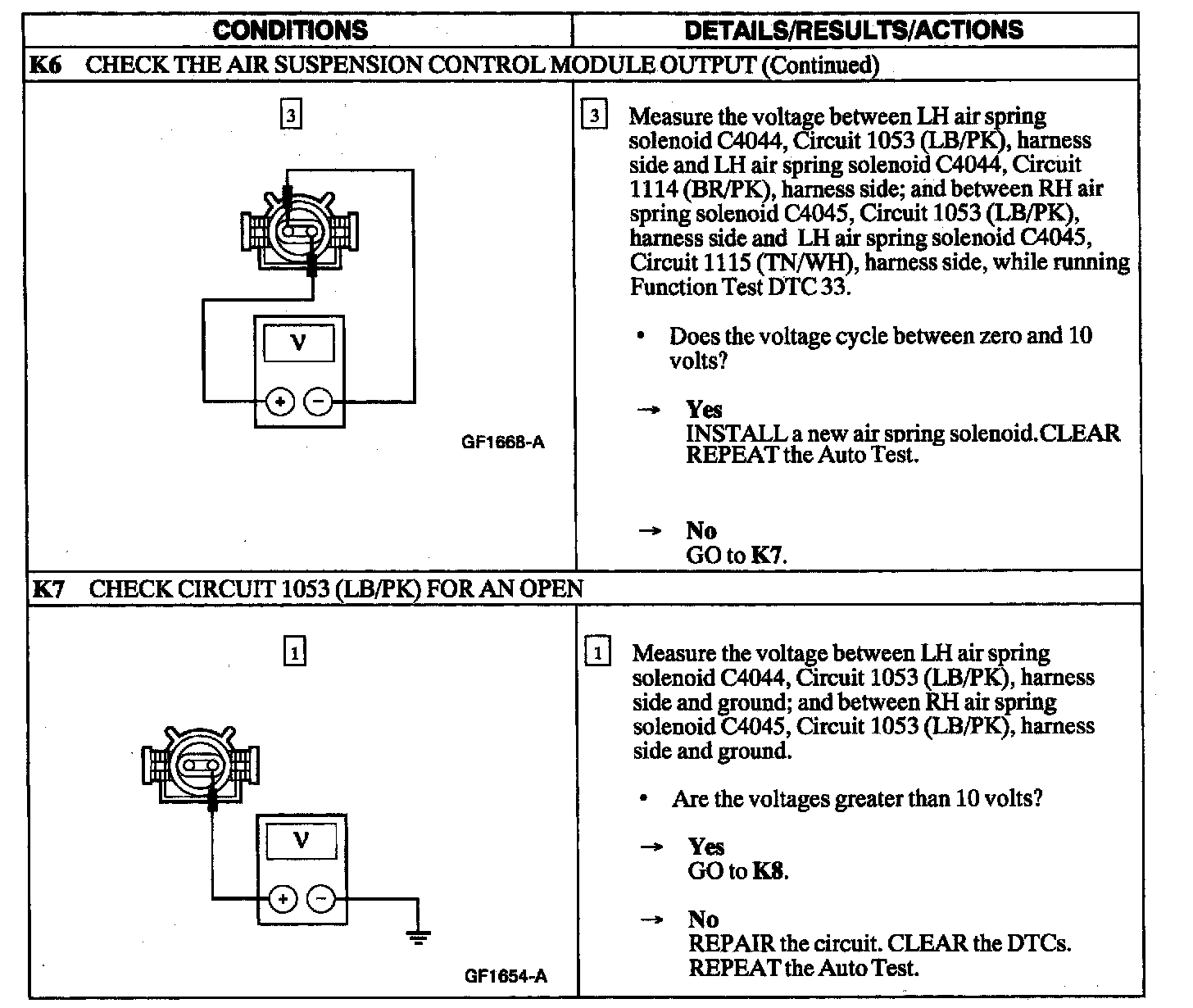

Test K6-K7

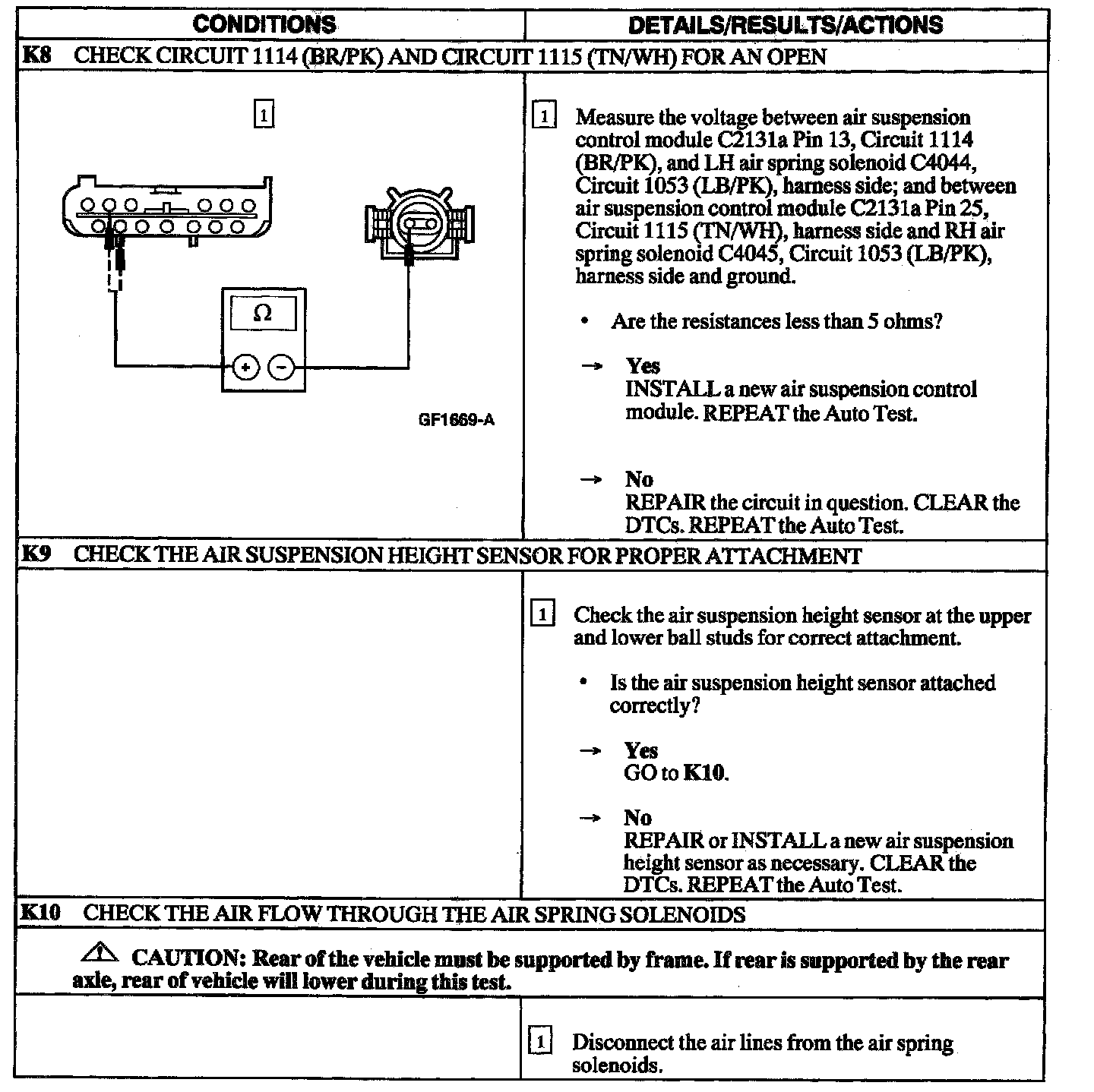

Test K8-K10

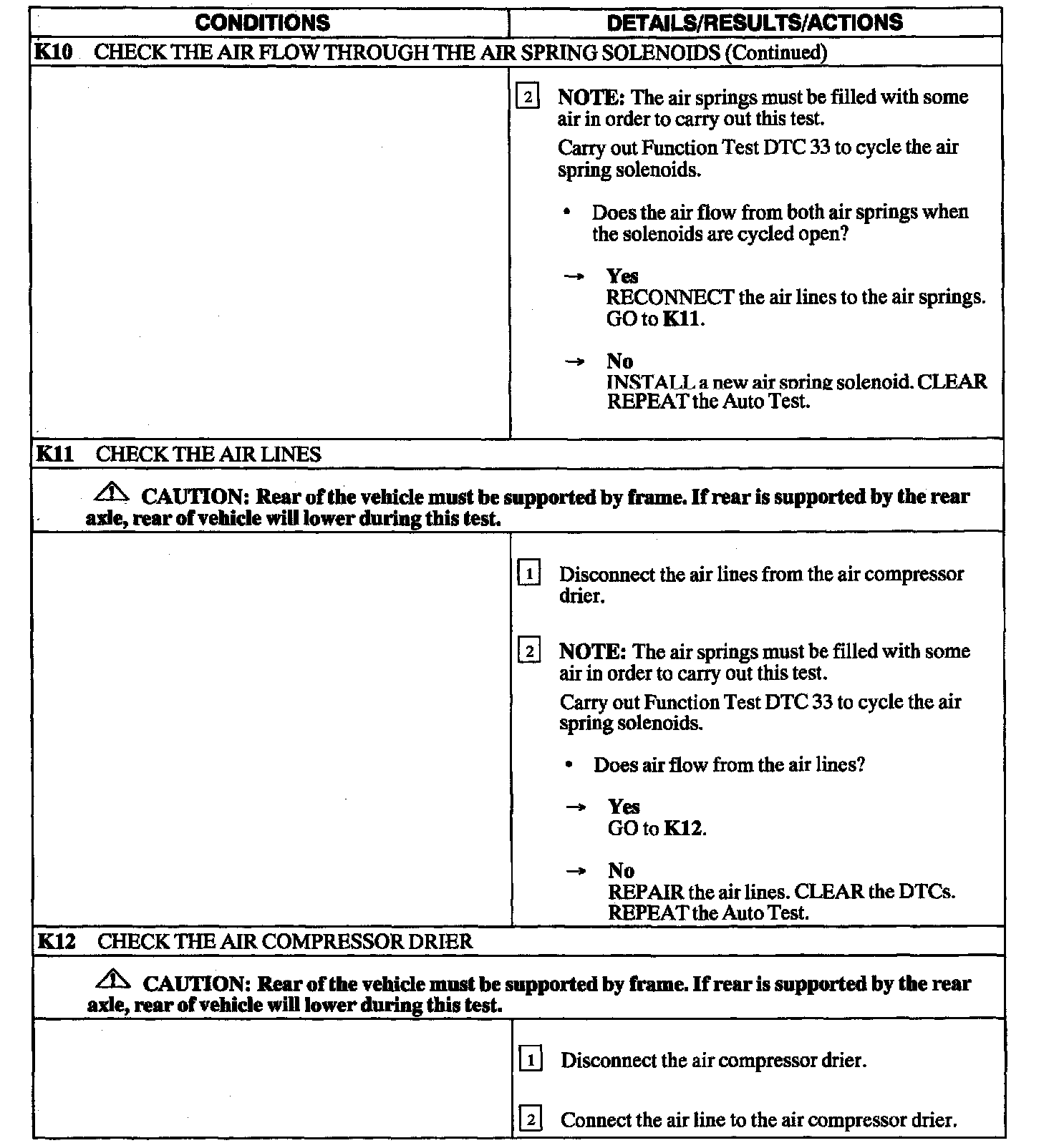

Test K10-K12

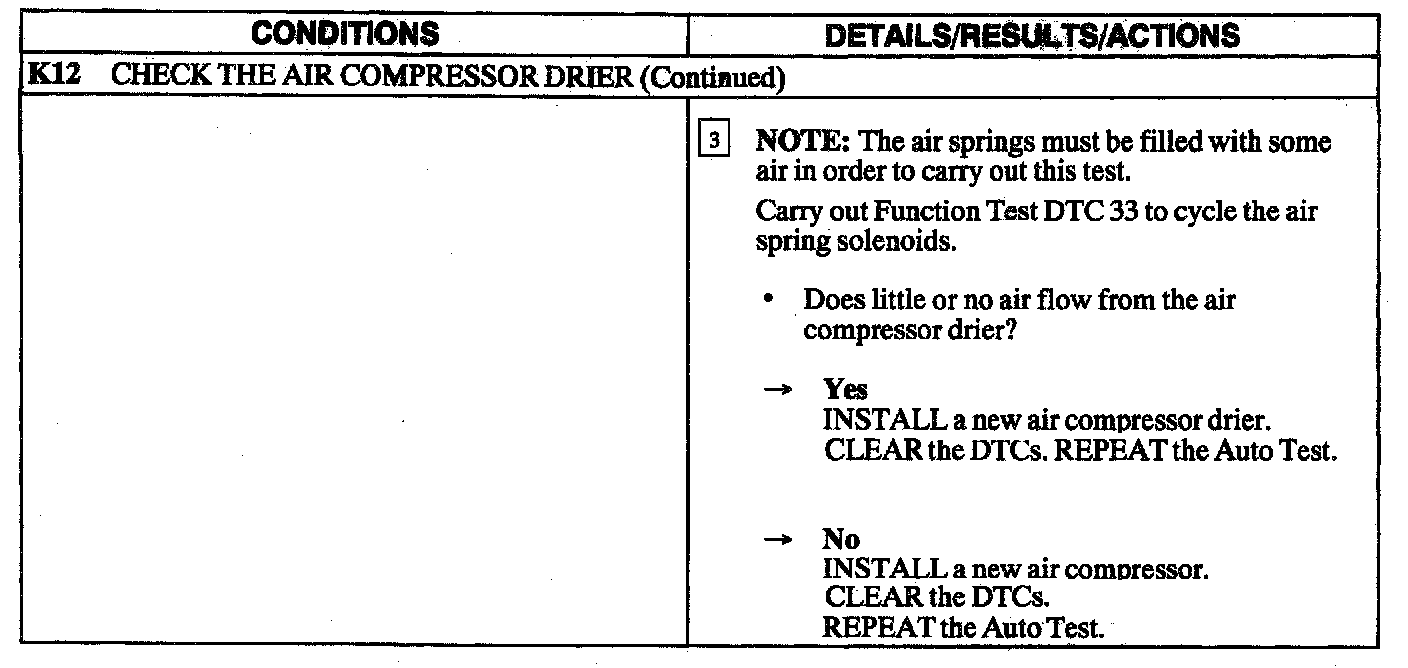

Test K12
