Home >> Mercury >> 2002 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Testing and Inspection >> Pinpoint Tests >> Test E

Test E

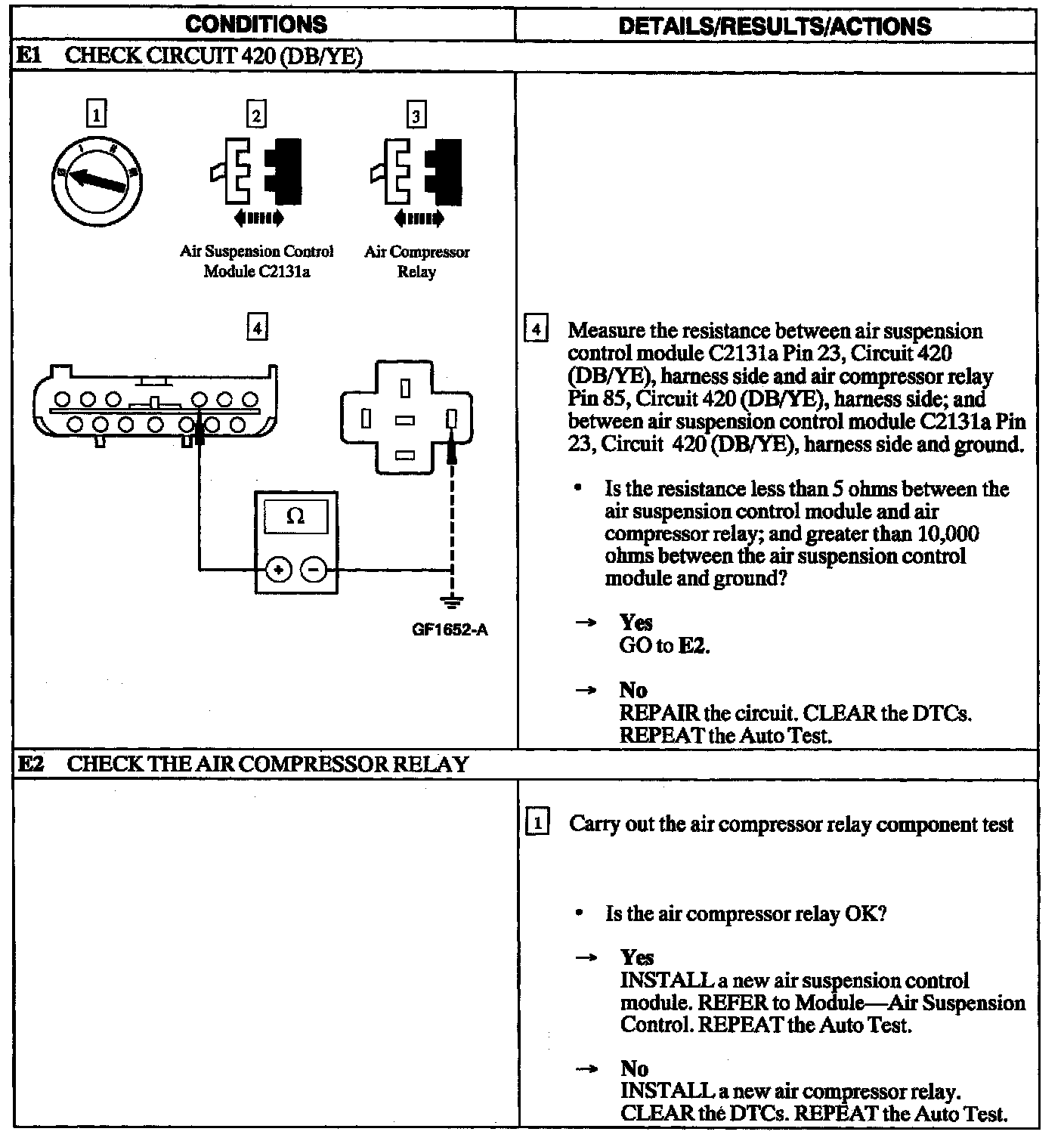

PINPOINT TEST E: DTC 40, COMPRESSOR RELAY CONTROL CIRCUIT FAILURE





Test E1-E2
