Sector Shaft Arm Inspection-Backlash

Sector Shaft Arm Inspection-Backlash





1. WARNING: The electrical power to the air suspension must be shut off prior to hoisting, jacking or touring an air suspension vehicle. This can be accomplished by turning office air suspension switch located in the luggage compartment. Failure to do so can result in unexpected inflation or deflation of the air springs, which can result in the shifting of the vehicle during these operations.

Raise and support the vehicle.

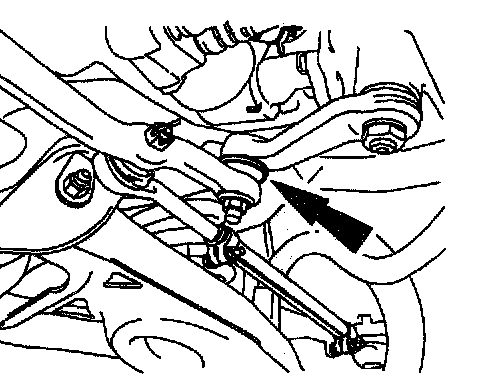

2. Inspect the sector shaft air dust boot for cuts or tears. If it is cut or torn, install a new sector shaft arm

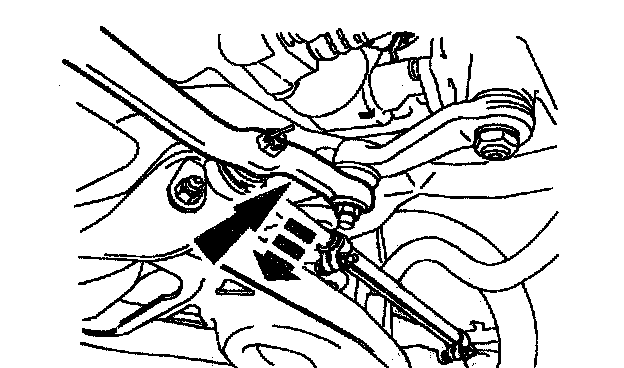

3. Pull downward on the sector shaft arm drag link.

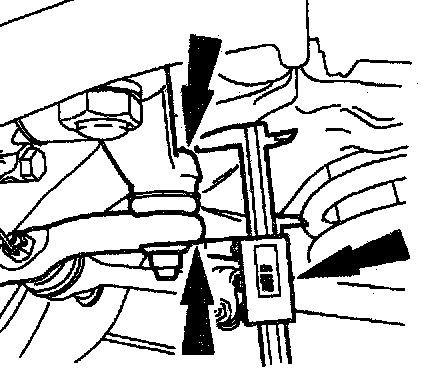

4. Using digital calipers, measure the distance from the top of the sector shaft arm forging to the bottom of the drag link.

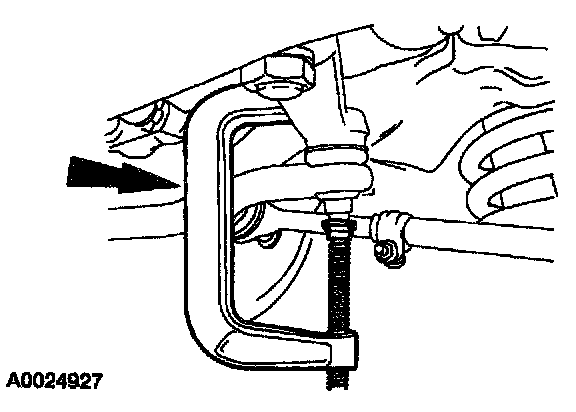

5. Using a C-clamp, fully compress the sector shaft arm ball stud.
6. Measure the distance from the top of the sector shaft arson forging to the bottom of the drag link.
7. Subtract the second measurement from the first measurement. If the movement measure is greater than 0.11 inch, install a new sector shaft arm.
