Home >> Mercury >> 2002 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Steering Column >> Testing and Inspection >> Pinpoint Tests >> Test C

Test C

PINPOINT TEST C: NO POWER IN ON POSITION

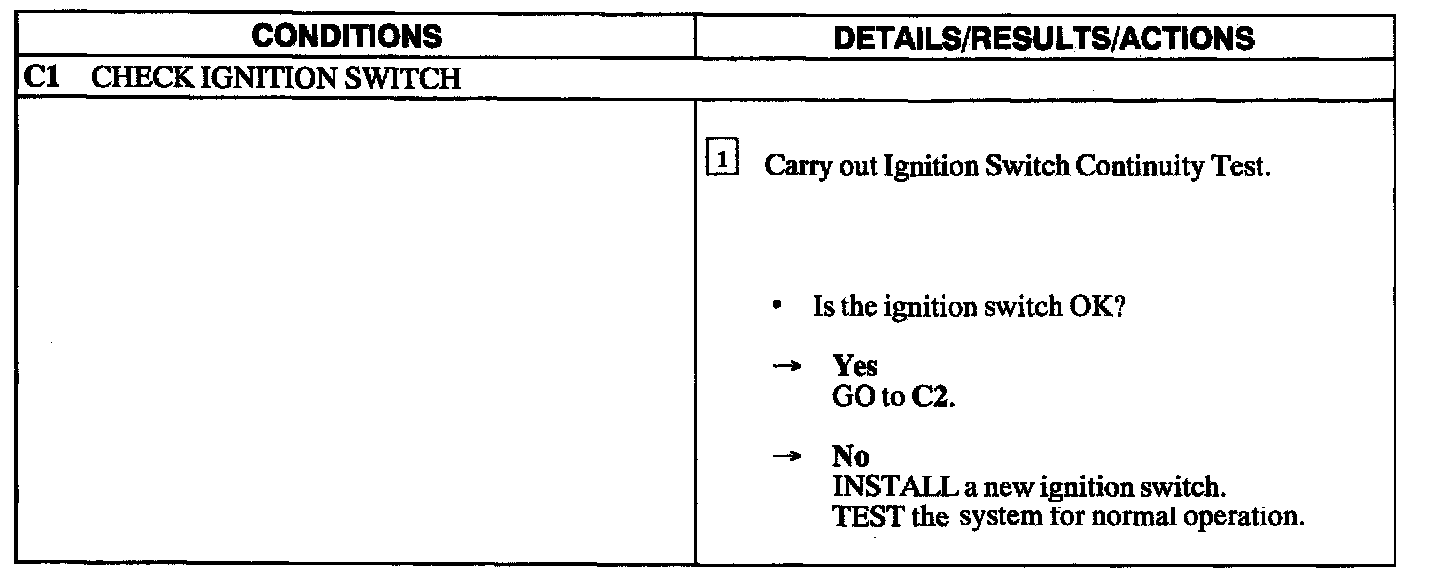

Test C1

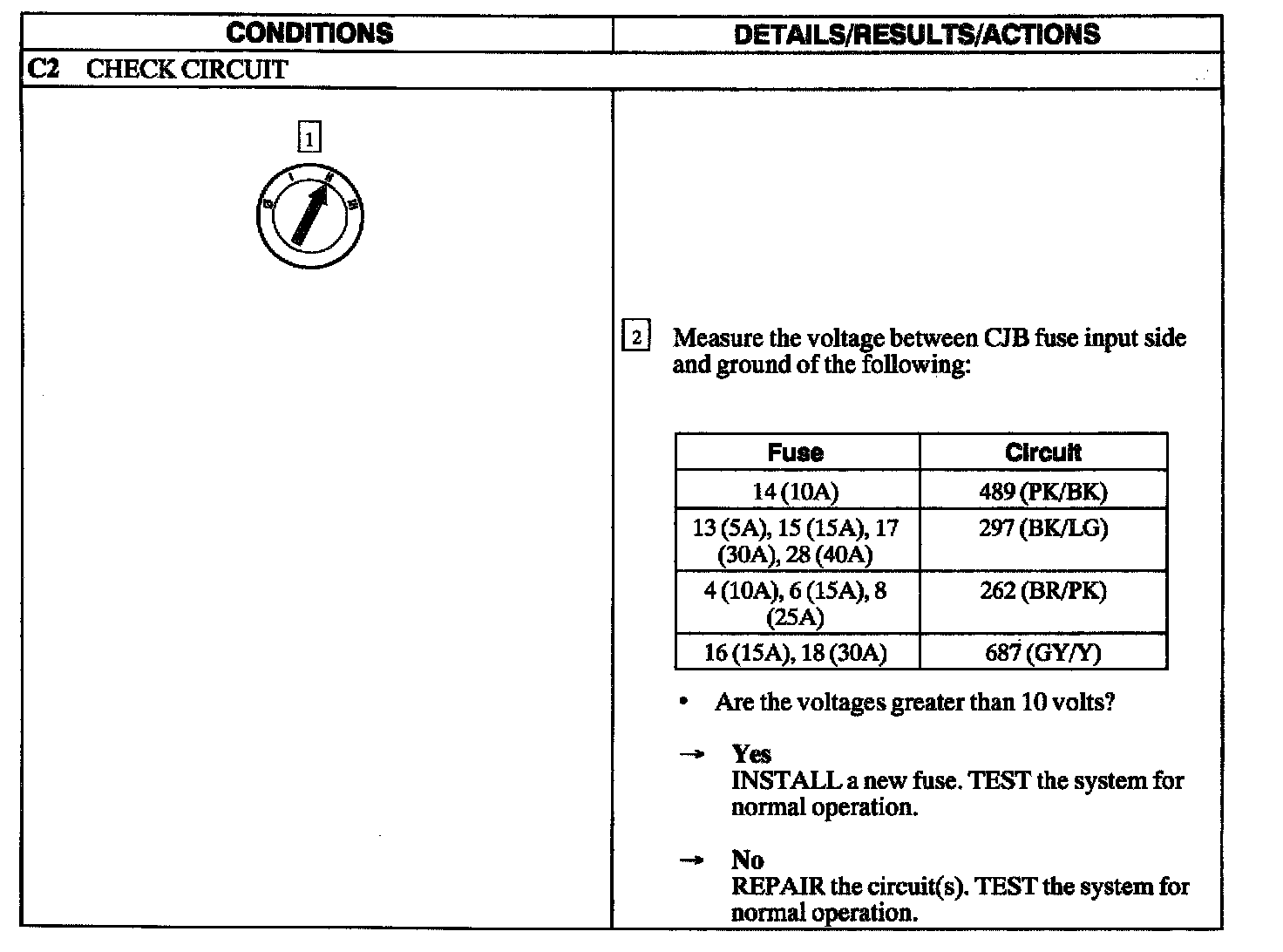

Test C2
