Test A: Engine Does Not Crank

A1 - A3:

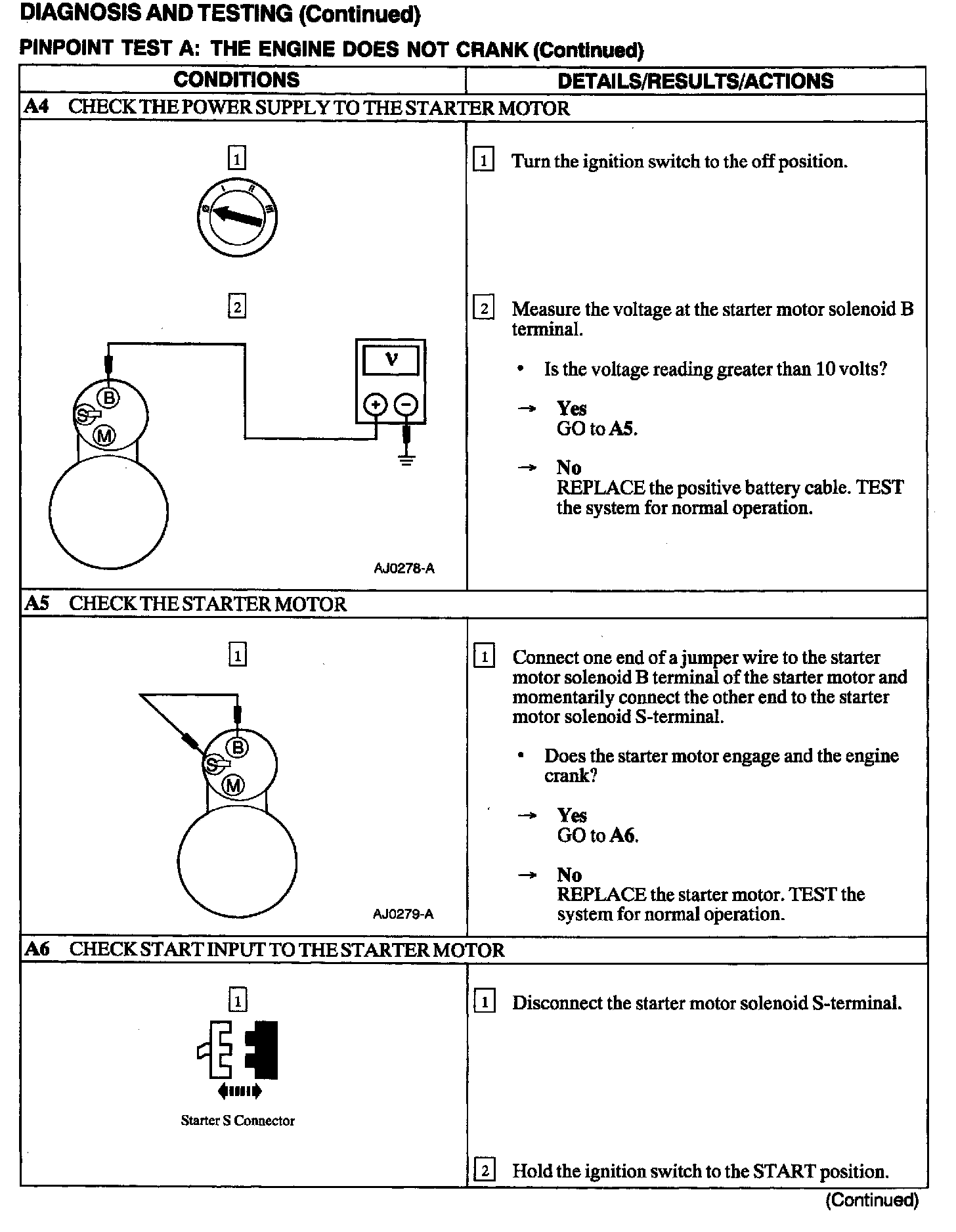

A4 - A6:

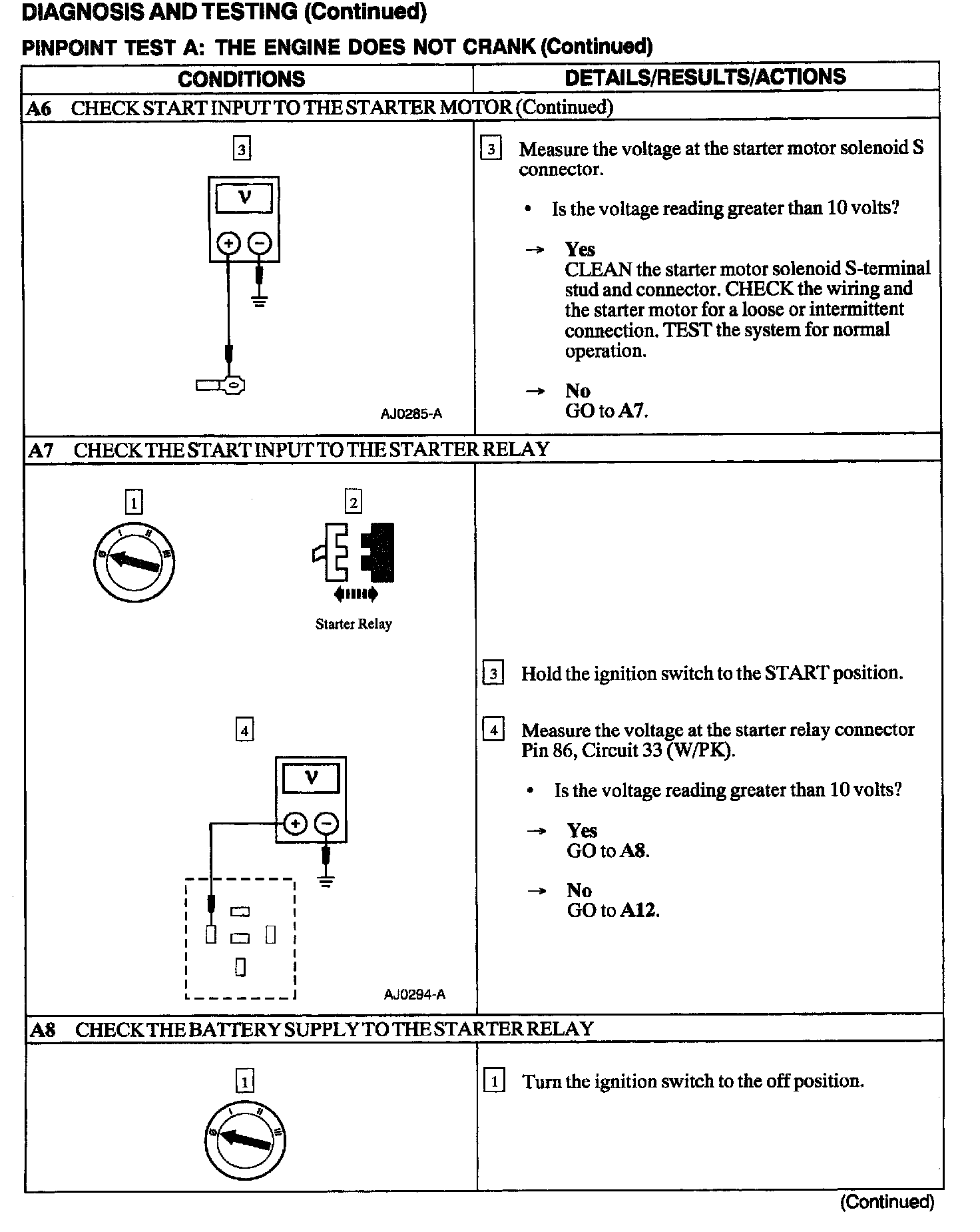

A6 - A8:

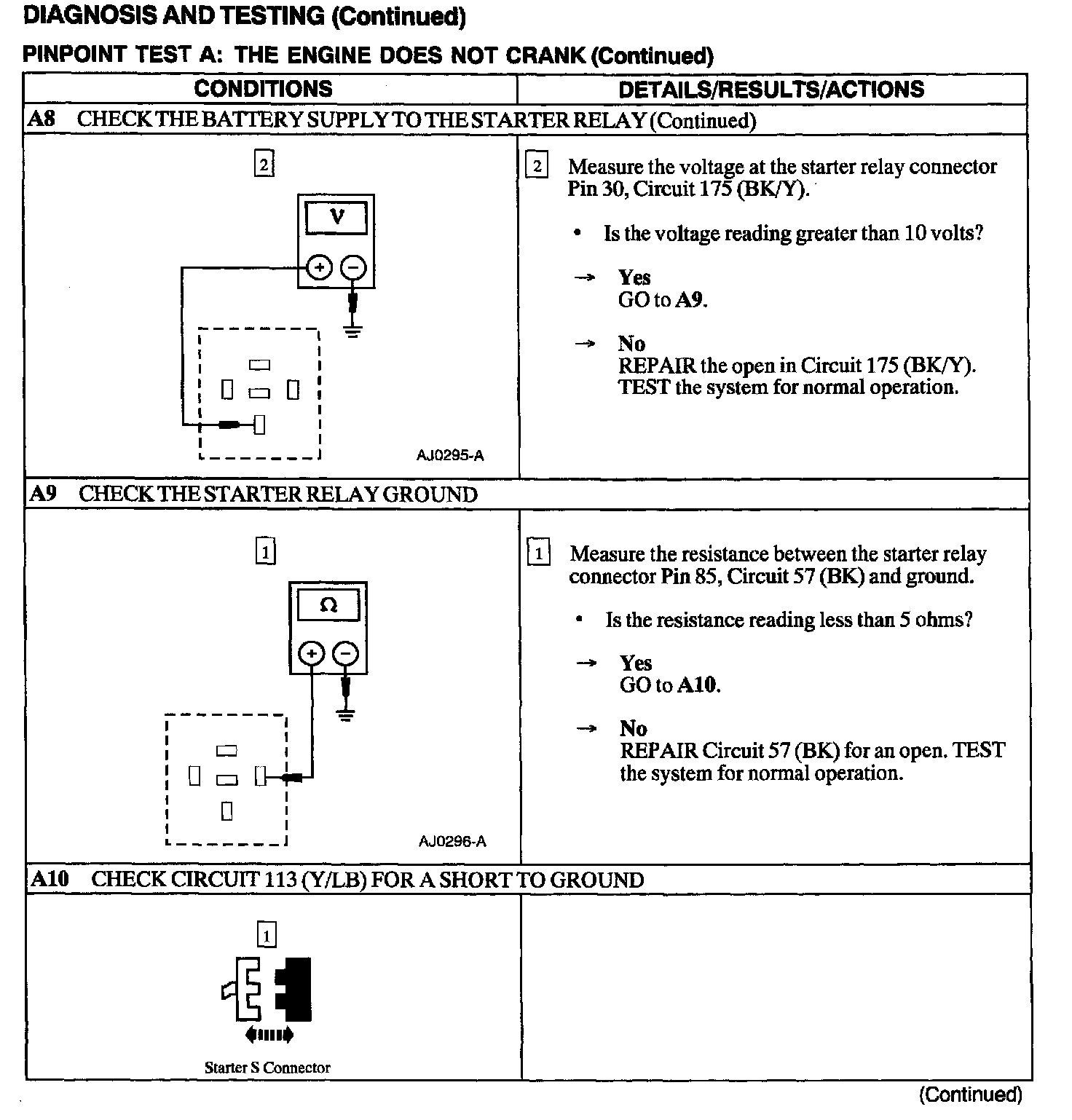

A8 - A10:

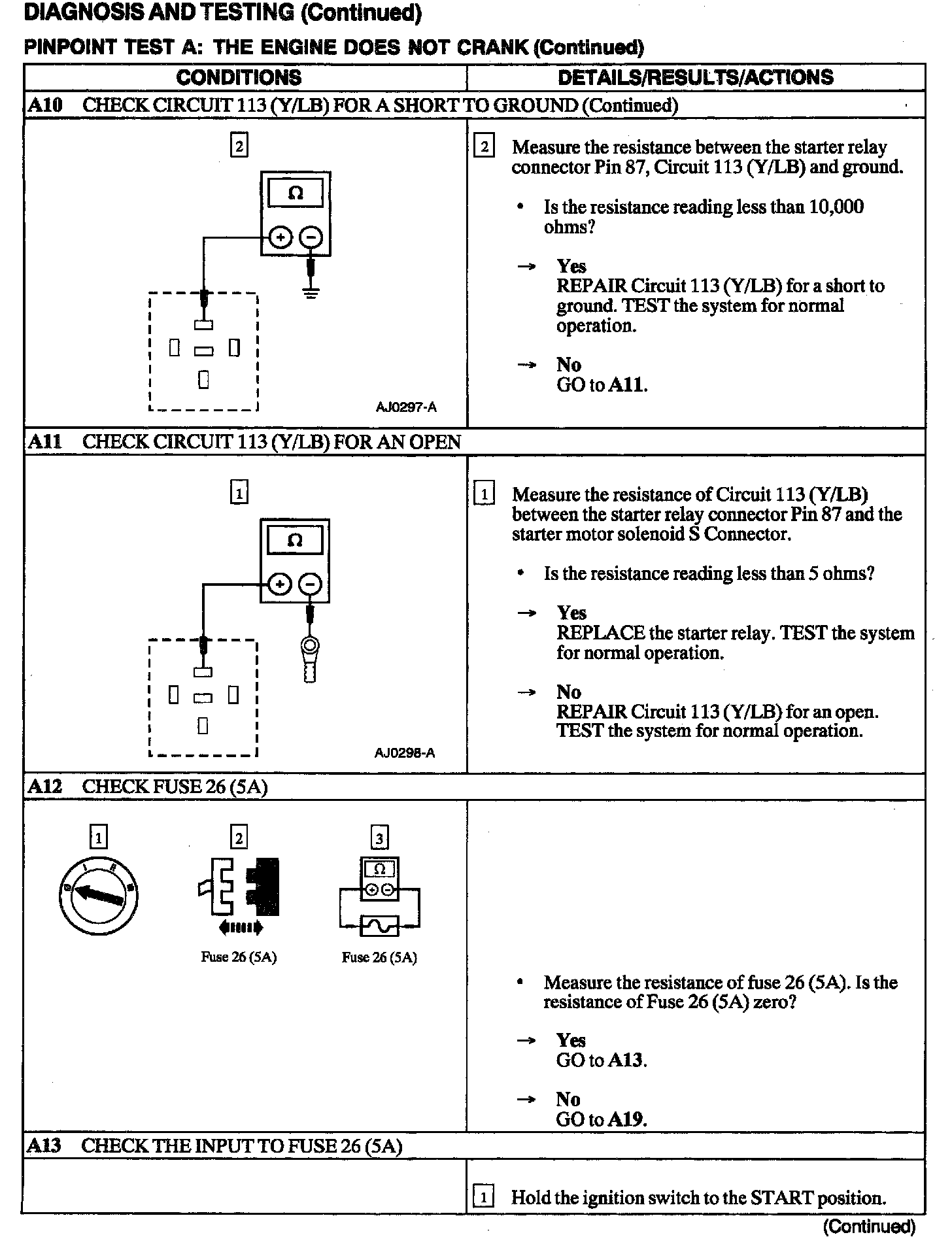

A10 - A13:

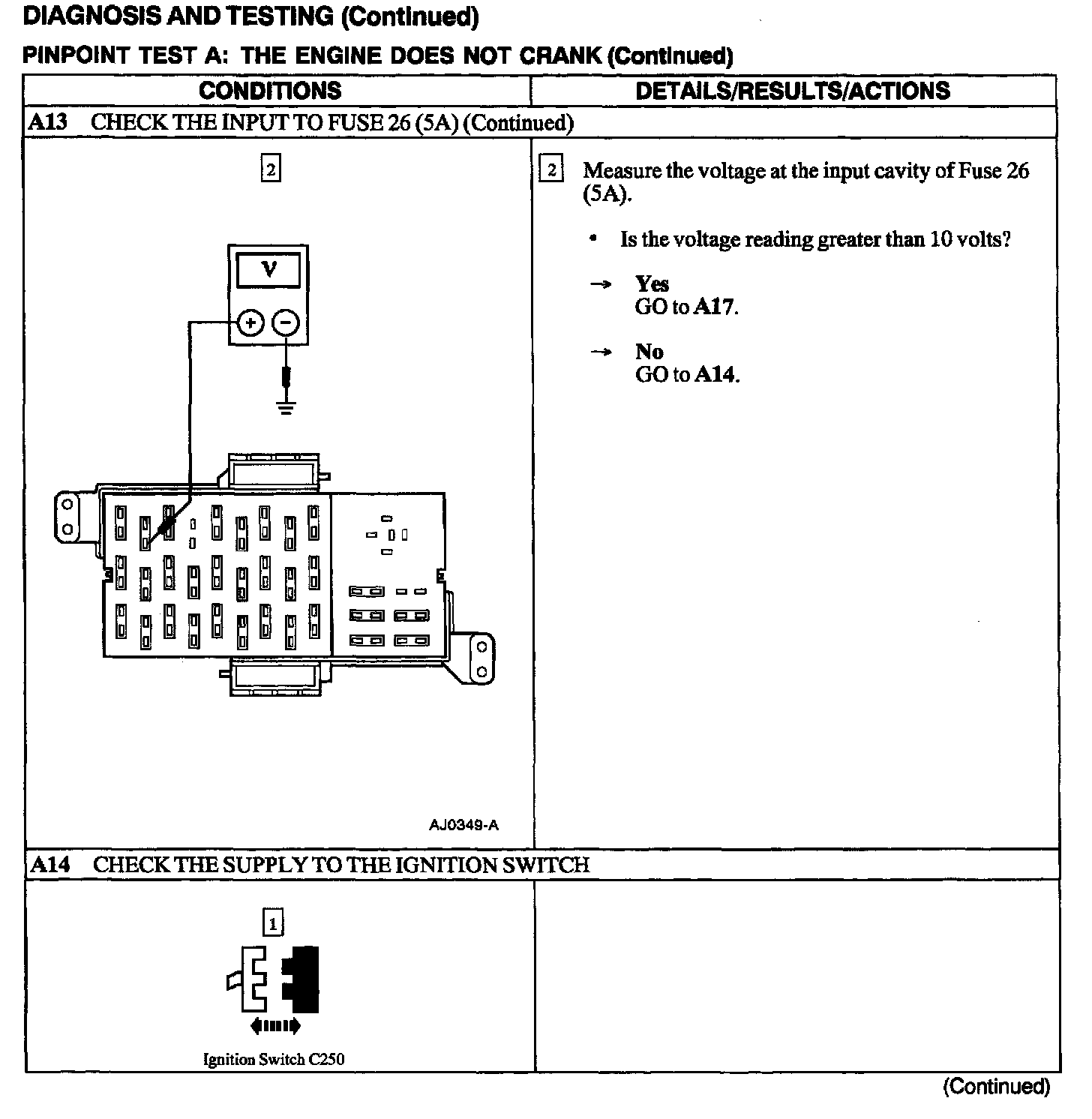

A13 - A14:

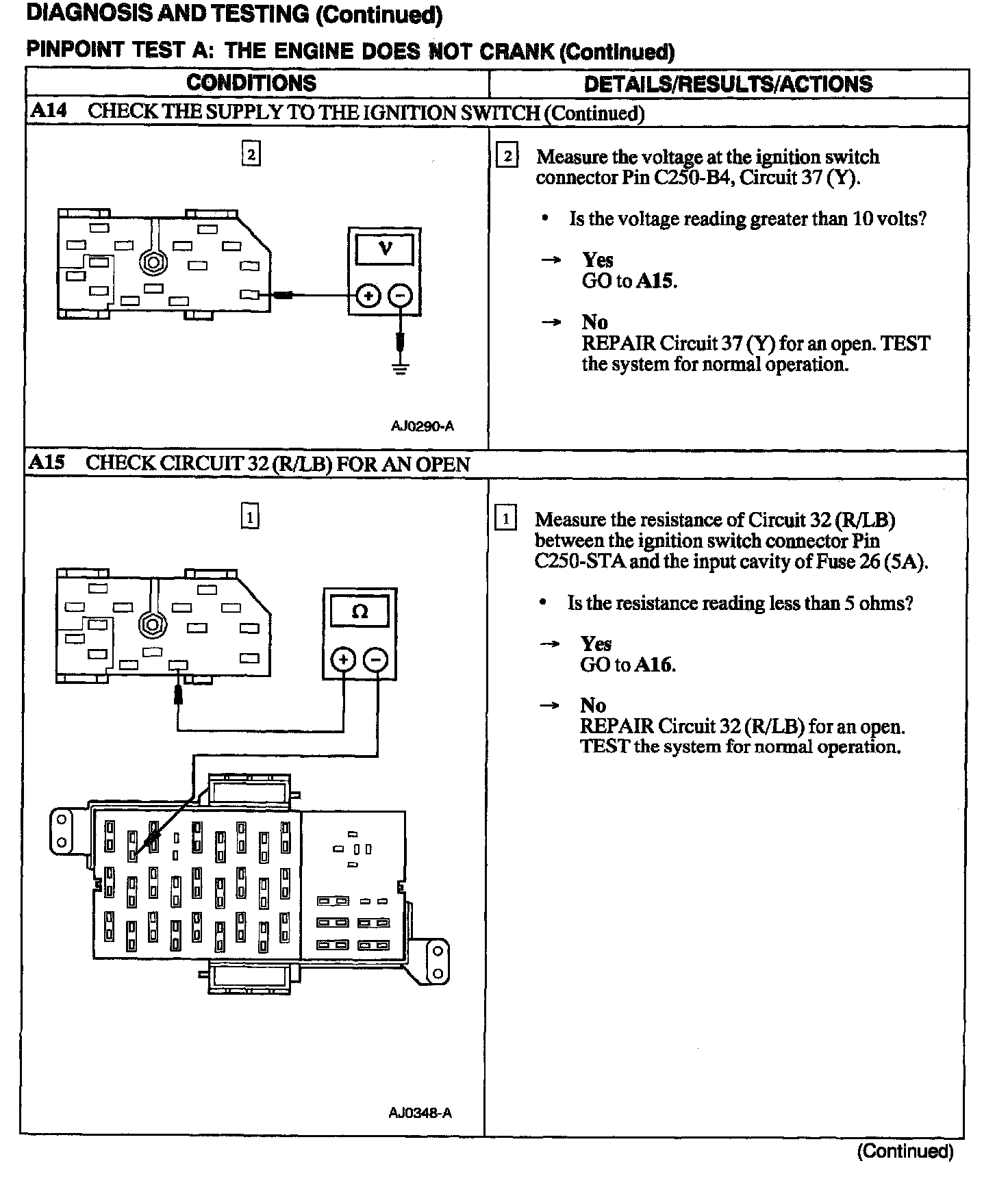

A14 - A15:

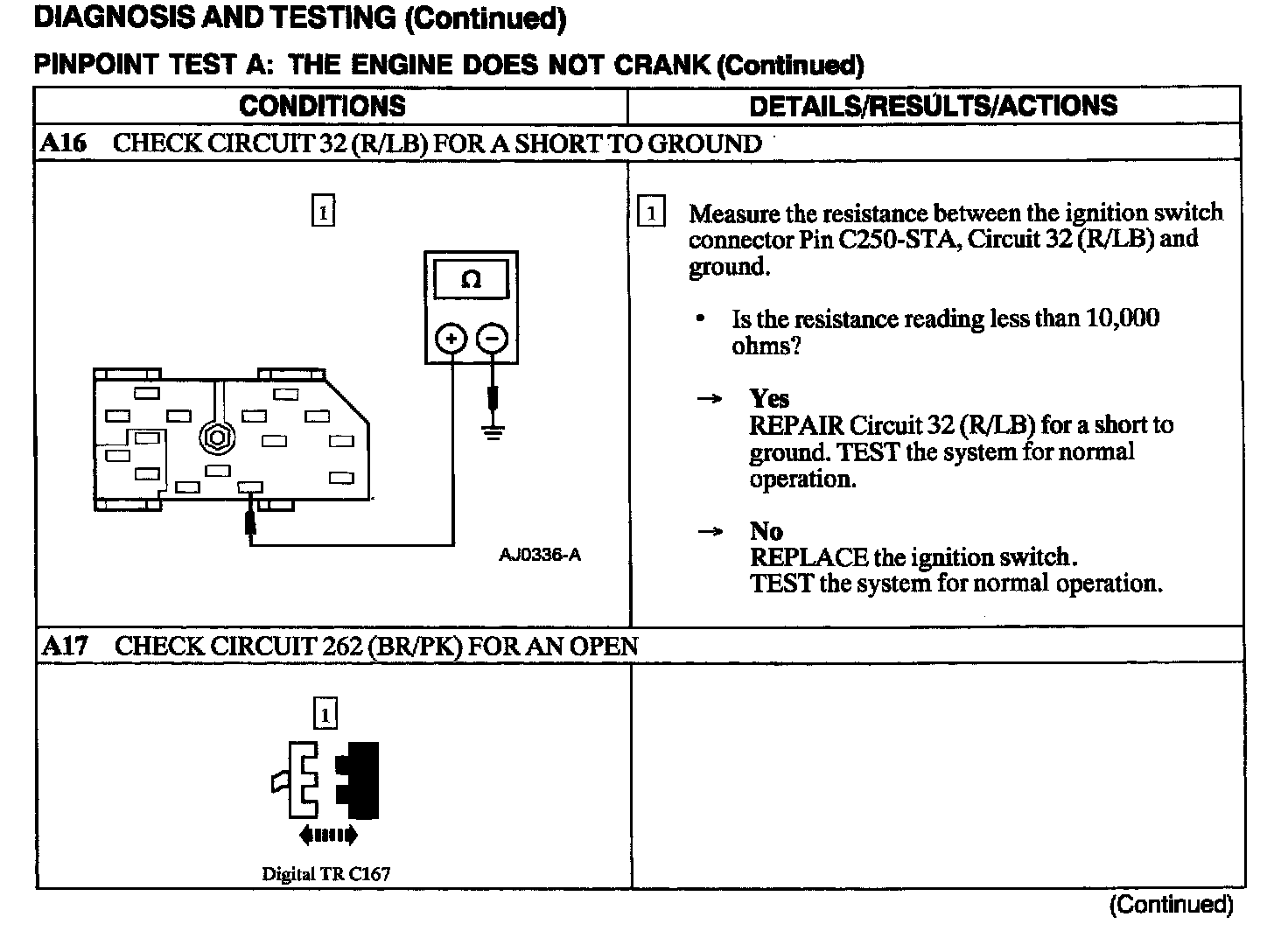

A16 - A17:

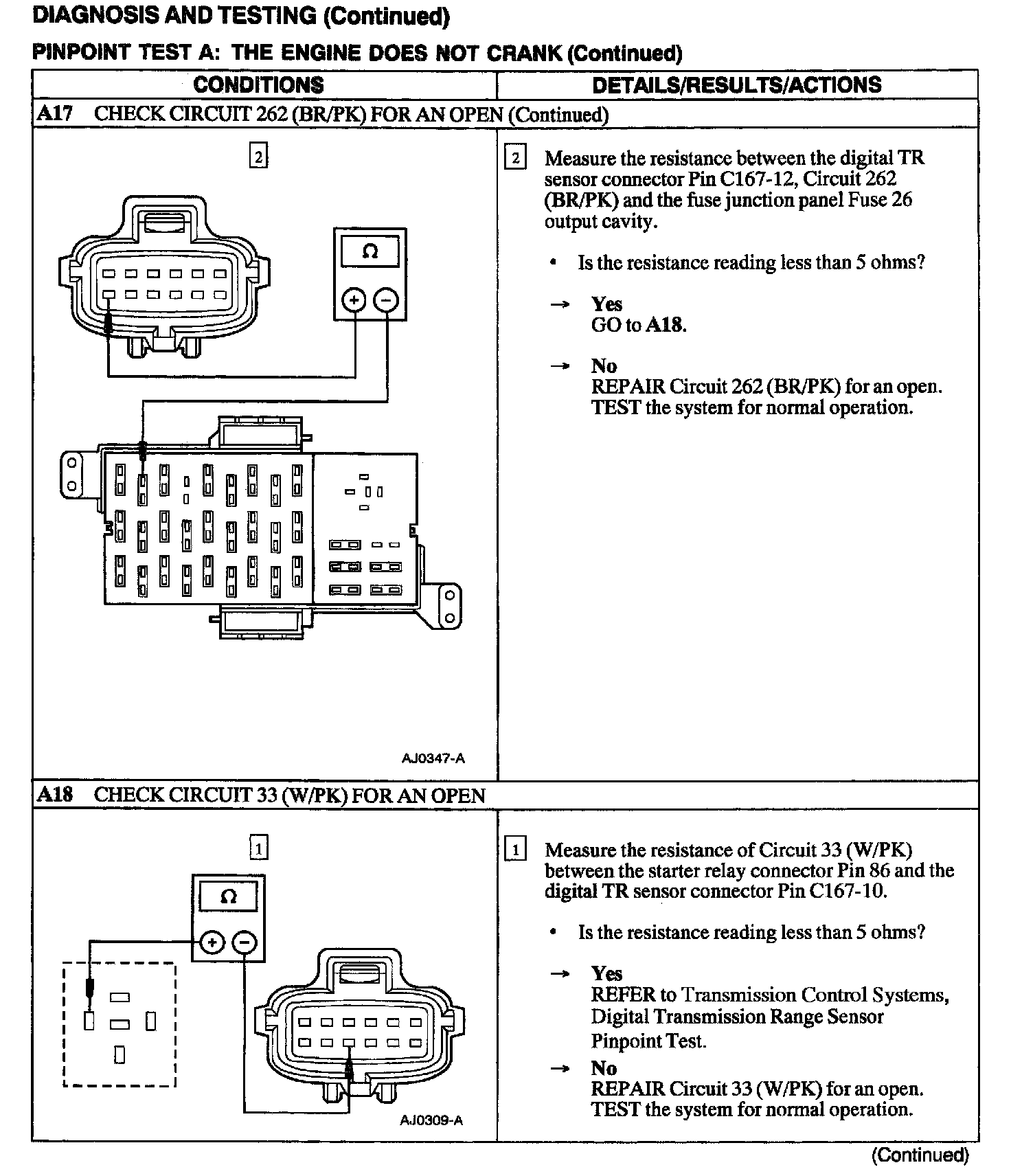

A17 - A18:

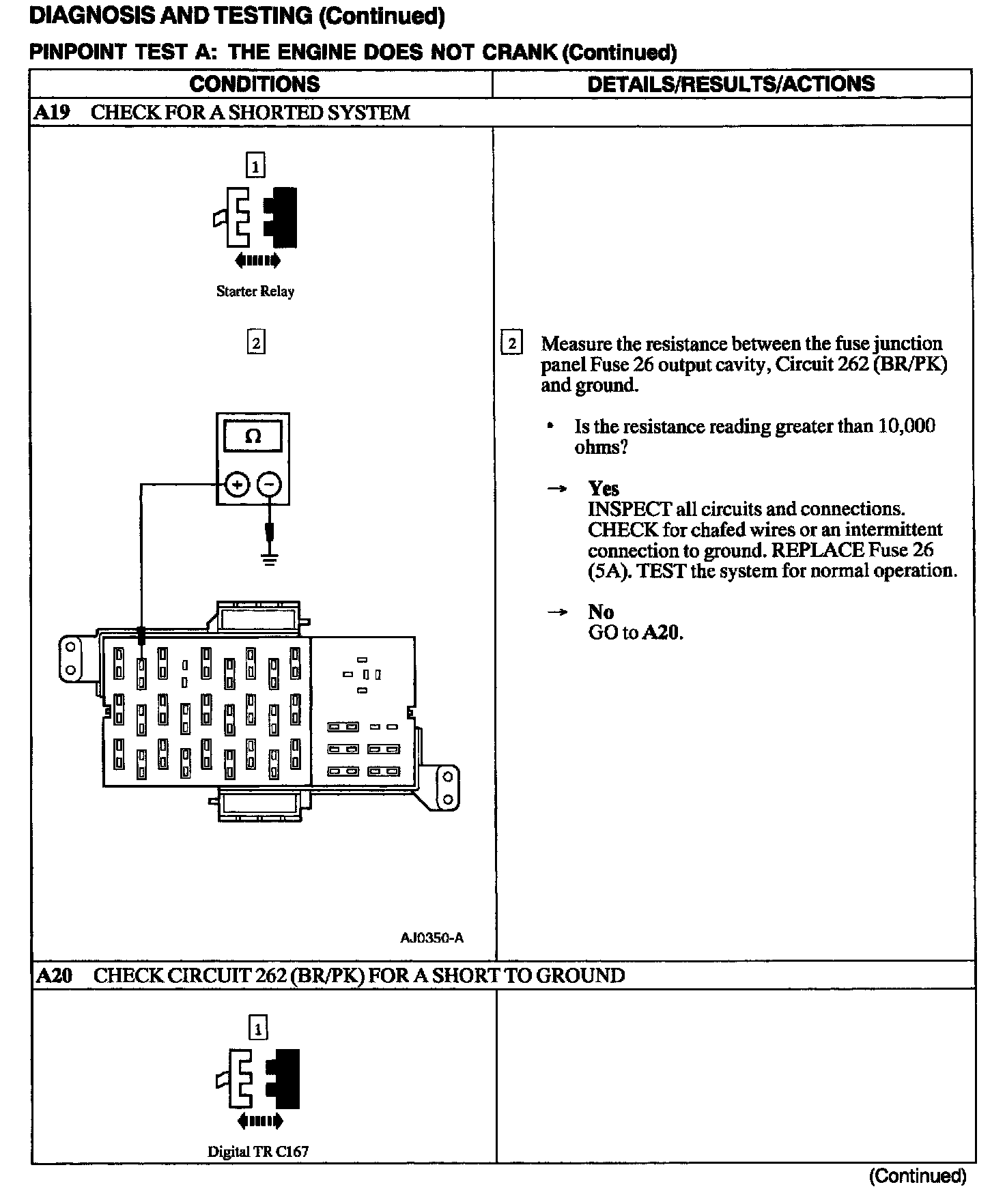

A19 - A20:

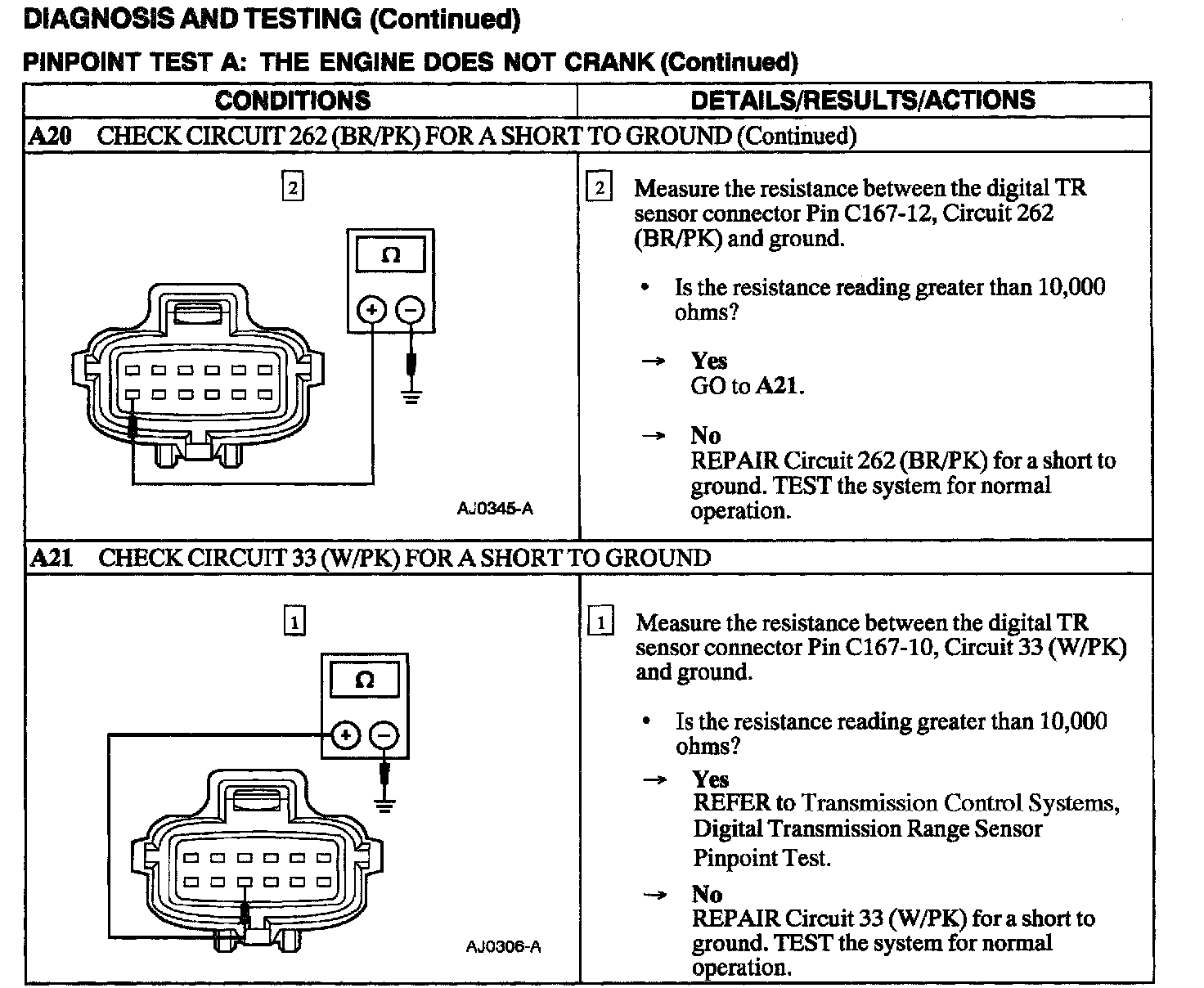

A20 - A21:
