Driveline System - General Information

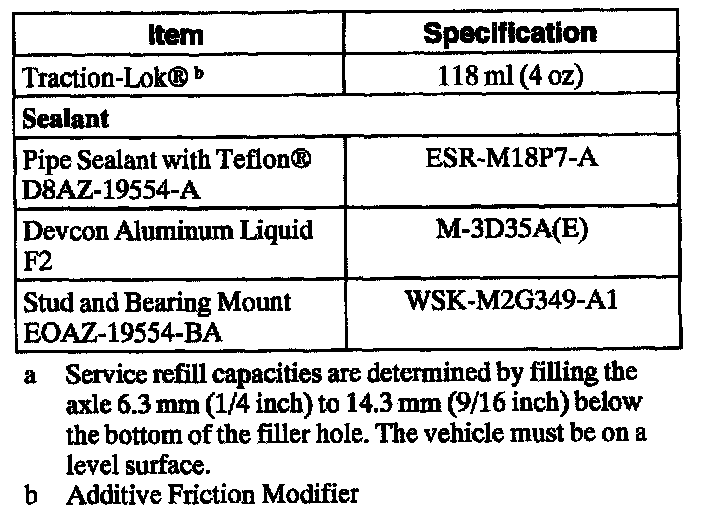

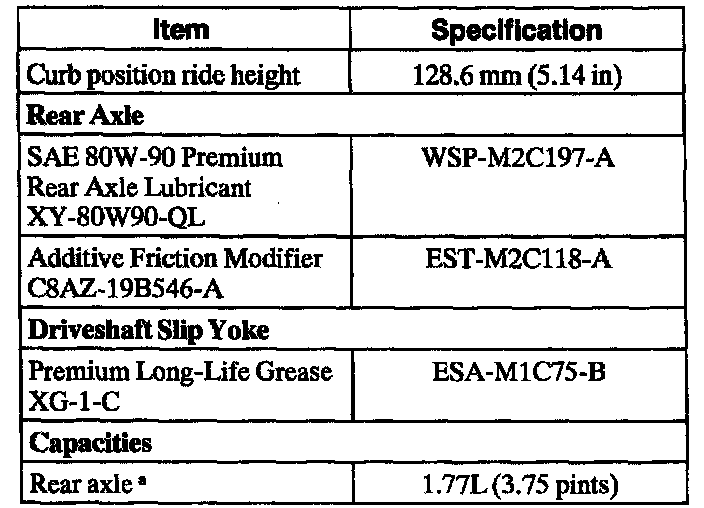

General Specifications

a Service refill capacities are determined by filling the axle; 6.3 mm (1/4 inch) to 14.3 mm (9/16 inch)° below the bottom of the filler hole. The vehicle must be on a level surface.
b Additive Friction Modifier

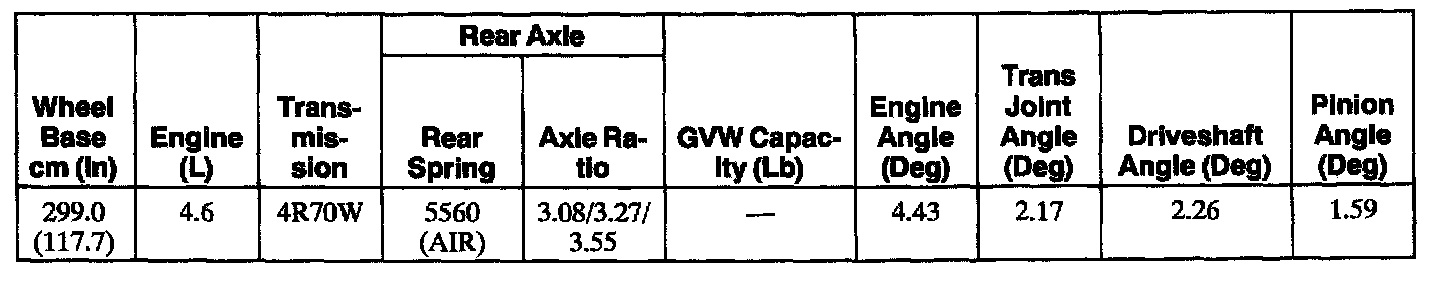

Rear Driveline Angles @ Curb Specifications
