General Specifications

General Specifications

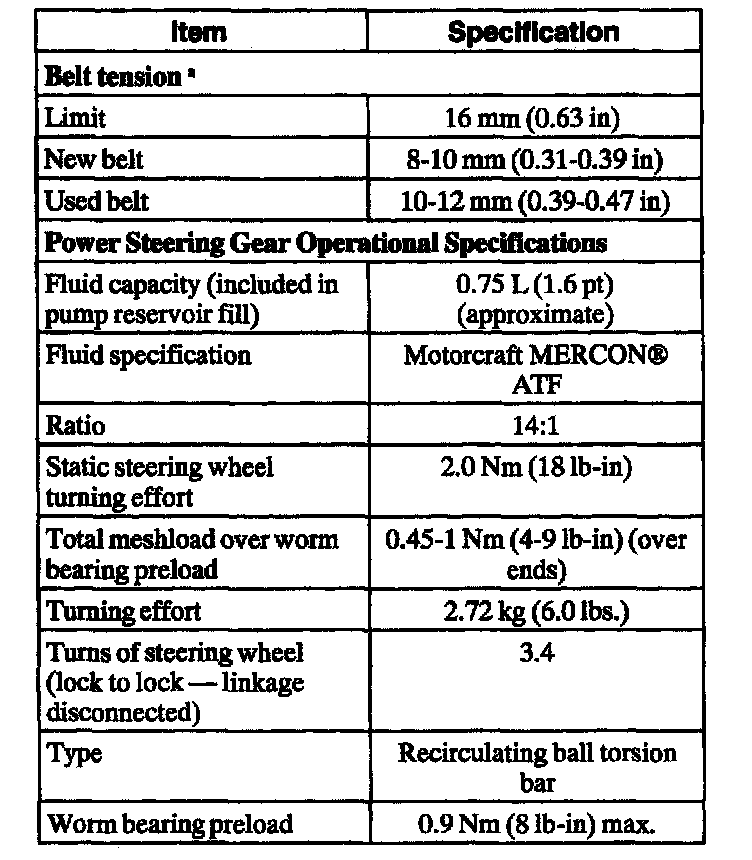

Part 1 of 2

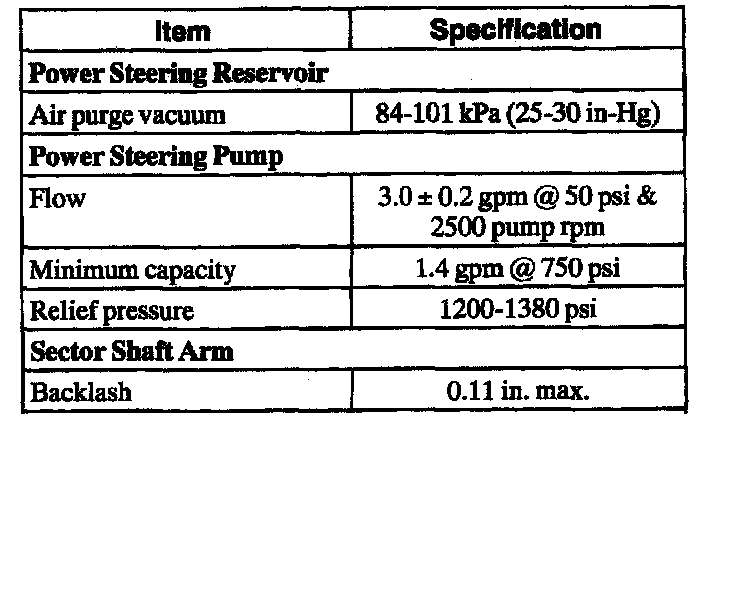

Part 2 of 2

Note
a Power Steering Pump Belt Deflection (98 NM 22 ft-lbs applied force)
