Ride Height Sensor: Service and Repair

Height Sensor-Air Suspension

Removal
1. Disconnect the battery ground cable.
2. Turn the air suspension switch off.
3. Raise and support the vehicle.

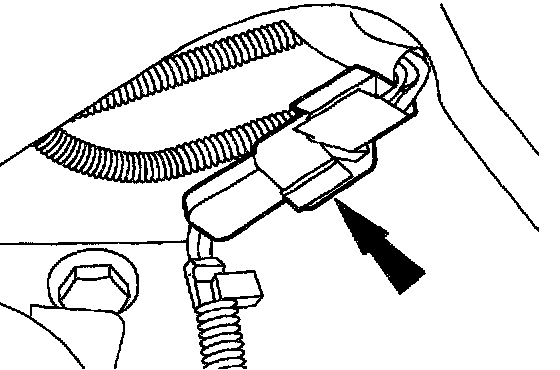

4. Disconnect the air suspension height sensor electrical connector.





5. Remove the air suspension height sensor.
^ Depress the metal retaining tabs and remove the air suspension height sensor from the ball studs.

Installation
1. To install, reverse the removal procedure.
