Home >> Mercury >> 2002 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Powertrain Management >> Sensors and Switches - Powertrain Management >> Sensors and Switches - Computers and Control Systems >> Vehicle Speed Sensor >> Diagrams >> Electrical Diagrams

Electrical Diagrams

Diagram 64-1:

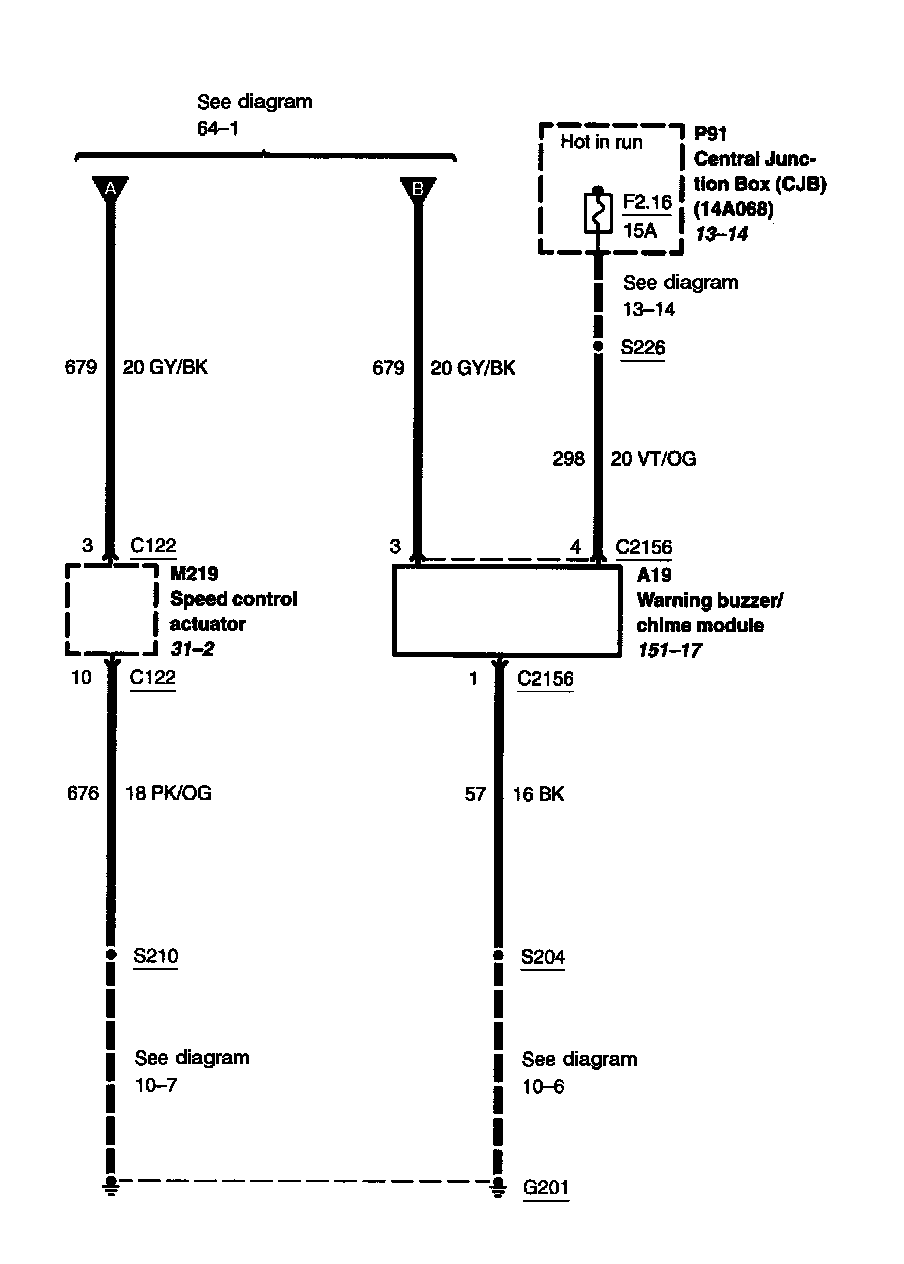

Diagram 64-2:
