Adjustable Pedal Indexing-Accelerator

Adjustable Pedal Indexing-Accelerator

CAUTION: The adjustable pedal system must be indexed whenever the brake pedal assembly or the accelerator pedal assembly is serviced.

1. Connect the electrical connector to the adjustable pedal motor.





2. Operate the switch until the accelerator pedal reaches its forward stop.

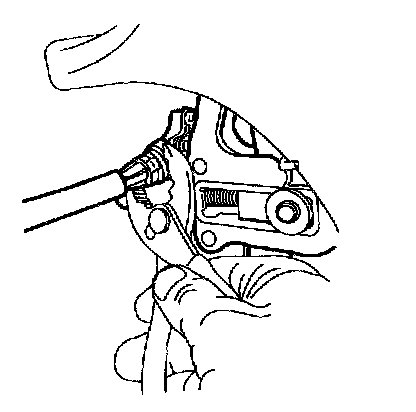

3. Connect the drive cable to the brake pedal assembly.

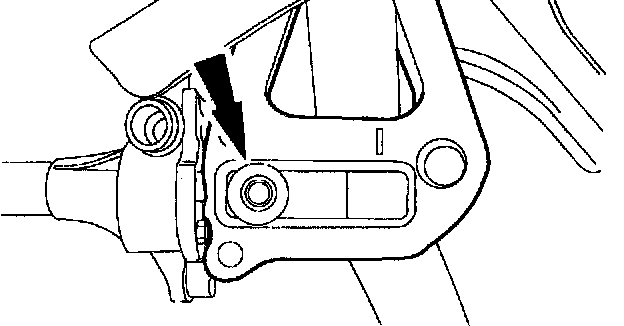

4. Operate the switch until the brake pedal aligns with its base position index mark.

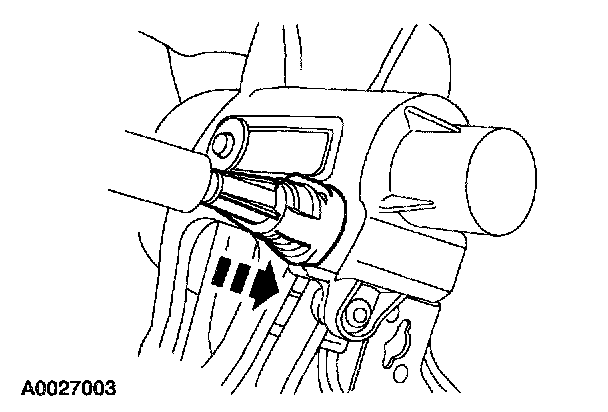

5. Detach the drive cable from the brake pedal assembly.

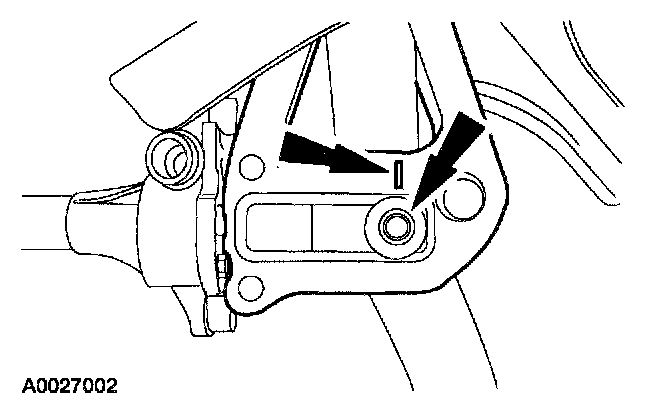

6. Operate the switch until the accelerator pedal aligns with the base position index mark on the accelerator pedal assembly.





7. Reconnect the drive cable to the brake pedal assembly.

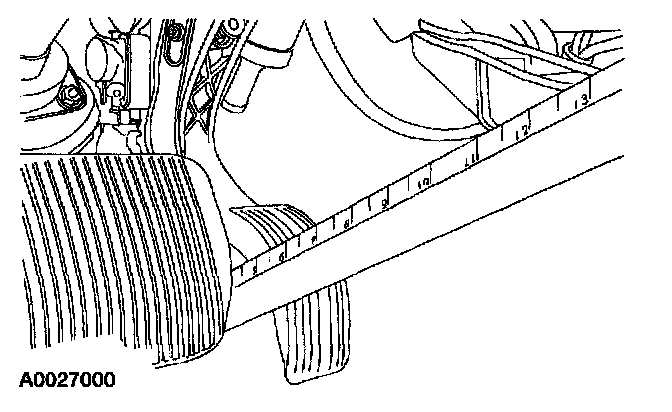

8. Check that the brake and accelerator pedals can adjust at least 50 mm (2.0 inch) from the base position.
