Home >> Mercury >> 2002 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Evaporative Emissions System >> Testing and Inspection >> Pinpoint Tests >> Test D: Hiss When Opening Fuel Cap

Test D: Hiss When Opening Fuel Cap

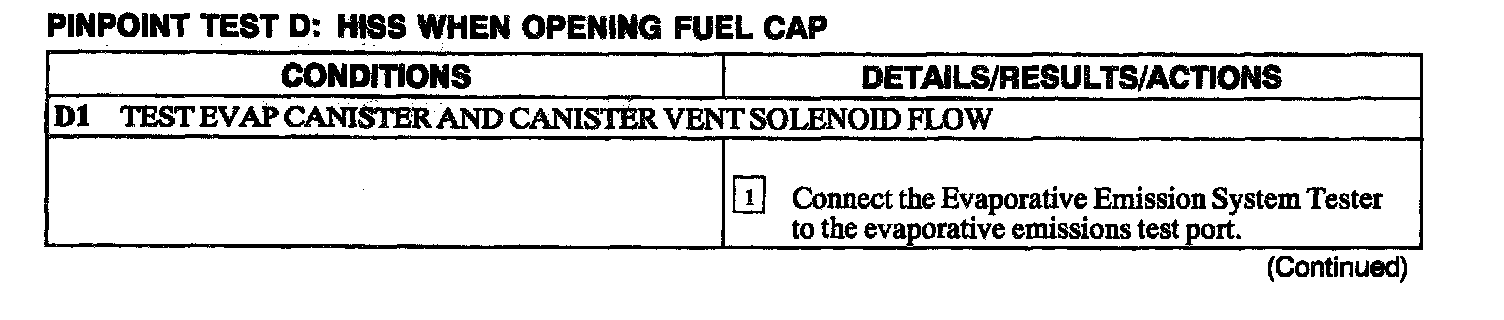

D1:

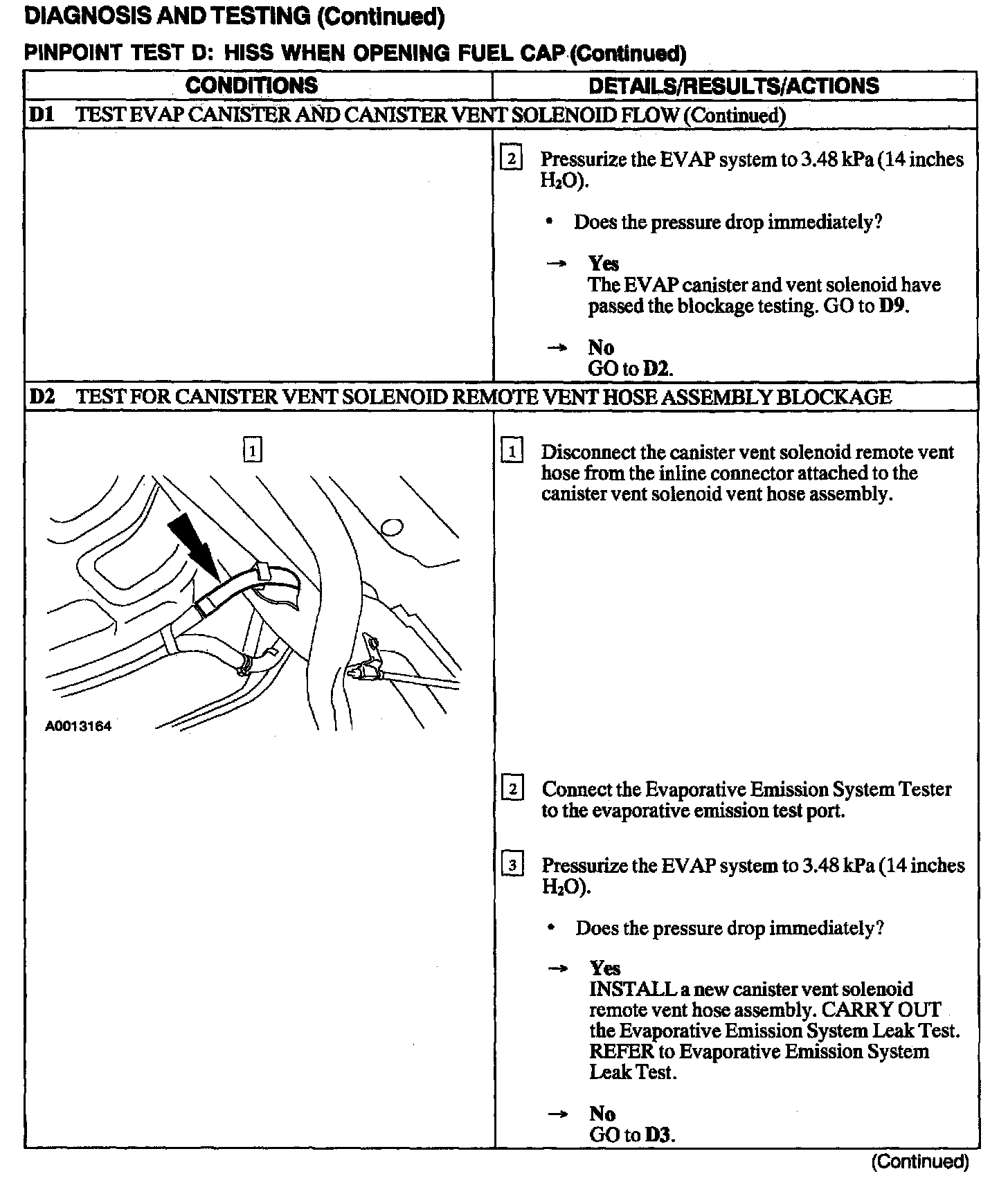

D1 - D2:

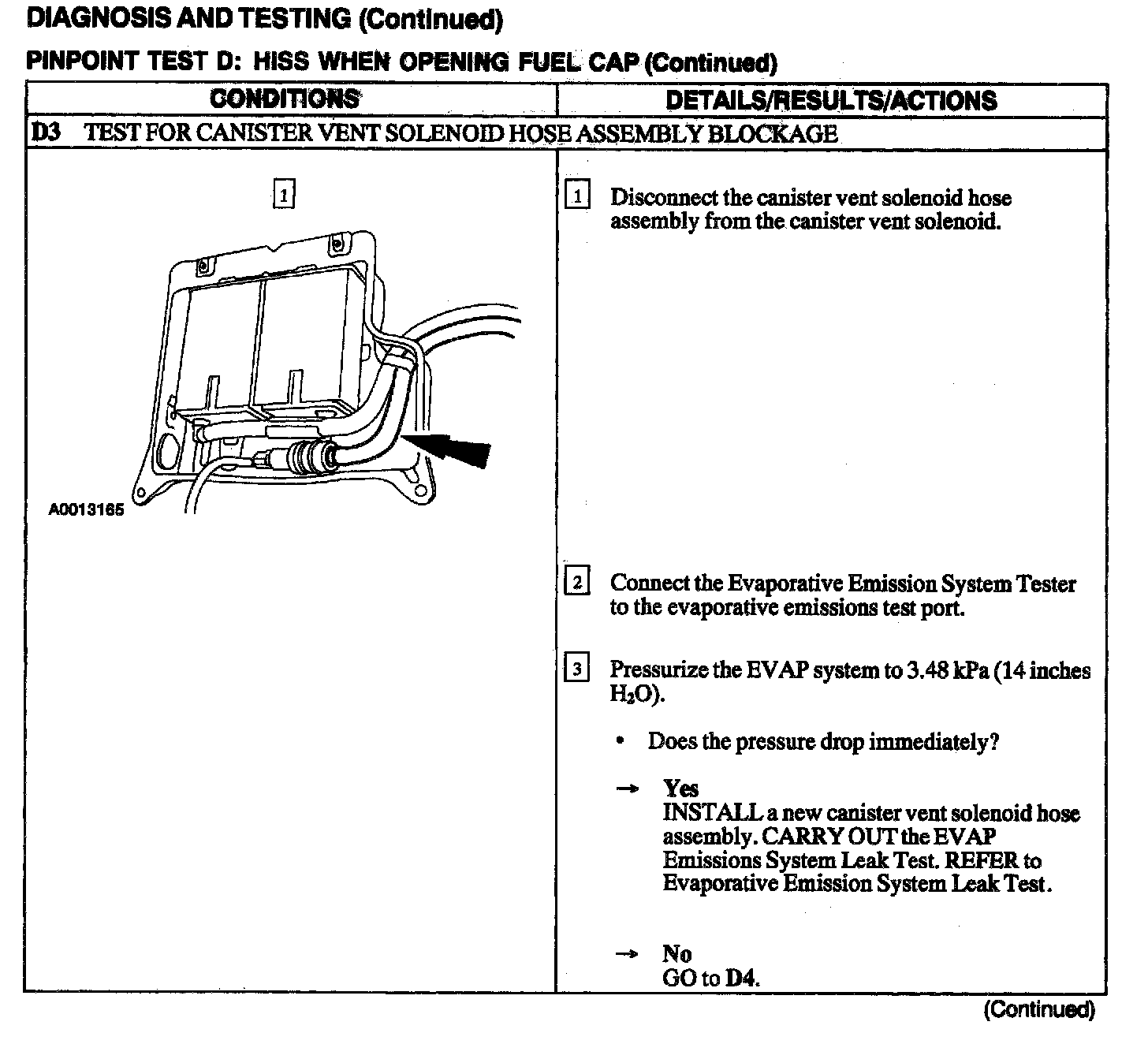

D3:

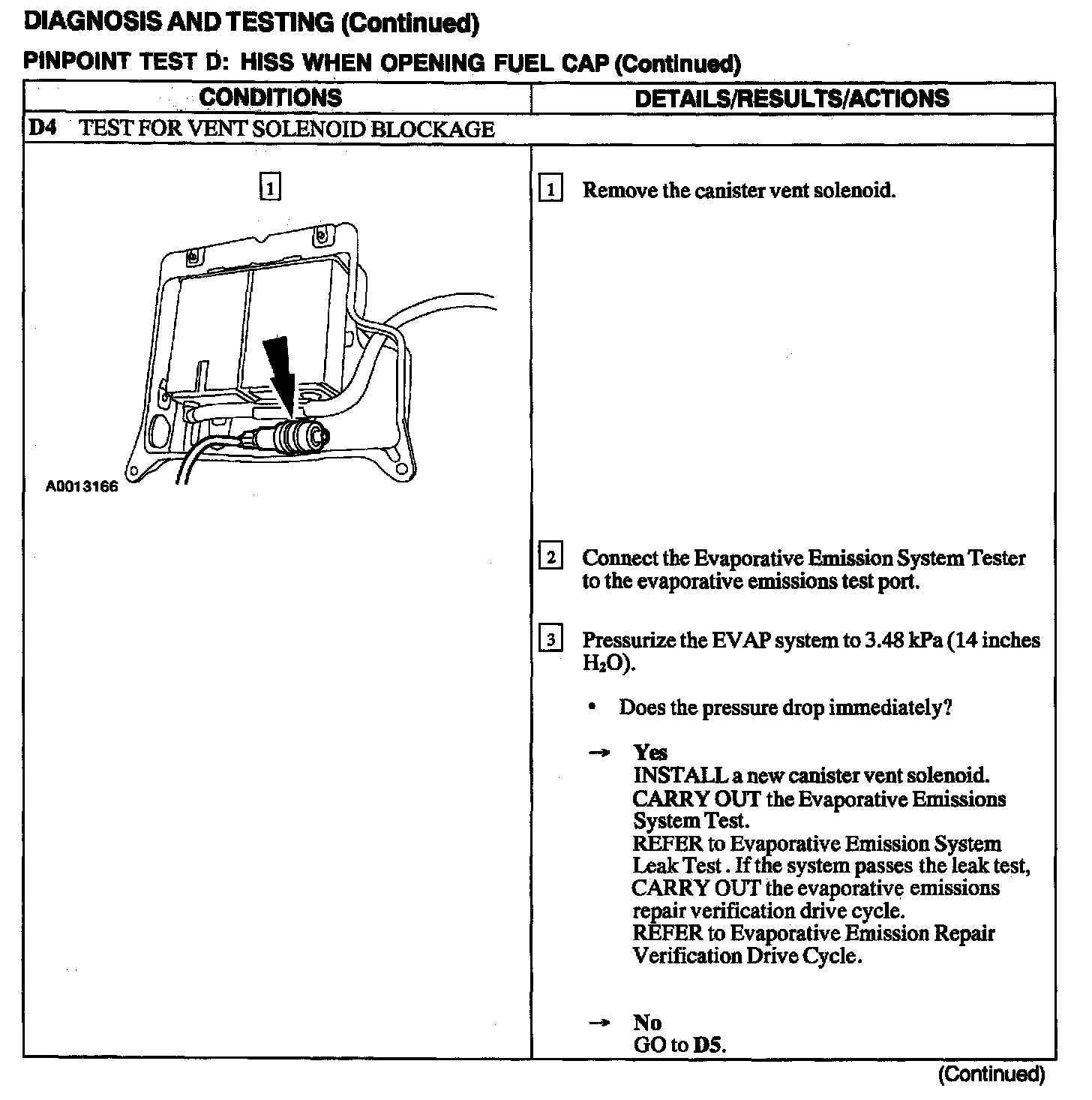

D4:






D5:

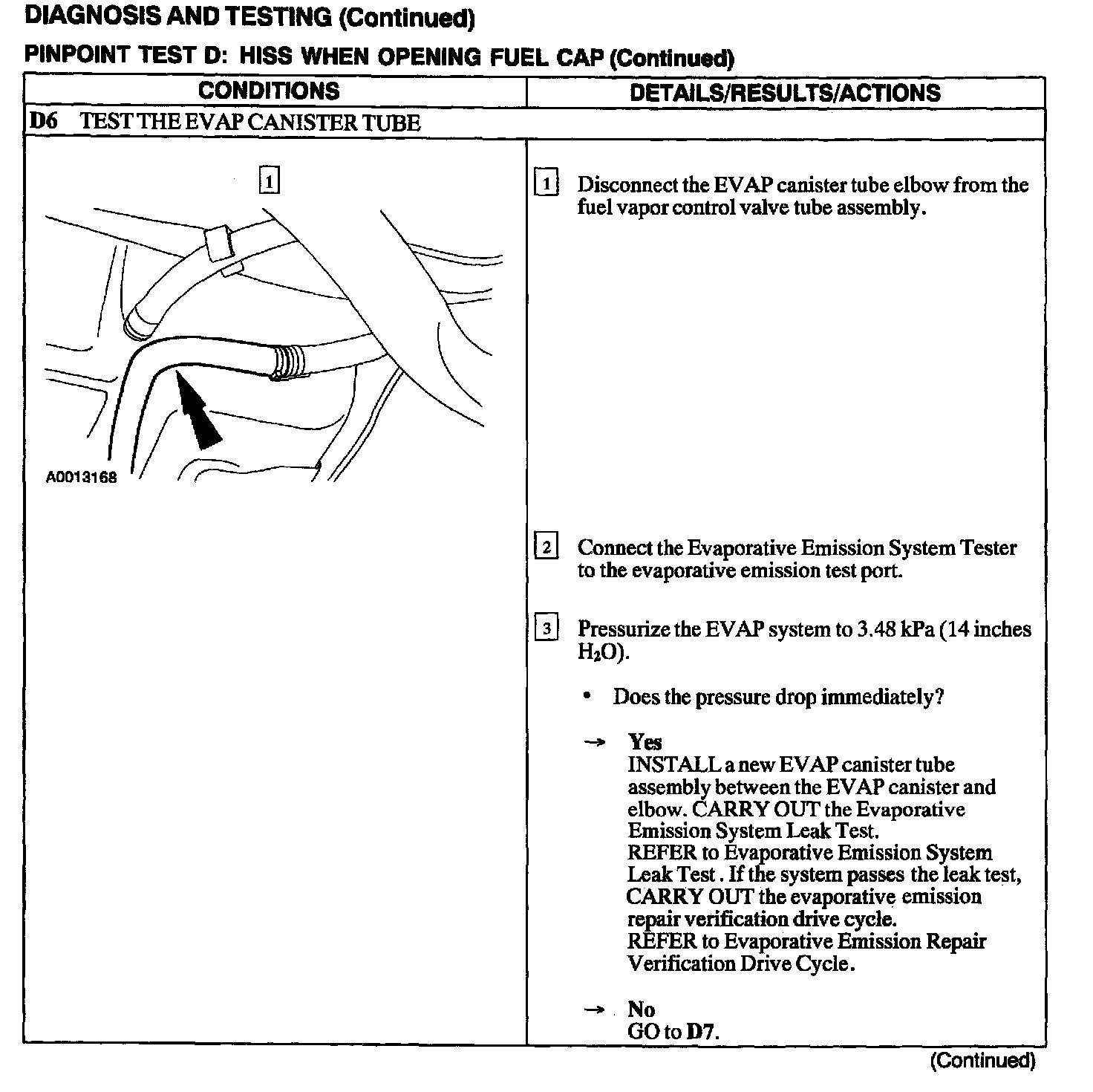

D6:

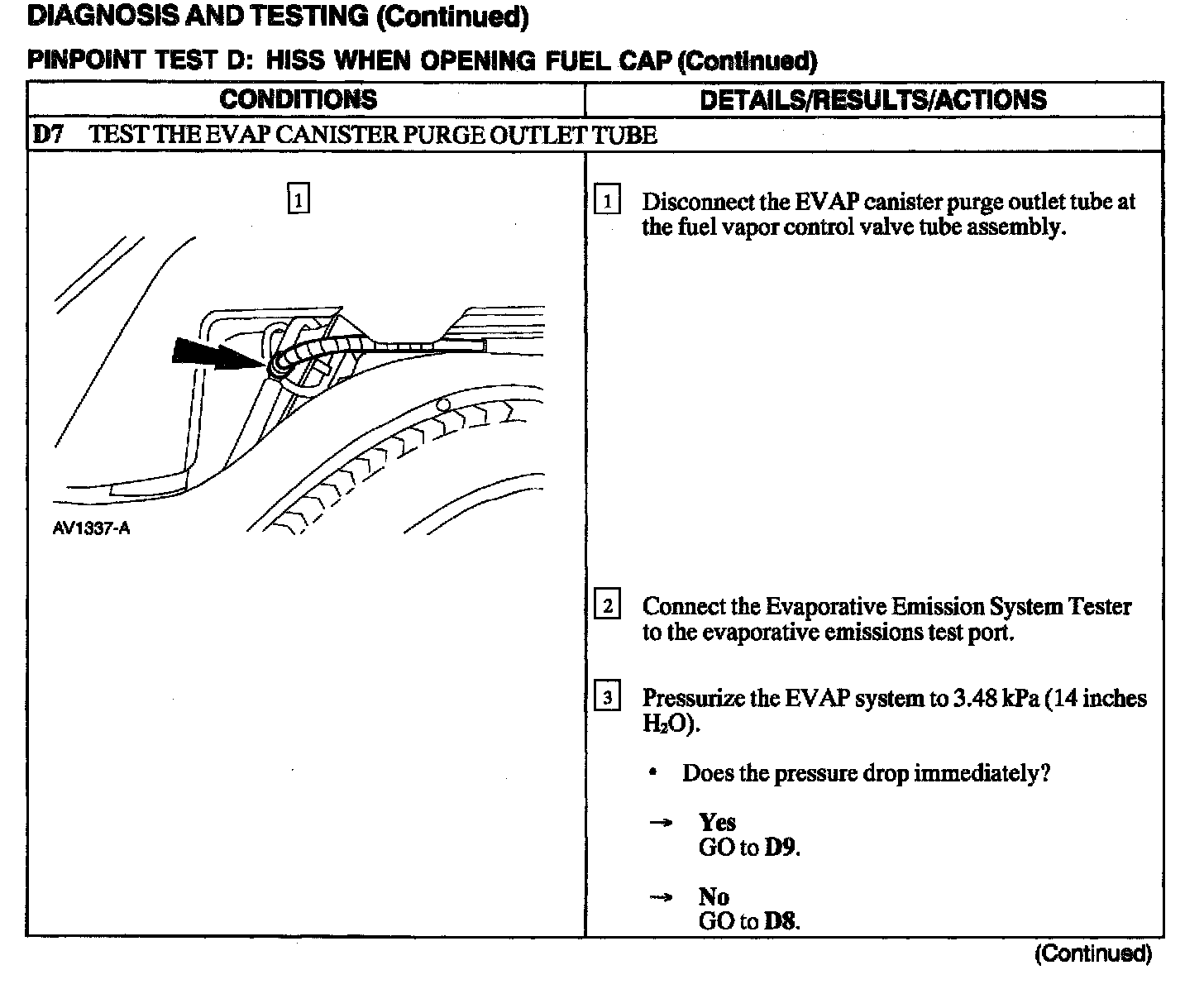

D7:

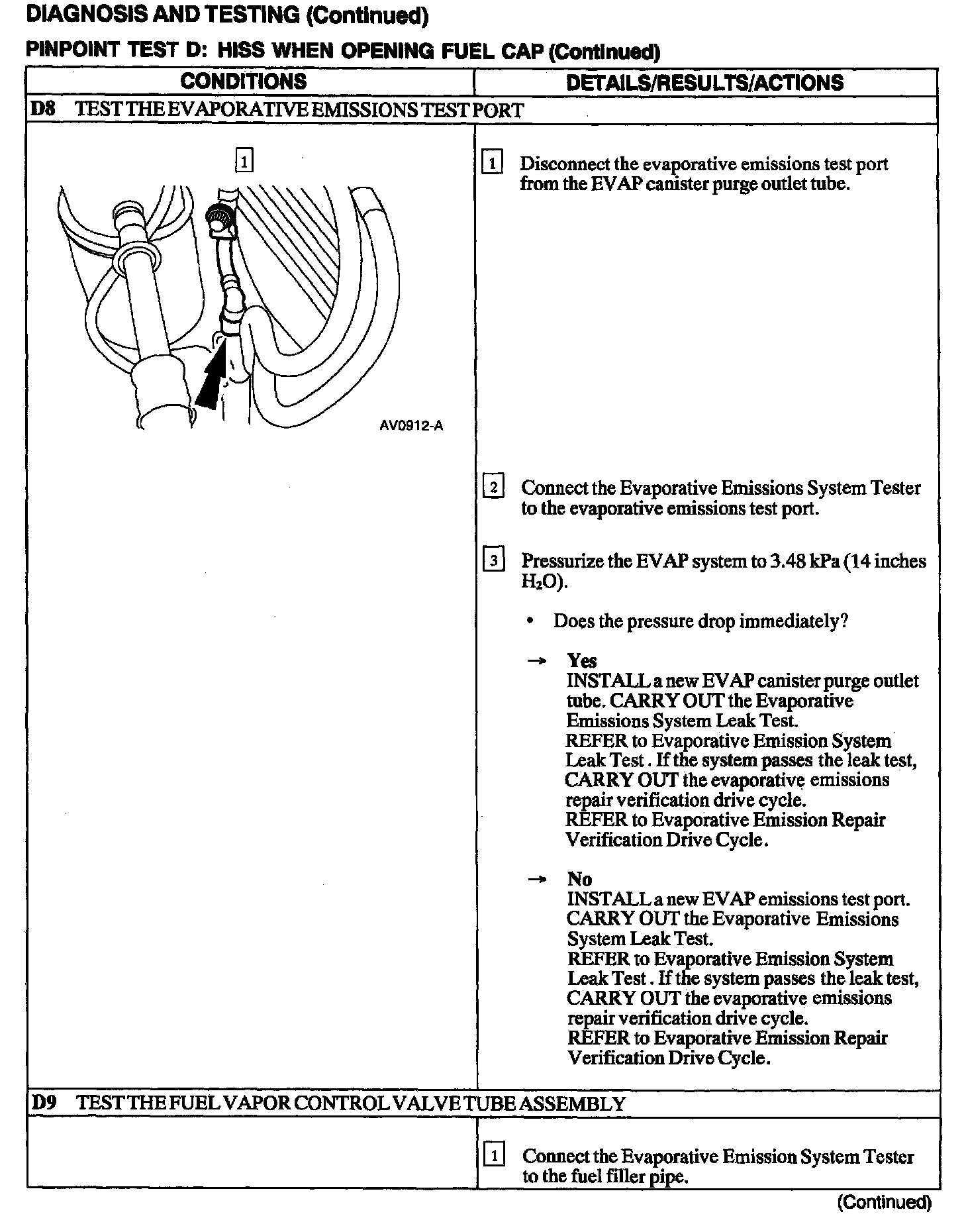

D8 - D9:

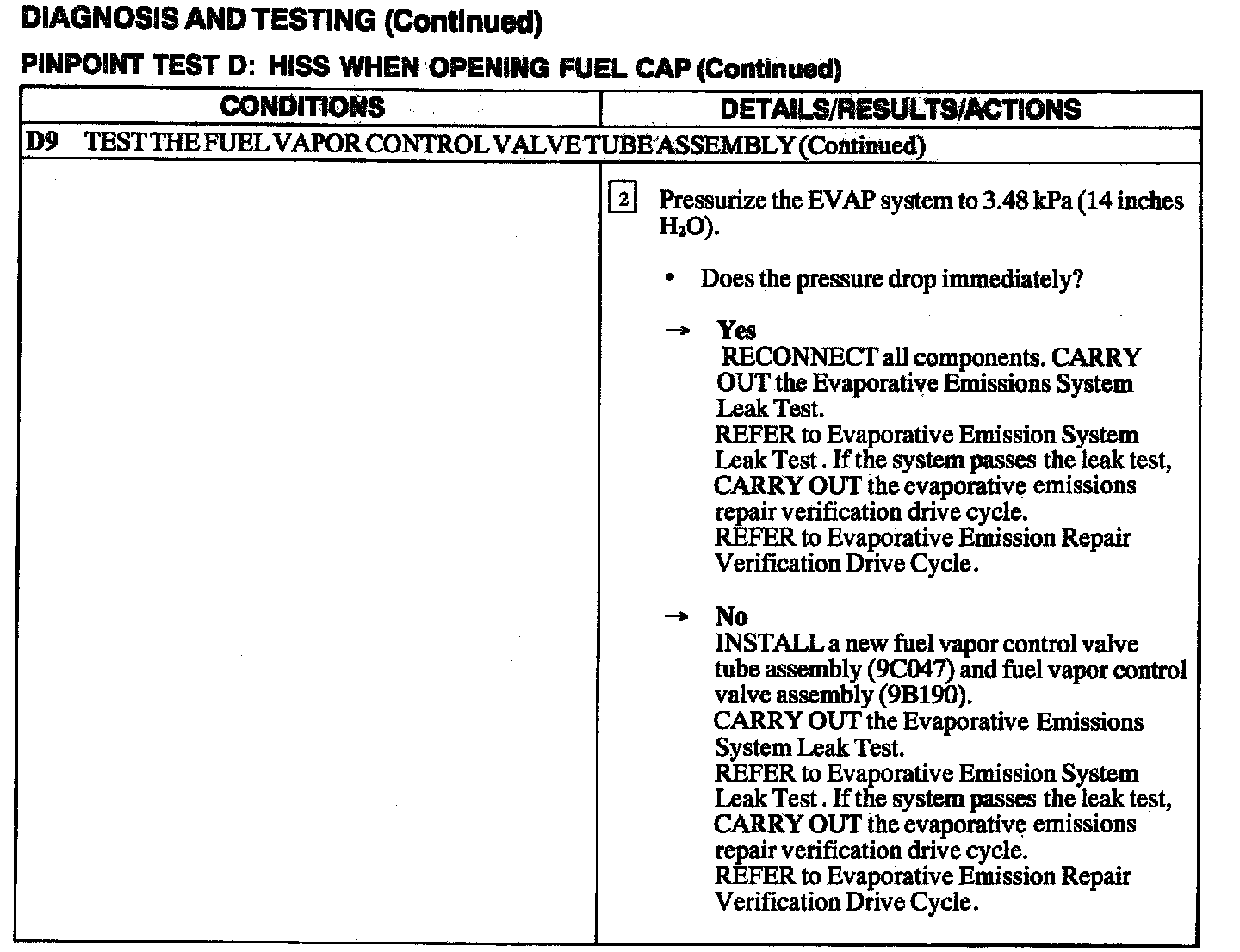

D9:
