Test M: B1873: Turn Signal/Hazard Power Feed Circuit Short To Ground
Test M: B1873: Turn Signal/Hazard Power Feed Circuit Short To Ground

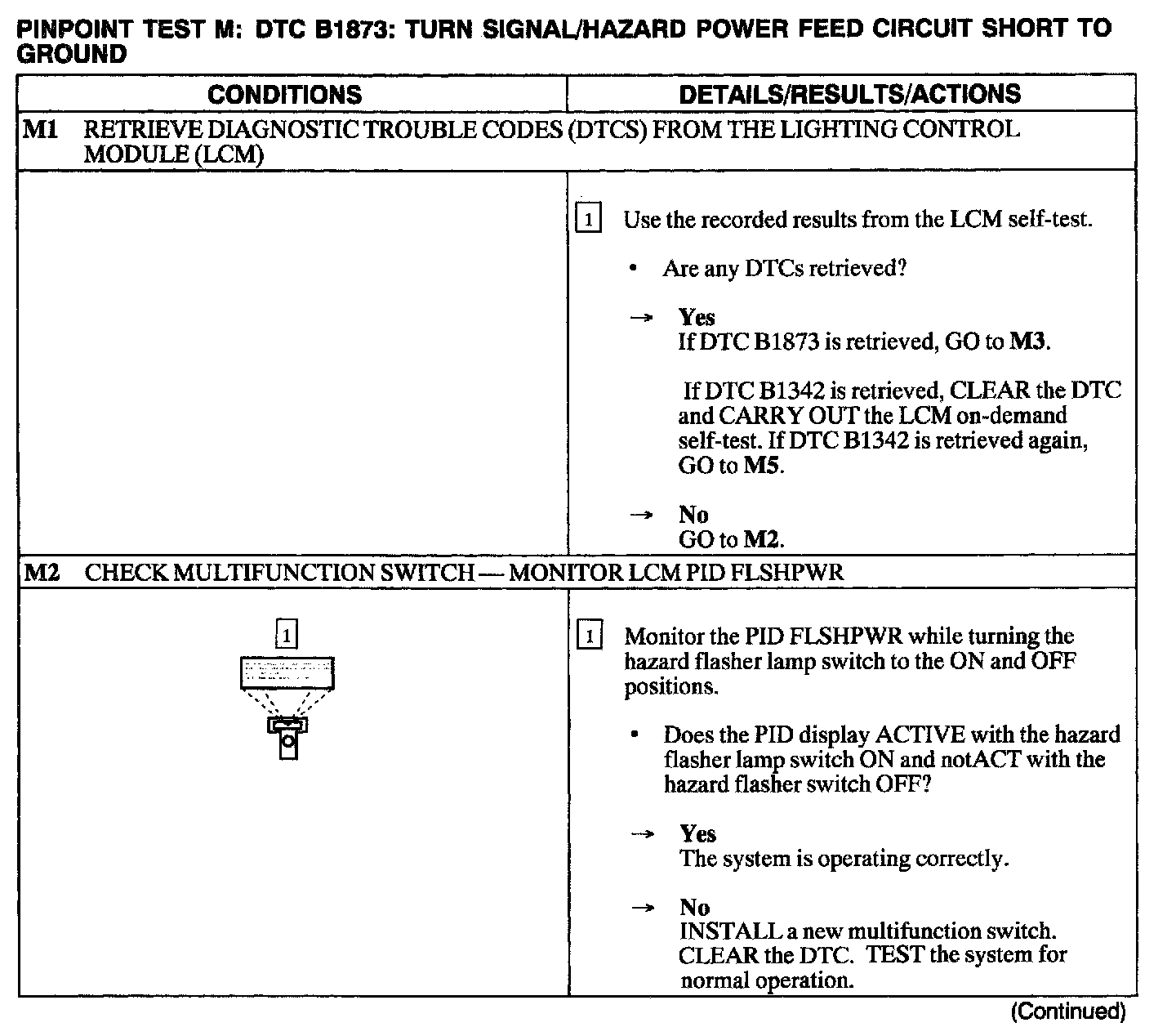

M1 - M2:

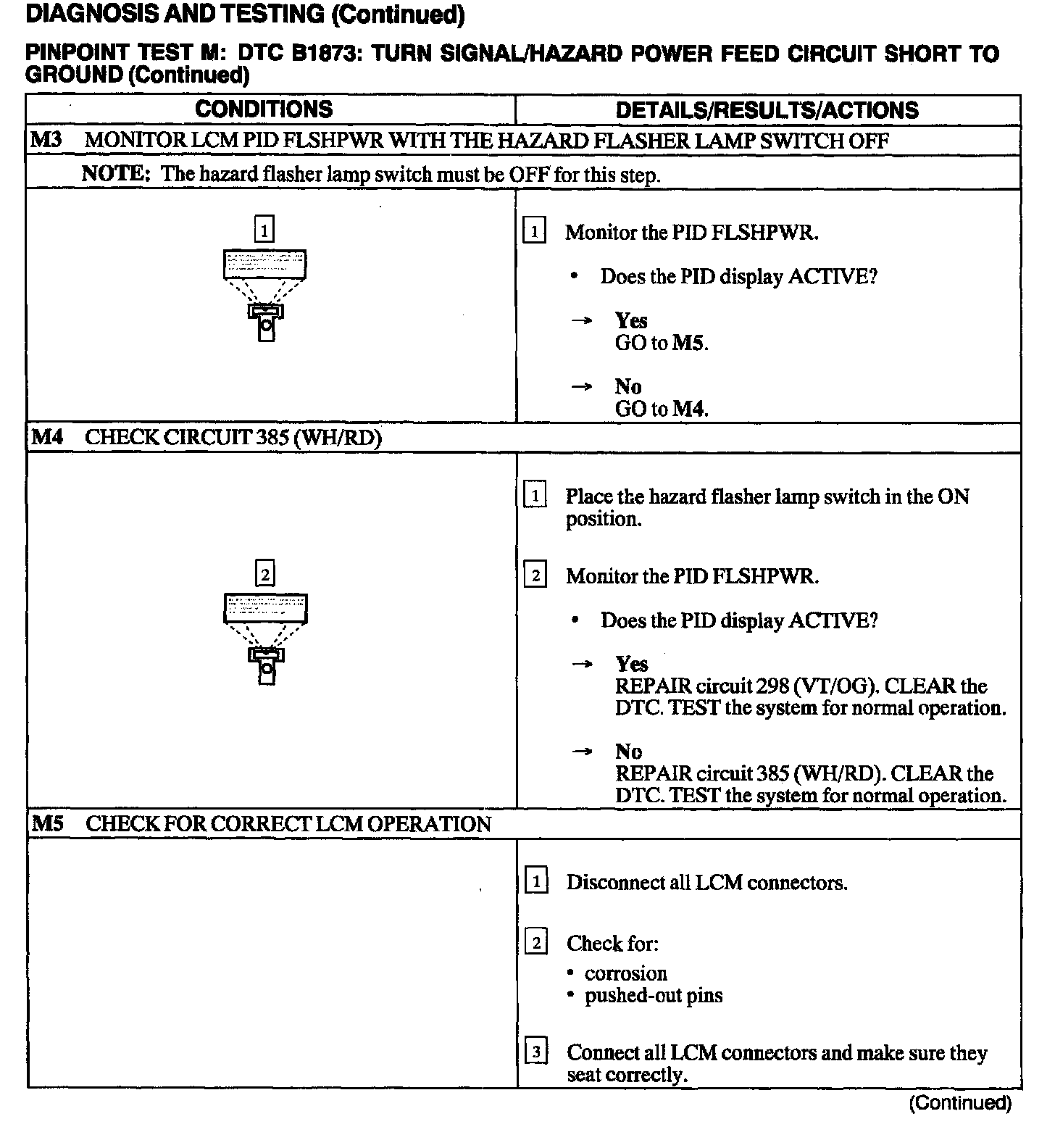

M3 - M5:

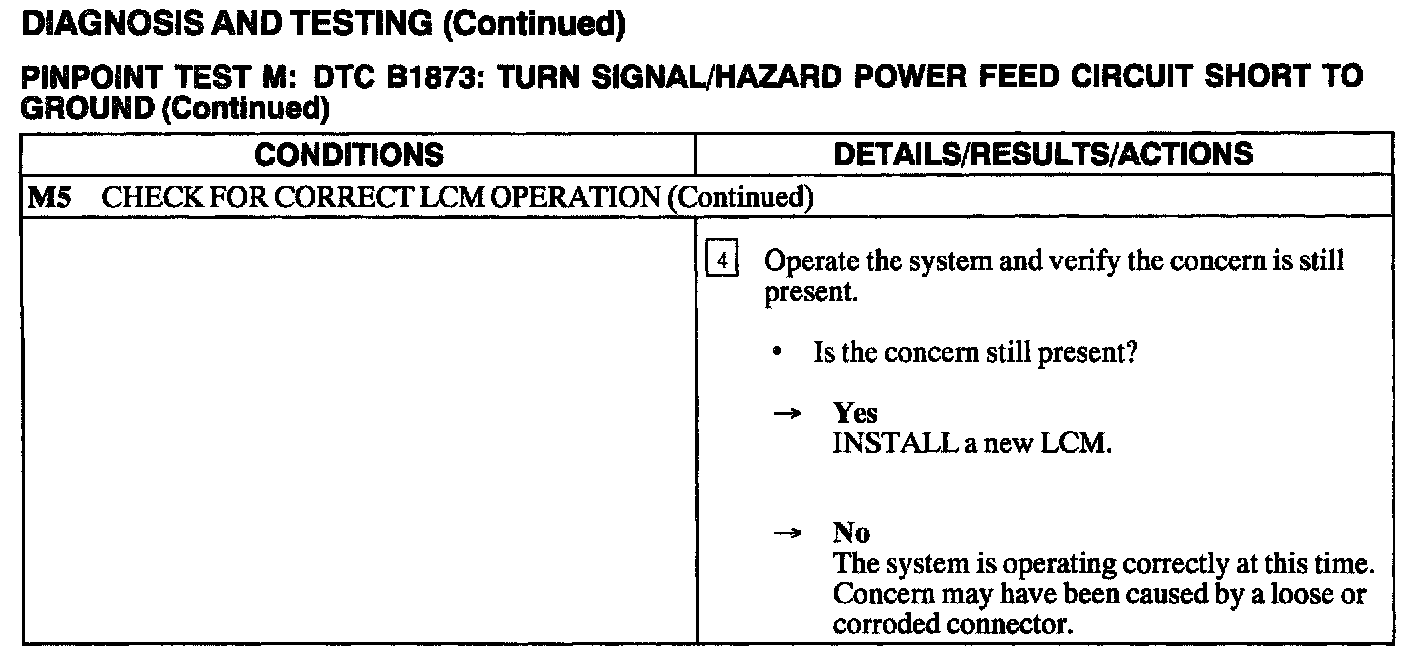

M5:
