Home >> Mercury >> 2002 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Pinpoint Tests >> Tests AE: Public Safety Lighting Component Is Inoperative - RH Package Tray Lamp(S)

Tests AE: Public Safety Lighting Component Is Inoperative - RH Package Tray Lamp(S)

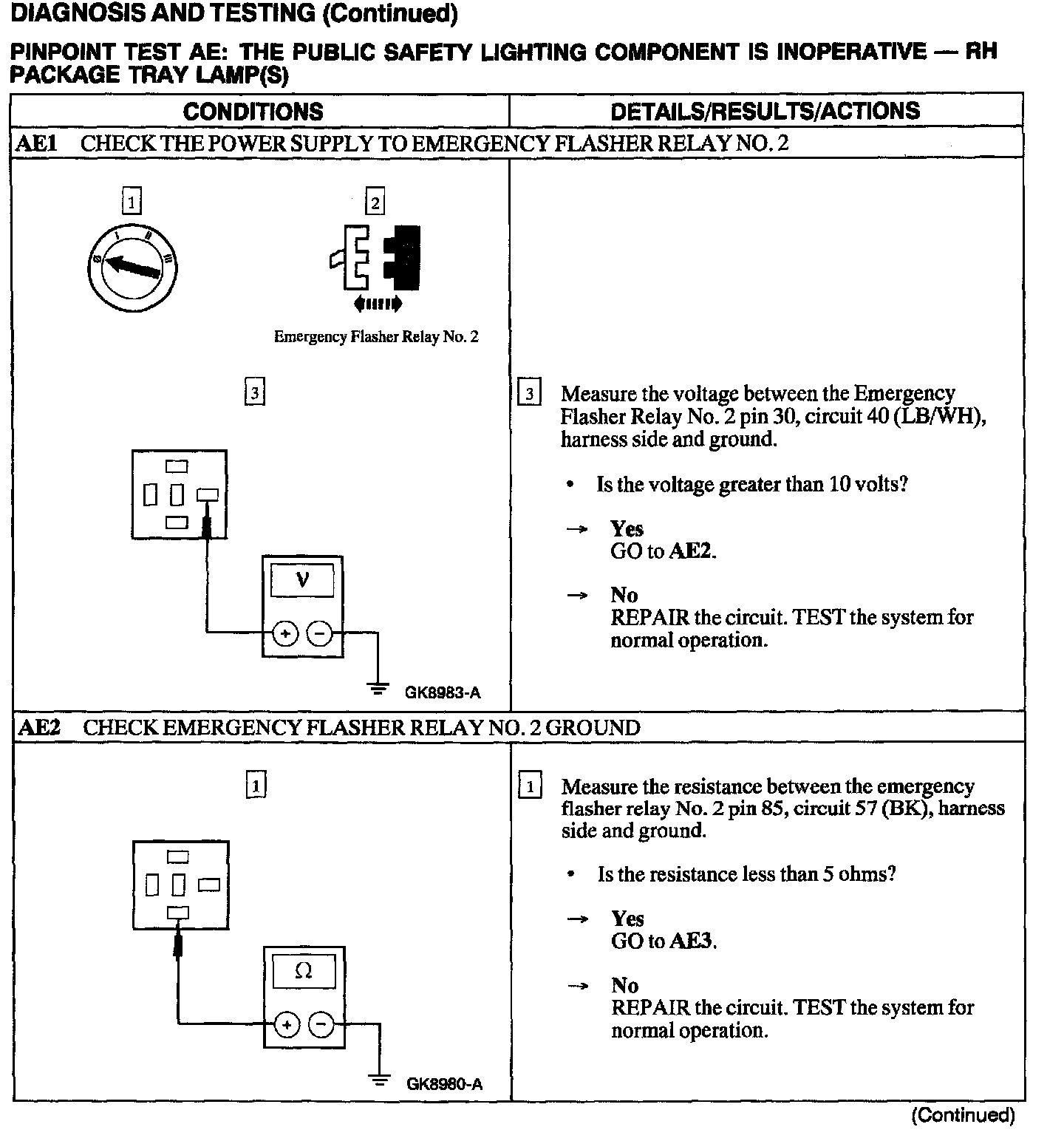

AE1 - AE2:

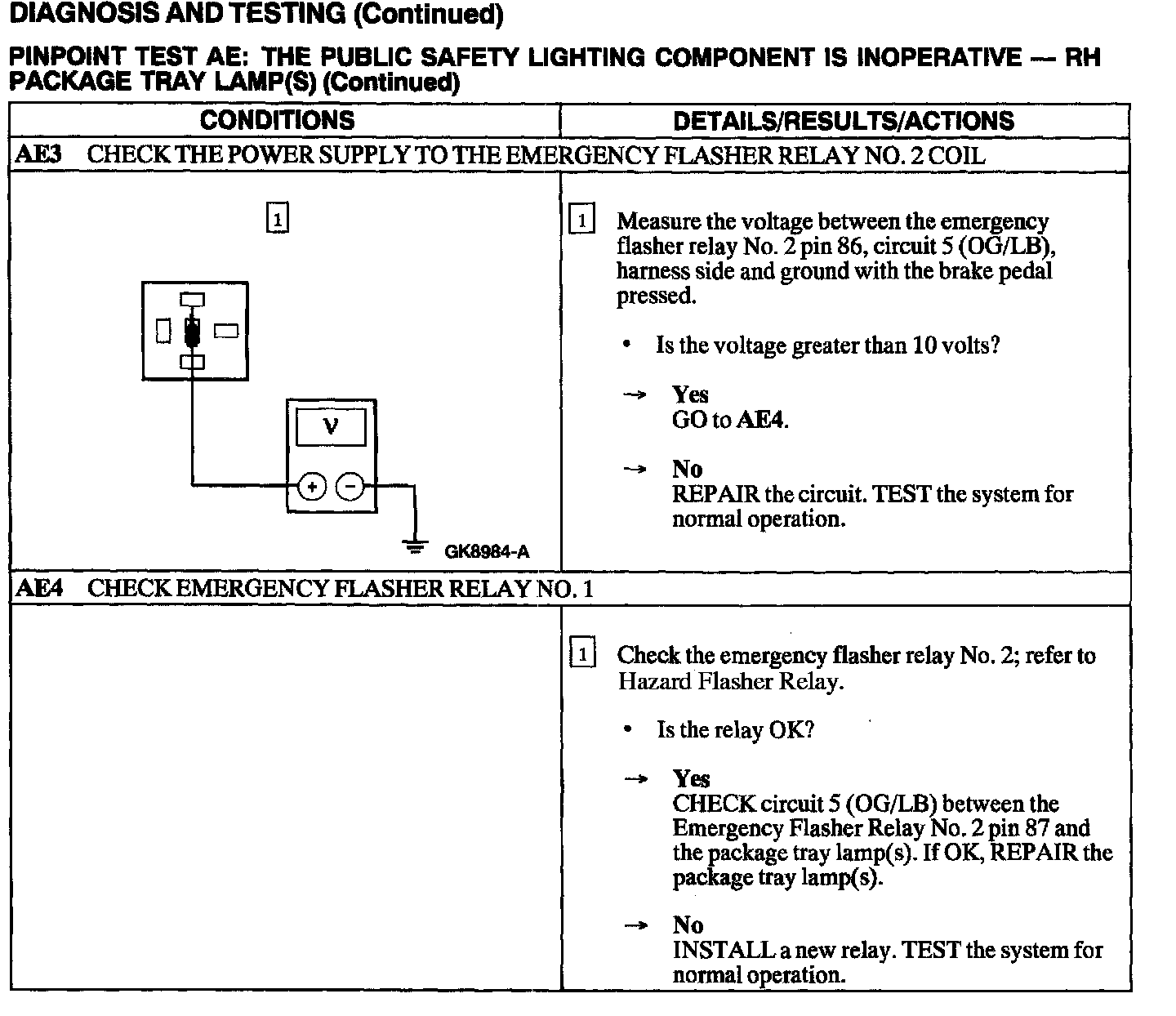

AE3 - AE4:
