Tests AA: Public Safety Equipment Power Supply Is Inoperative - Red Accessory Connector

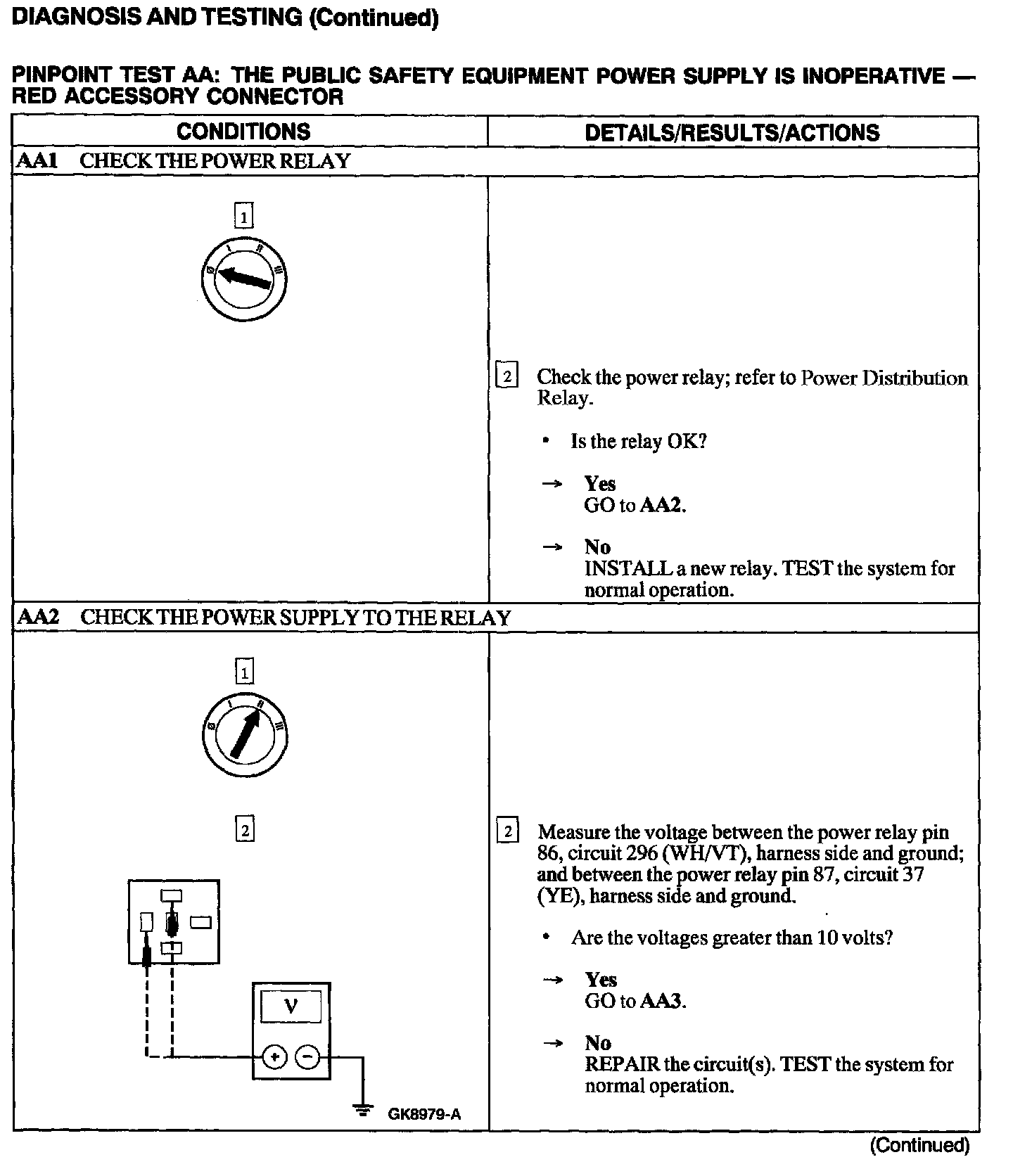

AA1 - AA2:

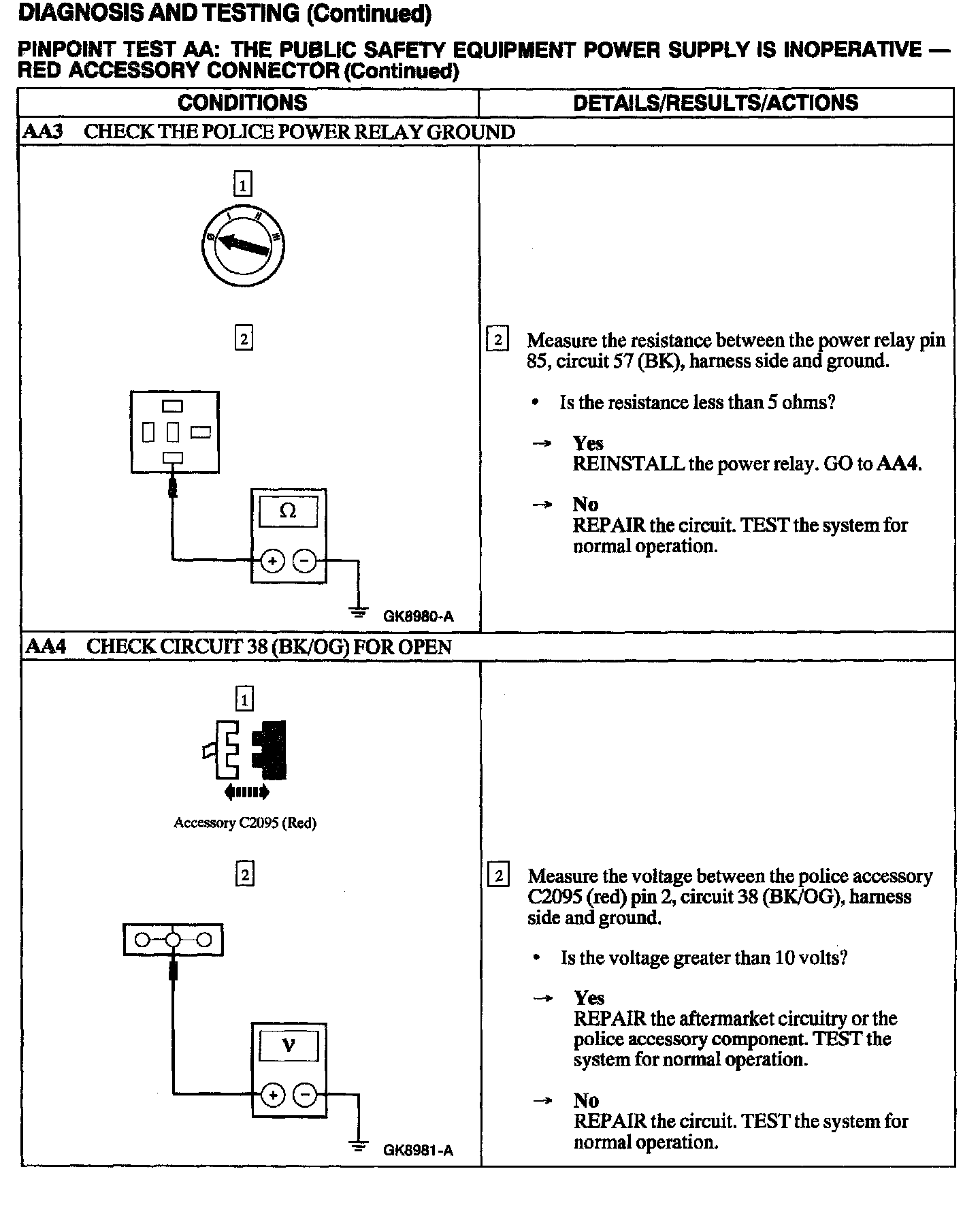

AA3 - AA4:
