Home >> Mercury >> 2002 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Warning Devices >> Test A: Headlamp on Reminder Chime Does Not Operate Correctly

Test A: Headlamp on Reminder Chime Does Not Operate Correctly

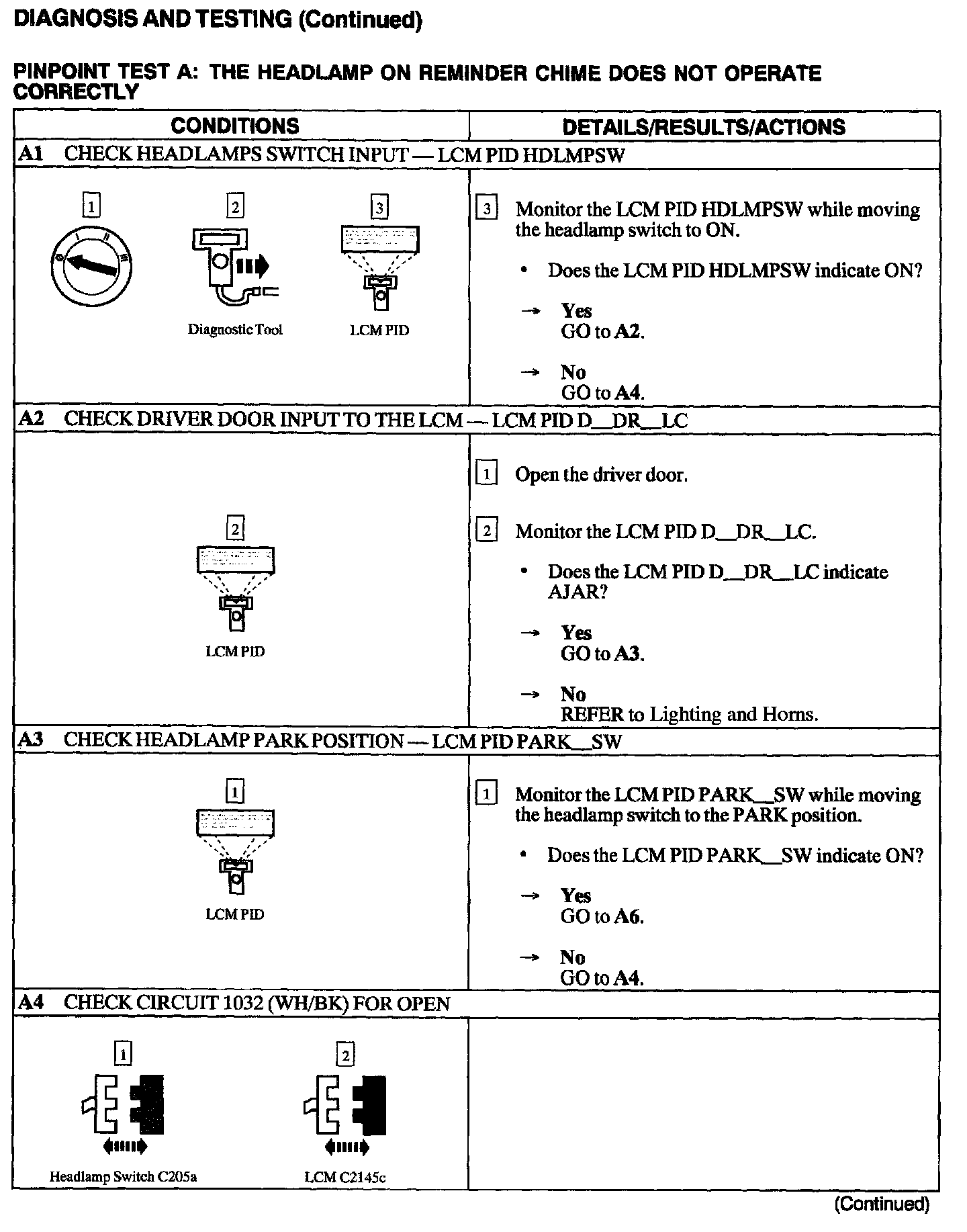

A1 - A4:

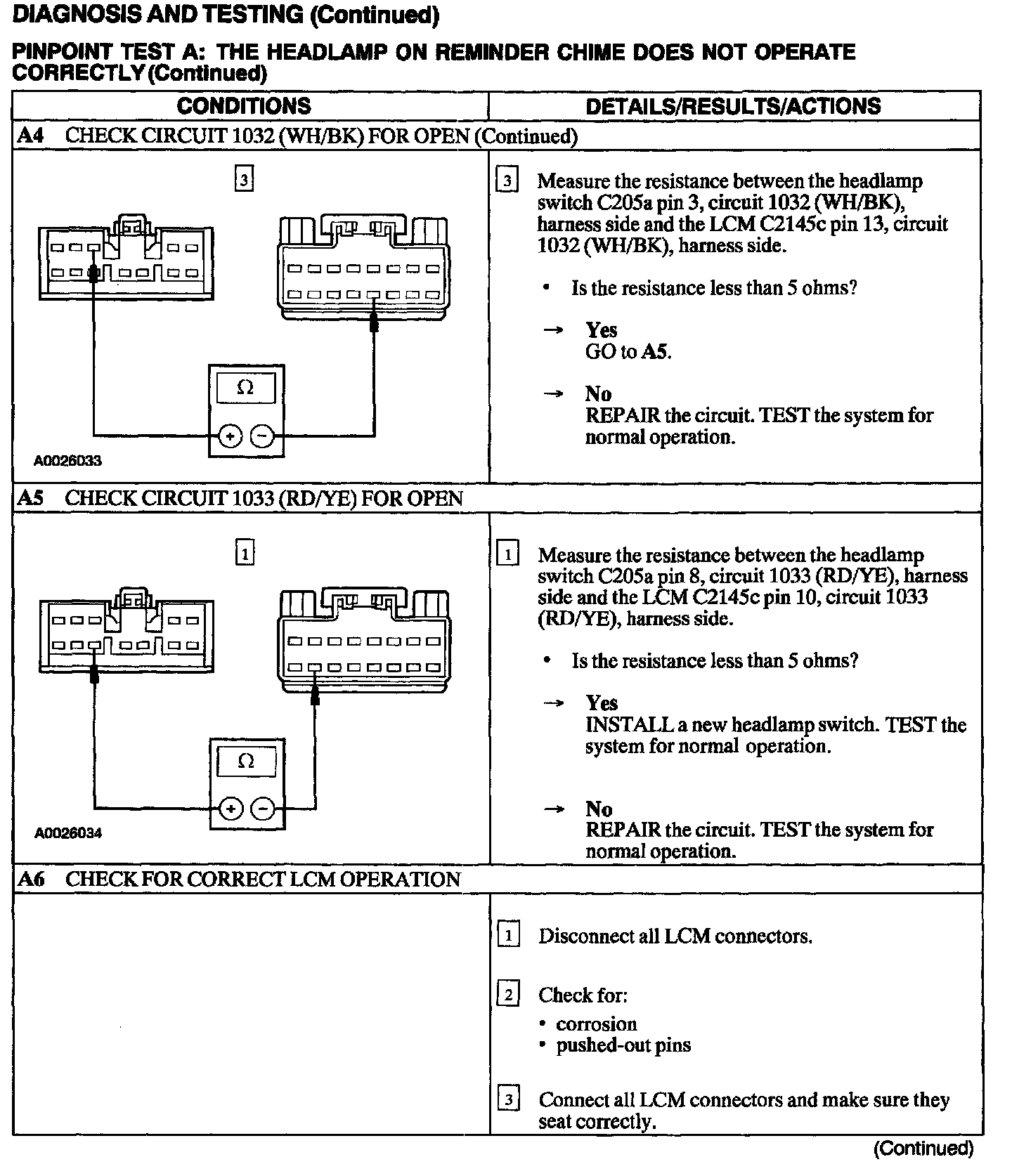

A4 - A6:

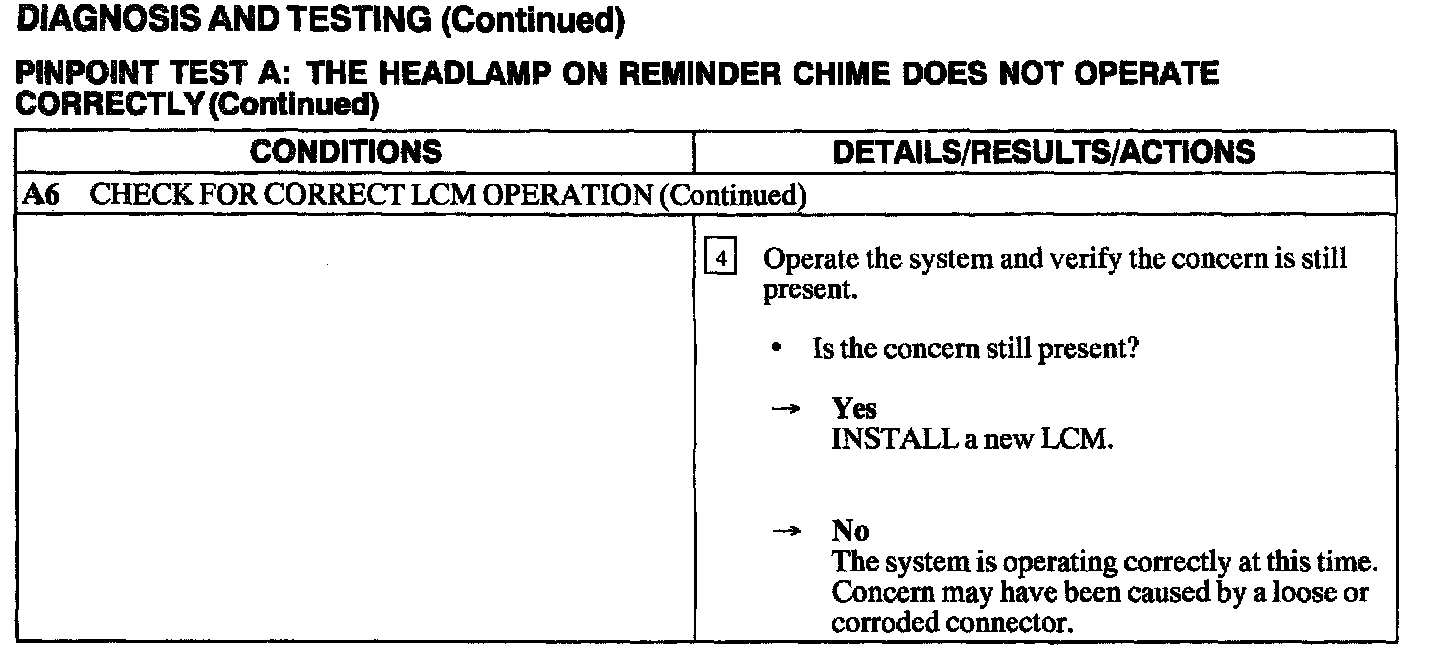

A6:
