Test M: Instrument Panel Illumination Does Not Dim
Test M: Instrument Panel Illumination Does Not Dim

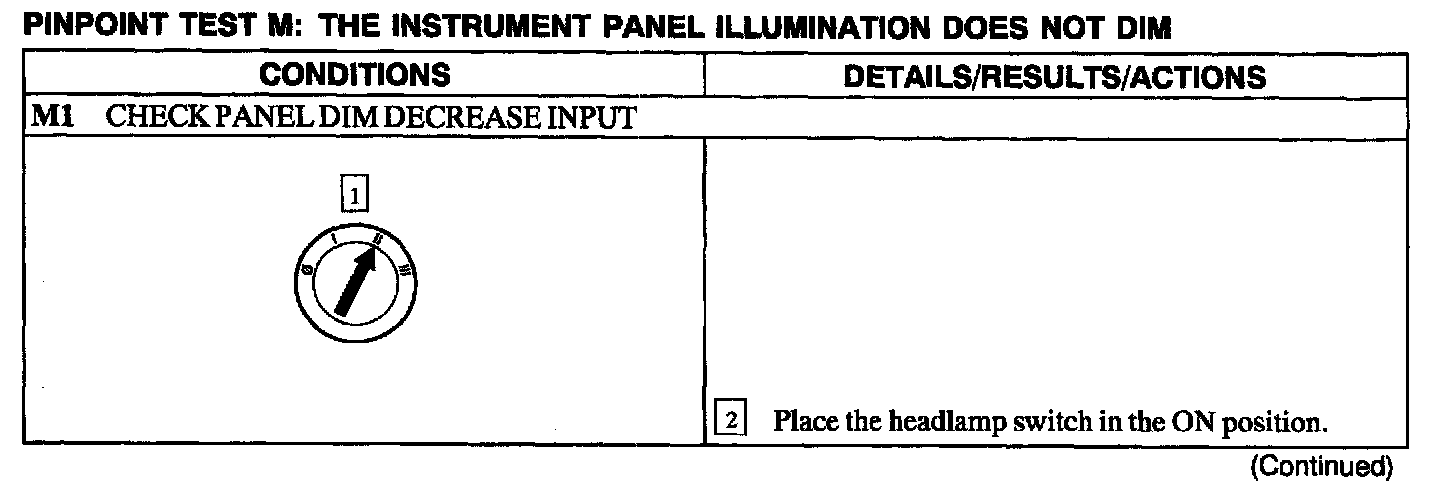

M1:

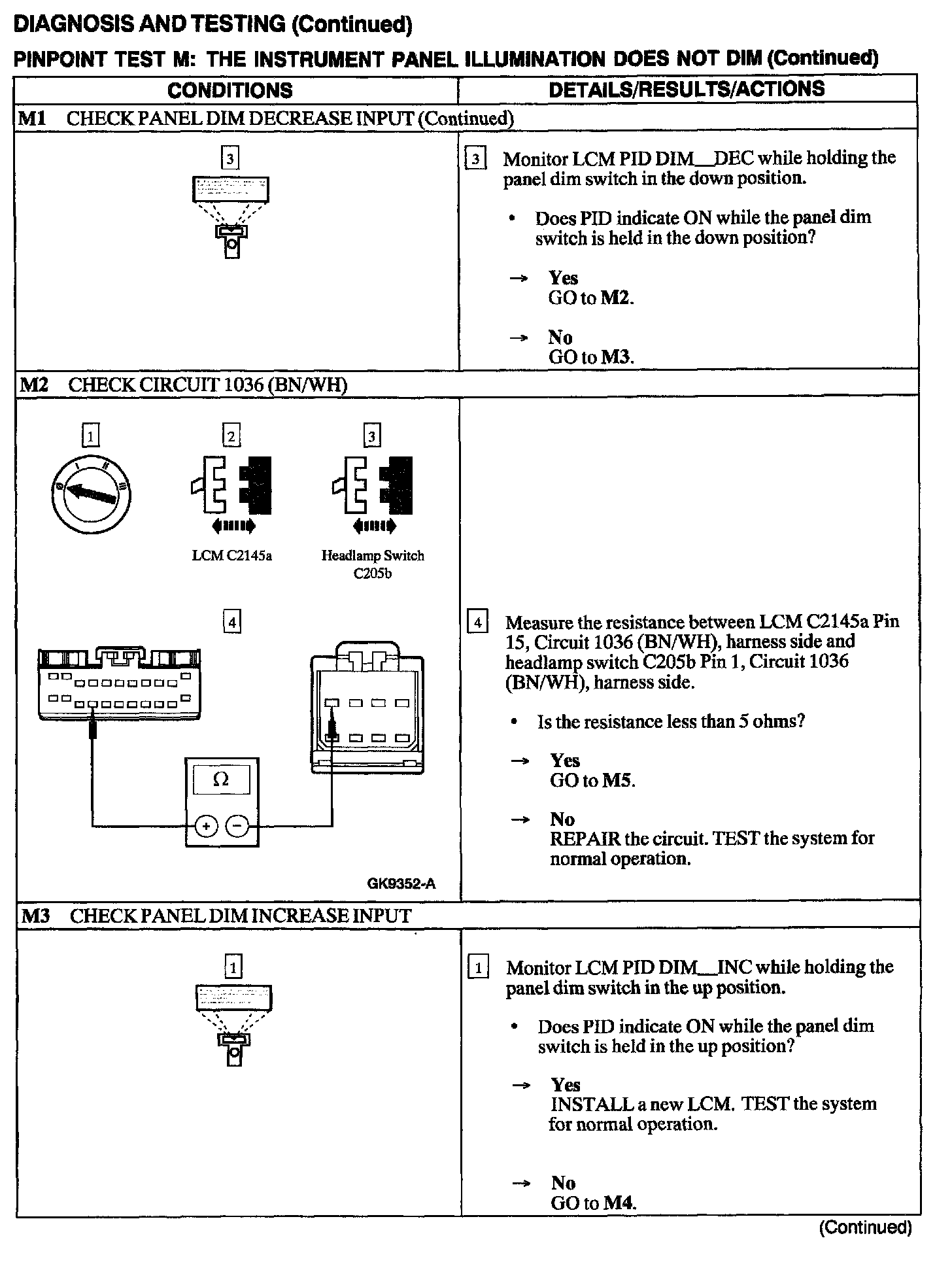

M1 - M3:

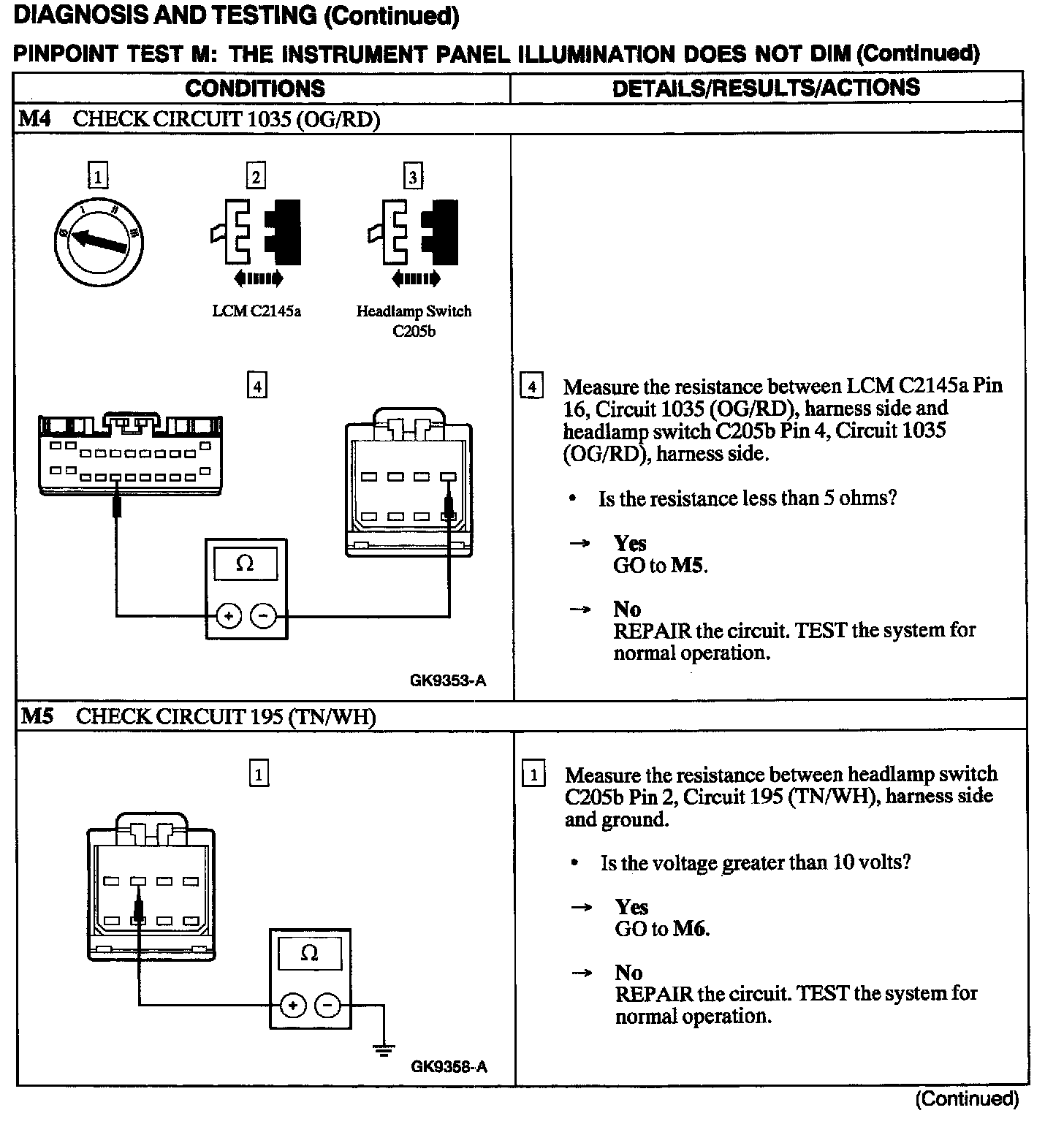

M4 - M5:

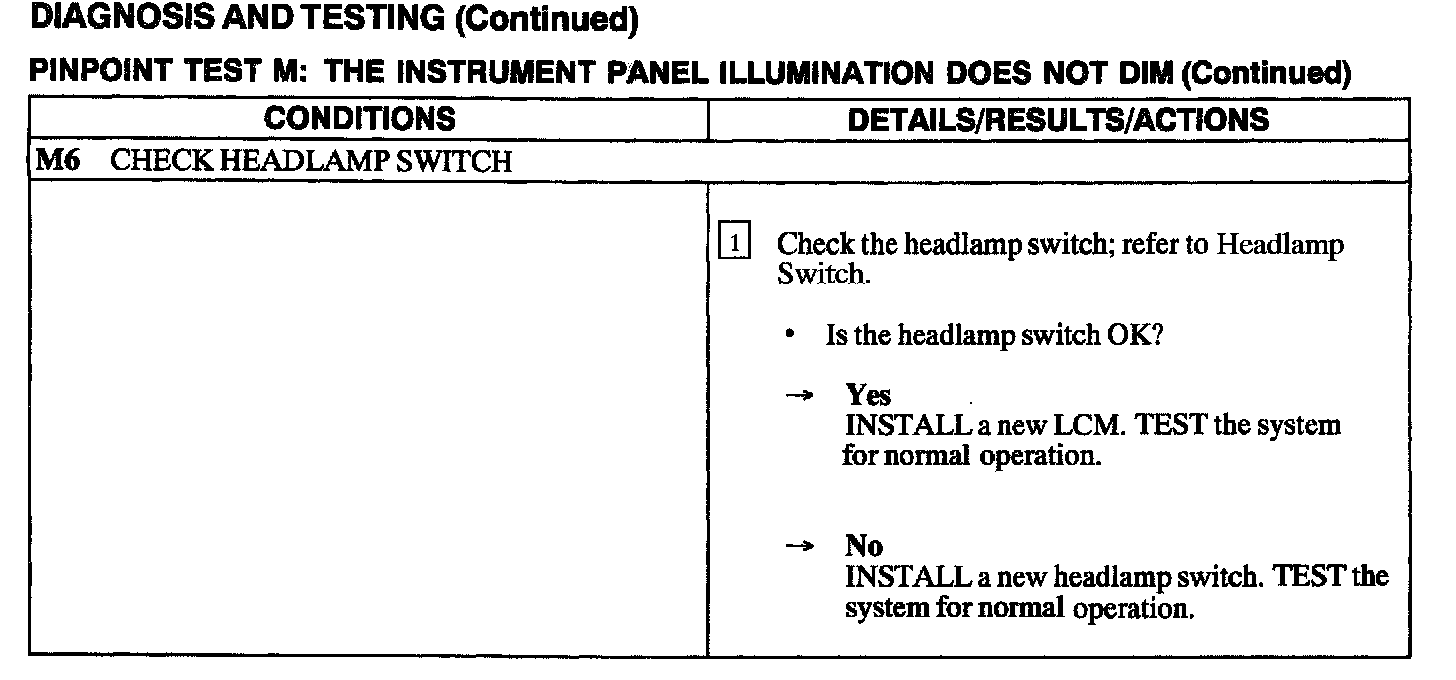

M6:
