Home >> Mercury >> 2002 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Instrument Panel Illumination >> Test I: Instrument Cluster Illumination Is Inoperative - Electronic

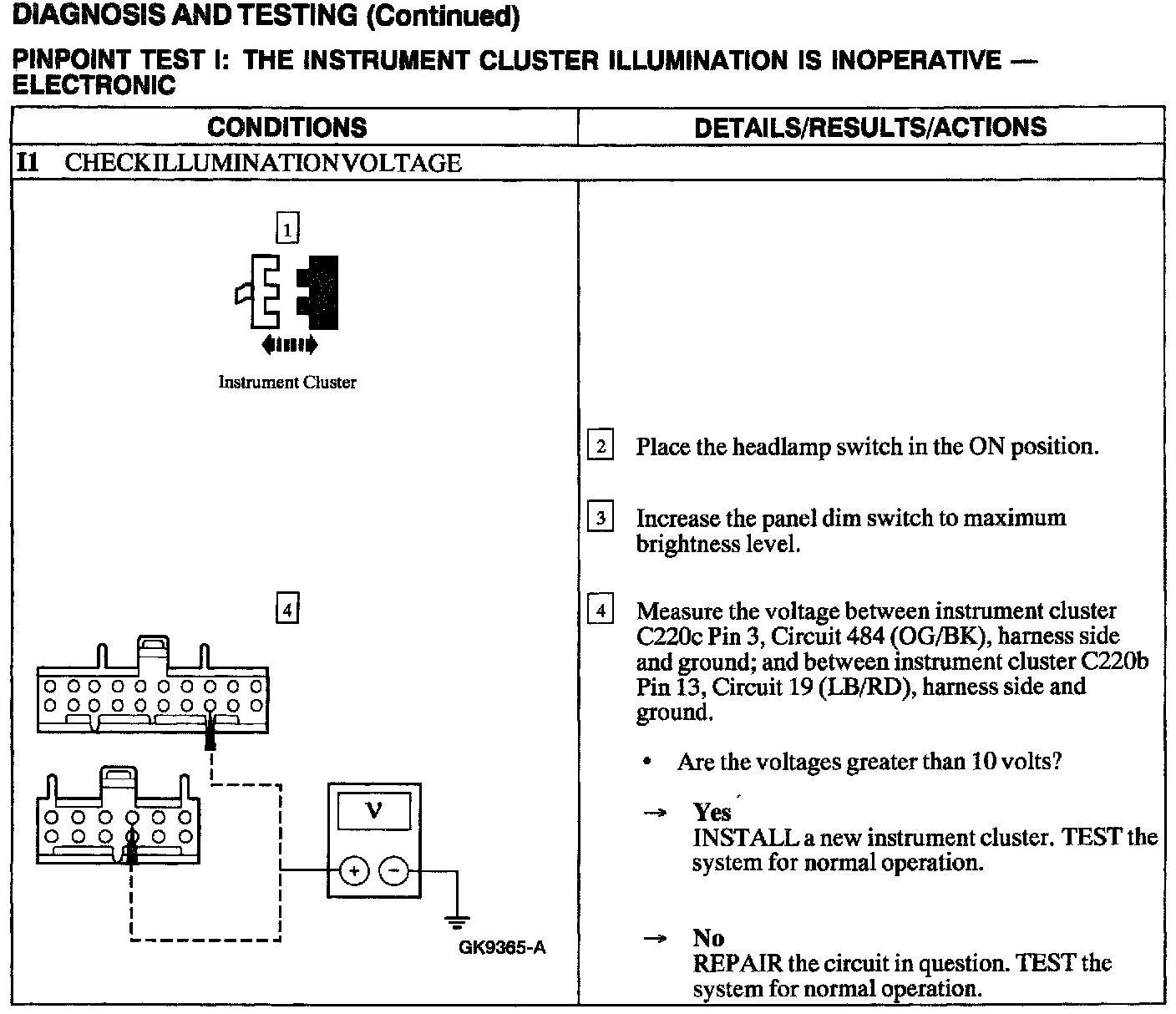

Test I: Instrument Cluster Illumination Is Inoperative - Electronic

I1:
