FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
2002
>>
Grand Marquis V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Instrument Panel Illumination
>>
Test B: No Communication With The Lighting Control Module - Unable To Enter Self-test
Test B: No Communication With The Lighting Control Module - Unable To Enter Self-test

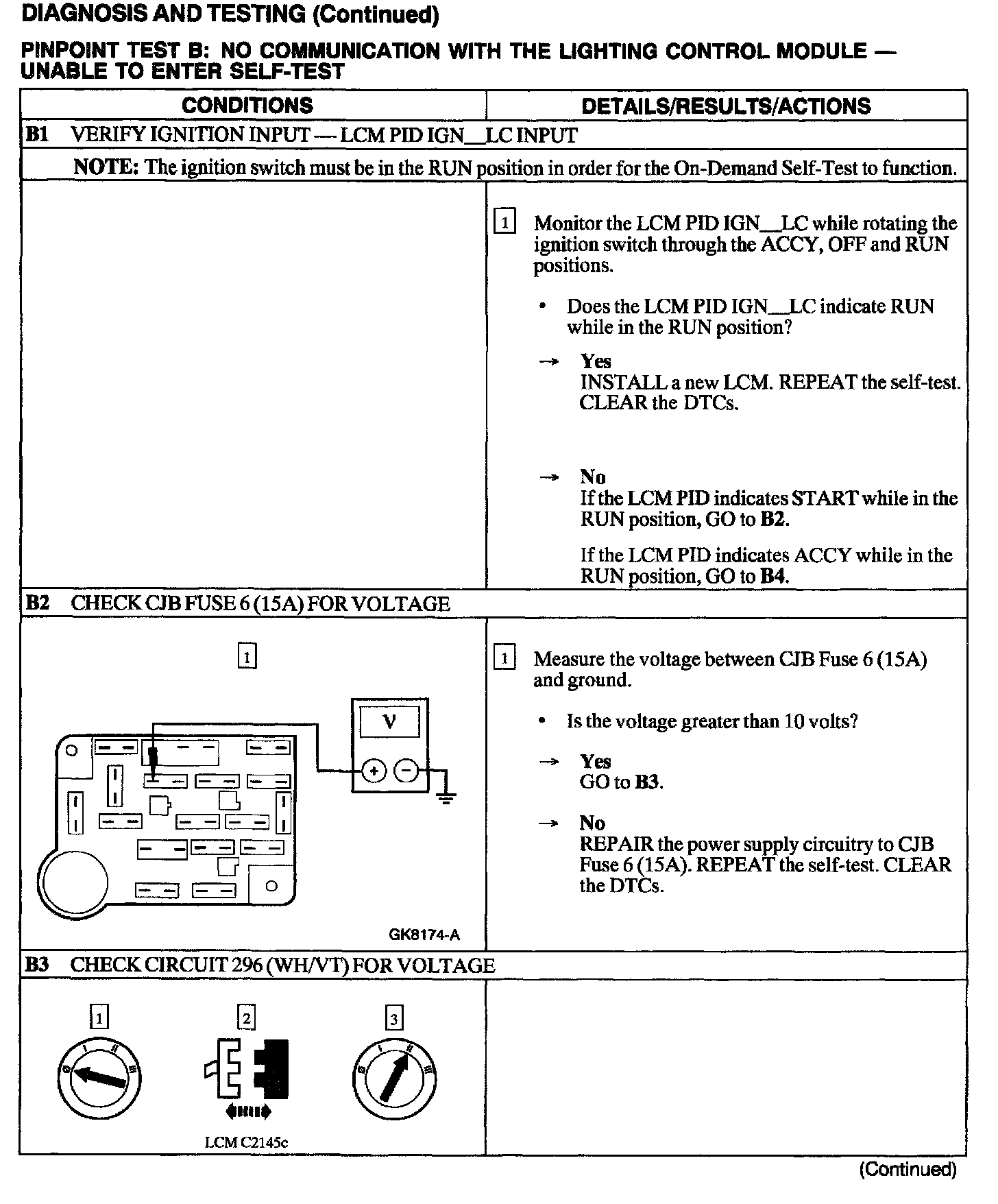

B1 - B3:

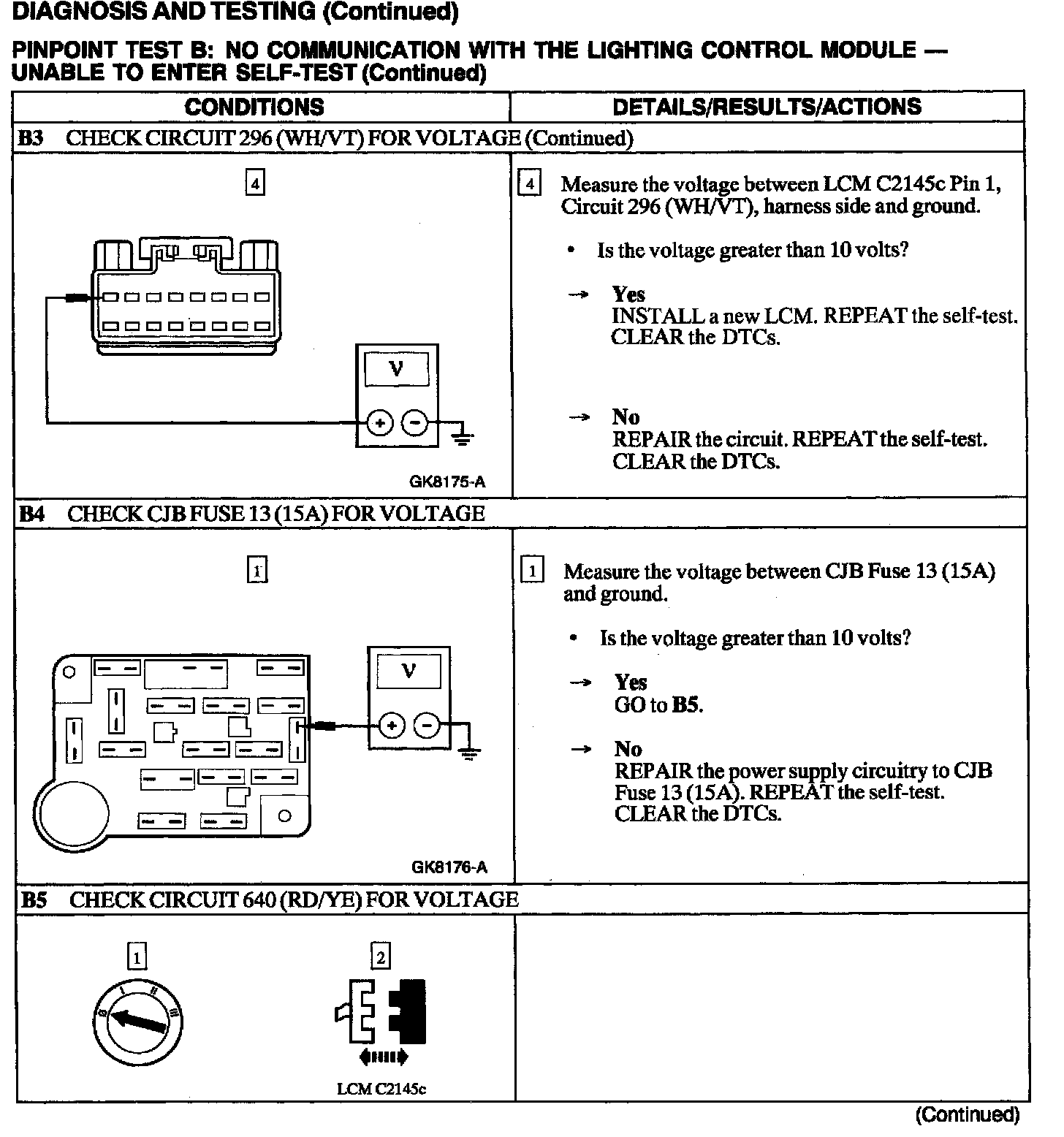

B3 - B5:

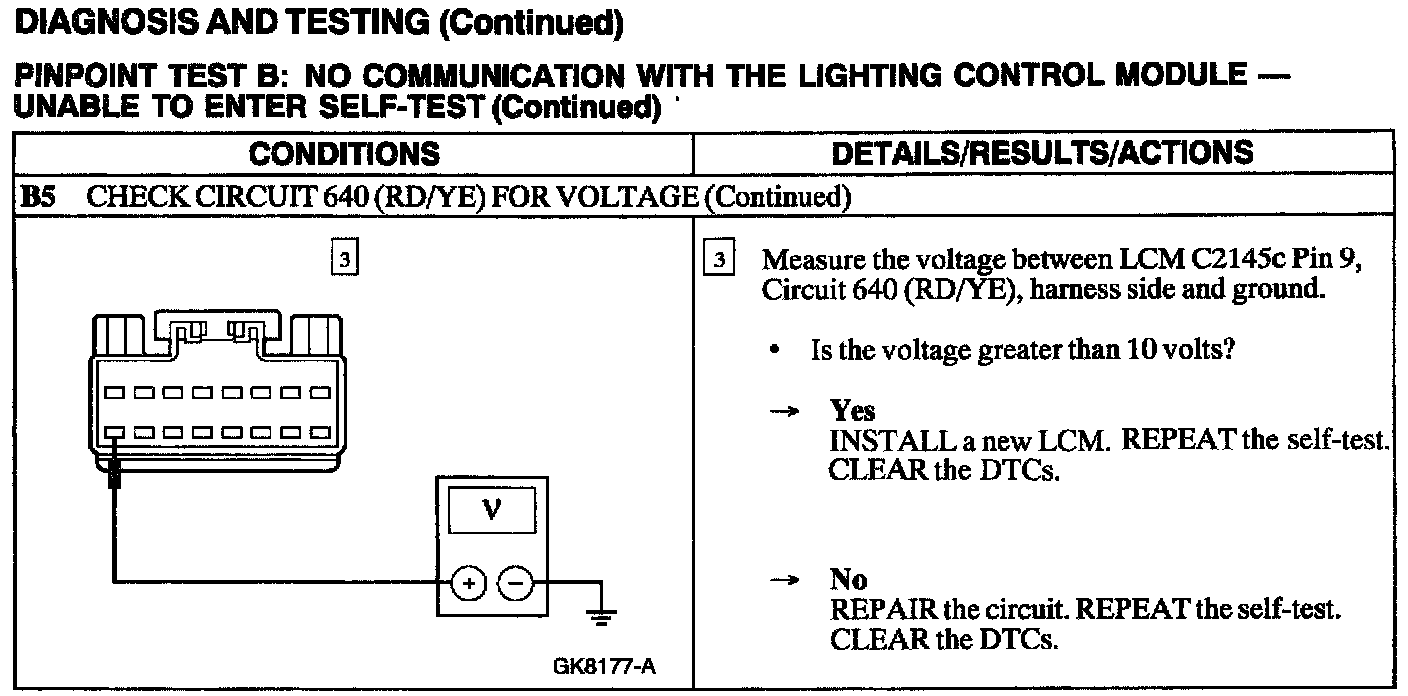

B5:
