FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
2002
>>
Grand Marquis V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Instrument Panel Illumination
>>

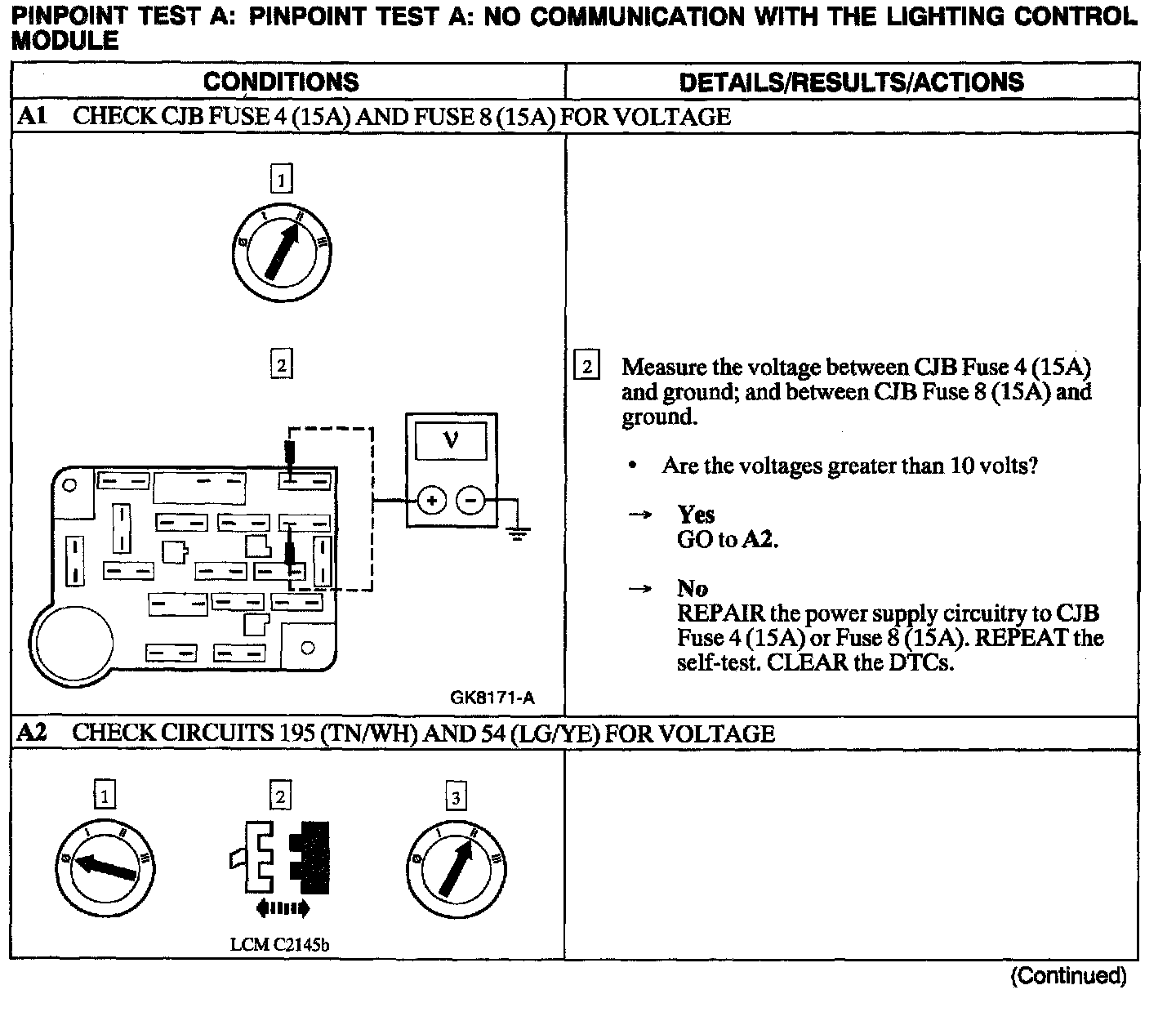

Test A: No Communication With The Lighting Control Module
Test A: No Communication With The Lighting Control Module
A1 - A2:

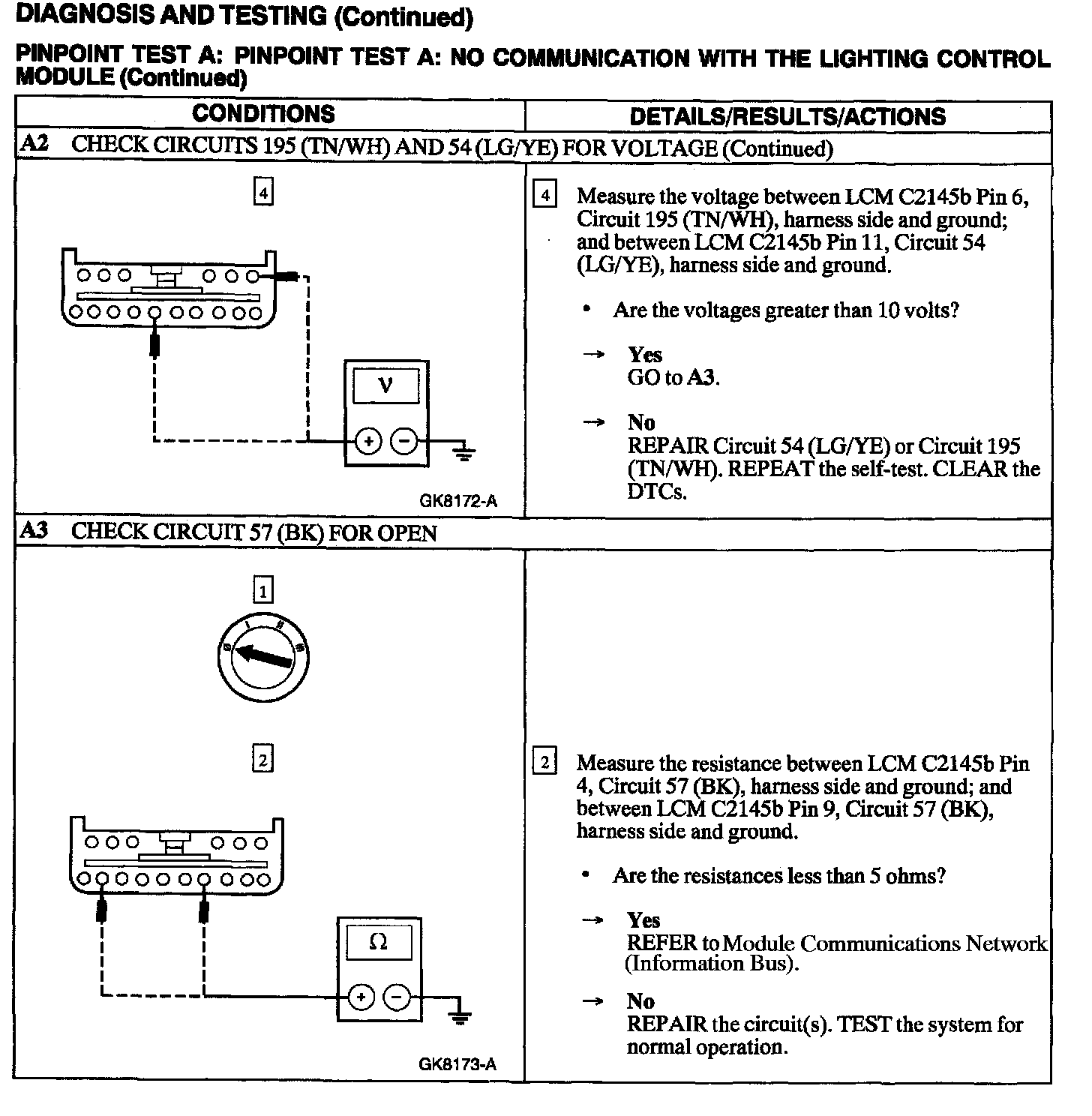

A2 - A3:
