Home >> Mercury >> 2002 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Information and Message Center

Pinpoint Tests - Information and Message Center

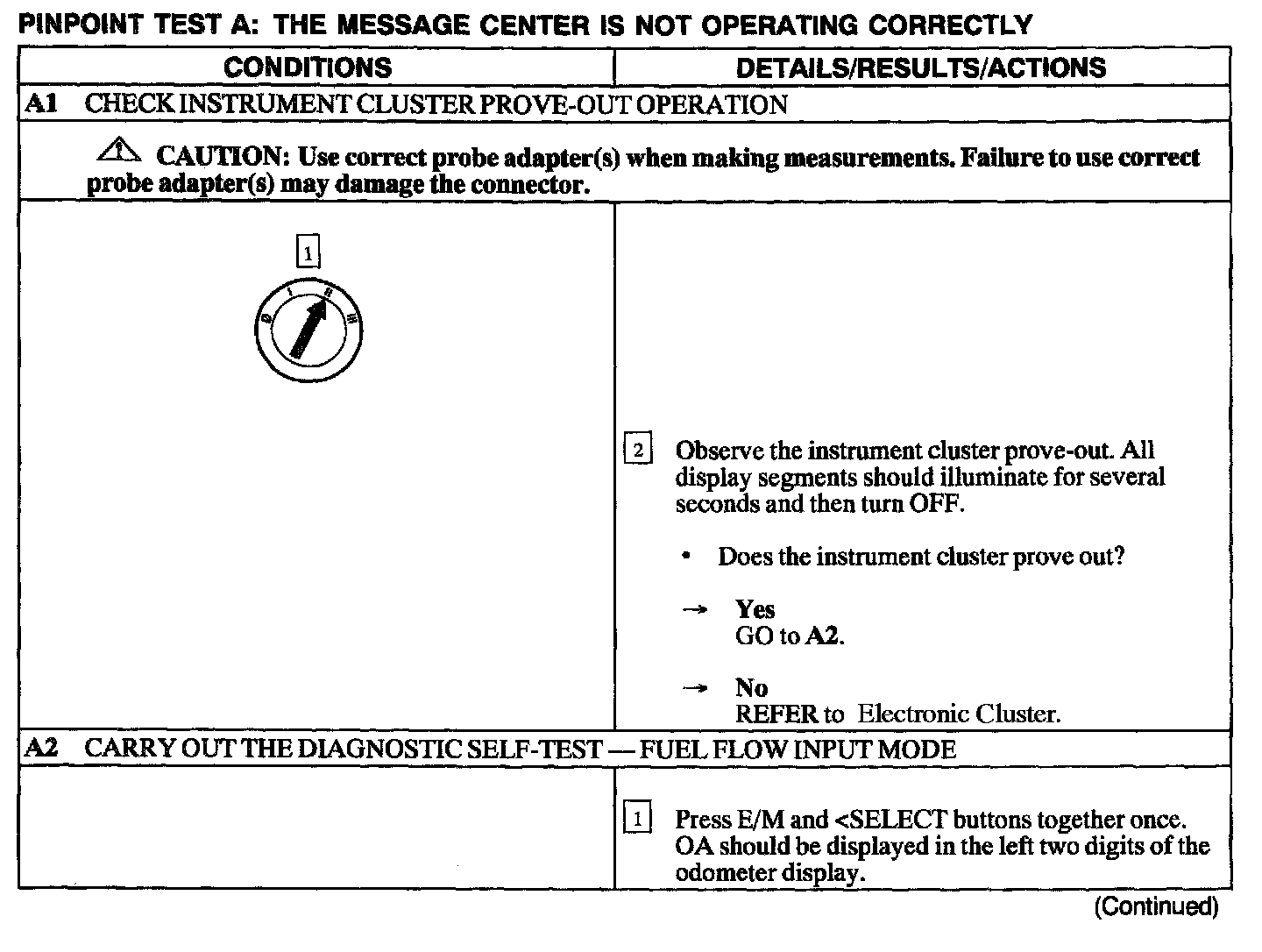

A1 - A2:

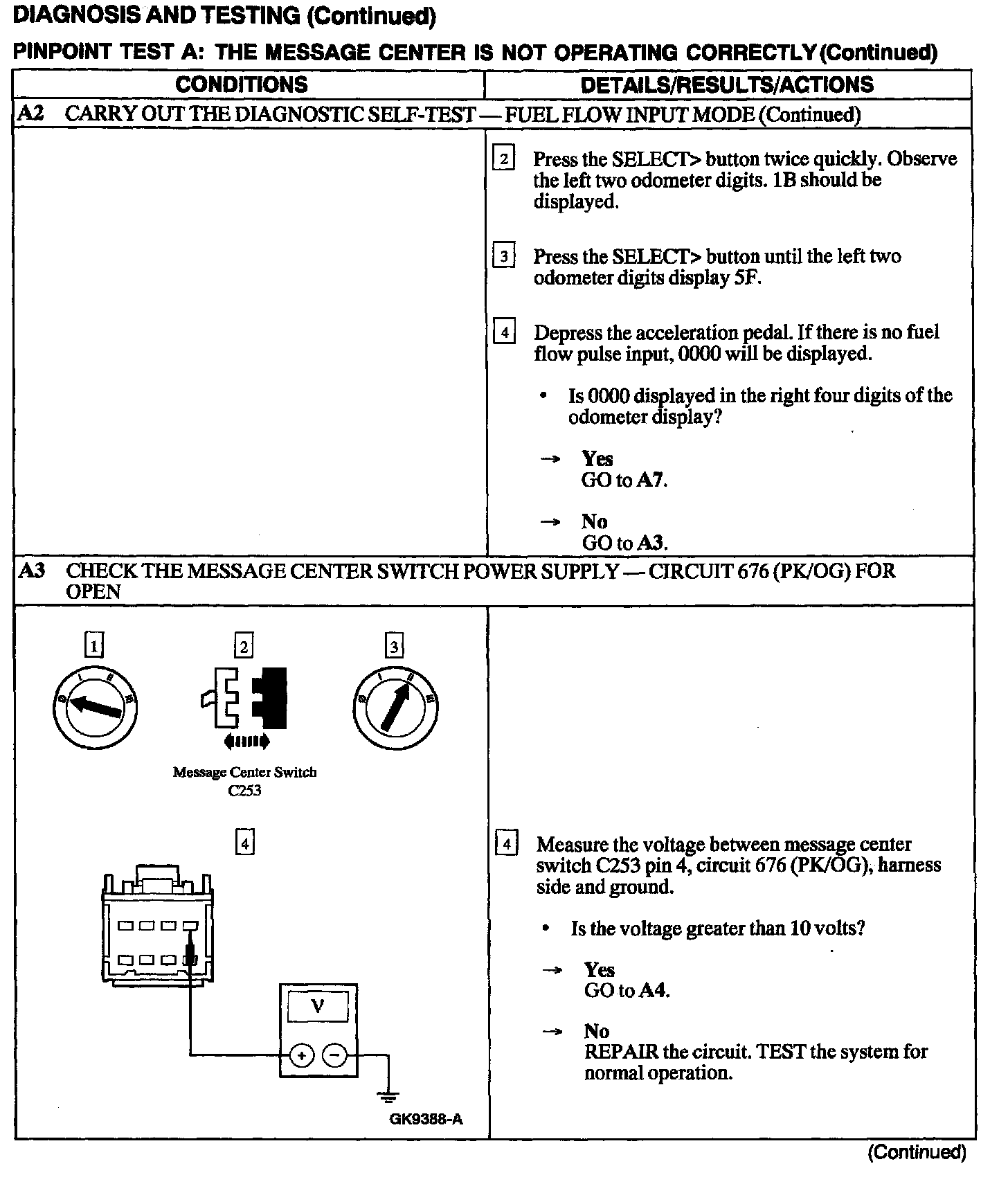

A2 - A3:

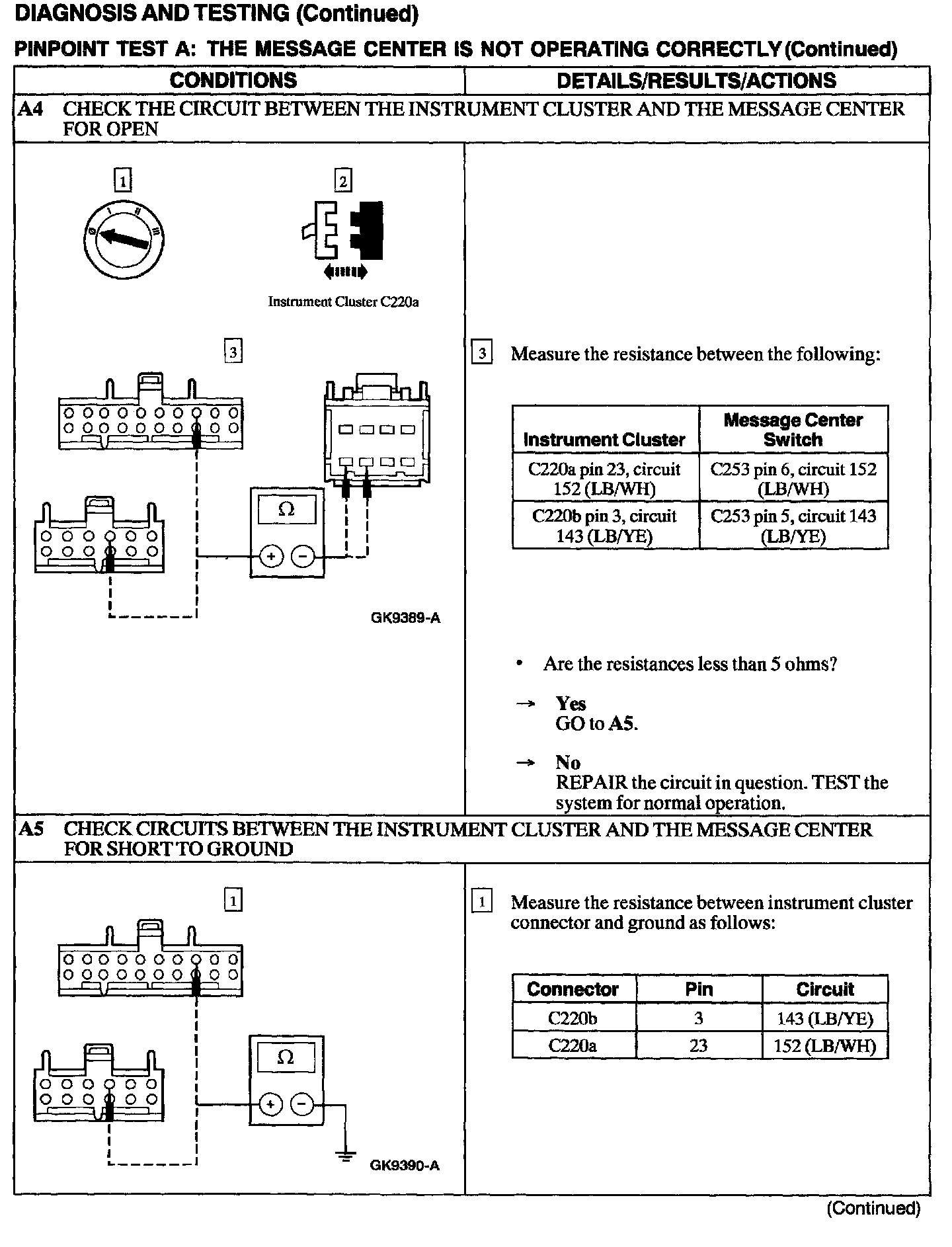

A4 - A5:

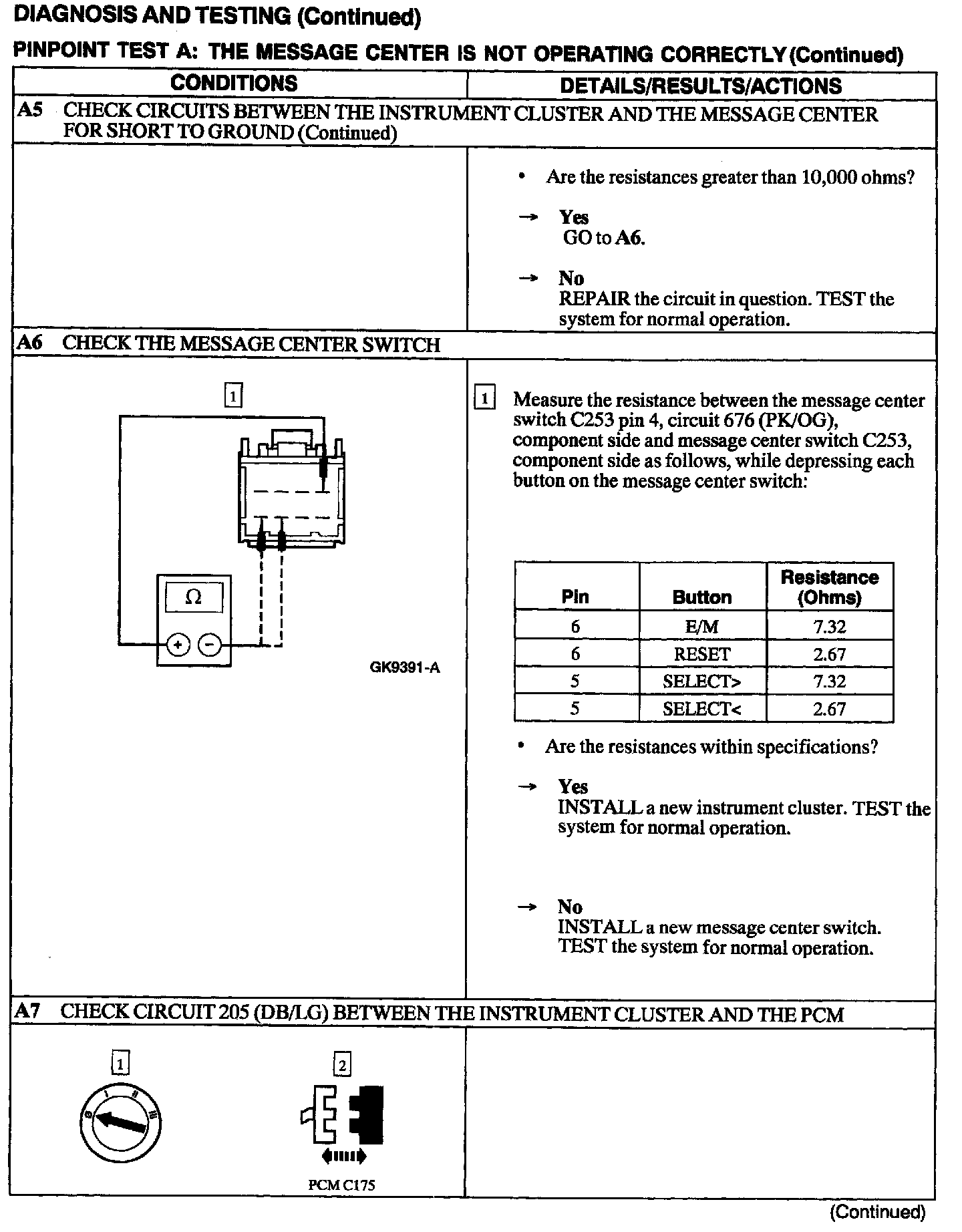

A5 - A7:

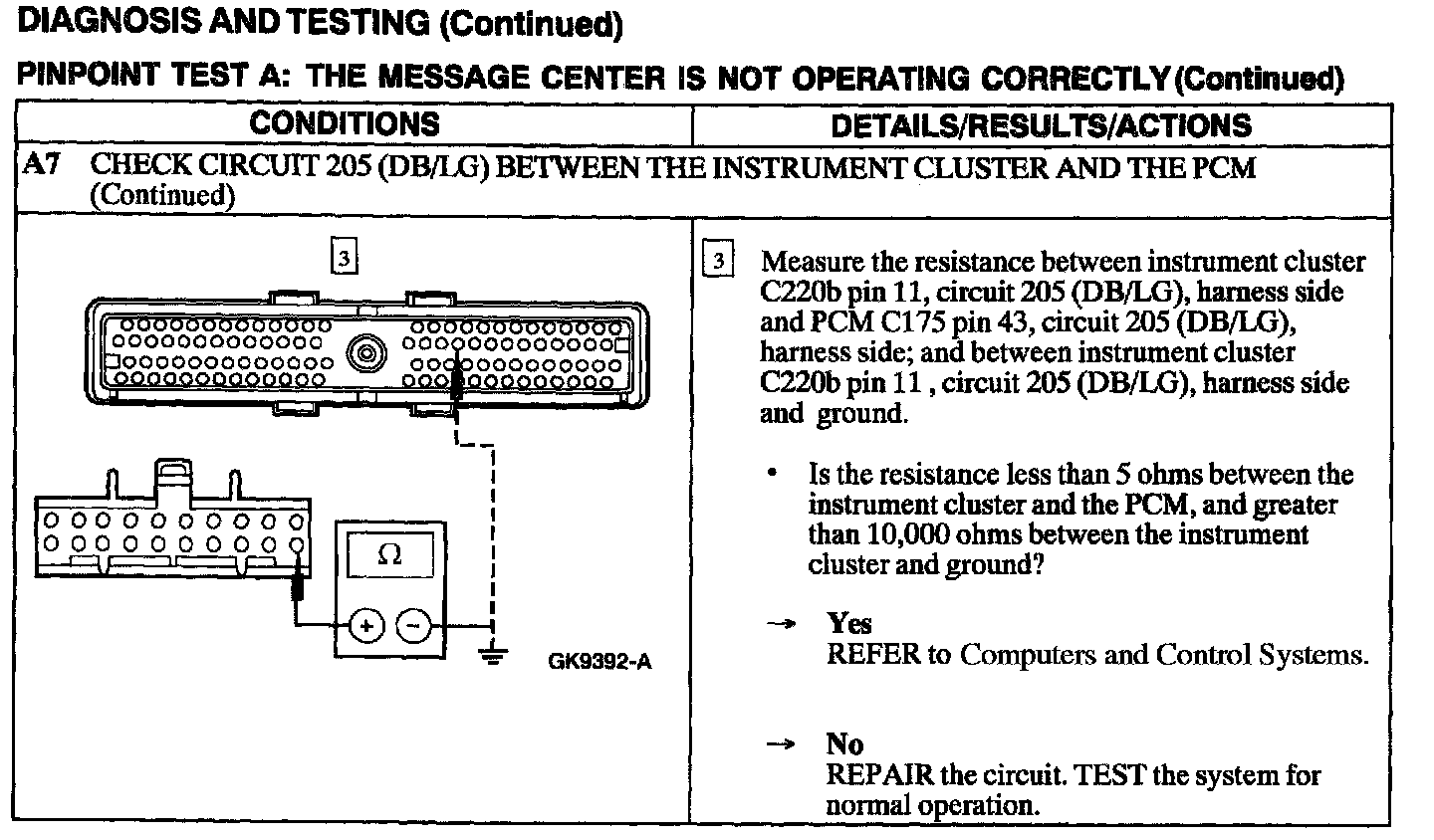

A7:
